Spartus 220p ACDC Custom RF 17-4 #1

SPARTUS PROTIG 220 AC/DC is a digitally controlled inverter welding machine based on IGBT transistors. It allows TIG AC/DC and MMA AC/DC welding with current up to 200A. The device is powered by a 230V one-phase network.

Thanks to the solutions used, the PROTIG 220P AC/DC also enables advanced TIG AC and TIG DC welding with a choice of arc ignition method: TIG HF (by radio frequency) and TIG Lift (by friction). The device is equipped with a pulse welding function, which makes the machine perfect for welding very thin sheets and aluminum.

The welding machine has an intuitive control panel that ensures fast navigation through the functions. For suitable welding processes, the adjustment range of the welding current is between 5-200A (AC) and 5-200A (DC). The TIG-AC welding mode with selectable output AC waveforms (square, sinusoidal, triangular), AC balance, AC frequency, pulse frequency, pulse width, and pulse amps adjustment, enables welding of the most demanding aluminium alloys.

It impresses with its small size, weight of only 10.5kg and excellent output performance. It is a device created both for the production sector and for service and assembly work.

The device has high efficiency:

• 60% at an ambient temperature of 25° C
• 40% at an ambient temperature of 40° C

The manufacturer gives the value of efficiency in the most extreme conditions and high ambient temperatures.

Easy to use digital function panel, provides instant access to all functions of the welder.

BENEFITS OF THE SPARTUS PROTIG 220 AC/DC:

IGBT TRANSISTORS offer a stronger, more concentrated, and more stable arc with lower energy consumption.

WELDING CURRENT 200A allows welding materials up to 10 mm.

AC DC CURRENT has versatile applications thanks to the ability to weld with both direct and alternating current.

AC WAVE SHAPE The device gives you a choice of AC waveforms. You can choose from rectangular wave, sine wave and triangular wave. Each waveform selected in the menu is responsible for the amount of heat introduced into the material during welding. Very useful functions for welding aluminum both thin and thick parts made of aluminum and its alloys.

AC WAVE WELDING OF ALUMINUM:

SIMPLE LCD PANEL each adjustable function is displayed graphically. Perfect solution for beginners.

2T-4T are welding modes that make it easier to work on short and long welding distances. The 2T mode is used for welding short distances, as the arc is switched off after disconnecting the micro switch. In 4T mode, we do not have to hold the micro switch constantly while welding, but only click a second time to turn off the arc automatically.

PRE-GAS allows faster arc ignition at the start, both at low and high values of welding current. An indispensable function for point joining of thin and thick elements. Gas flow time is adjustable from 0-2 sec.

POST-GAS allows faster cooling of the connection and the tungsten electrode. The gas flow time is adjustable from 0.1-10 sec.

TIG PULS MODE makes it possible to weld very thin materials of aluminum, steel, and stainless steel. The minimum pulse current is 5 A. The pulse control range is from 0.5 - 250Hz.

HOW THE TIG PULS FUNCTION WORKS:

DINSE STANDARD allows the use of different TIG handles. We can use handles with a length of up to 24 m.

AC BALANCE wide range of 10-99 is responsible for the cleanliness of welds in aluminum welding. The function is responsible for the heat input into the material and the cleaning of oxides on the aluminum surface.

AC FREQUENCY is adjustable in the range of 50-250Hz. The function is responsible for narrowing the arc and faster penetration of the welded material.

MULTI-CONTROL in the device we can use handles with UP&DOWN adjustment and foot control with smooth regulation of the welding current. The foot control can be wired or wireless.

WIFI CONTROL we can control the device wirelessly with a remote control or foot control.

MEMORY CHANNELS in the device we can save 9 channels with welder settings.

HOT START is a momentary increase of the welding current at the moment when the arc is struck. This prevents the electrode from sticking in the initial phase of welding. This feature allows a faster invasion of the arc with rutile and base electrodes.

ARC FORCE dynamics shorten the arc length while increasing the welding current, which prevents arc extinction when the electrode comes into contact with the welding material. This function facilitates learning MMA welding.

TIGLIFT enables the welding of steel in places where HF welding is impossible.

PRESENTATION OF PIPE WELDING:

WITH THIS MACHINE WE CAN WELD:

• Carbon steel up to 8 mm
• Stainless steel up to 8 mm
• Aluminum up to 10 mm
• Braze-weld with a pulse with a CUSI3-CUSN wire
• Titanium up to 6 mm
• Duplex up to 6 mm
• Superduplex up to 6 mm
• MMA - electrodes with a diameter of 4 mm
• TIGLIFT carbon steel up to 6 mm

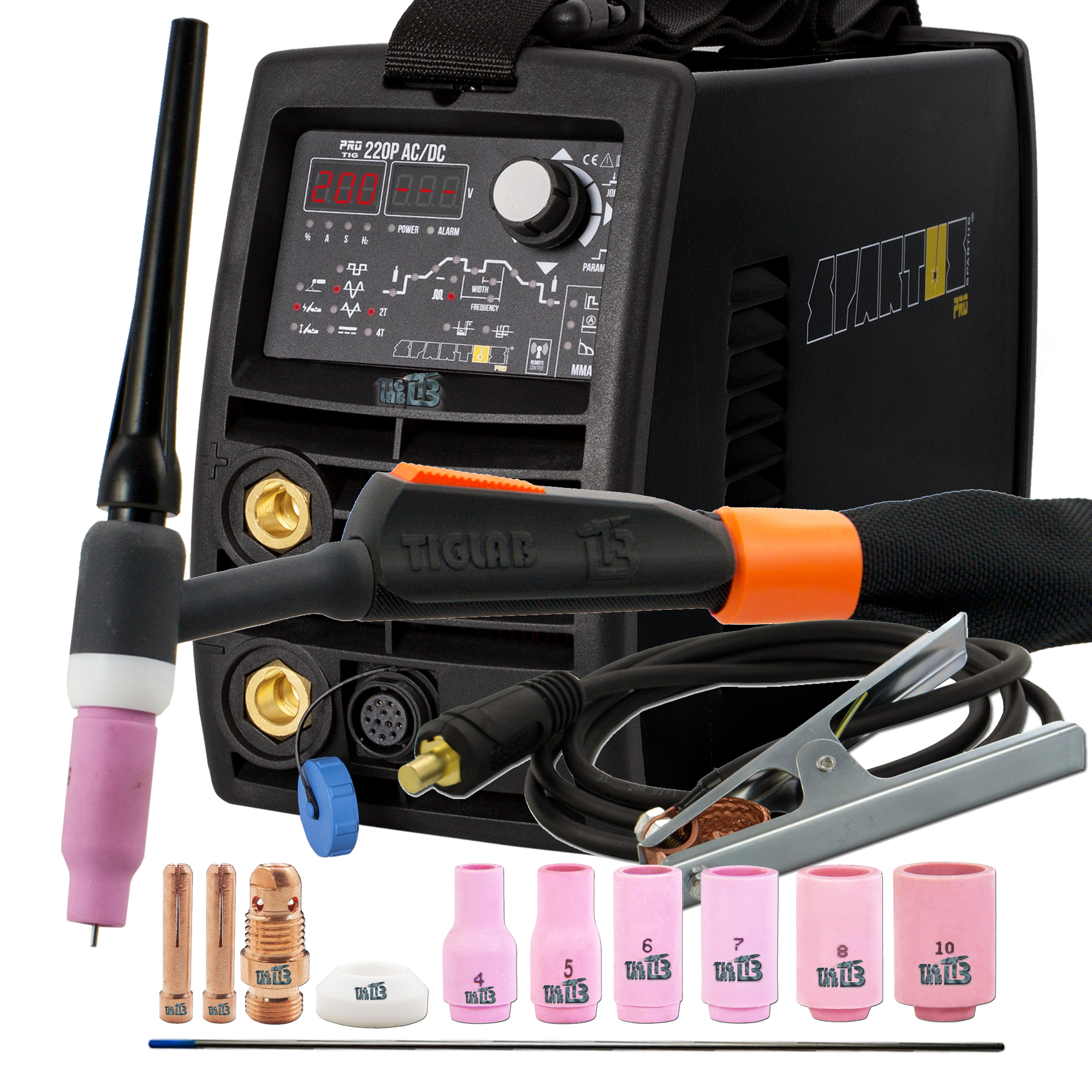

SET CONTAINS:

MACHINE EQUIPMENT:

• SPARTUS PROTIG 220P AC DC

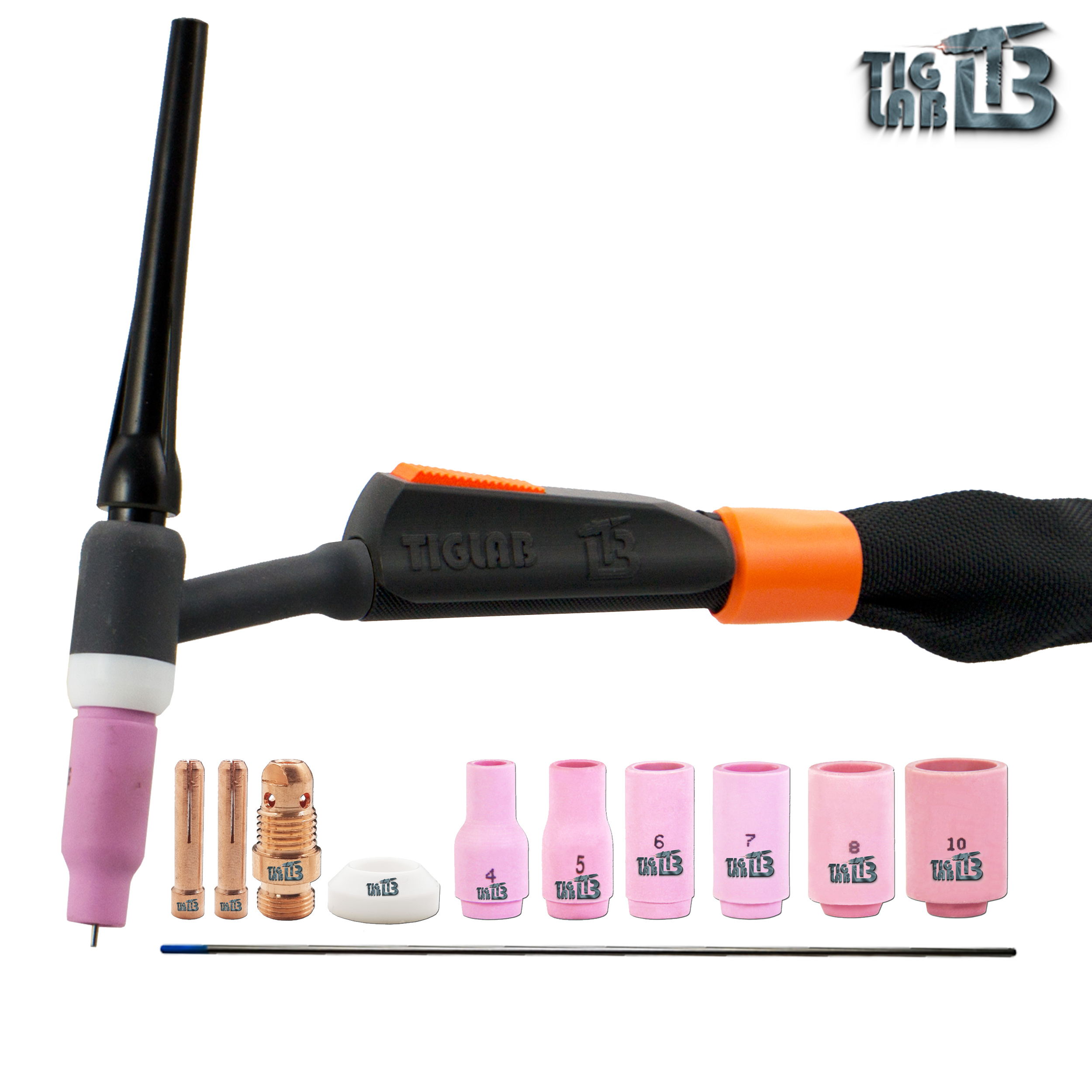

• Welding torch TIG CUSTOM GRIP RF 17/4 m
• Mass hose 3 m
• Gas hose - 1 pc

TIG PARTS:

• Tig Collets for KR Collet Body - 2 pcs
• Ceramic nozzles 9 STD - 6 pcs
• KR Collet Body - 1 pc
• KR Collet Body Insulator - 1 pc
• STD Insulator - 1 pc
• TIG Back Cap - 1 pc
• STD Collet Body - 1 pc
• STD Tig Collets - 1 pc
• Tungsten electrodes - 2 pcs

If you need to add something to the set, call us and we will configure the set according to your preferences.

MANUFACTURER'S WARRANTY SPARTUS DOOR TO DOOR

SPARTUS products purchased in our store are brand new and have a manufacturer's warranty. The warranty card is filled in on the day of purchase and it is consistent with the numbers on the receipt. We provide warranty and post-warranty service for SPARTUS devices. If you buy SPARTUS products from us, you have a guarantee of support in the event of a failure and support during the first start-up of the machine. In the event of a fault, the courier picks up the damaged equipment from the location indicated in the service form and after repairing, delivers the equipment free of defects. Transport to the service is covered by the SPARTUS company.
