Spartus tig 220P ac dc alu inox 26 #1

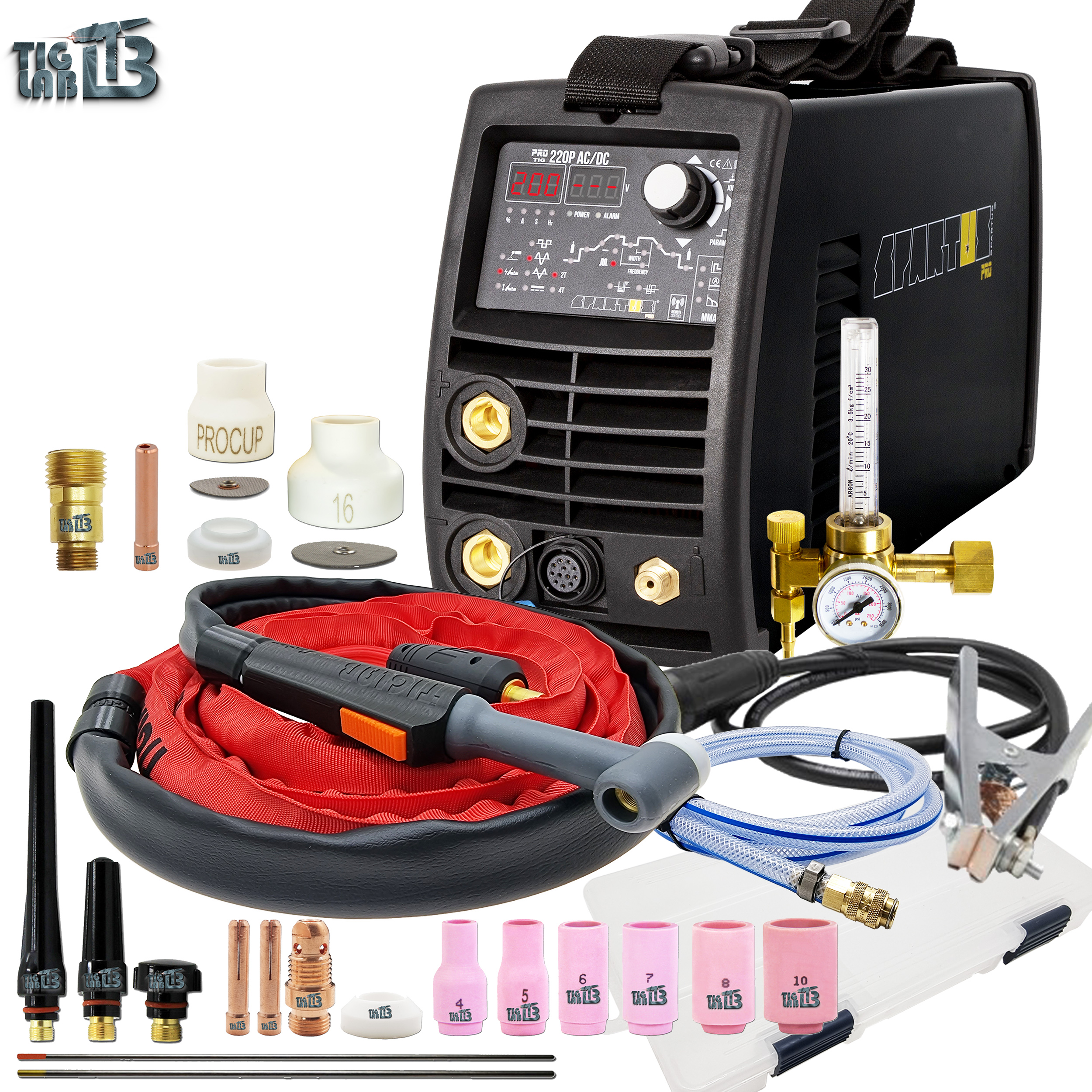

SPARTUS TIG 220P AC/DC. A modern, digitally controlled inverter welder built with IGBT transistors. It allows for welding using TIG AC/DC and MMA AC/DC methods. Powered by a single-phase 230V network. The welding current adjustment range is 5-200A (AC) and 5-200A (DC). It enables TIG Pulse welding, making it an ideal device for welding stainless and acid-resistant steels. The TIG AC mode, with selectable AC waveforms, balance, and frequency, allows for joining even the most demanding aluminum alloys. It impresses with its compact size, weighing only 10.5 kg, and excellent output parameters. This device is designed for both the production sector as well as service and assembly work.

The device features high efficiency:

• 60% at an ambient temperature of 25°C
• 35% at an ambient temperature of 40°C

The manufacturer provides efficiency values for the most extreme conditions and high ambient temperatures.

An easy-to-use digital function panel provides instant access to all welding functions.

If you are looking for a reliable and simple TIG device for welding aluminum and stainless steel, you've come to the right place. We invite you to read the detailed description and watch the videos showcasing this machine's performance. Please note the compact dimensions and the ability to weld both thin and thick materials. The device is extremely intuitive to use, and welding demanding materials is no longer a problem.

The set includes the TIG EXPERT GRIP SF 26 torch, specifically designed for aluminum welding with a high duty cycle. During aluminum welding, torches heat up significantly, which usually limits working time at high currents. With the TIG CUSTOM GRIP torch, work is more efficient, and the duty cycle reaches 90%—a level unheard of in any other TIG torch. Its advantages include ergonomics, low weight, compact size, and a super-flexible, high-temperature-resistant cable. It is a unique product made specifically for aluminum welders.

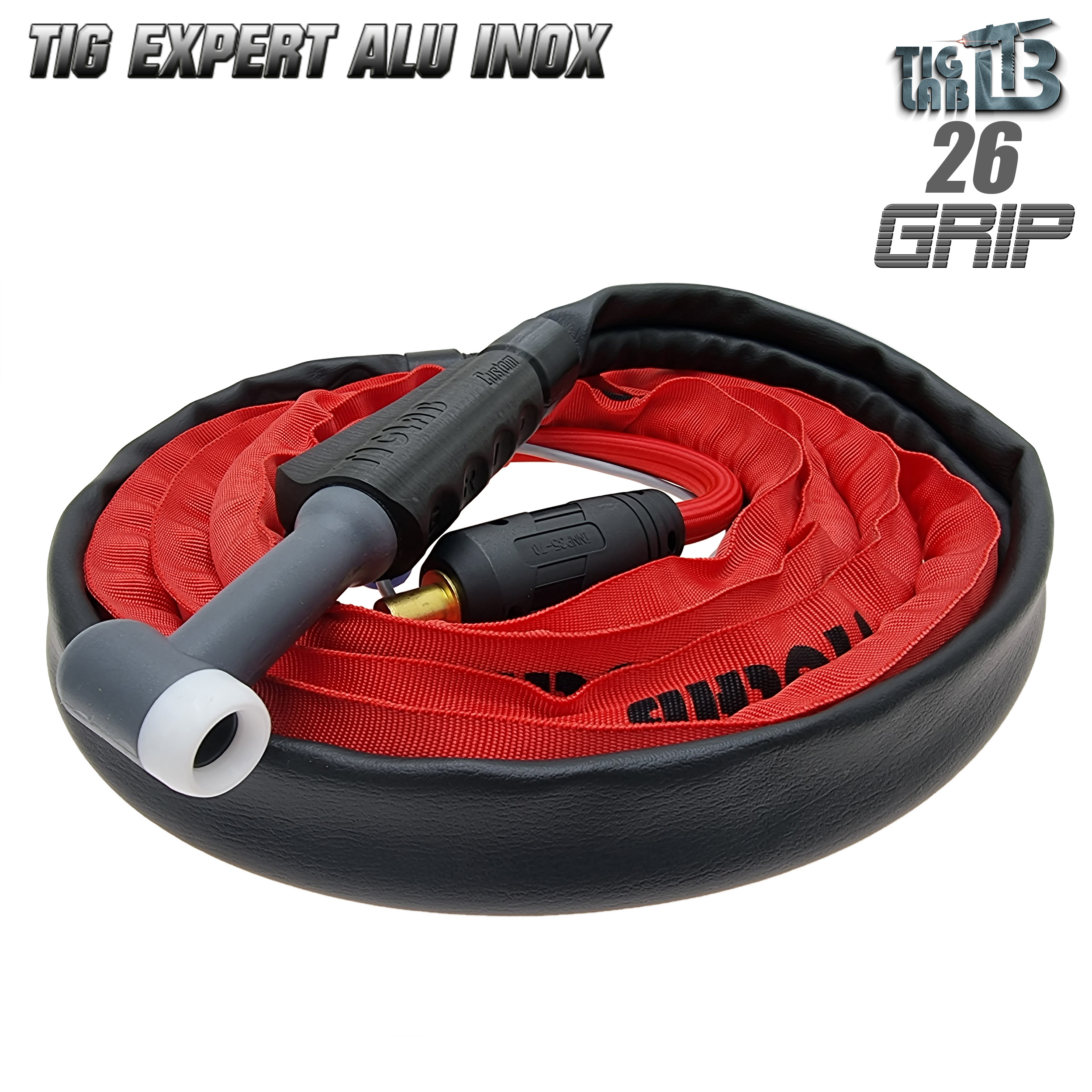

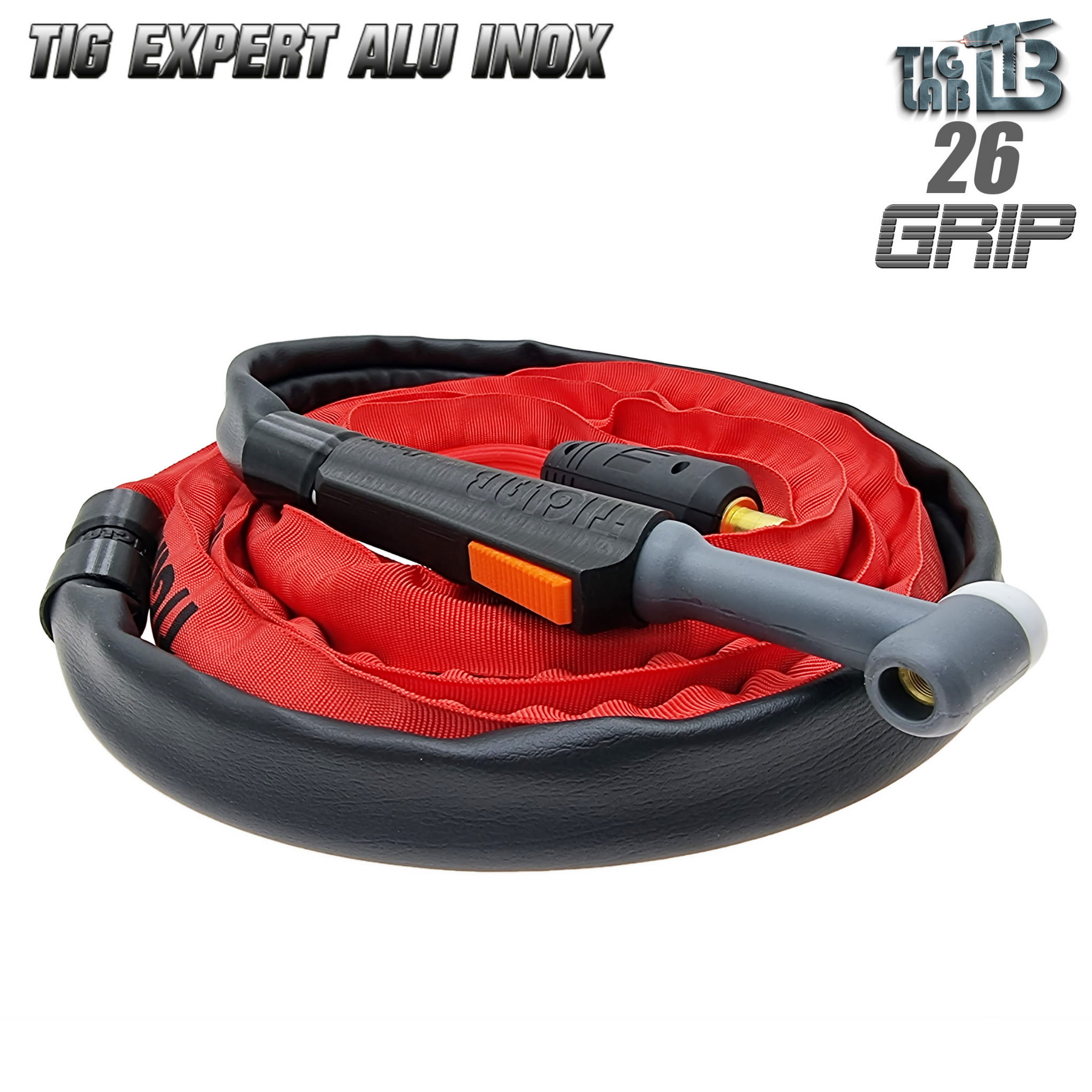

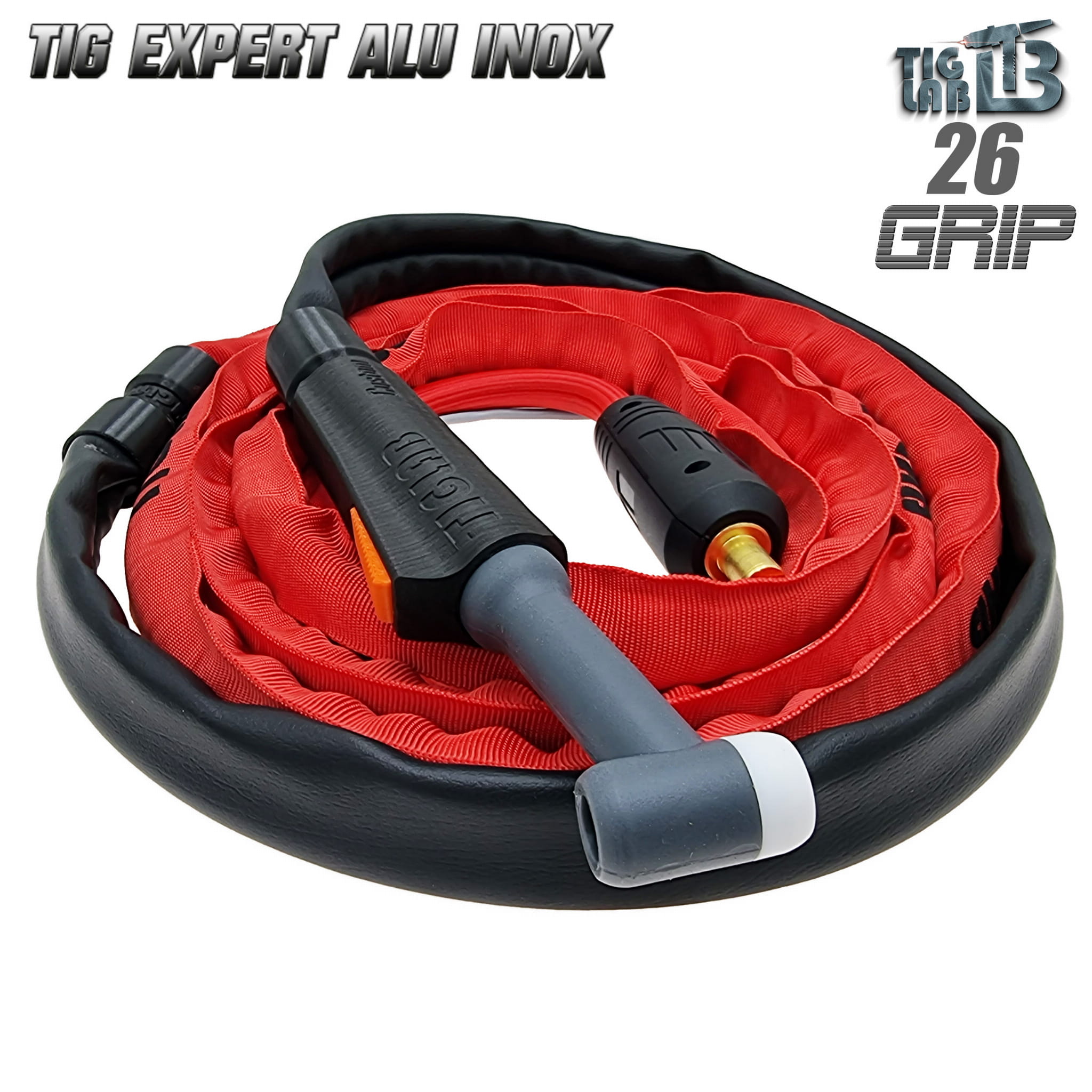

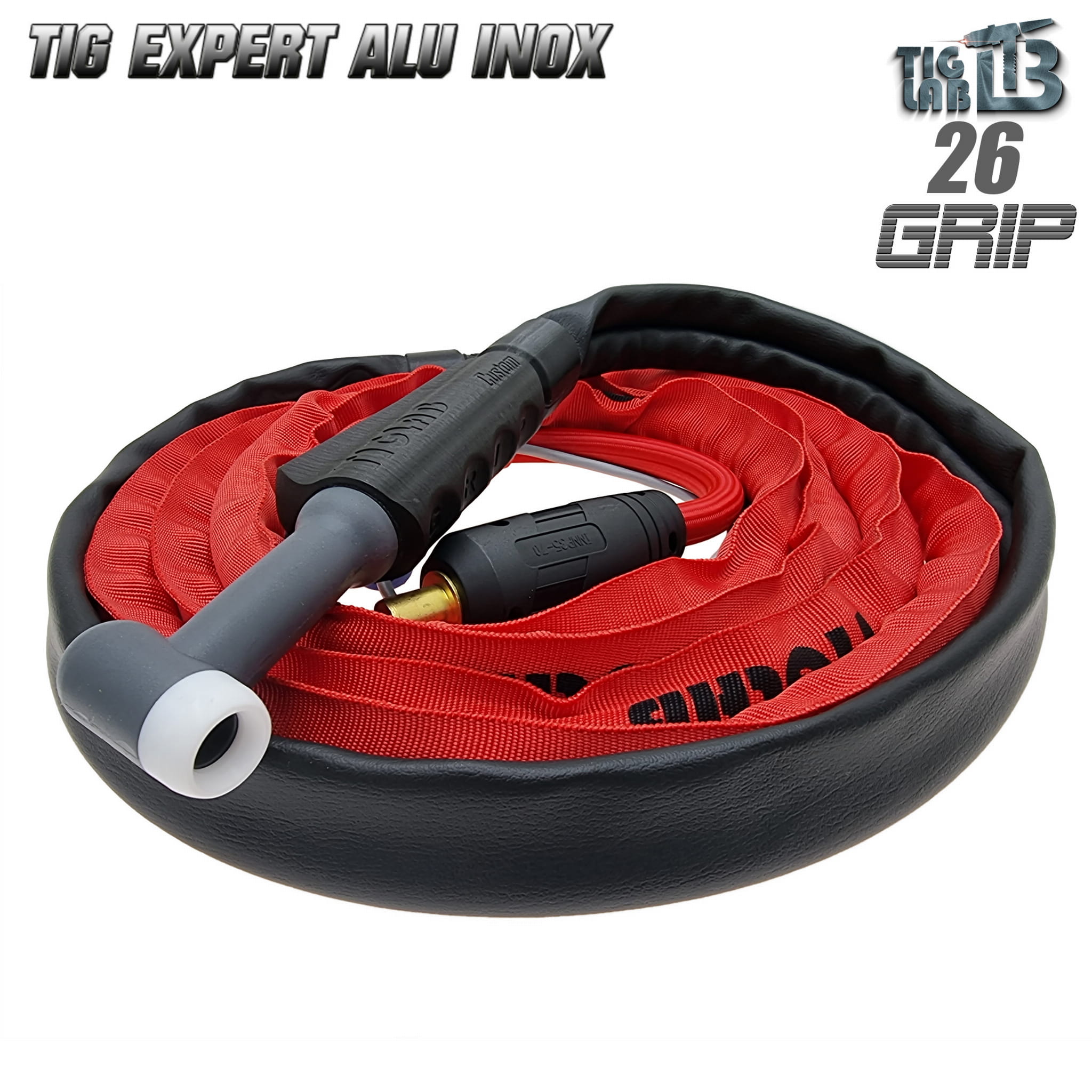

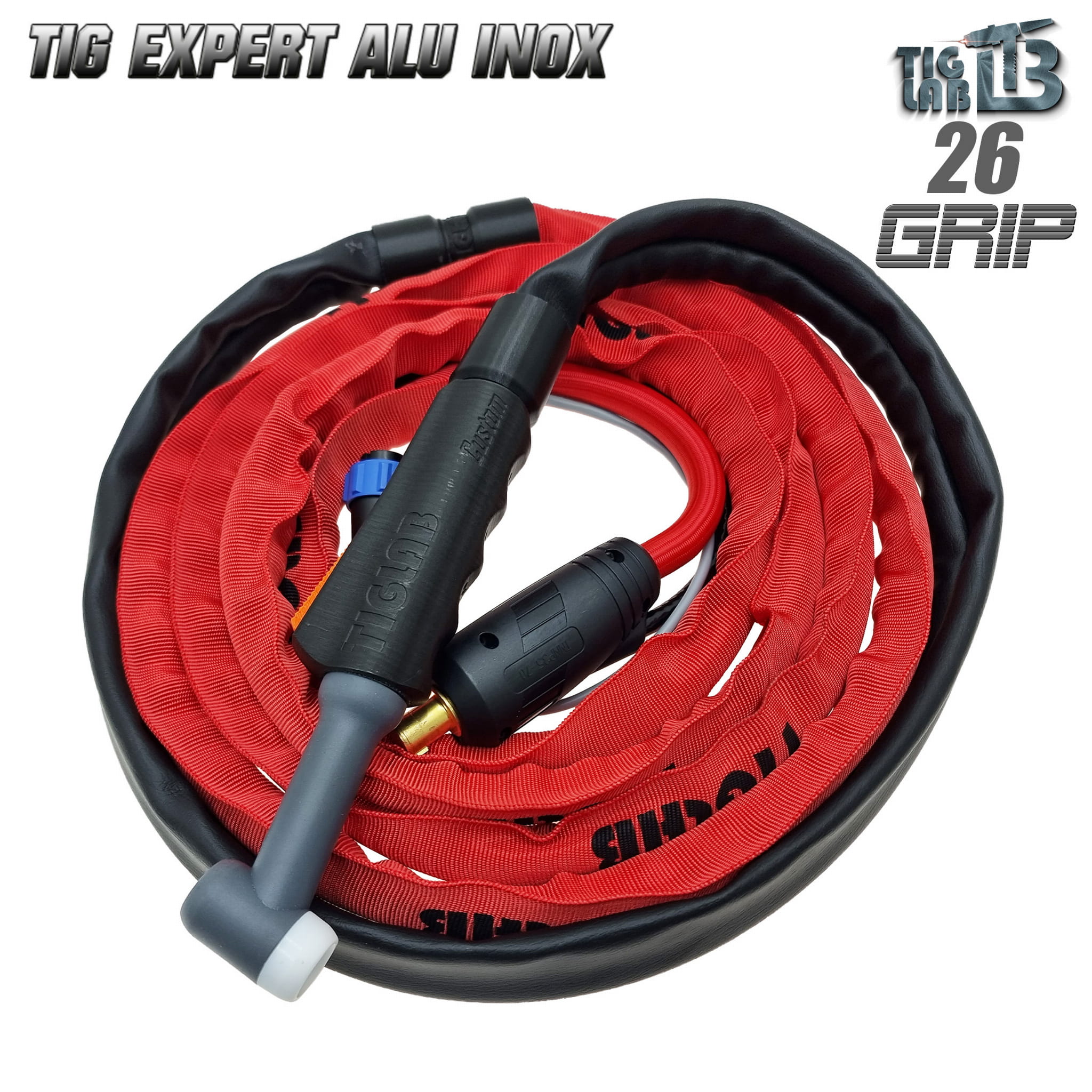

The TIG EXPERT GRIP 26 - 4m (XU version) is a lightweight and universal torch for precision welding, designed according to the requirements of pipe welders who value ergonomics and quality. A precise micro-switch allows for comfortable work during "walking the cup" and aluminum welding techniques. The high-efficiency S-Flex cable ensures long-term operation, and the combination of leather and textile cover provides lightness and precision. The torch body allows for comfortable welding at 200A.

Aluminum welding with AC waveforms:

SIMPLE PANEL: Every adjustable function is highlighted by an LED. An ideal solution for beginners.

2T-4T: Welding modes that facilitate work on short and long welds.

PRE-GAS / POST-GAS: Adjustable gas flow before (0-2s) and after (0-10s) welding for better arc ignition and joint cooling.

PULSE: Enables welding very thin materials with a minimum current of 5A. Frequency range: 0.5 - 200Hz.

MEMORY CHANNELS: Save up to 9 custom setting programs.

WIFI CONTROL: Wireless control capability via remote or foot pedal.

Pipe welding presentation:

WELDABLE MATERIALS:

• Carbon Steel / Stainless Steel: up to 8 mm
• Aluminum: up to 10 mm
• Titanium / Duplex: up to 6 mm
• MMA: electrodes up to 4 mm

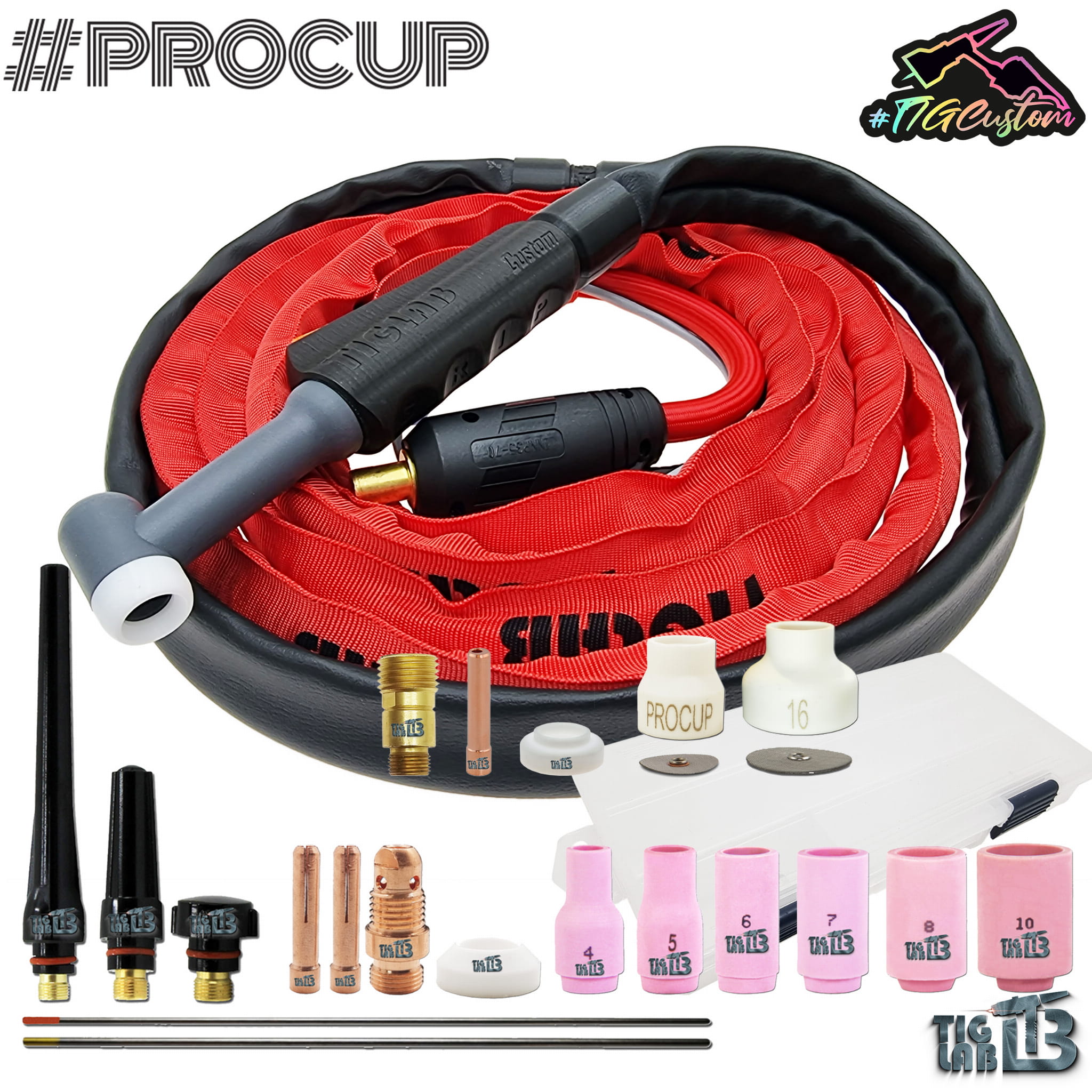

PROCUP #10 - #16 are specialized ceramic nozzles for welding pipes and sheets that require perfect gas shielding. Special 3D mesh diffusers perfectly cover the welding area with gas and ensure optimal cooling.

Need to add something to the set? Call us, and we will configure it to your preferences.

SPARTUS DOOR-TO-DOOR WARRANTY

Products purchased from our store are brand new and covered by a manufacturer's warranty. We provide full warranty and post-warranty service. With the Door-to-Door system, if a failure occurs, the courier picks up the equipment and delivers it back repaired at the manufacturer's expense.
