Spartus tig 208p ac dc alu inox #1

SPARTUS TIG 208P AC DC is a set designed for welding exhaust systems made of stainless steel, duplex, titanium, and aluminum. Carefully selected accessories and the TIG CUSTOM GRIP 17 torch enable long and comfortable work. The TIG welding torch features an SR17 body, allowing welding with a maximum current of 180A at a 60% duty cycle and 200A at a 40% duty cycle. This solution enables the welding of thicker pipes and sheets. The GRIP handle perfectly insulates high temperatures and ensures long operation time when welding stainless steel and aluminum. The ergonomics of the torch will be appreciated by both professional welders and those starting their adventure with TIG welding.

SPARTUS TIG 208P AC DC is a digitally controlled inverter welder built based on IGBT transistors. It allows welding using TIG AC 200A - TIG DC 170A and MMA AC/DC with 170A current. It is powered by a single-phase 230V network. The pulse function allows for joining very thin materials in aluminum, steel, stainless steel, and many other materials. The welder has an intuitive control panel that ensures quick navigation through functions.

The device has high efficiency:

• 60% at an ambient temperature of 25°C
• 35% at an ambient temperature of 40°C

The manufacturer provides efficiency values under the most extreme conditions and high temperatures.

SPARTUS TIG 208P ACDC WELDING ALUMINUM, STEEL, AND STAINLESS STEEL.

SPARTUS TIG 208P ACDC ALUMINUM WELDING.

SPARTUS TIG 208P ACDC WELDING AIR CONDITIONING TUBES.

SPARTUS TIG 208P ACDC MANIFOLD WELDING.

SPARTUS TIG 208P ACDC PULSE FUNCTION TEST.

SPARTUS TIG 208P ACDC ALUMINUM WELDING.

SPARTUS TIG 208P ACDC PIPE WELDING.

IGBT TRANSISTORS offer a stronger, more concentrated, and stable arc while consuming less energy.

200A WELDING CURRENT allows welding of materials up to 10 mm.

AC DC CURRENT versatile application thanks to the possibility of welding with direct and alternating current.

SIMPLE PANEL every selected function is backlit. An ideal solution for beginners.

2T-4T are welding modes that facilitate welding on short and long sections. 2T mode is used for short sections because the arc extinguishes in a set time after releasing the microswitch; in 4T mode, we don't have to hold the microswitch constantly during welding, just click it a second time for the arc to extinguish automatically.

PRE-GAS allows for faster arc ignition at the start on both low and high welding current values. An essential function for spot joining thin and thick elements. Pre-gas flow time adjustable from 0-2 s.

POST-GAS allows for faster cooling of the joint and the tungsten electrode. Post-gas flow time can be adjusted from 0-10 s.

PULSE gives the possibility of welding very thin materials of aluminum, steel, and stainless steel. Minimum pulse current is 10A. Pulse adjustment range from 0.5 - 200Hz.

AC BALANCE a wide range of 10-99 is responsible for the cleanliness of welds in aluminum welding. The function is responsible for the amount of heat input into the material and cleaning of oxides on the aluminum surface.

MULTI CONTROL in the device we can use torches with UP&DOWN regulation and foot control with smooth adjustment of the welding current intensity.

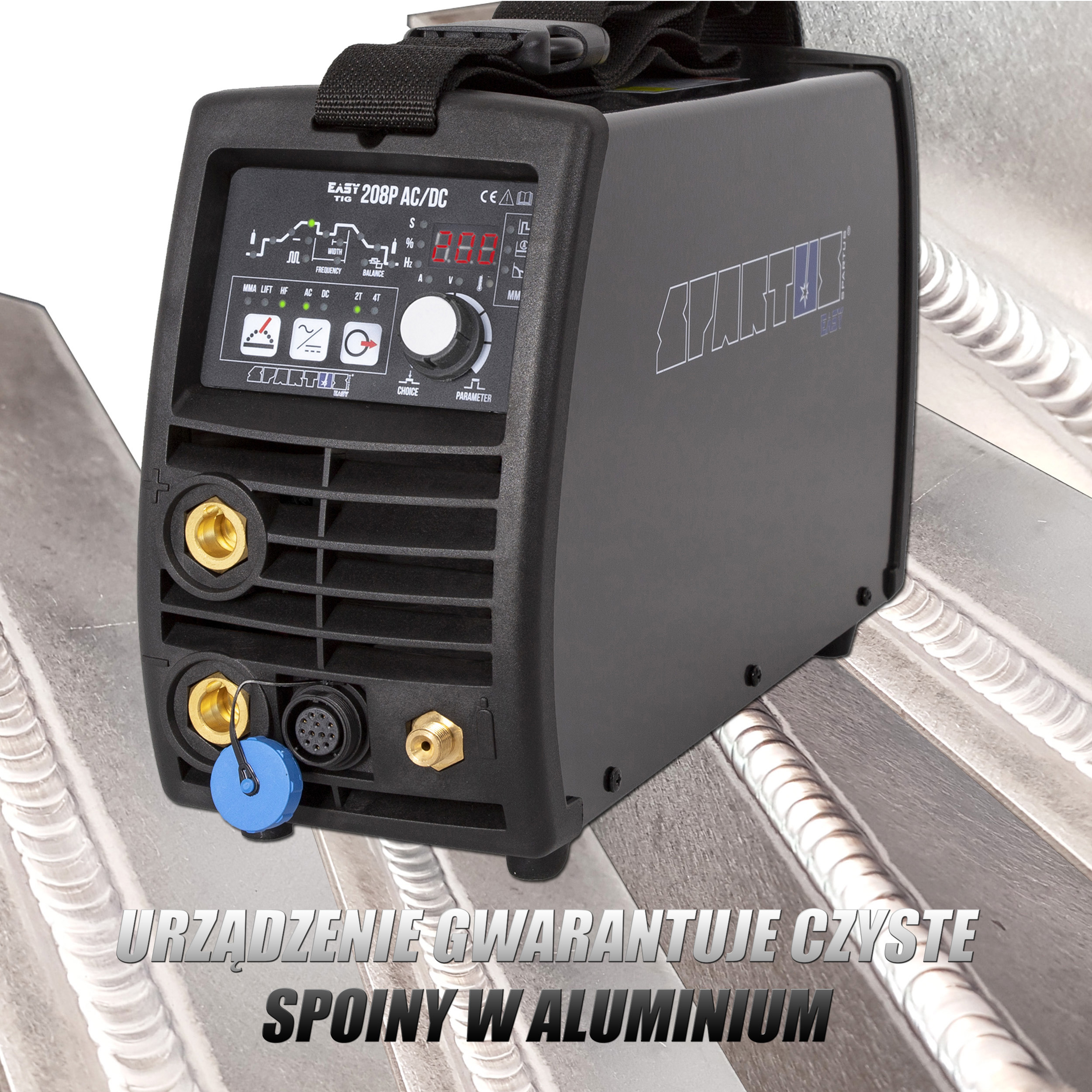

The device guarantees clean welds in aluminum:

The SPARTUS TIG 208P AC DC welder is a model known on the Polish market for several years and is still a valued model in the industry. Many companies in the welding industry own this TIG welder model. The greatest advantages of the welder are:

• Powerful HF - precise operation at both low and high welding currents.
• Reliable control panel and precise encoder.
• Pulse with a wide adjustment range.
• Welding with smooth current adjustment using foot control or up&down control.

WITH THIS DEVICE WE CAN WELD:

• Carbon steel up to 8 mm.
• Stainless steel up to 7 mm
• Aluminum up to 10 mm
• Brazing with pulse using CUSI3-CUSN wire
• Titanium up to 6 mm
• Duplex up to 6 mm
• Super duplex up to 6 mm

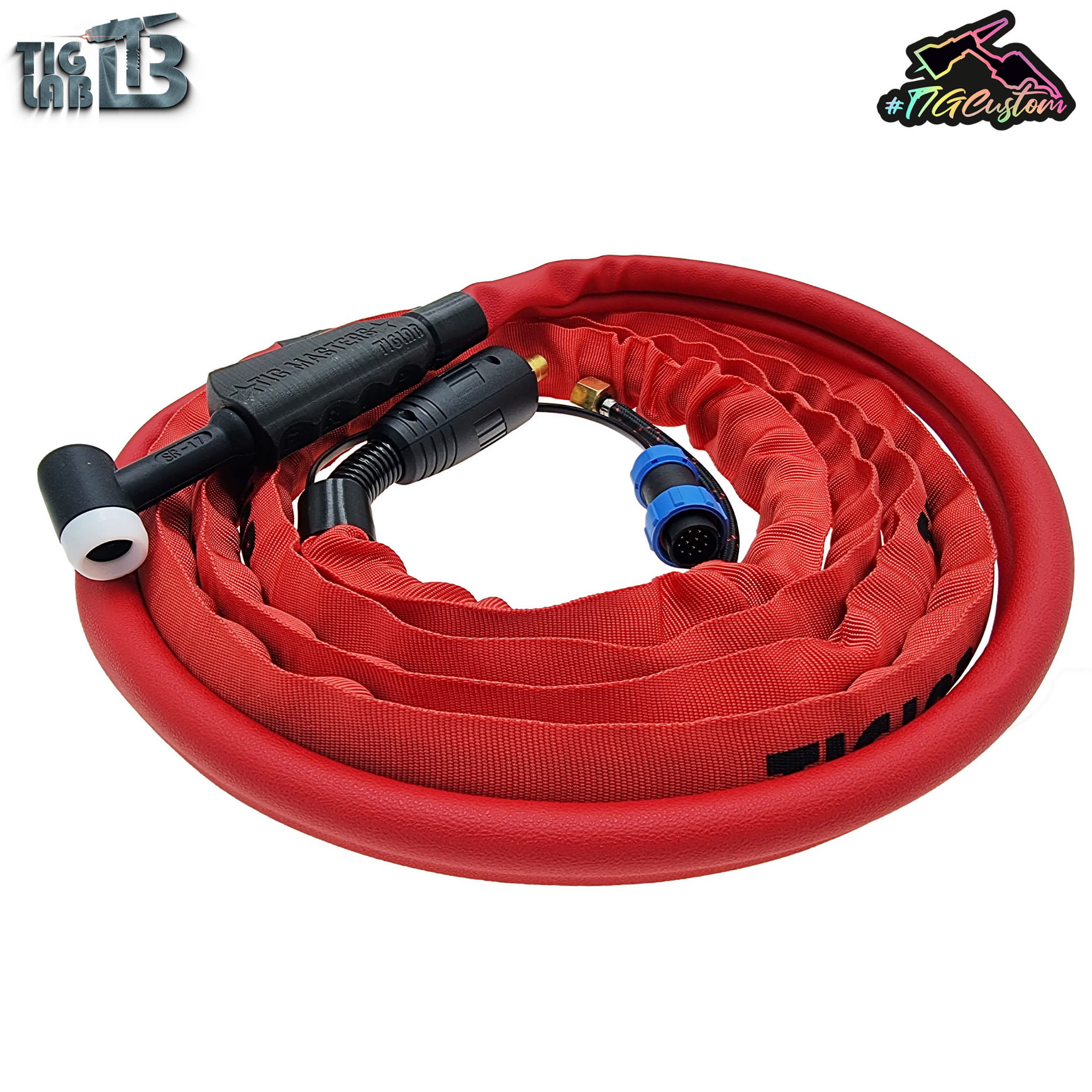

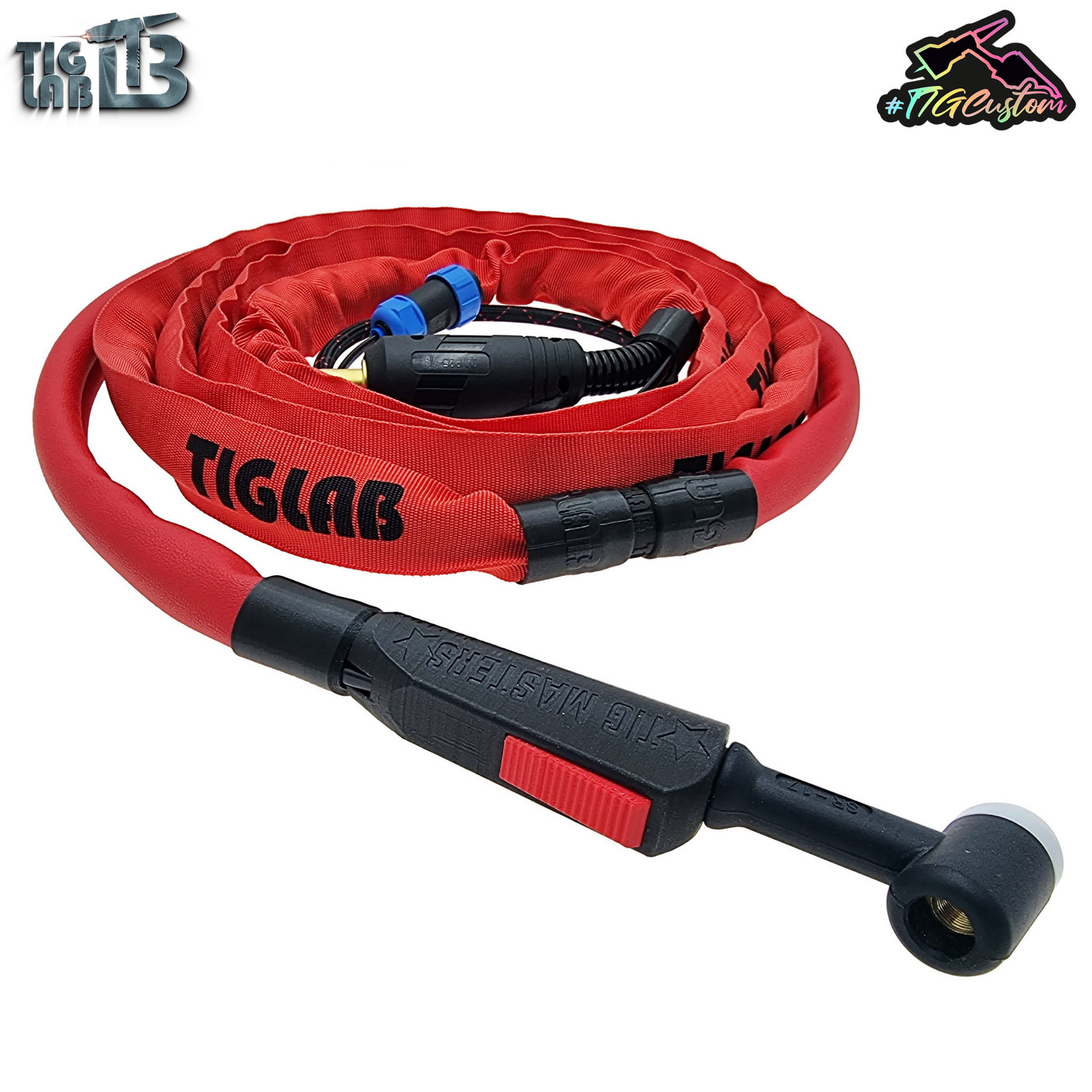

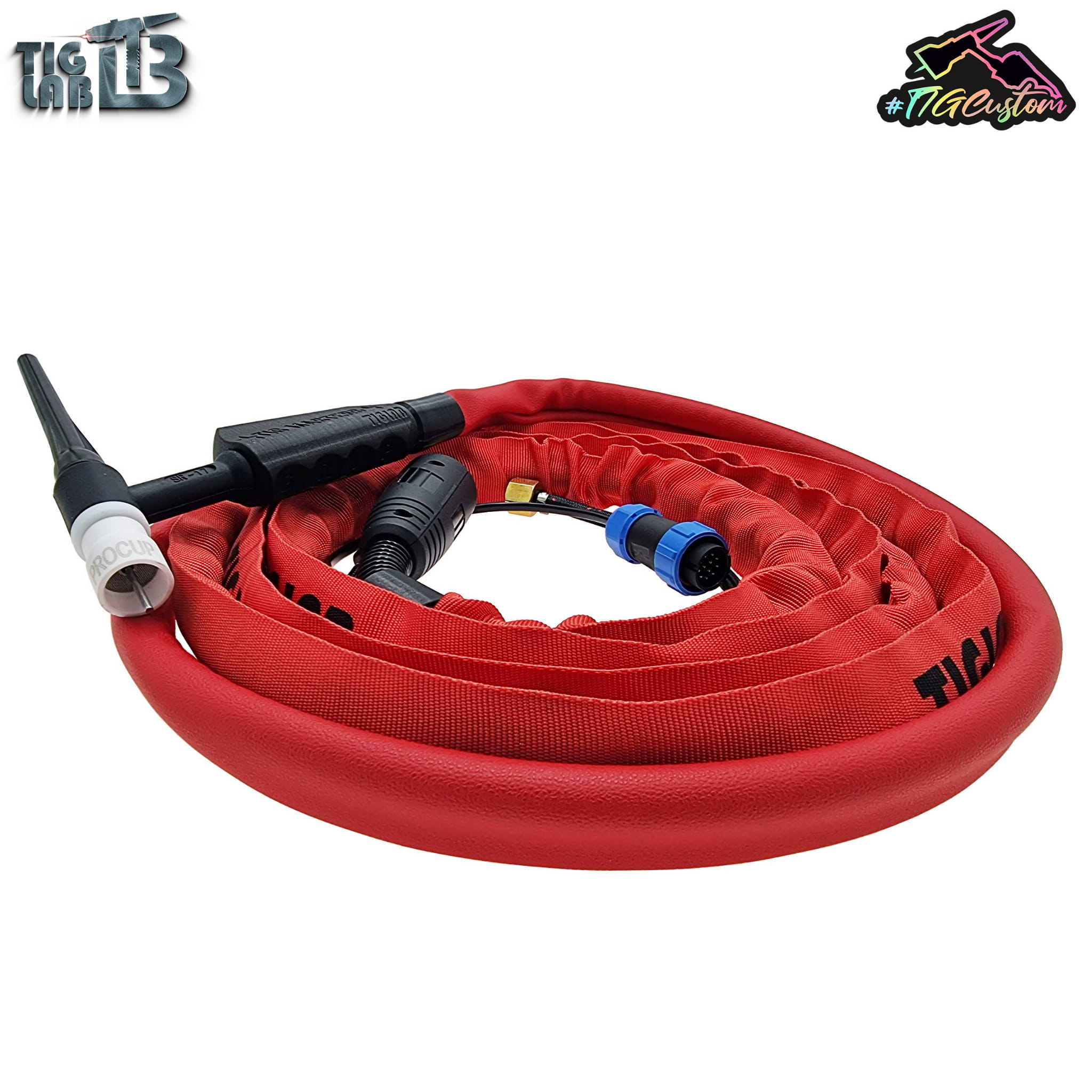

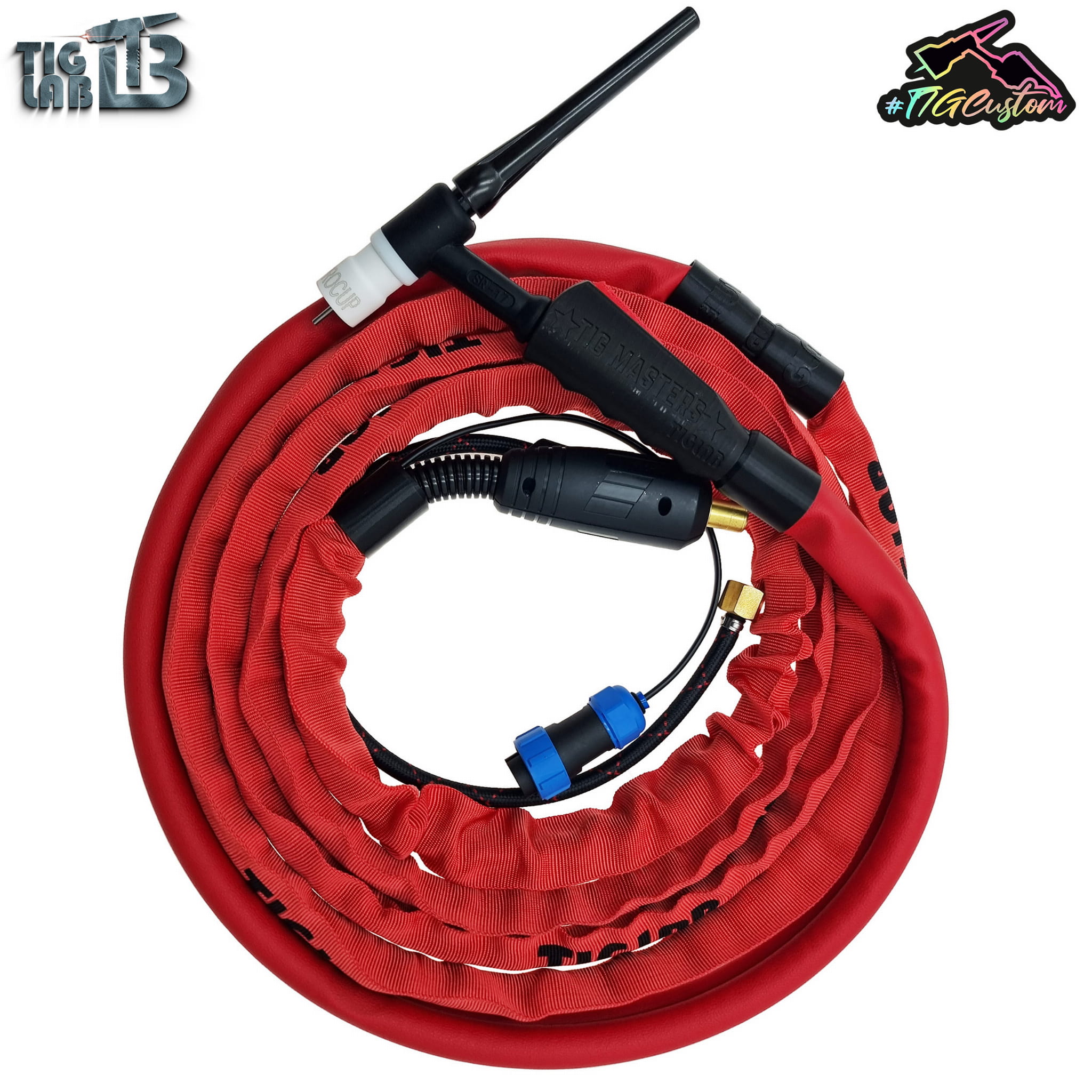

The TIG MASTERS GRIP 17 - 4m torch in the XU version is a light and universal torch for precise welding made according to the requirements of pipe welders who value ergonomics and quality. The precise microswitch allows for comfortable work when welding with the walking the cup technique and aluminum. The high-efficiency cable ensures long operation, and the combination of leather and textile cover provides lightness and precision in welding. The torch body allows for comfortable welding with 200A current.

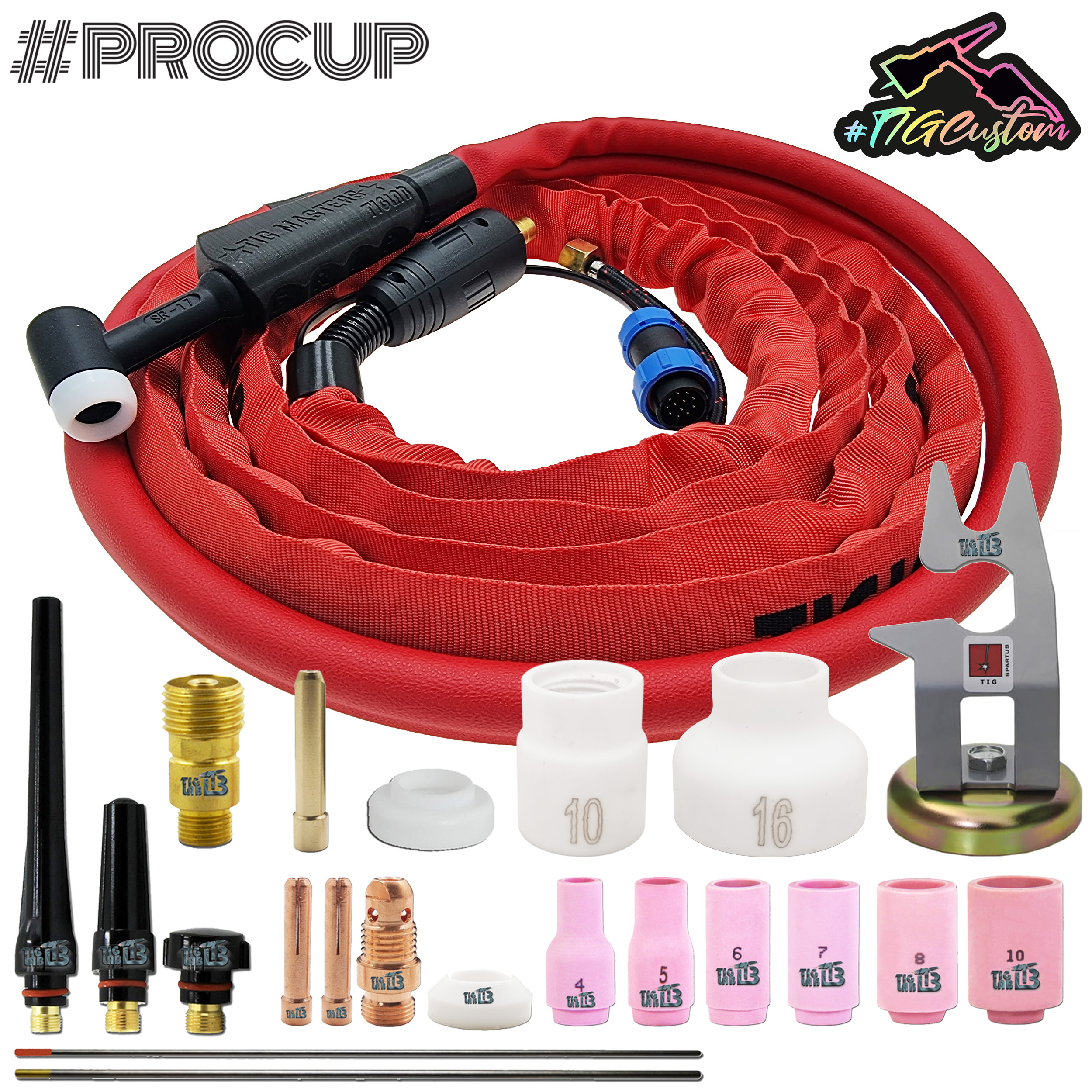

The set includes necessary accessories to start welding:

Stainless steel:

• tungsten electrodes - 2 pcs
• TIG gas lenses - 1 pc
• procup 10 - 1 pc
• procup 16 - 1 pc
• TLB collets - 1 pc
• back caps - 3 pcs
• lens insulator - 1 pc

Aluminum:

• short reduction connector - 1 pc
• collets - 2 pcs
• insulator - 1 pc
• short ceramic nozzles - 6 pcs

PROCUP #10 - #16 are specialized ceramic nozzles for welding stainless steel pipes and sheets and other materials that require perfect gas coverage. Special diffusers made of 3D mesh perfectly cover the welding area with gas and ensure perfect cooling of the tungsten electrode and the welded joint. PROCUP nozzles, depending on the size, are dedicated to different applications:

• PROCUP 10 - stainless steel pipes. Gold or silver welds depending on the amount of shielding gas flow and electrode extension.
• PROCUP 16 - pipes and butt welding of stainless sheets and titanium.

PROCUP 10 Welding.

Welds made with PROCUP 10.

PROCUP 16 Welding.

Welds made with PROCUP 16.

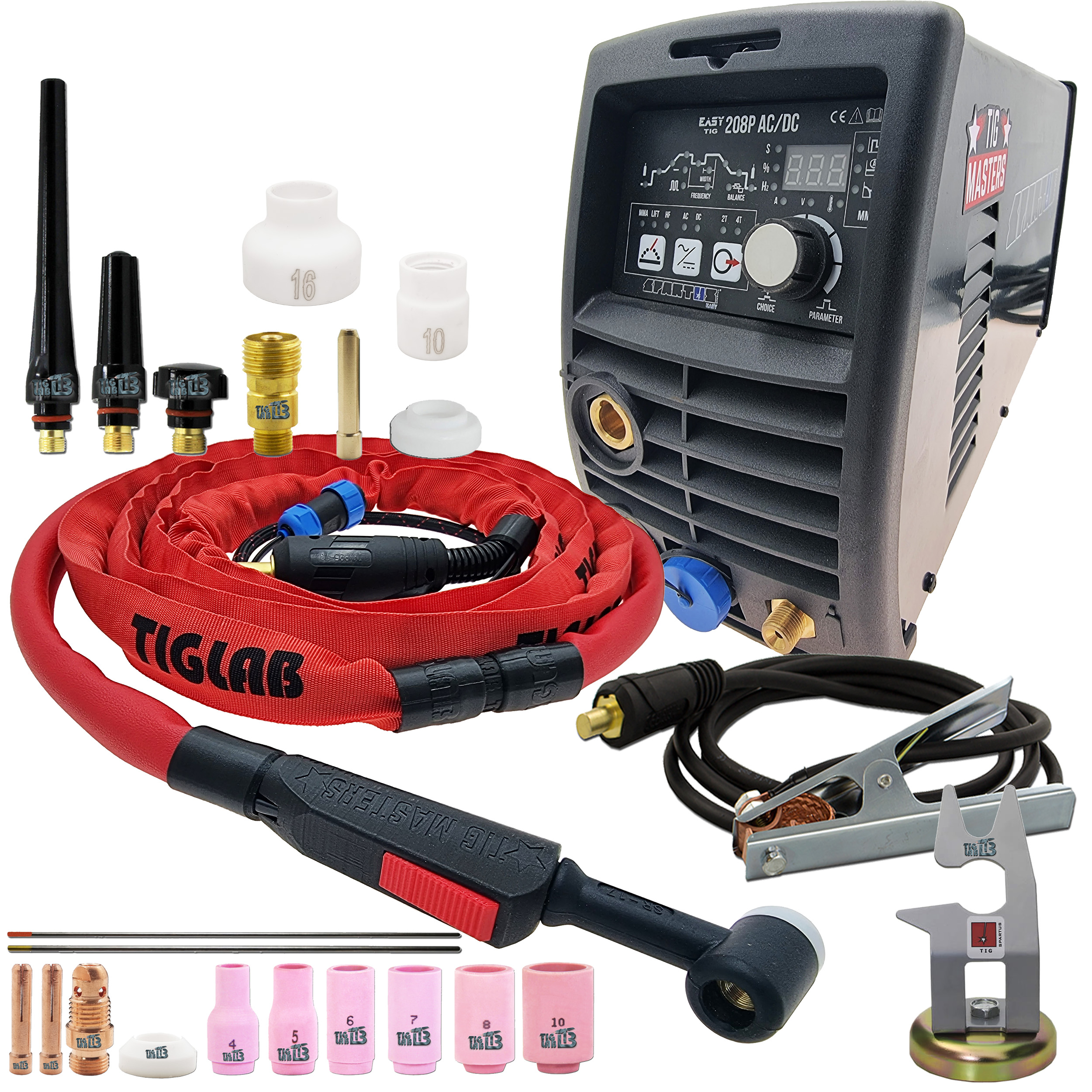

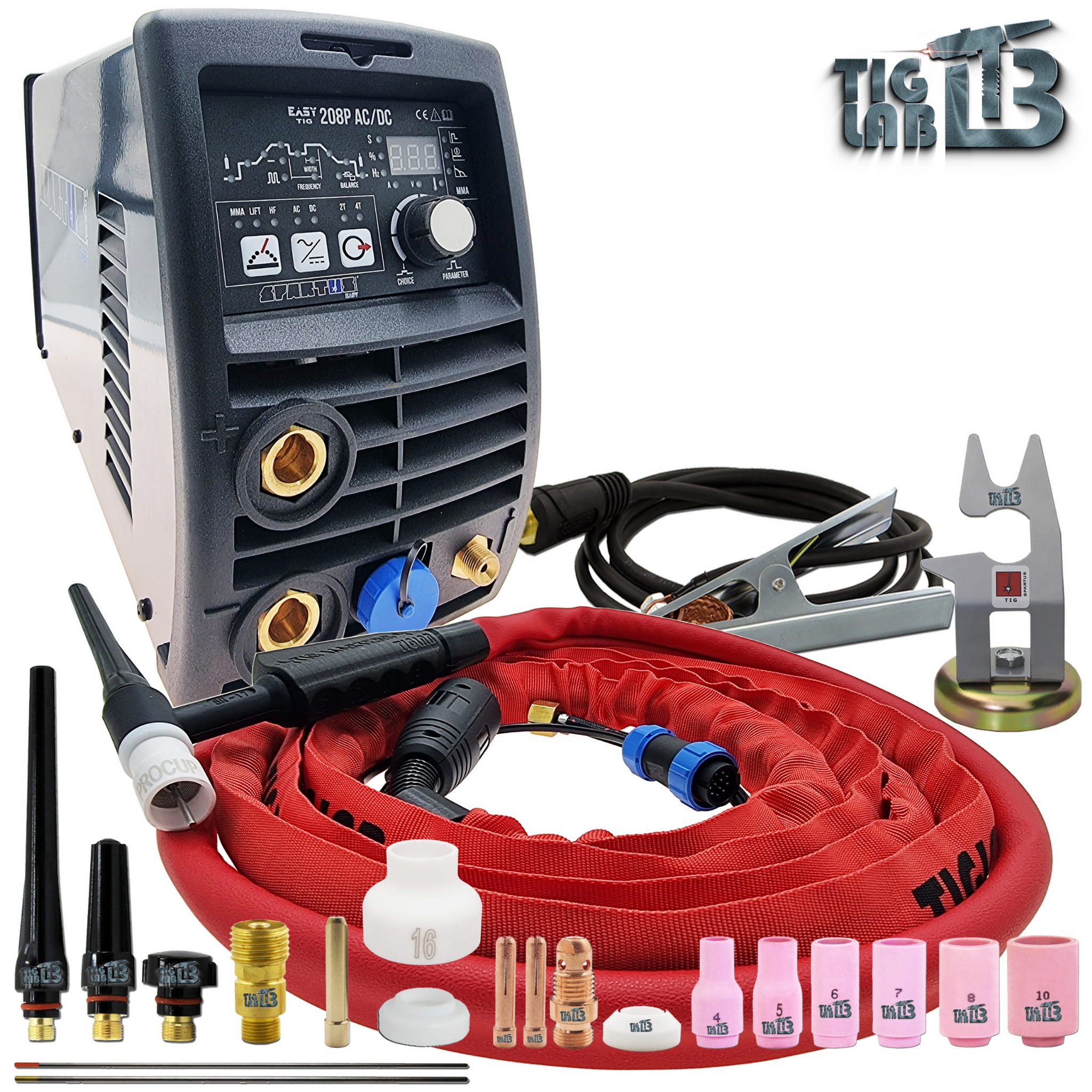

THE SET INCLUDES:

DEVICE EQUIPMENT:

• TIG SPARTUS TIG 208P AC DC
• TIG GRIP SR17 XU welding torch (nylon leather) - 4 m for welding stainless steel and aluminum
• Ground cable 3 m
• TIG magnetic stand
• Gas hose
• Manual

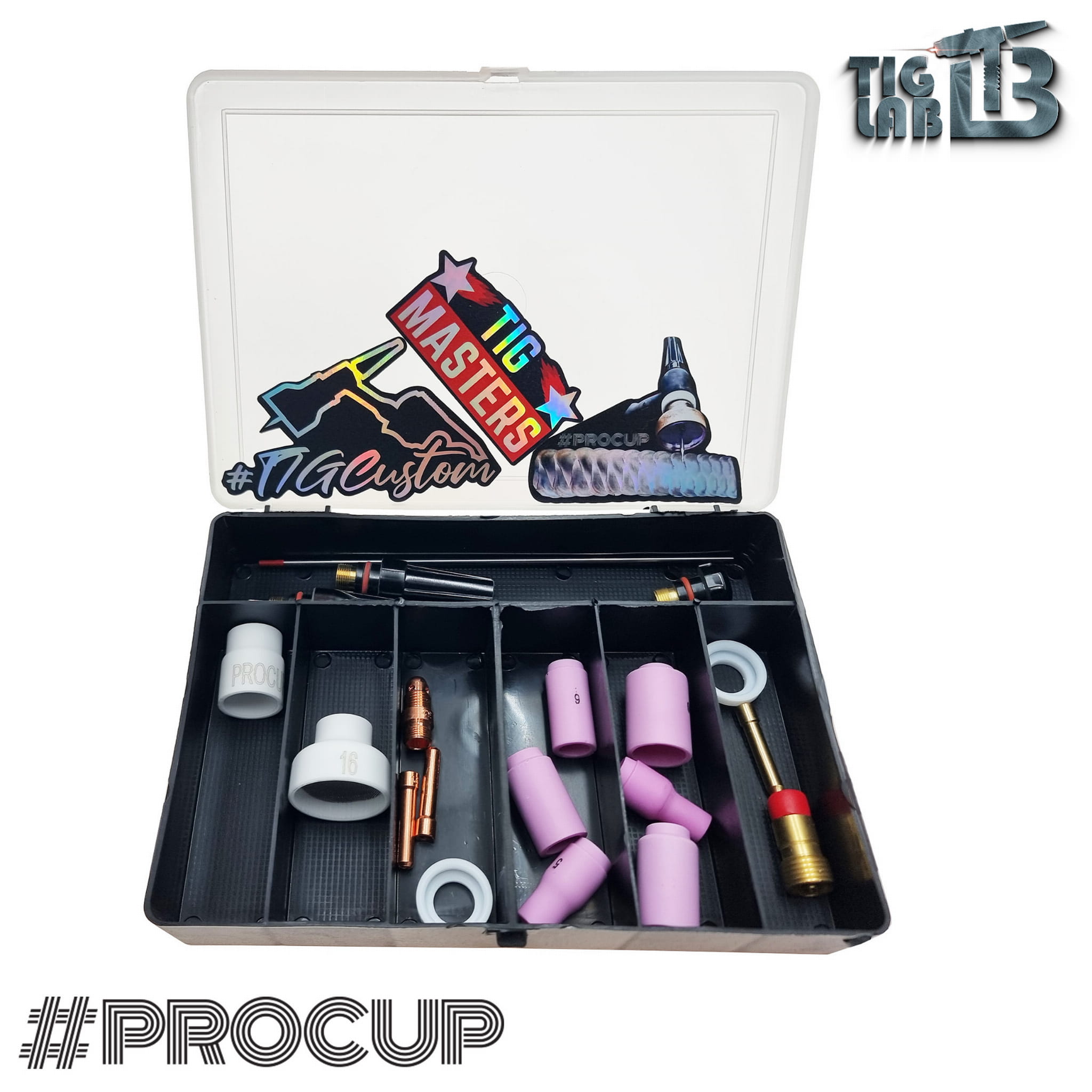

TIG PARTS:

• Collets - 3 pcs
• Gas lenses - 1 pc
• Procup 10 - 1 pc
• Procup 16 - 1 pc
• Insulator - 2 pcs
• Back caps - 3 pcs
• Tungsten electrodes - 2 pcs
• Ceramic nozzles - 6 pcs
• Short connector - 1 pc

If you need to add something to the set, call us; we will configure the set according to your preferences.

SPARTUS DOOR TO DOOR MANUFACTURER WARRANTY

SPARTUS products purchased in our store are brand new and come with a manufacturer's warranty. The warranty card is filled out on the day of purchase and matches the sales document numbers. We provide warranty and post-warranty service for SPARTUS devices. By purchasing SPARTUS brand products from us, you are guaranteed support in case of failure and assistance during the first start-up of the device. If a failure occurs, a courier picks up the damaged equipment from the location indicated in the service form and, after repairing the defect, delivers the defect-free equipment back. Transport to the service center is covered by SPARTUS.
