Spartus tig 200XP ac dc inox #1

SPARTUS TIG 200XP AC DC is a comprehensive set designed for welding exhaust systems made of stainless steel, duplex, titanium, and aluminum. Carefully selected accessories and the TIG CUSTOM 17 torch enable long and comfortable operation. The TIG welding torch features an SR17 torch body, allowing for welding with a maximum current of 180A at a 40% duty cycle and 200A at a 35% duty cycle. This solution enables the welding of thicker pipes and sheets. The ergonomics of the handle will be appreciated by both professional welders and those just beginning their TIG welding adventure.

SPARTUS TIG 200XP AC DC is a digitally controlled inverter welder, built based on IGBT transistors. It enables welding using TIG AC 200A - TIG DC 200A and MMA AC/DC with a current of 200A. It is powered by a single-phase 230V network. The pulse function allows for joining ultra-thin materials in aluminum, steel, stainless steel, and many other materials. The welder features an intuitive control panel that ensures quick navigation through all functions.

The device features high efficiency:

• 60% at an ambient temperature of 25°C
• 35% at an ambient temperature of 40°C

The manufacturer provides efficiency values under the most extreme conditions and high temperatures.

IGBT TRANSISTORS offer a stronger, more concentrated, and more stable arc while consuming less energy.

200A WELDING CURRENT enables welding of materials up to 10 mm.

AC DC CURRENT versatile application thanks to the possibility of welding with direct and alternating current.

SIMPLE PANEL - every selected function is backlit. An ideal solution for beginner users.

2T-4T are welding modes that facilitate welding on short and long sections. 2T mode is used for short sections because the arc extinguishes in a set time after releasing the microswitch; in 4T mode, you don't have to constantly hold the switch during welding—just click a second time to extinguish the arc automatically.

PRE-GAS enables faster arc ignition at the start on both low and high welding current values. An essential function for spot-joining thin and thick elements. Pre-gas flow time is adjustable from 0-1 s.

POST-GAS allows for faster cooling of the joint and the tungsten electrode. Post-gas flow time can be adjusted from 0.1-10 s.

PULSE gives the possibility of welding very thin materials in aluminum, steel, and stainless steel. The minimum pulse current is 10 A. Pulse adjustment range from 0.5 - 200Hz.

AC BALANCE a wide range of 20-80 is responsible for the cleanliness of welds in aluminum welding. The function controls the amount of heat input into the material and the cleaning of oxides on the aluminum surface.

AC FREQUENCY - stabilizes and focuses the arc during welding. A wide range of 40-250 Hz allows for professional welding of any aluminum and magnesium alloy.

MULTI CONTROL the device supports torches with current regulation and foot controls with smooth welding current adjustment.

PROGRAM MEMORY - the welder has the ability to save welding parameter settings to memory. Several channels allow for quick selection of the appropriate saved welding program. A useful function for serial welding of aluminum and stainless steel components.

SPOT COLD WELDING - this function enables the welding of ultra-thin sheets and the execution of perfect tack welds. Thanks to this function, very demanding materials can be "cold welded." The function significantly facilitates the welding of stainless steel pipes and structures.

SPARTUS EASYTIG 200P ACDC VIDEO PRESENTATION:

The device guarantees clean welds in aluminum:

The SPARTUS TIG 200XP AC DC welder is an upgrade of the well-known and valued SPARTUS 210P AC DC, which has been on the Polish market for many years.

The greatest advantages of the welder are:

• Powerful HF - precise operation at both low and high welding currents.
• Reliable control panel and precise encoder.
• Pulse with a wide adjustment range.
• Welding with smooth current adjustment via foot control or torch control.
• Wide range of balance functions responsible for the aesthetics and quality of welds.
• Adjustable AC frequency in a very wide range for a perfectly stable arc.
• Memory channels for saving welding parameter programs.
• SPOT - cold welding. Fast spot welding of thin stainless steel sheets.

WITH THIS DEVICE YOU CAN WELD:

• Carbon steel up to 8 mm.
• Stainless steel up to 7 mm.
• Aluminum up to 10 mm.
• Braze welding with pulse using CUSI3-CUSN wire.
• Titanium up to 6 mm.
• Duplex up to 6 mm.
• Super duplex up to 6 mm.

The TIG CUSTOM 17 - 4m torch in the XU version is a lightweight, universal welding torch. The precise microswitch allows for comfortable work during "walking the cup" techniques and aluminum welding.

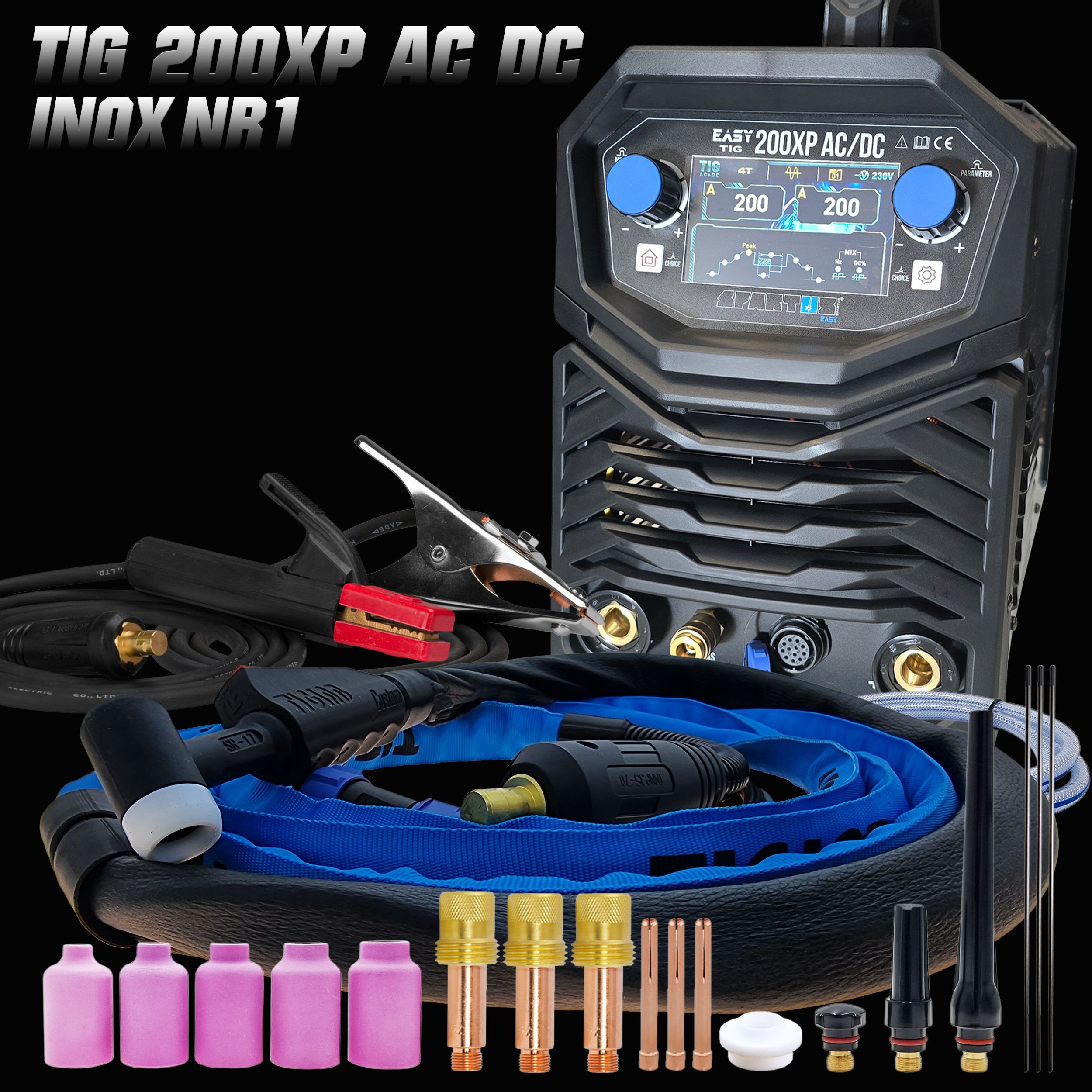

EVERY CONFIGURATION INCLUDES:

• SPARTUS TIG 200XP AC DC SPOT
• TIG CUSTOM 17 XU welding torch (leather - nylon) - 4 m for welding stainless steel and aluminum
• Work lead (ground cable)
• Electrode cable
• Gas hose
• Manual
• TIGBOX organizer for selected parts

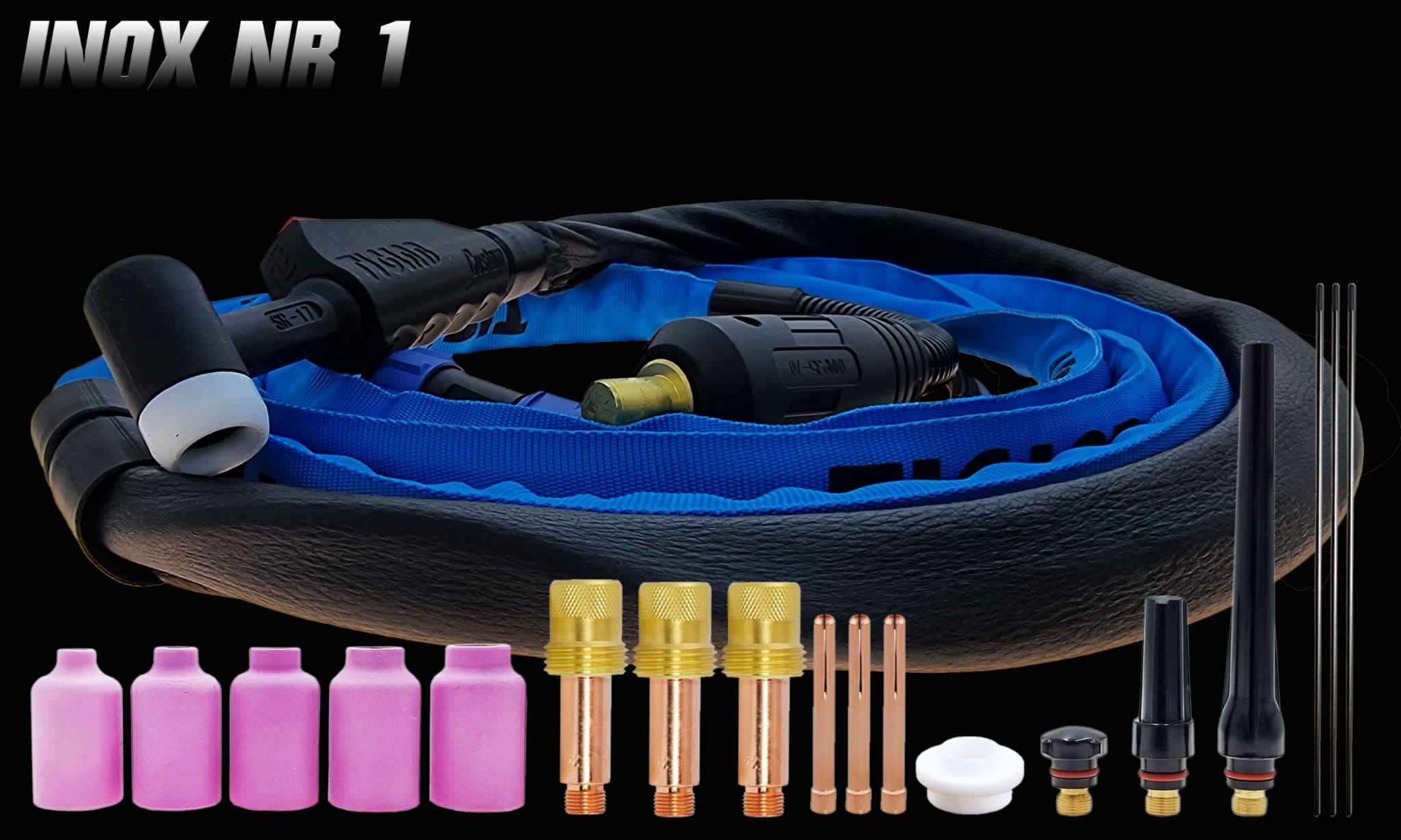

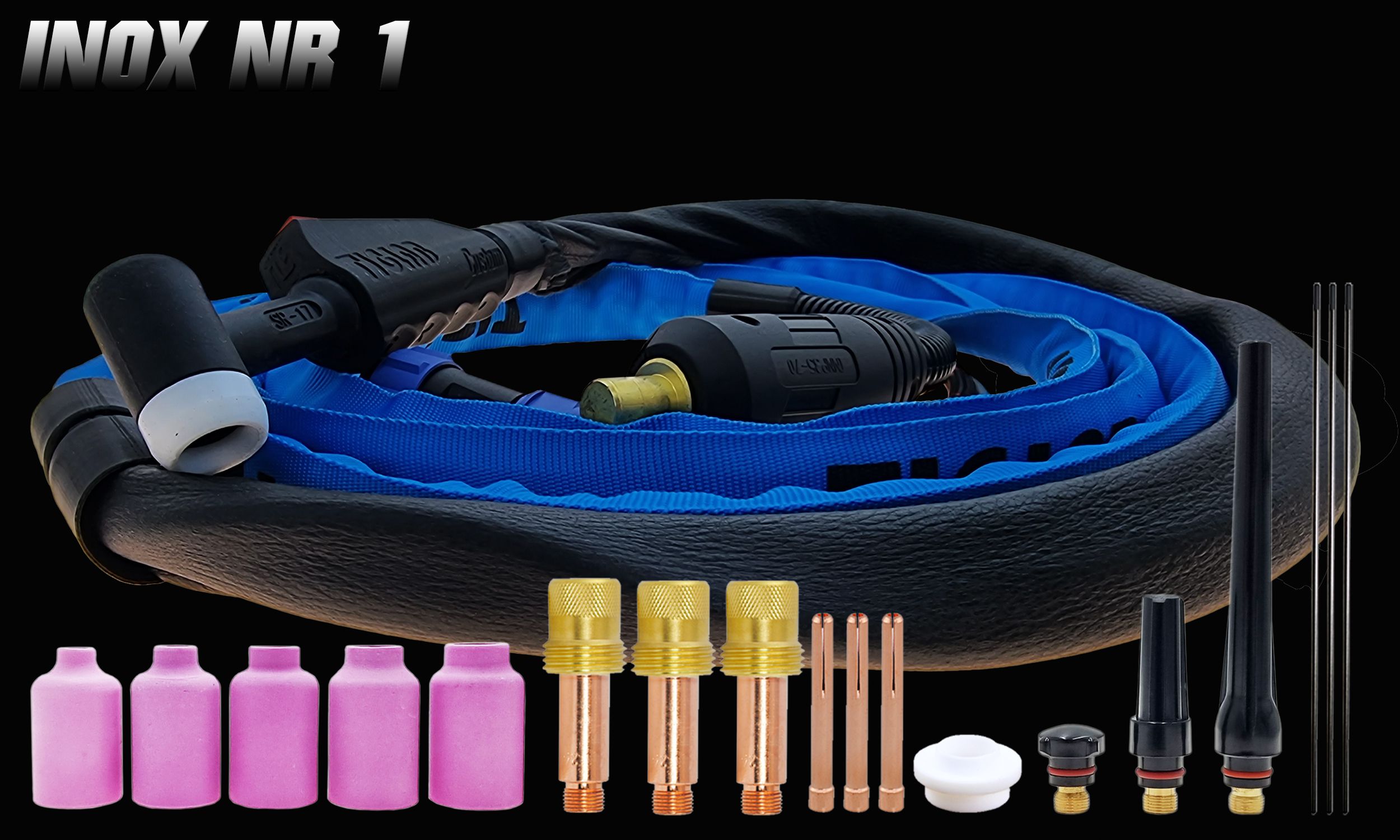

Accessories to start welding INOX no. 1. Starter set included with the welder.

Other configurations can be selected using the slider in the menu. By selecting a different accessory set with the slider, you receive only the accessories from the selected set.

Stainless steel:

• tungsten electrodes - 3 pcs
• tig gas lenses - 3 pcs
• ceramic nozzles - 5 pcs
• collets - 3 pcs
• back caps - 3 pcs
• insulator for gas lens - 1 pc

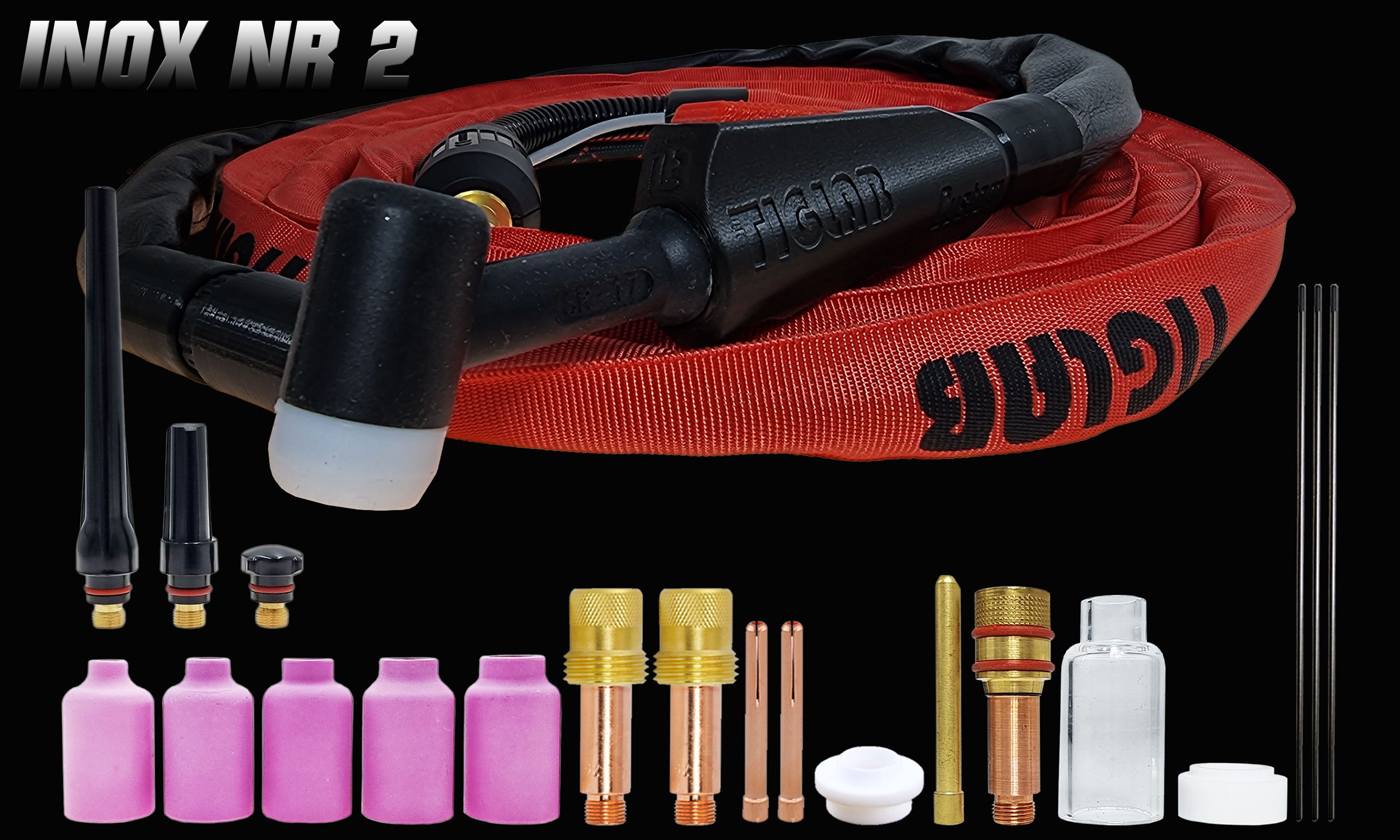

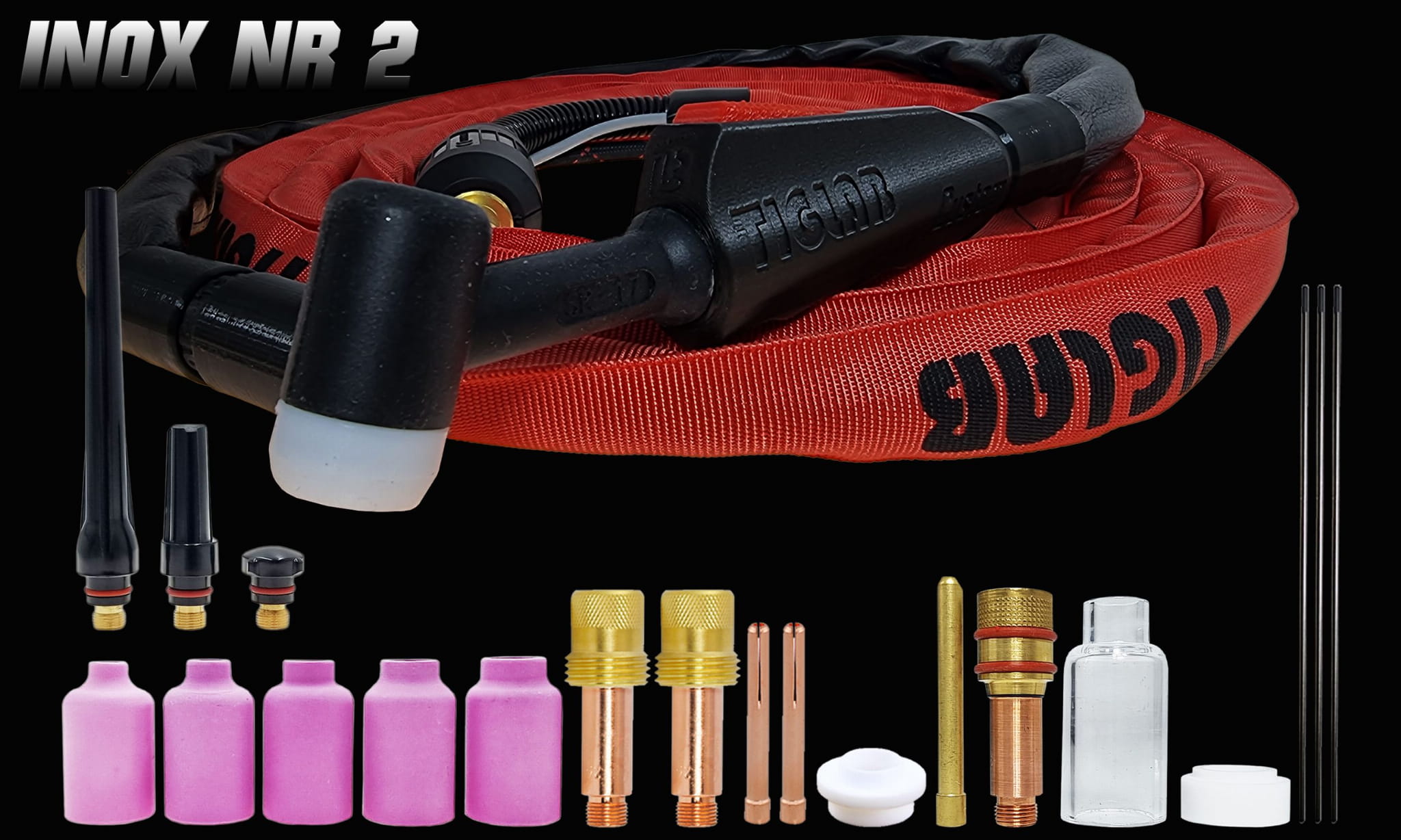

Accessories to start welding INOX no. 2.

Stainless steel:

• tungsten electrodes - 3 pcs
• tig gas lenses - 3 pcs
• ceramic nozzles - 5 pcs
• glass nozzles - 1 pc
• collets - 3 pcs
• back caps - 3 pcs
• insulator for gas lens - 2 pcs

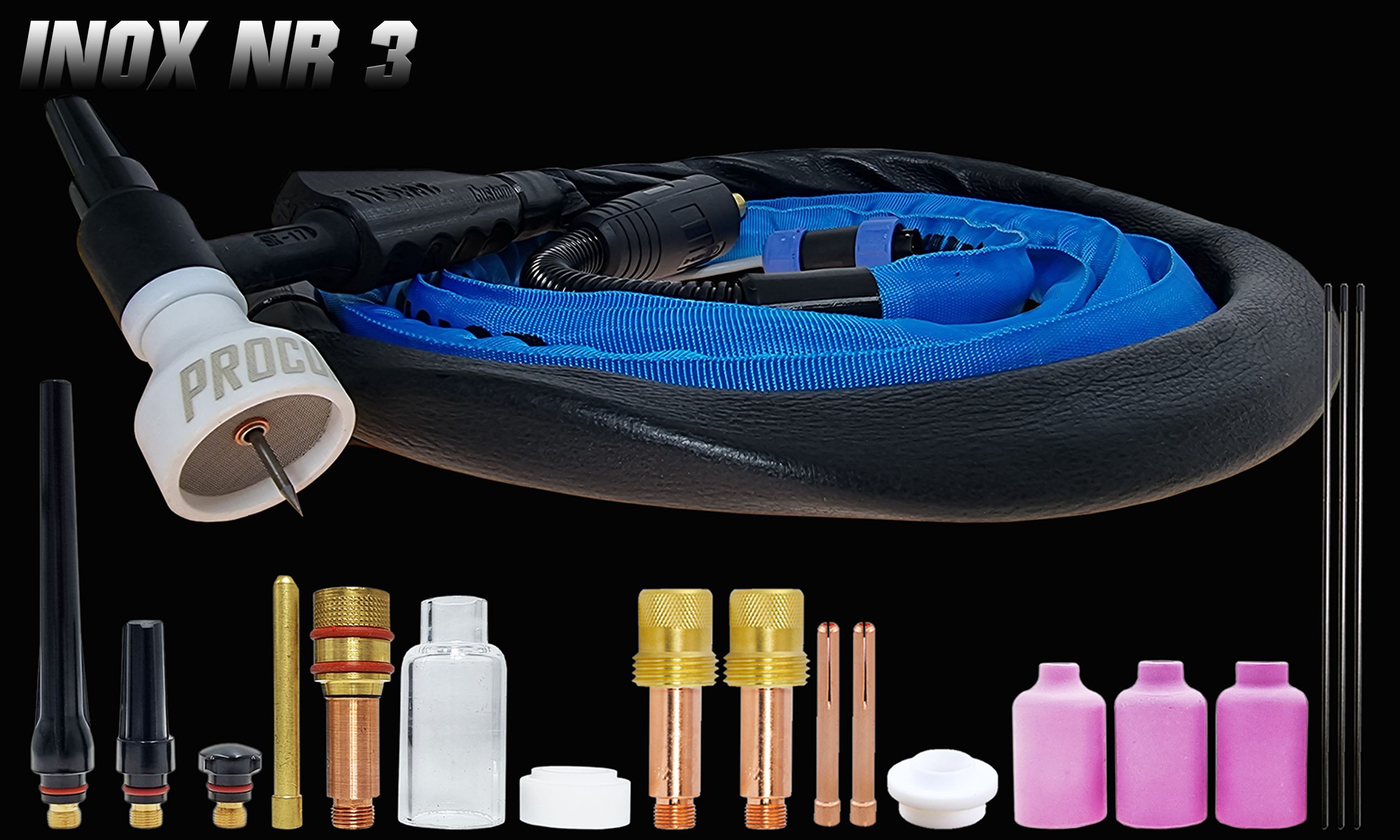

Accessories to start welding INOX no. 3.

Stainless steel:

• tungsten electrodes - 3 pcs
• tig gas lenses - 4 pcs
• ceramic nozzles - 3 pcs
• procup nozzles - 1 pc
• glass nozzles - 1 pc
• collets - 4 pcs
• back caps - 3 pcs
• insulator for gas lens - 3 pcs

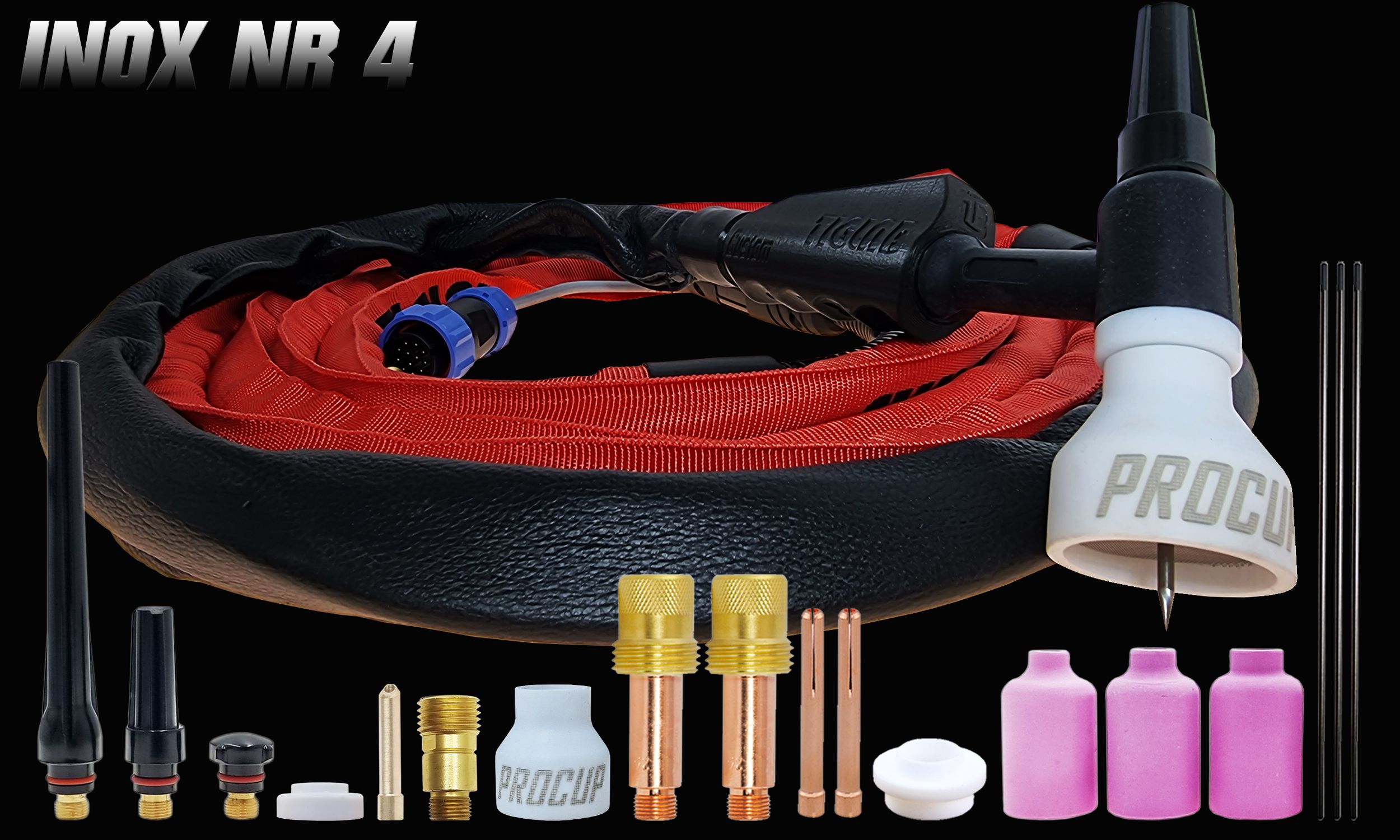

Accessories to start welding INOX no. 4.

Stainless steel:

• tungsten electrodes - 3 pcs
• tig gas lenses - 3 pcs
• ceramic nozzles - 3 pcs
• procup nozzles - 2 pcs
• collets - 3 pcs
• back caps - 3 pcs
• insulator for gas lens - 2 pcs

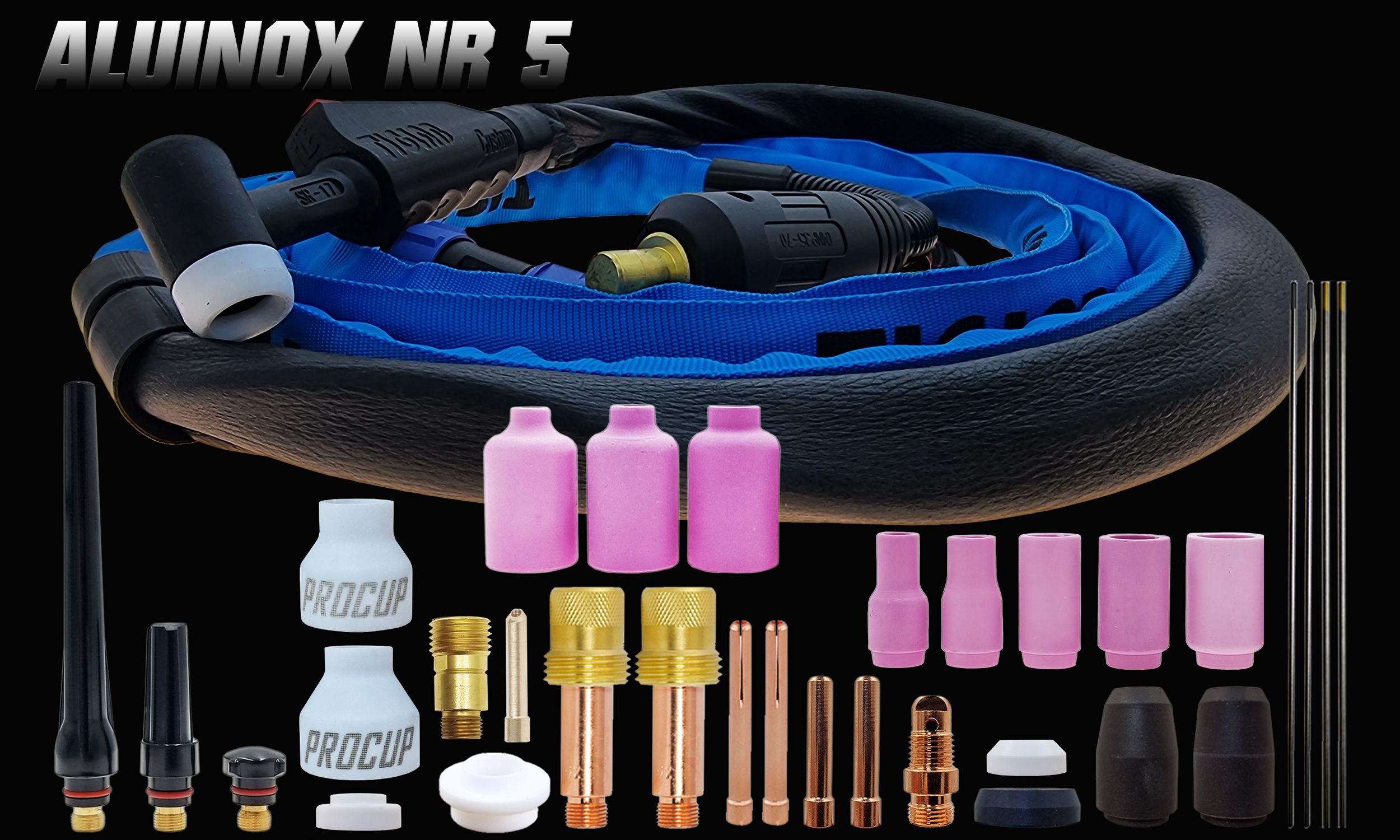

Accessories to start welding ALUINOX no. 5.

Stainless steel:

• tungsten electrodes - 4 pcs
• tig gas lenses - 3 pcs
• ceramic nozzles - 3 pcs
• procup nozzles - 2 pcs
• collets - 3 pcs
• back caps - 3 pcs
• insulator for gas lens - 2 pcs

Aluminum:

• gas lens insulator - 1 pc
• ceramic nozzles - 5 pcs
• alucup nozzles - 2 pcs
• collets - 2 pcs
• insulators - 2 pcs

If you need to add something to the set, call us and we will configure the set to your preferences.

SPARTUS DOOR TO DOOR MANUFACTURER WARRANTY

SPARTUS products purchased from our store are factory new and carry a manufacturer's warranty. The warranty card is filled out on the day of purchase and matches the sales document numbers. We provide warranty and post-warranty service for SPARTUS devices. By purchasing SPARTUS brand products from us, you are guaranteed support in case of failure and assistance with the initial setup of the device. If a failure occurs, a courier collects the damaged equipment from the location indicated in the service form and, after the fault is repaired, delivers the defect-free equipment. Transport to the service center is covered by the SPARTUS company.
