Spartus tig 200XP ac dc alu inox stal #1

SPARTUS TIG 200XP AC DC alu inox steel is a set designed for welding aluminum, steel, and stainless steel. Carefully selected accessories and the TIG CUSTOM 17 torch enable comfortable work. The TIG welding torch features an SR17 torch body, which uses popular TIG consumable parts. The ergonomics of the handle will be appreciated by those beginning their adventure with TIG welding.

SPARTUS TIG 200XP AC DC is a digitally controlled inverter welder built on IGBT transistors. It enables welding with TIG AC 200A - TIG DC 200A and MMA AC/DC with a current of 200A. It is powered by a single-phase 230V network. The pulse function allows for joining very thin materials in aluminum, steel, stainless steel, and many other materials. The welder features an intuitive control panel that ensures quick navigation through the functions.

The device has high efficiency:

• 60% at an ambient temperature of 25°C
• 35% at an ambient temperature of 40°C

The manufacturer provides efficiency values under the most extreme conditions and high temperatures.

IGBT TRANSISTORS offer a stronger, more concentrated, and more stable arc while consuming less energy.

WELDING CURRENT 200A enables welding materials up to 10 mm.

AC DC CURRENT provides versatile use thanks to the possibility of welding with direct and alternating current.

SIMPLE PANEL - every selected function is backlit. An ideal solution for beginner users.

2T-4T are welding modes that facilitate welding on short and longer sections. 2T mode is used for short sections because the arc extinguishes in a set time after releasing the microswitch; in 4T mode, you don't have to hold the microswitch constantly during welding, but just click it a second time for the arc to extinguish automatically.

PRE-GAS enables faster arc ignition at the start at both low and high welding current values. An essential function for spot joining thin and thick elements. Pre-gas flow time is adjustable from 0-1 s.

POST-GAS allows for faster cooling of the joint and the tungsten electrode. Post-gas flow time can be adjusted from 0.1-10 s.

PULSE gives the possibility of welding very thin materials in aluminum, steel, and stainless steel. The minimum pulse current is 10 A. Pulse adjustment range from 0.5 - 200Hz.

AC BALANCE - a wide range of 20-80 is responsible for weld cleanliness when welding aluminum. This function controls the amount of heat introduced into the material and the cleaning of oxides from the aluminum surface.

AC FREQUENCY - stabilizes and concentrates the arc during welding. A wide range of 40-250 Hz allows for professional welding of any aluminum and magnesium alloy.

MULTI CONTROL - the device allows the use of torches with UP&DOWN regulation as well as foot control with smooth adjustment of the welding current intensity.

PROGRAM MEMORY - the welder can save welding parameter settings to memory. Several channels allow for quick selection of a saved program. A useful function for serial welding of aluminum and stainless steel elements.

SPOT COLD WELDING - this function enables welding of very thin sheets and performing perfect tack welds. Thanks to this function, you can cold-weld very demanding materials. It significantly facilitates the welding of stainless steel pipes and structures.

SPARTUS EASYTIG 200P ACDC VIDEO PRESENTATION:

The device guarantees clean welds in aluminum:

The SPARTUS TIG 200XP AC DC welder is an upgrade of the well-known and valued SPARTUS 200P AC DC welder, which has been on the Polish market for many years.

The greatest advantages of the welder are:

• Powerful HF - precise operation at both low and high welding currents.
• Reliable control panel and precise encoder.
• Pulse with a wide adjustment range.
• Welding with smooth current adjustment via foot control or torch control.
• Wide range of balance functions responsible for the aesthetics and quality of welds.
• Adjustable AC frequency in a very wide range for a perfect, stable arc.
• Memory channels for saving welding parameter programs.
• COLD WELDING - SPOT - cold welding. Fast spot welding of thin stainless steel sheets.

WITH THIS DEVICE WE CAN WELD:

• Carbon steel up to 8 mm.
• Stainless steel up to 7 mm.
• Aluminum up to 10 mm.
• Brazing with pulse using CUSI3-CUSN wire.
• Titanium up to 6 mm.
• Duplex up to 6 mm.
• Super duplex up to 6 mm.

The TIG CUSTOM 17 - 4m torch in the XU version is a universal torch for welding aluminum, steel, and stainless steel. The precise microswitch and ergonomic handle allow for comfortable work when welding all materials using the "walking the cup" technique.

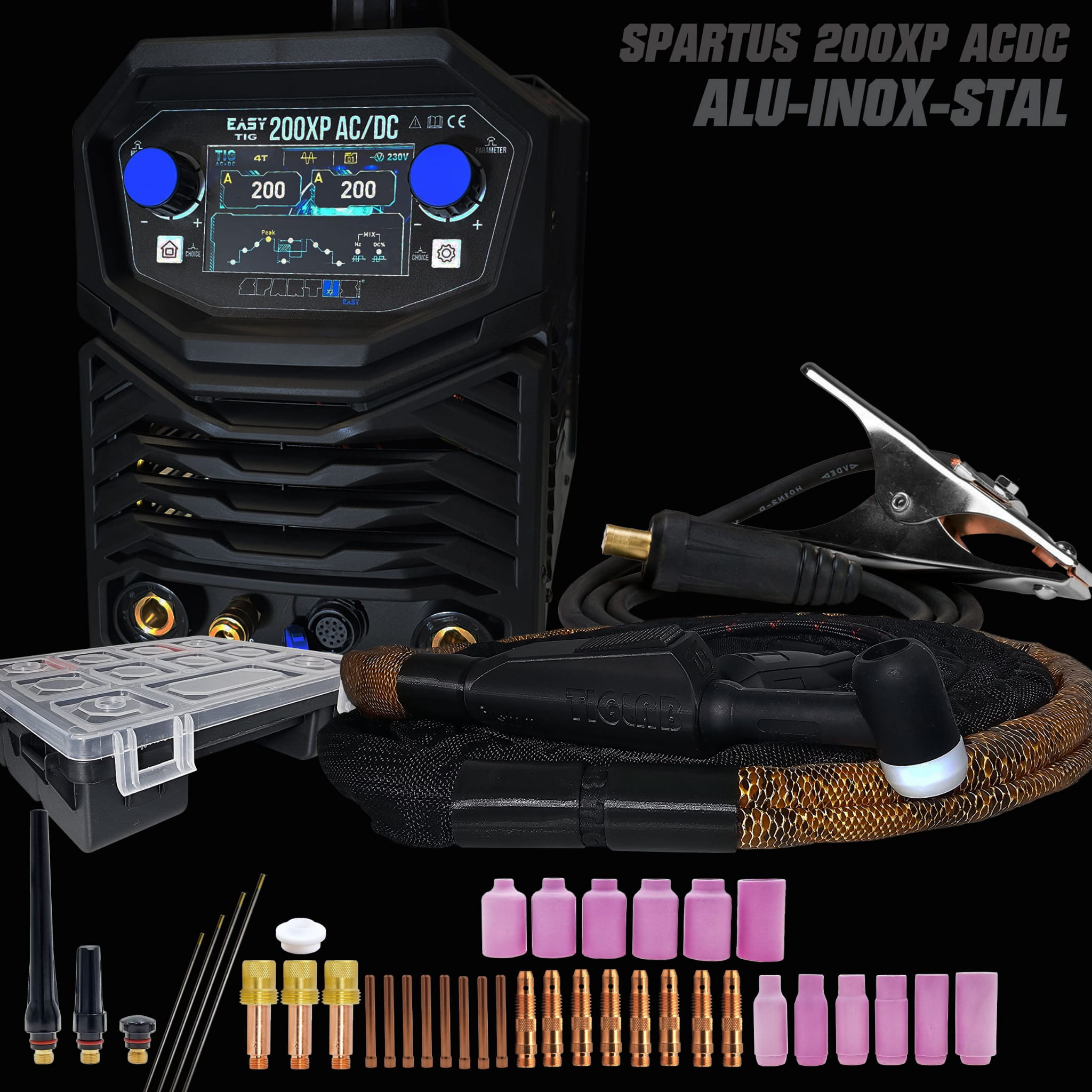

THE CONFIGURATION INCLUDES:

• Spartus TIG 200XP AC DC Puls
• Welding torch TIGCUSTOM 17 XU - 4m
• Mass cable 3m
• Manual
• TIGBOX organizer with consumable parts for aluminum, steel, and stainless steel.

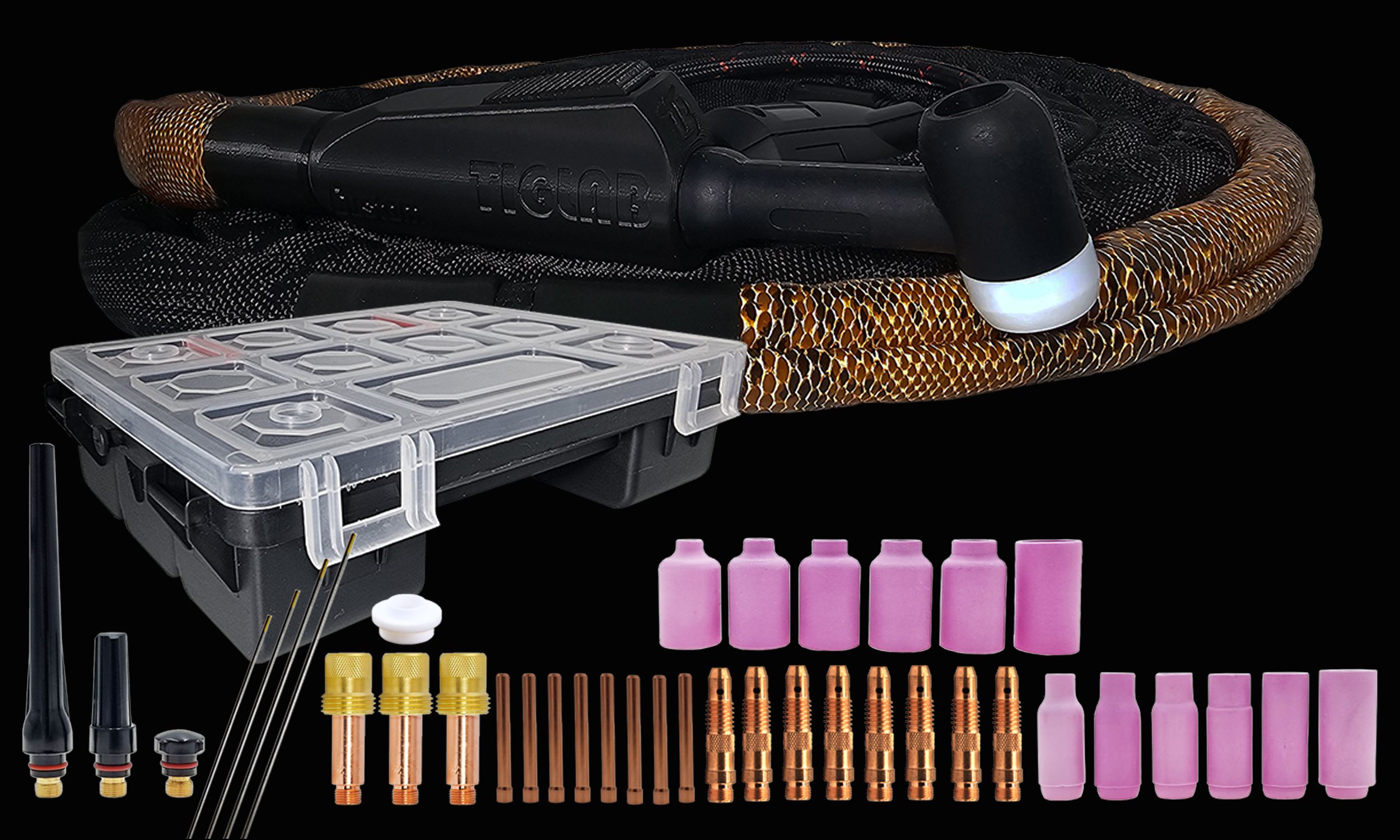

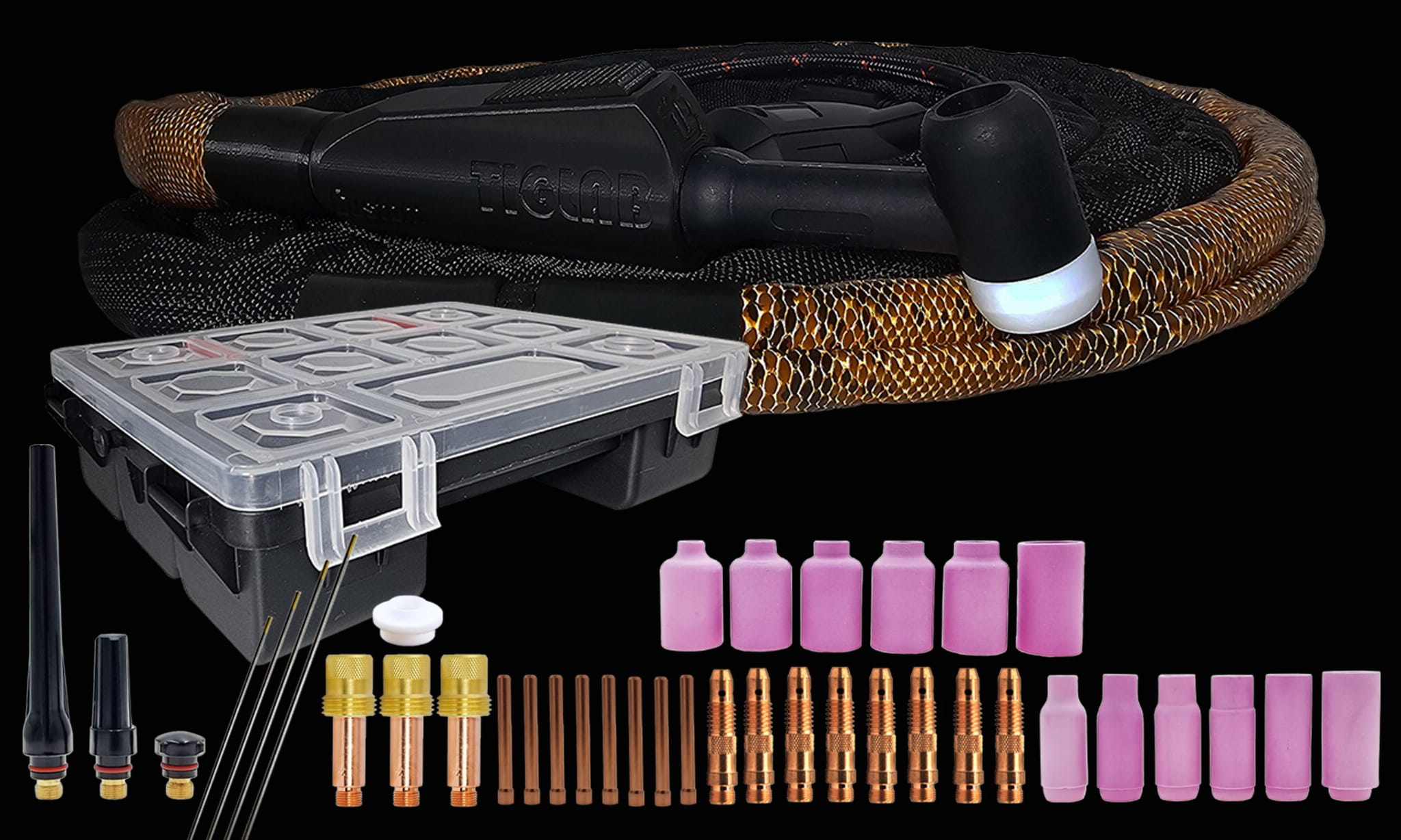

The set includes necessary accessories to start welding:

Stainless steel, carbon steel, and aluminum:

• Tungsten electrodes - 4 pcs - universal for aluminum, steel, and stainless steel
• TIG gas lenses - 3 pcs - for welding stainless steel
• Gas lens nozzles - 4 pcs
• Collet bodies - 8 pcs - for welding aluminum and carbon steel
• Standard nozzles - 6 pcs
• Collets - 8 pcs
• Back caps - 3 pcs
• Gas lens insulator - 1 pc
• TIGBOX organizer

SET INCLUDES:

DEVICE EQUIPMENT:

• SPARTUS TIG 200XP AC DC SPOT
• Welding torch TIGCUSTOM 17 XU - 4 m for welding steel, stainless steel, and aluminum
• Mass cable
• Manual

If you need to add something to the set, call us and we will configure the set according to your preferences.
