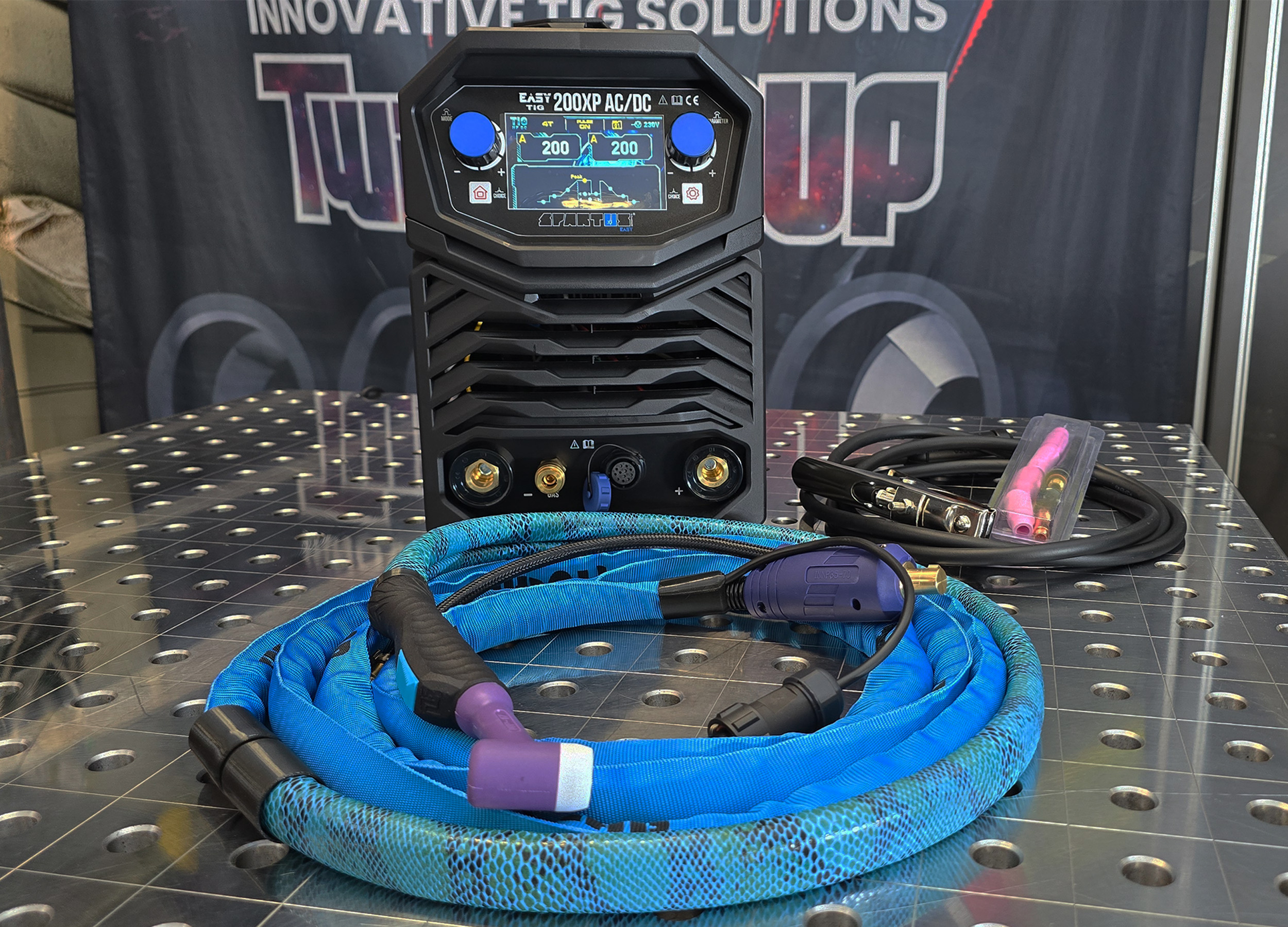

Spartus tig 200XP ac dc 4m

SPARTUS TIG 200XP AC DC is a set specifically designed for welding exhaust systems made of stainless steel, duplex, titanium, and aluminum. Carefully selected accessories and the TIG CUSTOM 17 torch enable long and comfortable work. The TIG welding torch features an SR17 torch body, which allows for welding aluminum, stainless steel, and carbon steel. This solution facilitates the welding of thicker pipes and sheets. The ergonomics of the torch will be appreciated by both professional welders and those beginning their adventure with TIG welding.

SPARTUS TIG 200XP AC DC is a digitally controlled inverter welder, constructed based on IGBT transistors. It enables welding using TIG AC 200A - TIG DC 200A and MMA AC/DC with a current of 200A. It is powered by a single-phase 230V network. The pulse function allows for joining very thin materials in aluminum, steel, stainless steel, and many other materials. The welder features an intuitive control panel that ensures quick navigation through the functions.

The device features high efficiency:

• 60% at an ambient temperature of 25°C
• 35% at an ambient temperature of 40°C

The manufacturer provides efficiency values under the most extreme conditions and high temperatures.

IGBT TRANSISTORS offer a stronger, more concentrated, and more stable arc while maintaining lower energy consumption.

WELDING CURRENT 200A enables welding materials up to 10 mm.

AC DC CURRENT offers versatile use thanks to the ability to weld with both direct and alternating current.

SIMPLE PANEL - every selected function is backlit. An ideal solution for beginner users.

2T-4T are welding modes that facilitate welding on short and long sections. 2T mode is used for short sections because the arc extinguishes in a set time after releasing the microswitch; in 4T mode, you do not have to hold the microswitch constantly during welding, but simply click it a second time for the arc to extinguish automatically.

PRE-GAS enables faster arc ignition at the start for both low and high welding current values. An essential function for spot joining thin and thick elements. Pre-gas flow time is adjustable from 0-1 s.

POST-GAS allows for faster cooling of the joint and the tungsten electrode. Post-gas flow time can be adjusted from 0.1-10 s.

PULSE provides the possibility of welding very thin materials in aluminum, steel, and stainless steel. The minimum pulse current is 10 A. Pulse adjustment range from 0.5 - 200Hz.

AC BALANCE - a wide range of 20-80 is responsible for weld cleanliness when welding aluminum. This function controls the amount of heat introduced into the material and the cleaning of oxides from the aluminum surface.

AC FREQUENCY - stabilizes and concentrates the arc during welding. A wide range of functions from 40-250 Hz enables professional welding of any aluminum and magnesium alloy.

MULTI CONTROL - the device allows the use of torches with remote regulation as well as foot control with smooth adjustment of welding current intensity.

PROGRAM MEMORY - the welder can save welding parameter settings to memory. Several channels allow for quick selection of a saved welding program. A useful function for serial welding of aluminum and stainless steel components.

SPOT COLD WELDING - this function enables welding of very thin sheets and performing perfect tack welds. Thanks to this function, you can cold-weld very demanding materials. The function significantly facilitates the welding of stainless steel pipes and structures.

SPARTUS EASYTIG 200P ACDC VIDEO PRESENTATION:

The device guarantees clean welds in aluminum:

The SPARTUS TIG 200XP AC DC welder is an upgrade of the well-known and valued SPARTUS 210P AC DC welder, which has been on the Polish market for many years.

The greatest advantages of the welder are:

• Powerful HF - precise operation at both low and high welding currents.
• Reliable control panel and precise encoder.
• Pulse with a wide adjustment range.
• Welding with smooth current adjustment via foot control or torch control.
• Wide range of balance functions responsible for the aesthetics and quality of welds.
• Adjustable AC frequency in a very wide range for a perfect, stable arc.
• Memory channels for saving welding parameter programs.
• SPOT - cold welding. Fast spot welding of thin stainless steel sheets.

WITH THIS DEVICE WE CAN WELD:

• Carbon steel up to 8 mm.
• Stainless steel up to 7 mm.
• Aluminum up to 10 mm.
• Brazing with pulse using CUSI3-CUSN wire.
• Titanium up to 6 mm.
• Duplex up to 6 mm.
• Super duplex up to 6 mm.

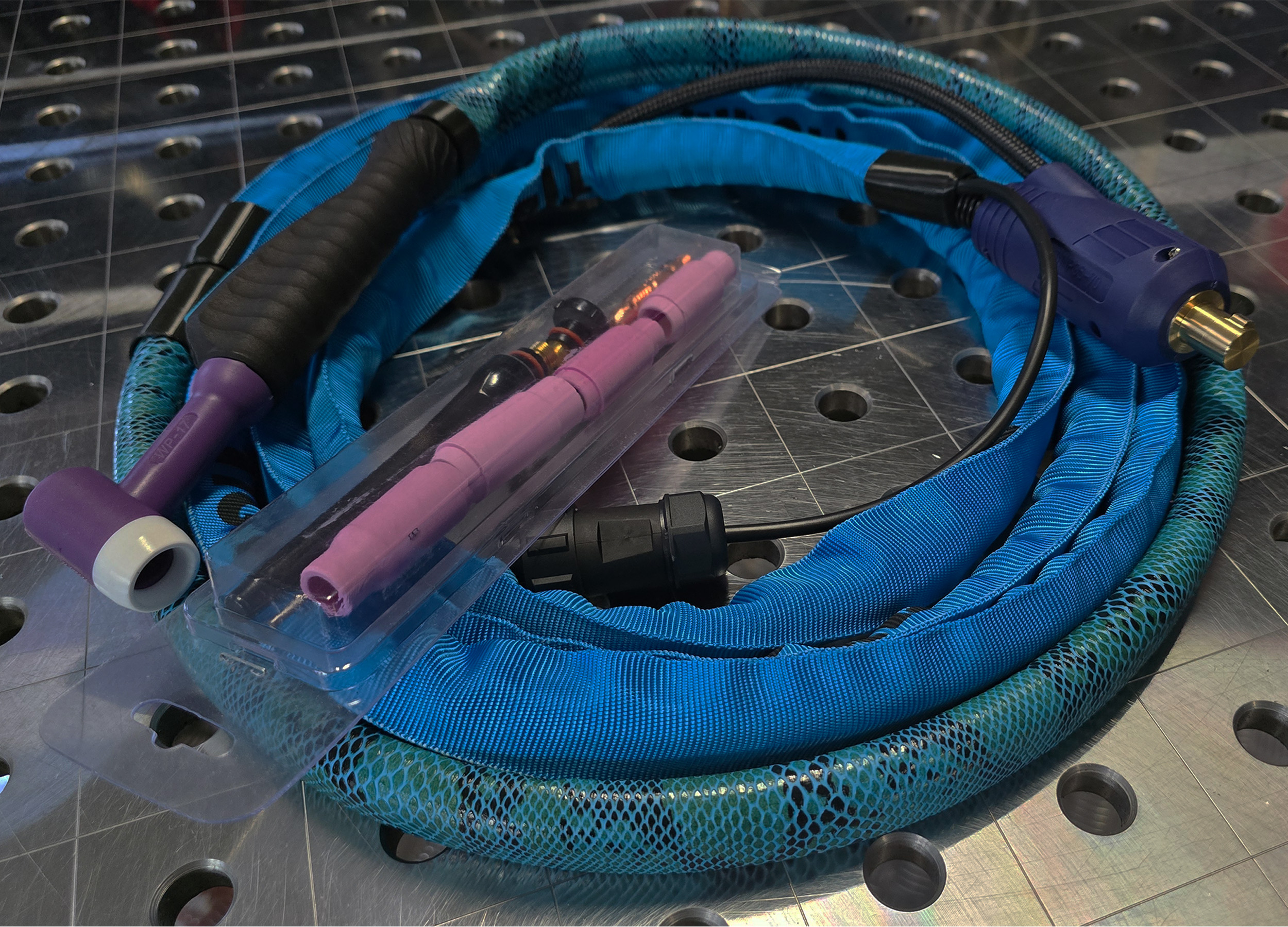

The TIG CUSTOM 17 - 4m torch in the XU version is a lightweight universal welding torch. The precise microswitch allows for comfortable work when welding using the "walking the cup" technique and aluminum welding.

EACH CONFIGURATION INCLUDES:

• SPARTUS TIG 200XP AC DC SPOT
• Welding torch TIG CUSTOM 17 XU ( leather - nylon ) - 4 m for welding stainless steel and aluminum
• Mass cable
• Gas hose
• Manual
• Consumable parts

If you need to add something to the set, call us and we will configure the set according to your preferences.

SPARTUS DOOR TO DOOR MANUFACTURER'S WARRANTY

SPARTUS products purchased in our store are brand new and carry a manufacturer's warranty. The warranty card is filled out on the day of purchase and is consistent with the numbers of the sales document. We provide warranty and post-warranty service for SPARTUS devices. By purchasing SPARTUS brand products from us, you are guaranteed support in the event of a failure and assistance with the initial startup of the device. If a failure occurs, a courier picks up the damaged equipment from the location specified in the service form and, after the fault is repaired, delivers the defect-free equipment. Transport to the service center is covered by SPARTUS.
