Spartus tig 200P ac dc alu inox #1 (1)

SPARTUS TIG 200P AC DC is a kit designed for welding exhaust systems made of stainless steel, duplex, titanium, and aluminum. Carefully selected accessories and the TIG CUSTOM GRIP RF 17 handle will allow for long and comfortable work. The TIG welding handle has an SR17 torch body that allows us to weld at a maximum current of 180A in an 80% cycle and 200A in a 60% cycle. This solution enables welding of thicker pipes and sheets. The SLIM GRIP handle perfectly insulates high temperatures and provides a long welding time for stainless steel and aluminum. Both professional welders and those starting their adventure with TIG welding will appreciate the ergonomics of the handle.

SPARTUS TIG 200P AC DC is a digitally controlled inverter welder, constructed based on IGBT transistors. It enables TIG AC 200A - TIG DC 200A welding methods and MMA AC/DC with a current intensity of 200A. It is powered by a single-phase 230V network. The pulse function allows for joining very thin materials in aluminum, steel, stainless steel, and many other materials. The welder has an intuitive control panel that provides quick navigation through functions.

The device has high efficiency:

• 60% at an ambient temperature of 25°C
• 35% at an ambient temperature of 40°C

The manufacturer provides the efficiency value in the most extreme conditions and high temperatures.

BENEFITS OF THE SPARTUS TIG 200P AC DC

IGBT TRANSISTORS offer a stronger, more concentrated, and more stable arc with lower energy consumption.

WELDING CURRENT 200A allows welding materials up to 10 mm.

AC DC CURRENT has versatile applications thanks to the ability to weld with both direct and alternating current.

SIMPLE LCD PANEL each adjustable function is displayed graphically. Perfect solution for beginners.

2T-4T are welding modes that make it easier to work on short and long welding distances. The 2T mode is used for welding short distances, as the arc is switched off after disconnecting the micro switch. In 4T mode, we do not have to hold the micro switch constantly while welding, but only click a second time to turn off the arc automatically.

PRE-GAS allows faster arc ignition at the start, both at low and high values of welding current. An indispensable function for point joining of thin and thick elements. Gas flow time is adjustable from 0-1 sec.

POST-GAS allows faster cooling of the connection and the tungsten electrode. The gas flow time is adjustable from 0.1-10 sec.

TIG PULS MODE makes it possible to weld very thin materials of aluminum, steel, and stainless steel. The minimum pulse current is 10 A. The pulse control range is from 0.5 - 200Hz.

AC FREQUENCY is adjustable in the range of 40-250Hz. The function is responsible for narrowing the arc and faster penetration of the welded material.

AC BALANS wide range of 20-80 is responsible for the cleanliness of welds in aluminum welding. The function is responsible for the heat input into the material and the cleaning of oxides on the aluminum surface.

MULTI-CONTROL in the device we can use handles with UP&DOWN adjustment and foot control with smooth regulation of the welding current. The foot control can be wired or wireless.

MEMORY OF PROGRAMS - the welding machine has the ability to save welding parameter settings to memory. Several channels allow for quick selection of the appropriate saved welding program. This function is helpful for the serial welding of aluminum and stainless steel elements.

SPOT COLD WELDING - the function allows for the welding of very thin sheets and making perfect butt welds. With this function, we can weld very demanding materials cold. The function greatly facilitates the welding of stainless steel pipes and structures.

SPARTUS EASYTIG 200P ACDC VIDEO PRESENTATION:

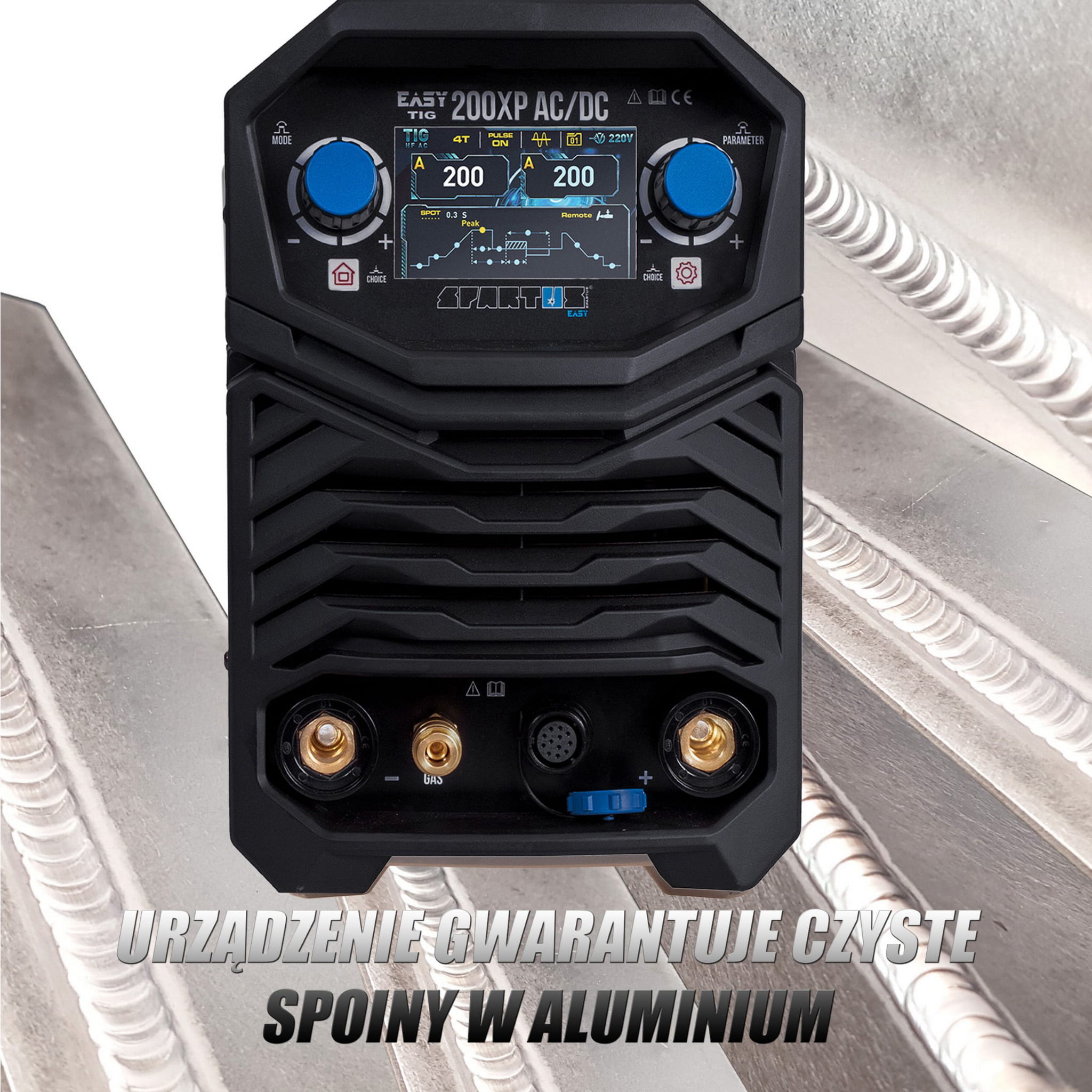

The device guarantees clean welds in aluminum:

The SPARTUS TIG 200P AC DC welder is an upgrade of the well-known and highly valued SPARTUS 210P AC DC welder, which has been on the Polish market for many years.

ADVANTAGES OF THE WELDING MACHINE:

• powerful HF - precise operation at low and high welding currents.
• reliable control panel and precise encoder.
• wide range of pulse regulation.
• welding with smooth current regulation via foot control or up&down control.
• wide range of balance functions responsible for aesthetics and weld quality.
• adjustable AC frequency in a very wide range, which ensures an ideal stable arc.
• memory channels for saving welding parameter programs.
• SPOT - cold welding. Fast spot welding of thin stainless steel sheets.

WITH THIS MACHINE WE CAN WELD:

• Carbon steel up to 8 mm
• Stainless steel up to 7 mm
• Aluminum up to 10 mm
• Braze-weld with a pulse with a CUSI3-CUSN wire
• Titanium up to 6 mm
• Duplex up to 6 mm
• Superduplex up to 6 mm

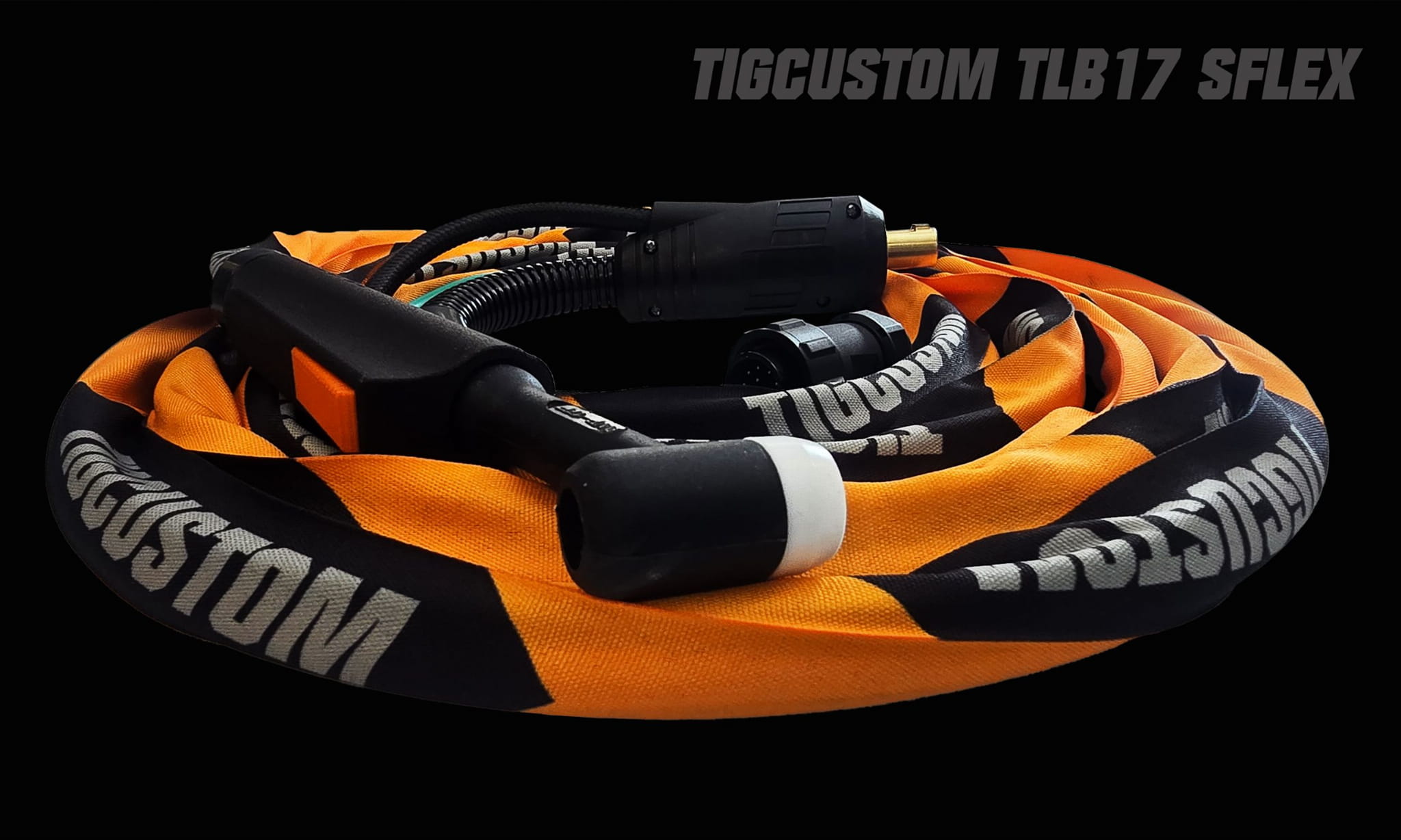

The TIG CUSTOM 17 - 4m U-version TIG handle is a lightweight and versatile welding handle. Precise micro-switch allows you to work comfortably when welding with walking the cup technique and aluminum. The high efficiency cable will ensure comfortable work.

The kit includes the necessary accessories to start welding:

Stainless steel:

• Tungsten electrodes - 5 pcs
• TIG lens - 2 pcs
• PROCUP 10 nozzle - 1 pc
• PROCUP 16 nozzle - 1 pc
• PROCUP 20 nozzle - 1 pc
• TLB Collets - 2 pcs
• TIG Back Caps - 3 pcs
• Gas Lens Insulator - 1 pc

Aluminum:

• Stubby Collet Body - 1 pcs
• Tig Collets - 3 pcs
• Gas Lens Insulator - 1 pc
• Ceramic short nozzles - 6 pcs

PROCUP #10 - #16 are ceramic nozzles, specially designed for welding stainless steel pipes and sheets, and other materials that require a perfect gas shield. These nozzles come with special diffusers made of 3D mesh that ensures perfect coverage of the welding spot with gas and cools the tungsten electrode and welded joint. PROCUP nozzles are dedicated to various applications:

• PROCUP 10 - for stainless steel pipes, producing gold or silver welds depends on the amount of shielding gas outflow and electrode protrusion.
• PROCUP 16 - for pipes and butt welding of stainless steel and titanium.

• PROCUP 20 - universal application - stainless steel and titanium sports exhaust systems.

PROCUP 10 WELDING.

Welds made with PROCUP 10:

PROCUP 16 WELDING.

Welds made with PROCUP 16.

PROCUP 20 WELDING.

Welds made with PROCUP 20:

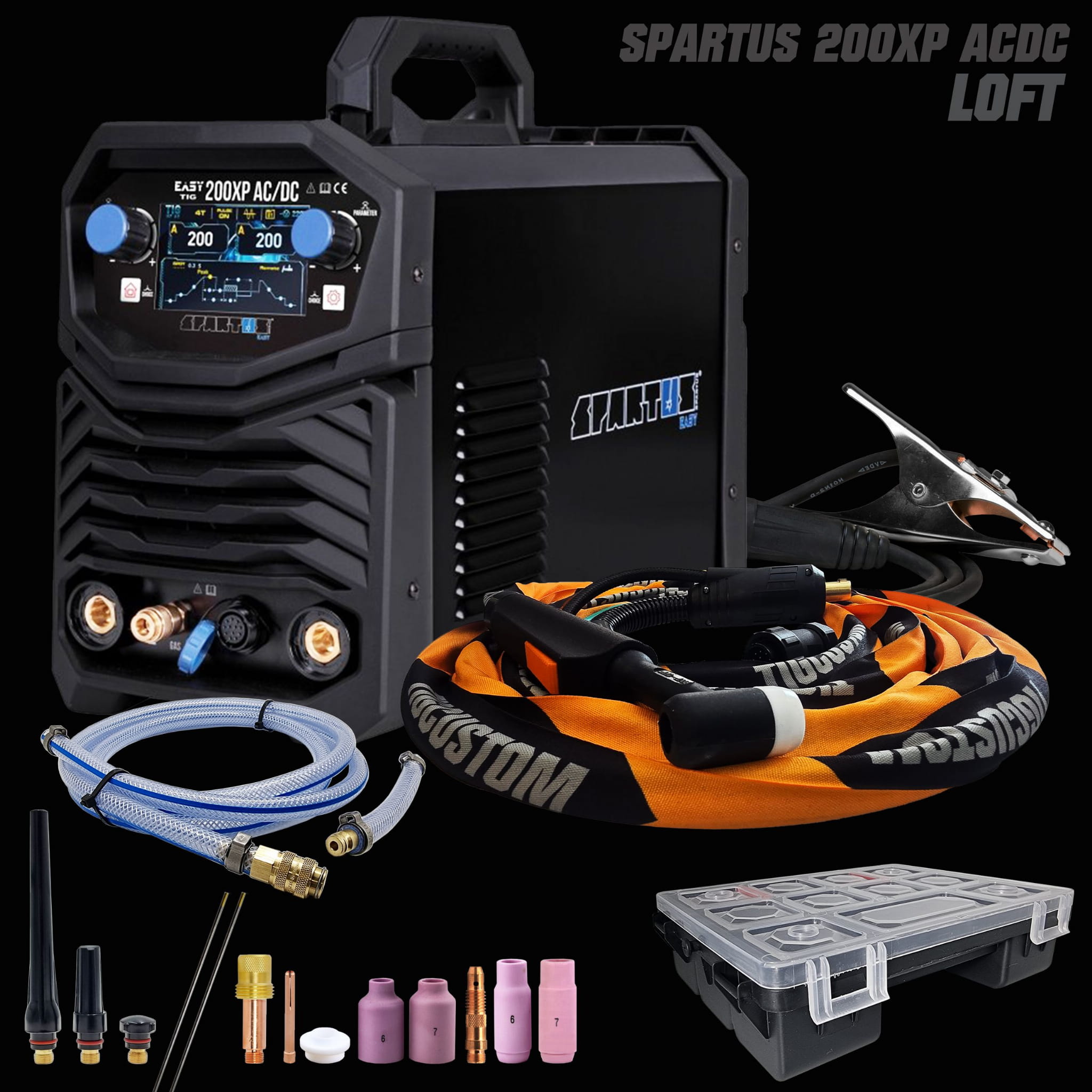

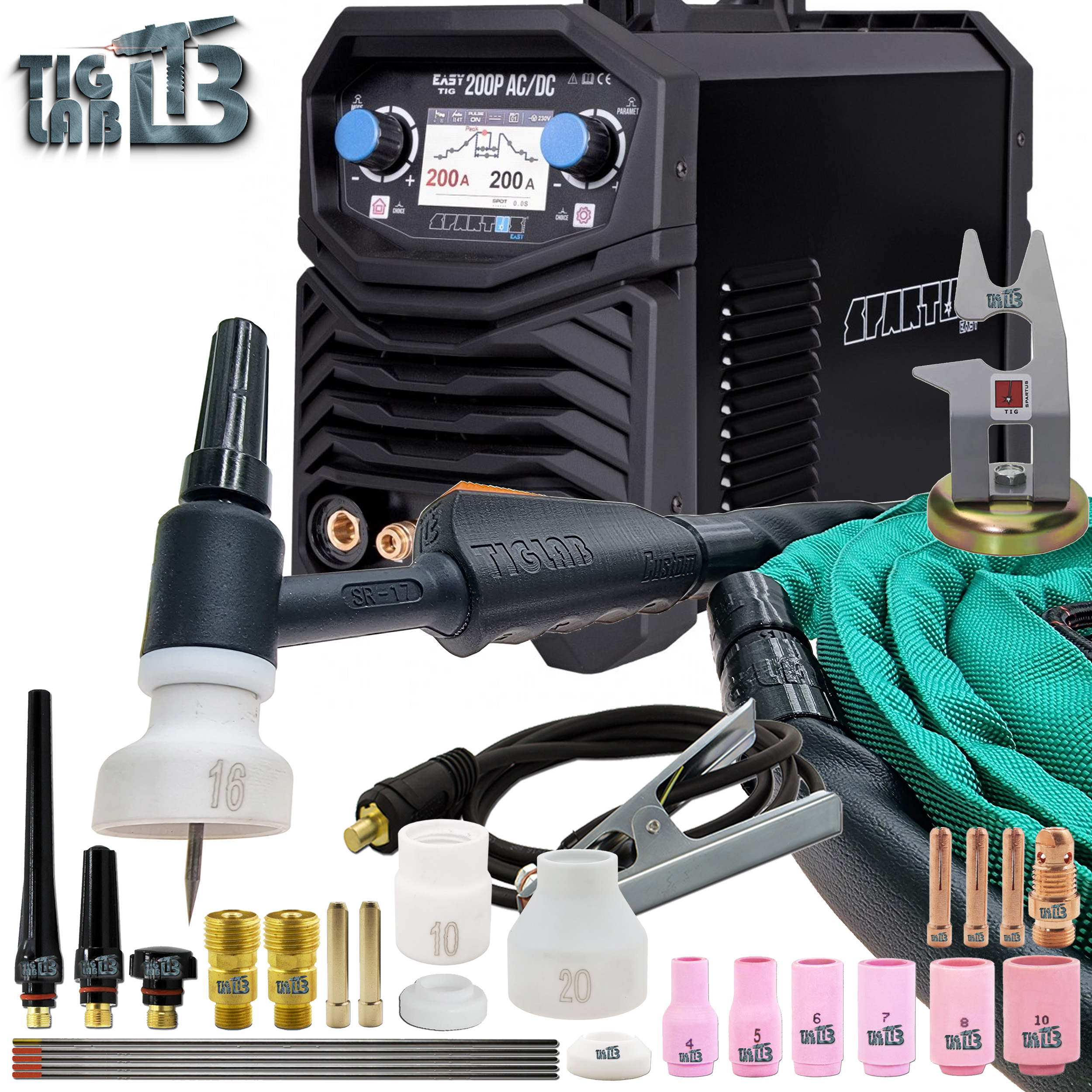

SET CONTAINS:

MACHINE EQUIPMENT:

• SPARTUS TIG 200P AC DC SPOT
• Welding torch TIG CUSTOM GRIP RF 17 U ( nylon ) - 4 m for welding aluminum and stainless steel
• Mass hose
• Magnetic base TIG
• Gas hose
• Instructions for use

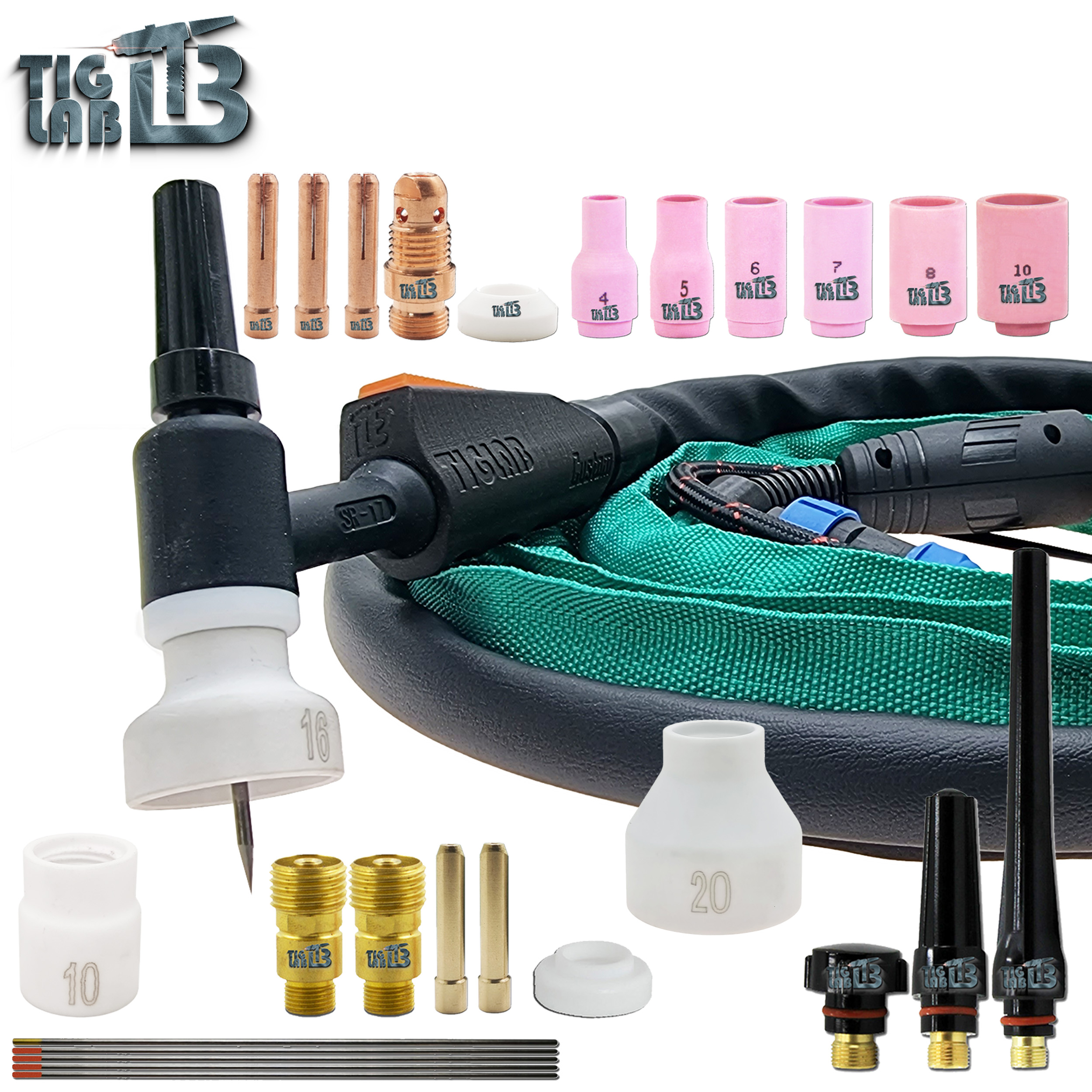

TIG PARTS:

• Tig Collets - 5 pcs
• Gas lenses - 2 pcs
• PROCUP 10 nozzle - 1 pc
• PROCUP 16 nozzle - 1 pc
• PROCUP 20 nozzle - 1 pc
• Gas Lens Insulators - 2 pcs
• TIG Back Caps - 3 pcs
• Tungsten electrodes - 5 pcs
• Ceramic nozzles - 6 pcs
• Stubby Collet Body
• TIGBOX organizer - 1 pc

If you need to add something to the set, call us and we will configure the set according to your preferences.

MANUFACTURER'S WARRANTY SPARTUS DOOR TO DOOR

SPARTUS products purchased in our store are brand new and have a manufacturer's warranty. The warranty card is filled in on the day of purchase and it is consistent with the numbers on the receipt. We provide warranty and post-warranty service for SPARTUS devices. If you buy SPARTUS products from us, you have a guarantee of support in the event of a failure and support during the first start-up of the machine. In the event of a fault, the courier picks up the damaged equipment from the location indicated in the service form and after repairing, delivers the equipment free of defects. Transport to the service is covered by the SPARTUS company.
