TIGBOX TwisterCup – SR17 / SR18 / SR26

Innovative TIG welding nozzle system.

Raise the quality of your TIG welding to a completely new level with the Tigbox TwisterCup kit. Twistercup ceramic nozzles are used for welding stainless steel, inconel, duplex, titanium, and other metals where perfect gas shielding and high weld quality are required.

The heart of the set is the innovative TwisterCup nozzle, which, thanks to its unique internal design, sets the gas into a swirling motion in four directions. The effect? Wider gas coverage, faster weld cooling, and significantly lower gas consumption compared to standard Jumbo-type nozzles.

Why choose the TwisterCup set?

• Twister Technology: An innovative gas swirling system ensures ideal shielding even in difficult conditions and tight spaces.

• Gas Savings: Significantly lower argon consumption while allowing for substantial electrode extension.

• Versatility: Perfect for manual TIG welding as well as robotic systems.

• Ready to Use: All components are packed in a dedicated Tigbox organizer, making work organization easier.

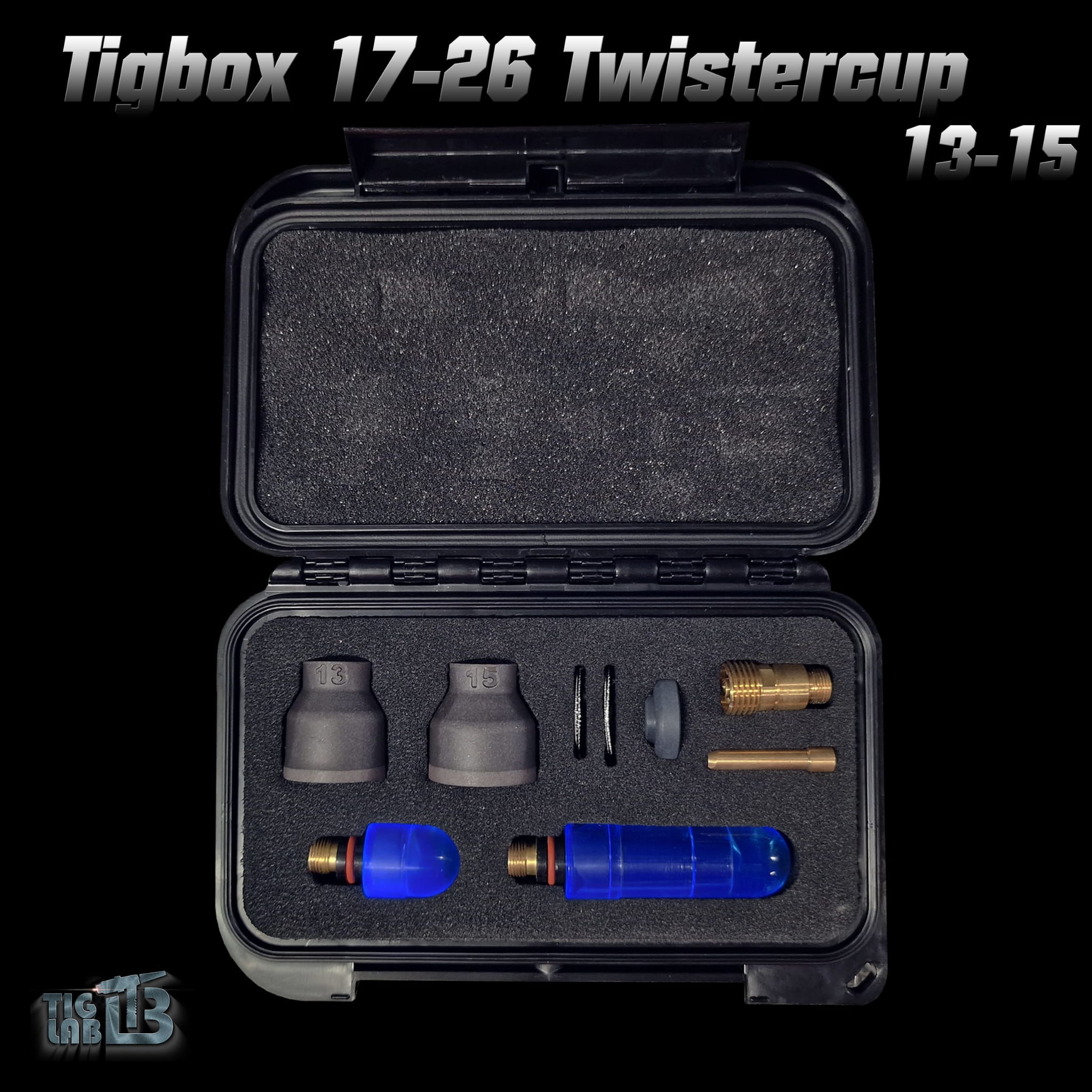

TIGBOX set contents:

1. PROCUP TWISTER #13 ceramic nozzle

2. PROCUP TWISTER #15 ceramic nozzle

3. Mesh diffusers matched to electrode – 4 pcs.

4. Gas lens

5. Collet

6. Insulator – dedicated to large body SR17/18/26 torches.

7. Exotic Back Cup set – 2 pcs. (color sent randomly).

8. Tigbox Organizer – a durable box for all components.

Technical Specification and Customization:

• Compatibility: Standard SR17, SR18, SR26 torches and derivatives.

• Diameter Selection: By default, the kit is prepared for a 2.4 mm electrode. Using the slider above, you can change the selection to 1.6 mm or 3.2 mm diameter.

• Application: Direct current only (DC). Do not use for alternating current (AC) welding.

• Exotic Back Cups: Due to the unique manufacturing process of the Exotic Back Cup, the colors of the cups in the set are selected and sent randomly.
