Tig expert Spartus 206p dc #1

SPARTUS TIG 206P DC is a comprehensive set designed for welding stainless steel exhaust systems, duplex, and titanium. Carefully selected accessories and the TIGCUSTOM TLB9R SFLEX torch enable long and comfortable work using foot control. The TIG welding torch features SR9R and SR17R torch bodies (selectable in the menu options) and a super-flexible professional SFLEX cable. The ergonomics of the torch will be appreciated by both professional welders and those just beginning their TIG welding adventure.

SPARTUS TIG 206P DC is a digitally controlled inverter welder built on IGBT transistors. It enables welding using TIG 200A - DC and MMA DC 200A methods. It is powered by a single-phase 230V network. The Cold Welding and Cold Welding Pulse functions allow for joining ultra-thin materials: steel, stainless steel, and many others. The welder features an intuitive control panel that ensures quick navigation through all functions.

The device features high efficiency:

• 60% at an ambient temperature of 25°C
• 35% at an ambient temperature of 40°C

The manufacturer provides efficiency values for the most extreme conditions and high temperatures.

Stainless steel pipe welding:

Sports exhaust system welding:

The TIGCUSTOM TLB9R SFLEX - 4m torch is a lightweight and universal torch for precision welding, designed according to the requirements of pipe welders who value ergonomics and quality. The rotating and replaceable torch body allows it to adapt to any welding position. The high-efficiency and flexible cable ensures long-term operation. The SR9 torch body is used for work with a maximum welding current of 140A, while the SR17 body (up to 180A, selectable in the menu) allows for comfortable welding and the possibility of matching consumable parts from the most popular systems.

IGBT TRANSISTORS offer a stronger, more concentrated, and more stable arc while consuming less energy.

COLD WELDING - fast spot welding in the range of 1ms - 200ms.

COLD WELDING PULSE - pulsed cold welding. Fast spot welding in the range of 1ms - 200ms with an adjustable frequency up to 10Hz.

200A WELDING CURRENT enables welding of materials up to 10 mm thick.

SIMPLE PANEL - every selected function is backlit. An ideal solution for beginner users.

2T-4T are welding modes that facilitate welding on short and long sections. 2T mode is used for short sections because the arc extinguishes in a set time after releasing the microswitch; in 4T mode, you don't have to constantly hold the switch during welding—just click a second time to extinguish the arc automatically.

PRE-GAS enables faster arc ignition at the start on both low and high welding current values. An essential function for spot-joining thin and thick elements. Pre-gas flow time is adjustable from 0-2 s.

POST-GAS allows for faster cooling of the joint and the tungsten electrode. Post-gas flow time can be adjusted from 0-10 s.

PULSE gives the possibility of welding very thin materials in steel and stainless steel. The minimum pulse current is 10 A. Pulse adjustment range from 0.5 - 100Hz.

The SPARTUS TIG 206P DC is a version of the TIG 203P DC (enhanced with cold welding functions), which has been known on the Polish market for several years and is a valued model in the industry. Many companies in the welding industry own this TIG model.

The greatest advantages of the welder are:

• Powerful HF - precise operation at both low and high welding currents.
• Reliable control panel and precise encoder for adjusting welding parameters.
• Pulse with a wide adjustment range.
• Cold welding - fast spot welding. Cold welding for sheets thinner than 1mm.

WITH THIS DEVICE YOU CAN WELD:

• Carbon steel up to 10 mm.
• Stainless steel up to 8 mm.
• Braze welding with pulse using CUSI3-CUSN wire.
• Titanium up to 6 mm.
• Duplex up to 6 mm.
• Super duplex up to 6 mm.

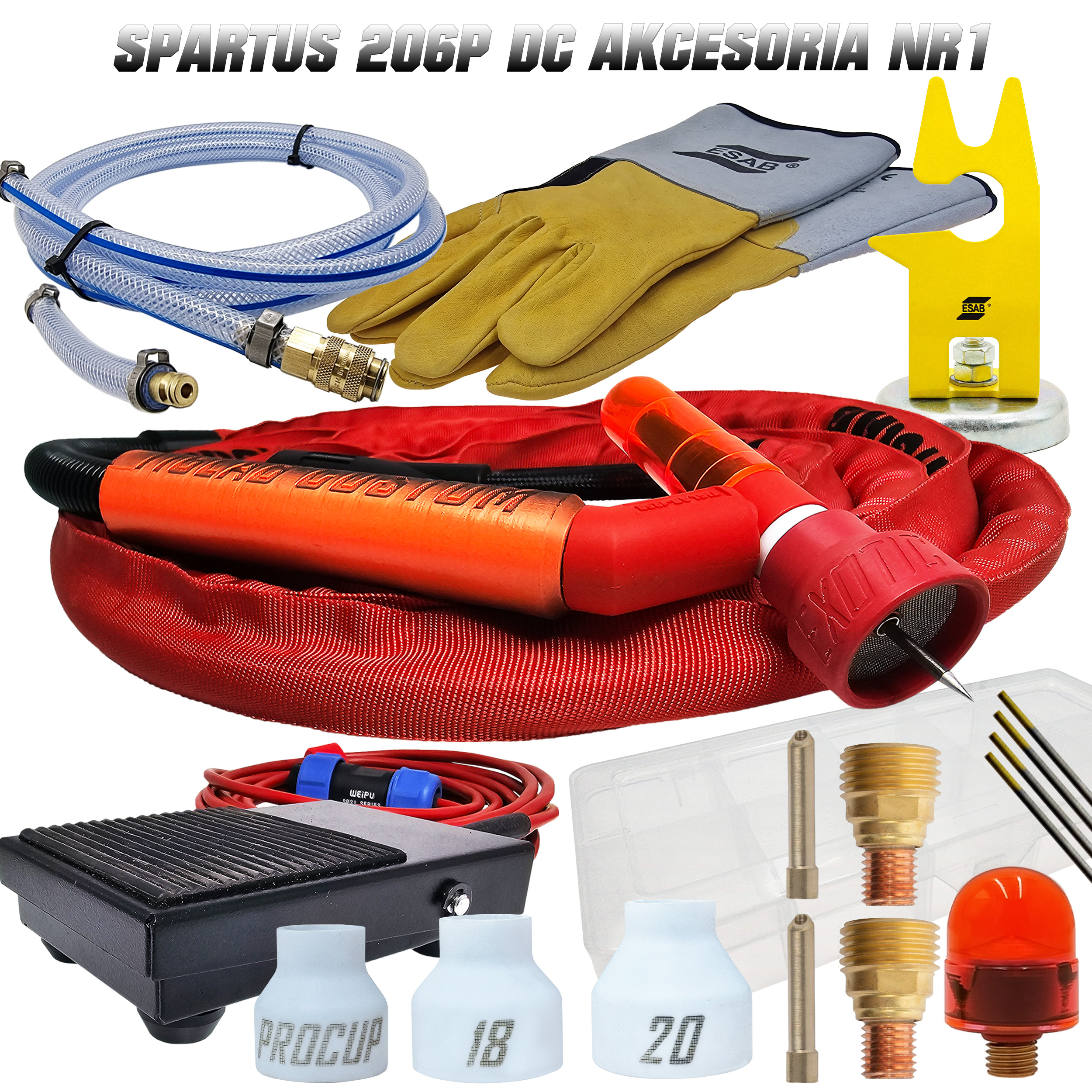

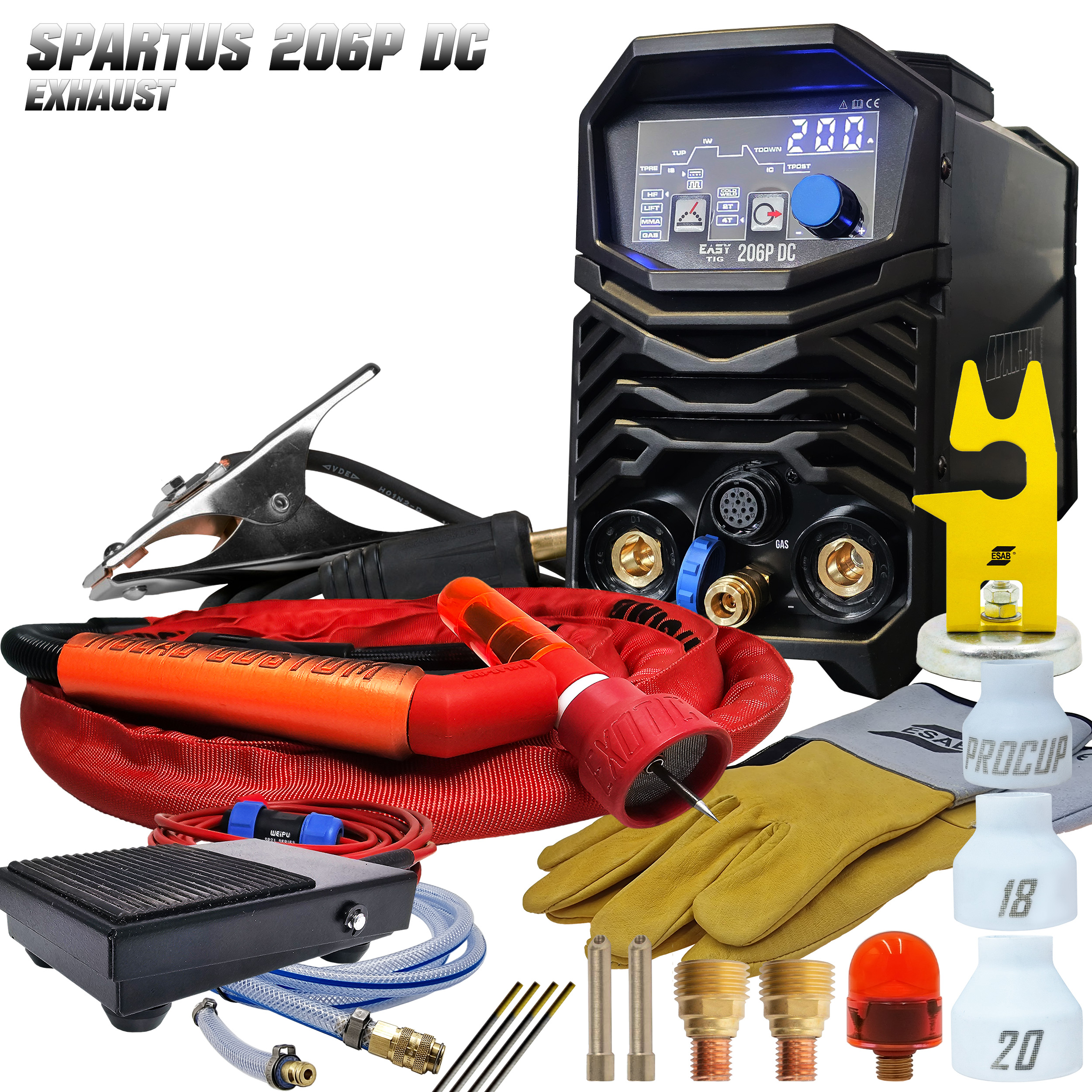

The set includes essential accessories to start welding:

DEVICE EQUIPMENT:

• SPARTUS TIG 206P DC
• Welding torch TIGCUSTOM TLB9R SFLEX - 4 m
• ESAB magnetic TIG torch stand
• ESAB TIG Pro gloves
• On-off foot control (4m)
• Work lead (ground cable)
• Gas hose + quick-connectors

TIG PARTS:

• Collets - 2 pcs
• Gas lenses - 2 pcs
• Insulators - 2 pcs
• PROCUP 14 nozzle
• PROCUP 18 nozzle
• PROCUP 20 nozzle
• EXOTICCUP Red nozzle
• Exotic back caps - 2 pcs
• Tungsten electrodes - 4 pcs
• TIGBOX parts storage box

If you need to add something to the set, call us and we will configure it to your preferences.

SPARTUS DOOR TO DOOR MANUFACTURER WARRANTY

SPARTUS products purchased from our store are brand new and carry a manufacturer's warranty. The warranty card is filled out on the day of purchase and matches the sales document numbers. We provide warranty and post-warranty service for SPARTUS devices. By purchasing SPARTUS products from us, you are guaranteed support in case of failure and assistance with the initial setup of the device. If a failure occurs, a courier collects the damaged equipment from the location indicated in the service form and, after the fault is repaired, delivers the defect-free equipment. Transport to the service center is covered by SPARTUS.
