Spartus tig 220 ac dc custom grip 17 #2

The set includes a TIG CUSTOM GRIP 17 SFLEX torch with a high duty cycle, specially designed for aluminum welding. We invite you to watch a video presentation of the torch tests while welding aluminum at 200A. During aluminum welding, welding torches heat up significantly, which usually results in shorter working times. With the TIG CUSTOM GRIP welding torch, work is more efficient, and the torch's duty cycle is 80%, which is unheard of in any other TIG torch. The advantages of the torch include ergonomics, low weight, small dimensions, and the SFLEX cable, which is super-elastic and resistant to high temperatures. It is the only product of its kind specifically made for aluminum welders.

VIDEO PRESENTATION SPARTUS PROTIG 220 AC DC:

STAINLESS STEEL PIPE WELDING:

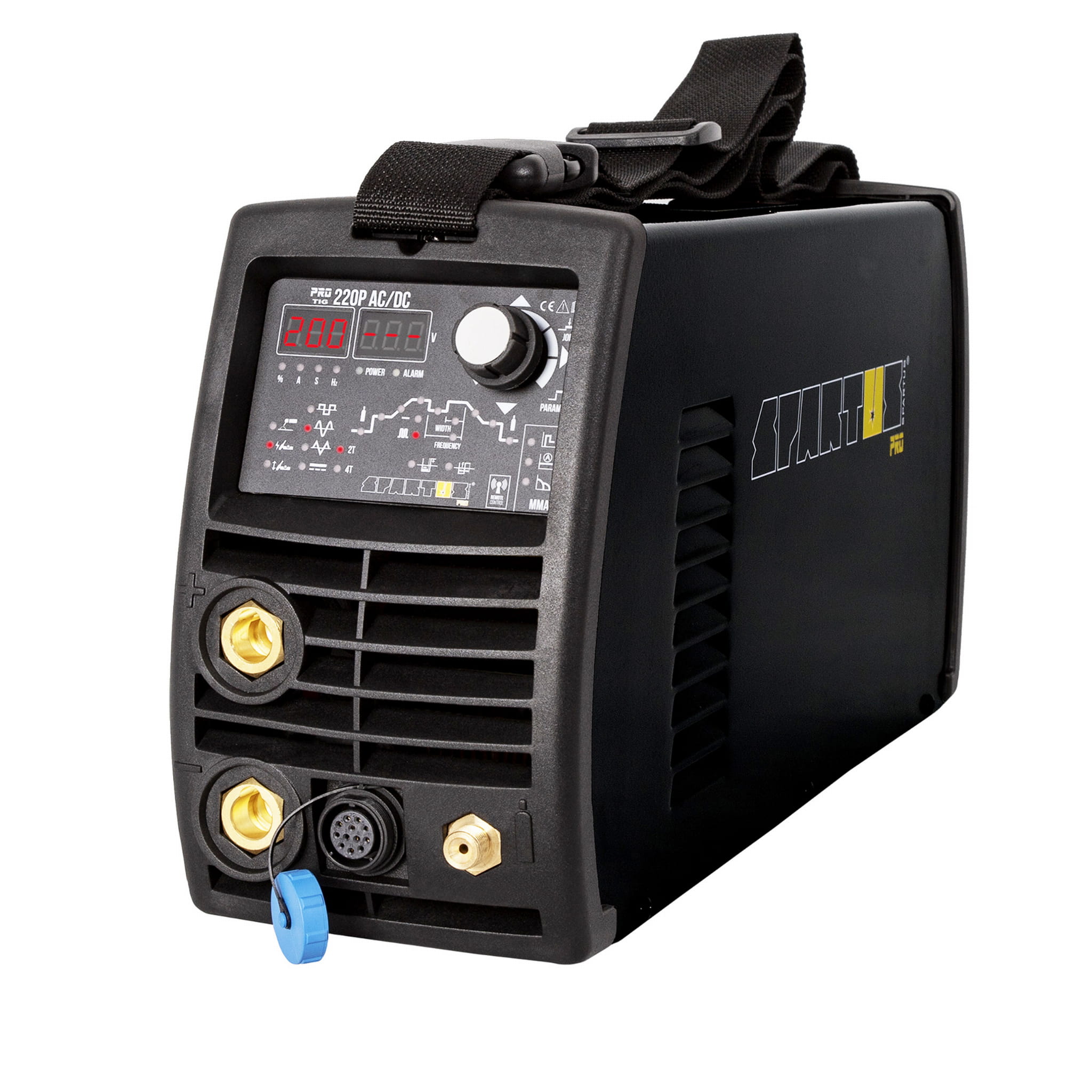

SPARTUS PROTIG 220 AC DC is a digitally controlled inverter welder built on IGBT transistors. It enables TIG AC/DC and MMA AC/DC welding. It is powered by a single-phase 230V network. PROTIG 220P AC DC allows for arc ignition in two methods: TIG HF (high frequency) and TIG Lift (friction). In both TIG and MMA methods, the device can weld at 200A. The pulse function allows for joining very thin materials in aluminum, steel, stainless steel, and many others. The welder has an intuitive control panel that ensures quick navigation through functions. For the respective welding methods, the welding current adjustment range is: 5-200A (AC) and 5-200A (DC). It enables TIG Pulse welding, making it an ideal device for welding stainless and acid-resistant steels. The TIG AC mode, with the ability to choose the AC waveform, balance, and frequency of the welding current, allows for joining even the most demanding aluminum alloys.

The device has high efficiency:

• 60% at an ambient temperature of 25°C
• 40% at an ambient temperature of 40°C

The manufacturer provides efficiency values under the most extreme conditions and high ambient temperatures.

IGBT TRANSISTORS offer a stronger, more concentrated, and stable arc with lower energy consumption.

200A WELDING CURRENT enables welding of materials up to 10 mm.

AC DC versatile application thanks to the ability to weld with both direct and alternating current.

SIMPLE PANEL each adjustable function is backlit. An ideal solution for beginners.

2T-4T are welding modes that facilitate work on short and long welding sections. 2T mode is used for short sections because the arc extinguishes after releasing the microswitch; in 4T mode, you don't have to hold the microswitch constantly during welding, just click it a second time for the arc to extinguish automatically.

PRE-GAS allows for faster arc ignition at the start on both low and high welding current values. An essential function for tack joining thin and thick elements. Pre-gas flow time adjustable from 0-2 s.

POST-GAS allows for faster cooling of the joint and the tungsten electrode. Post-gas flow time adjustable from 0-10 s.

PULSE provides the ability to weld very thin materials in aluminum, steel, and stainless steel. The minimum pulse current is 5 A. Pulse adjustment range from 0.5 - 250Hz.

AC FREQUENCY adjustable in the range of 50-250Hz. This function is responsible for narrowing the arc and faster penetration of the welded material.

AC WAVEFORMS selectable from the control panel are responsible for changing the characteristics of the alternating current. The principle of operation and waveform selection is presented in the video above. Choosing the AC waveform will allow for quick setup of the welder for welding both thick and thin materials.

PULSE FUNCTION OPERATION PRESENTATION:

DINSE STANDARD enables the use of various interchangeable TIG torches. Torches up to 24 m in length can be used with the device.

AC BALANCE a wide range of 10-99 is responsible for the cleanliness of welds in aluminum welding. This function controls the amount of heat introduced into the material and the cleaning of oxides on the aluminum surface.

MULTI-CONTROL the device can use torches with UP&DOWN regulation and foot controls with smooth welding current adjustment. Foot control can be wired or wireless.

HOT START involves a temporary increase in welding current at the moment of arc ignition. This prevents the electrode from sticking in the initial phase of welding. The function enables faster arc ignition with rutile and basic electrodes.

ARC FORCE dynamics shorten the arc length while increasing welding current, which prevents the arc from extinguishing when the electrode touches the welded material. This function makes learning MMA welding easier.

TIG LIFT enables steel welding in places where HF welding is not possible.

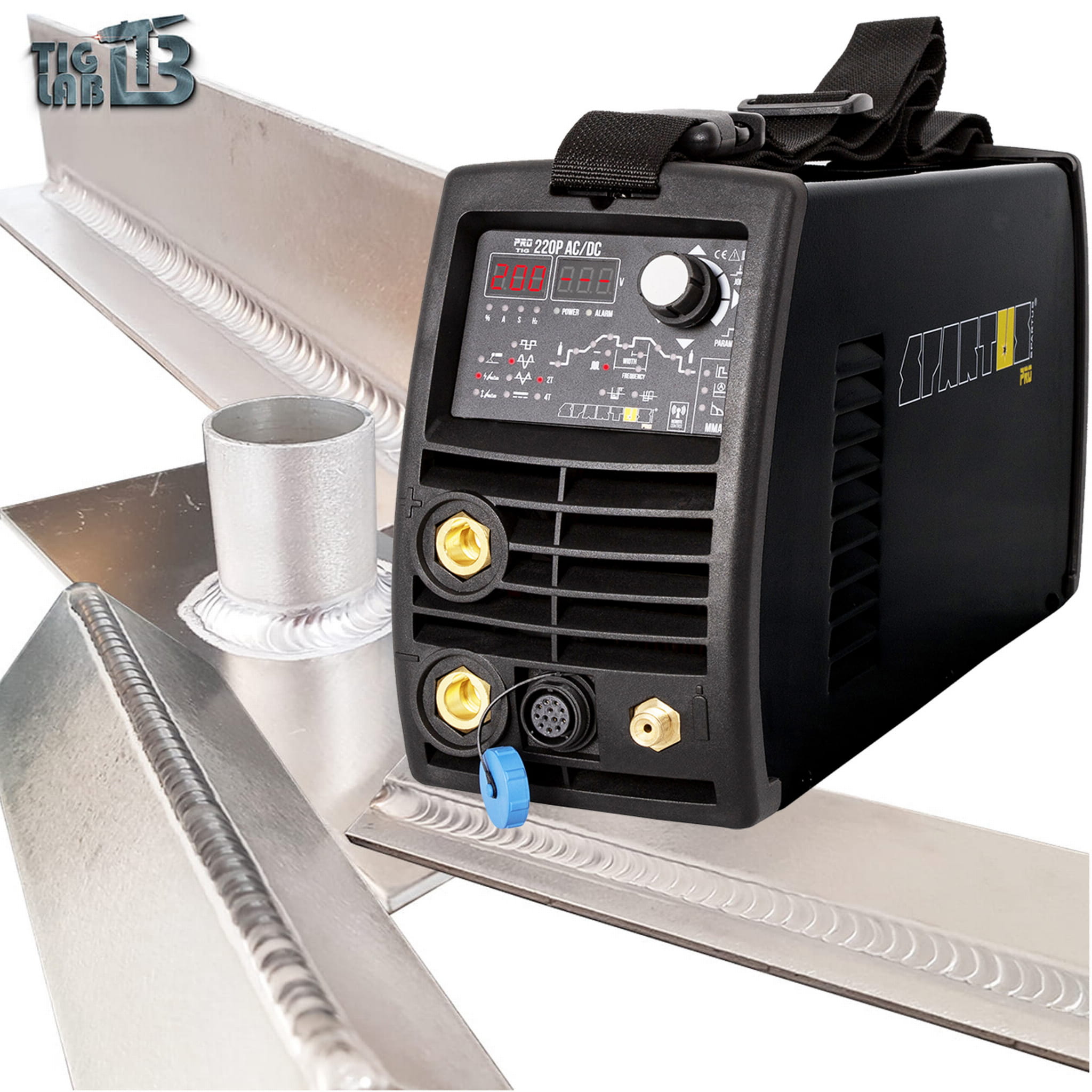

The device guarantees clean welds in aluminum:

The TIG CUSTOM 17 SFLEX - 4m torch in the U version is a lightweight and universal torch for precision welding, made according to the requirements of pipe welders who value ergonomics and quality. The precision microswitch allows for comfortable work when welding with the walking the cup technique and aluminum. The high-efficiency and flexible cable ensures long operation. The torch body allows for comfortable welding at 200A.

TIG CUSTOM GRIP 17 SFLEX ALUMINUM WELDING:

WITH THIS DEVICE WE CAN WELD:

• Carbon steel up to 8 mm.
• Stainless steel up to 8 mm
• Aluminum up to 10 mm
• Braze weld with pulse using CUSI3-CUSN wire
• Titanium up to 6 mm
• Duplex up to 6 mm
• Super duplex up to 6 mm
• MMA - with electrodes up to 4 mm diameter
• TIG LIFT carbon steel up to 6 mm

PROCUP 12 and 16 nozzles for stainless steel welding will increase weld quality and bead aesthetics.

PROCUP 12 WELDING:

PROCUP 16 WELDING:

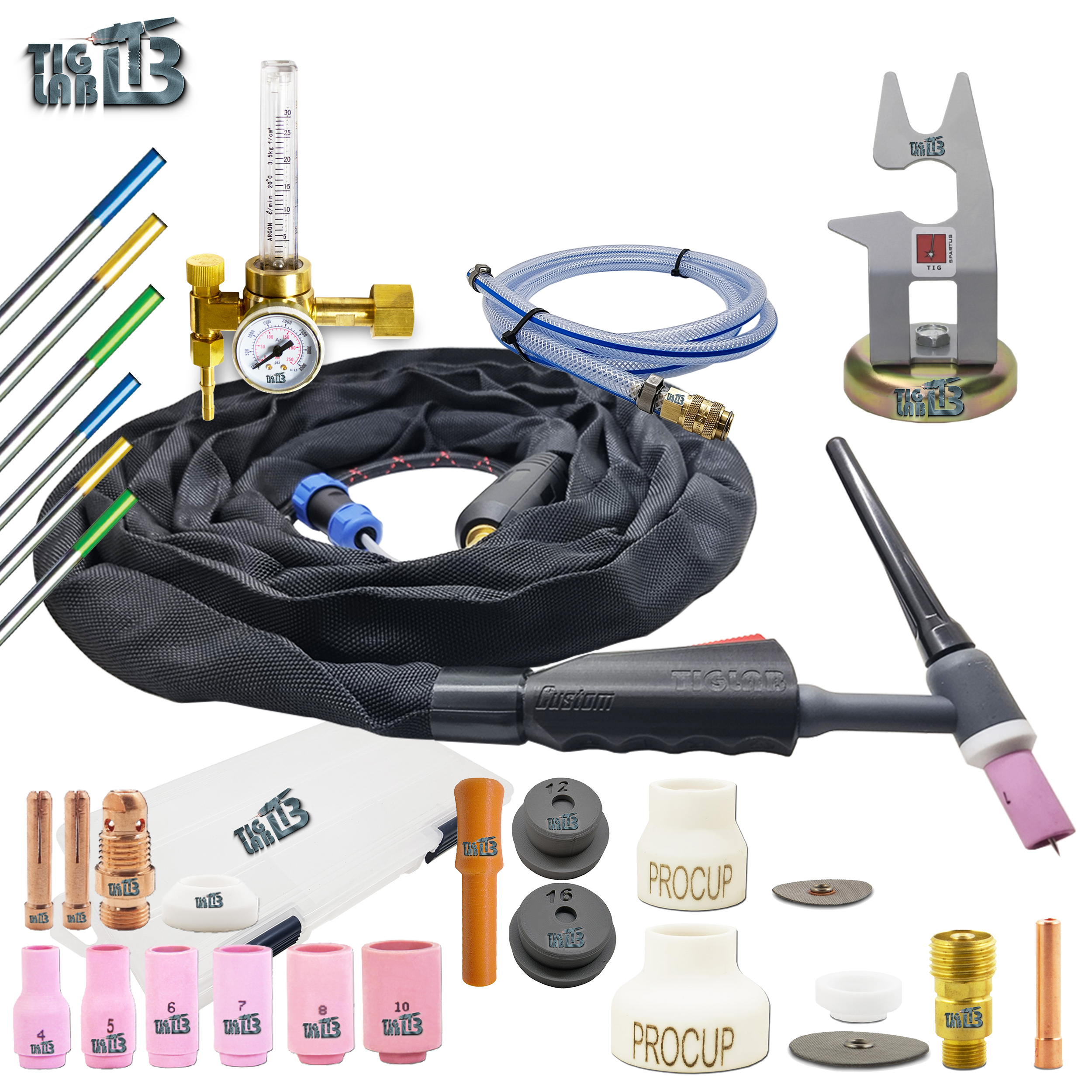

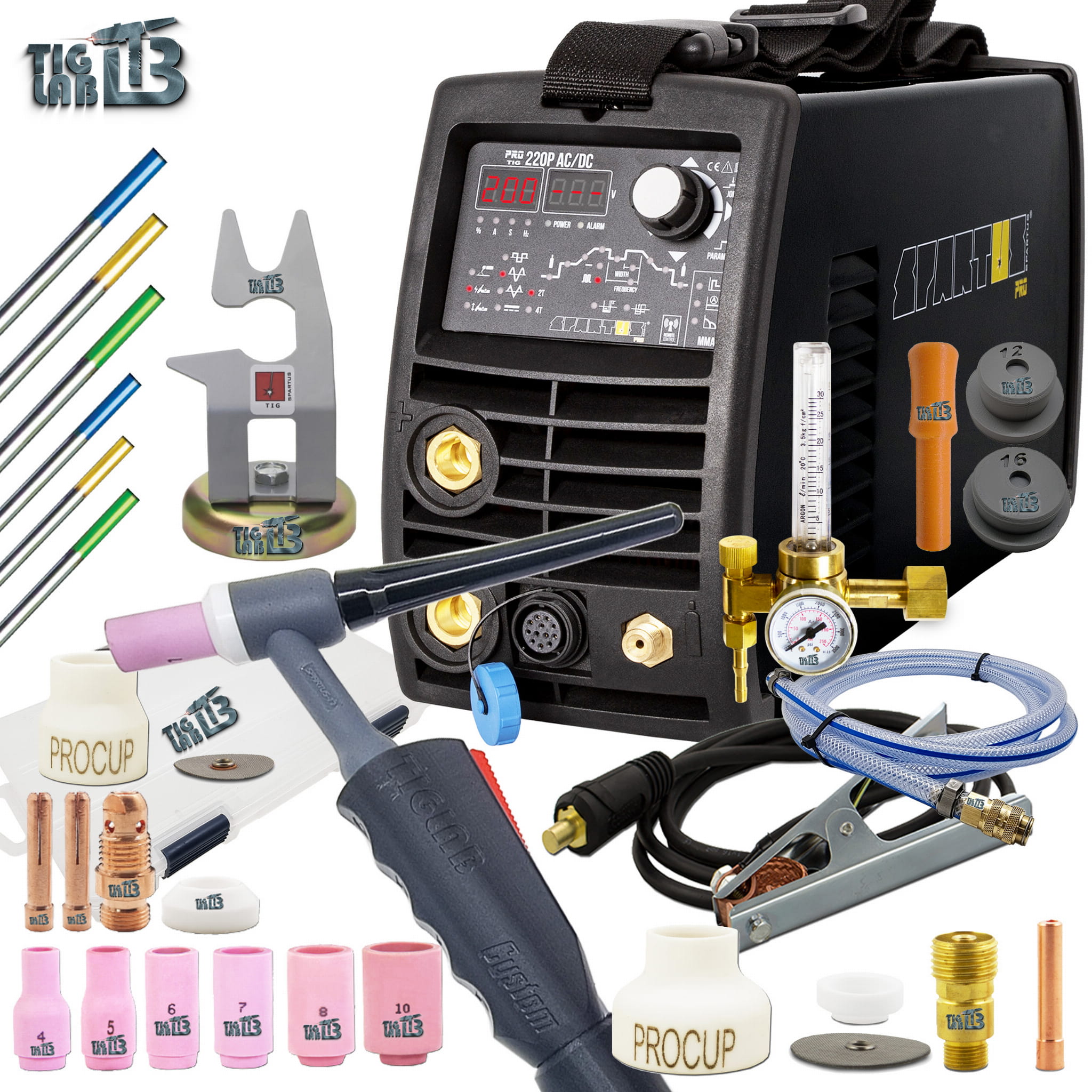

DEVICE EQUIPMENT:

• SPARTUS PROTIG 220 AC DC
• TIG CUSTOM GRIP SFLEX 17 Welding Torch - 4 m - for aluminum welding
• 3 m Ground cable
• Magnetic TIG stand - 1 pc
• Regulator 1 ROT - 1 PC
• Gas hose with quick-connector - 1 pc

TIG PARTS:

• Collets - 4 pcs
• SR9 Ceramic nozzles - 6 pcs
• PROCUP 12 Nozzle - 1 pc
• PROCUP 12 Gas diffuser - 1 pc
• PROCUP 16 Set - 1 SET
• SR17 Collet body - 2 pcs
• Insulator - 1 pc
• Back cap - 1 pc
• Tungsten electrodes - 6 pcs
• TIGBOX organizer - 1 pc
• PROCUP 12-16 Quick filter exchange tool

If you need to add anything to the set, call us and we will configure the set to your preferences.
