Spartus tig 200P acdc Motorsport #3

The SPARTUS TIG 200P AC DC is a comprehensive welding kit designed for exhaust systems and collectors made from materials such as stainless steel, duplex, titanium, and aluminum. Carefully selected accessories and the unique TIGCUSTOM RFLEX TLB9 mini handle set it apart with its exceptional ergonomic design and efficiency. With the TLB9 torch body, we can weld at a maximum alternating current (AC) of 160A - 35% duty cycle, as well as direct current (DC) at 160A - 70% duty cycle. This solution enables the welding of thicker pipes and sheets, as is often the case when welding pipes to collector flanges.

Welding of exhaust manifold for HONDA ACCORD with tigcustom sflex 9:

Welding of the exhaust manifold for the motorcycle DUCATI Panigale 899:

Welding of the exhaust system with the PROCUP system:

Custom muffler welding for VW CORRADO:

SPARTUS TIG 200P AC DC is a digitally controlled inverter welder, constructed based on IGBT transistors. It enables TIG AC 200A - TIG DC 200A welding methods and MMA AC/DC with a current intensity of 200A. It is powered by a single-phase 230V network. The pulse function allows for joining very thin materials in aluminum, steel, stainless steel, and many other materials. The welder has an intuitive control panel that provides quick navigation through functions.

The device has high efficiency:

• 60% at an ambient temperature of 25°C
• 35% at an ambient temperature of 40°C

The manufacturer provides the efficiency value in the most extreme conditions and high temperatures.

IGBT TRANSISTORS offer a stronger, more concentrated, and more stable arc with lower energy consumption.

WELDING CURRENT 200A allows welding materials up to 10 mm.

AC DC CURRENT has versatile applications thanks to the ability to weld with both direct and alternating current.

SIMPLE LCD PANEL each adjustable function is displayed graphically. Perfect solution for beginners.

2T-4T are welding modes that make it easier to work on short and long welding distances. The 2T mode is used for welding short distances, as the arc is switched off after disconnecting the micro switch. In 4T mode, we do not have to hold the micro switch constantly while welding, but only click a second time to turn off the arc automatically.

PRE-GAS allows faster arc ignition at the start, both at low and high values of welding current. An indispensable function for point joining of thin and thick elements. Gas flow time is adjustable from 0-1 sec.

POST-GAS allows faster cooling of the connection and the tungsten electrode. The gas flow time is adjustable from 0.1-10 sec.

TIG PULS MODE makes it possible to weld very thin materials of aluminum, steel, and stainless steel. The minimum pulse current is 10 A. The pulse control range is from 0.5 - 200Hz.

AC FREQUENCY is adjustable in the range of 40-250Hz. The function is responsible for narrowing the arc and faster penetration of the welded material.

AC BALANS wide range of 20-80 is responsible for the cleanliness of welds in aluminum welding. The function is responsible for the heat input into the material and the cleaning of oxides on the aluminum surface.

MULTI-CONTROL in the device we can use handles with UP&DOWN adjustment and foot control with smooth regulation of the welding current. The foot control can be wired or wireless.

MEMORY OF PROGRAMS - the welding machine has the ability to save welding parameter settings to memory. Several channels allow for quick selection of the appropriate saved welding program. This function is helpful for the serial welding of aluminum and stainless steel elements.

SPOT COLD WELDING - the function allows for the welding of very thin sheets and making perfect butt welds. With this function, we can weld very demanding materials cold. The function greatly facilitates the welding of stainless steel pipes and structures.

SPARTUS EASYTIG 200P ACDC VIDEO PRESENTATION:

The device guarantees clean welds in aluminum:

The SPARTUS TIG 200P AC DC welder is an upgrade of the well-known and highly valued SPARTUS 210P AC DC welder, which has been on the Polish market for many years.

ADVANTAGES OF THE WELDING MACHINE:

• powerful HF - precise operation at low and high welding currents.
• reliable control panel and precise encoder.
• wide range of pulse regulation.
• welding with smooth current regulation via foot control or up&down control.
• wide range of balance functions responsible for aesthetics and weld quality.
• adjustable AC frequency in a very wide range, which ensures an ideal stable arc.
• memory channels for saving welding parameter programs.
• SPOT - cold welding. Fast spot welding of thin stainless steel sheets.

WITH THIS MACHINE WE CAN WELD:

• Carbon steel up to 8 mm
• Stainless steel up to 7 mm
• Aluminum up to 10 mm
• Braze-weld with a pulse with a CUSI3-CUSN wire
• Titanium up to 6 mm
• Duplex up to 6 mm
• Superduplex up to 6 mm

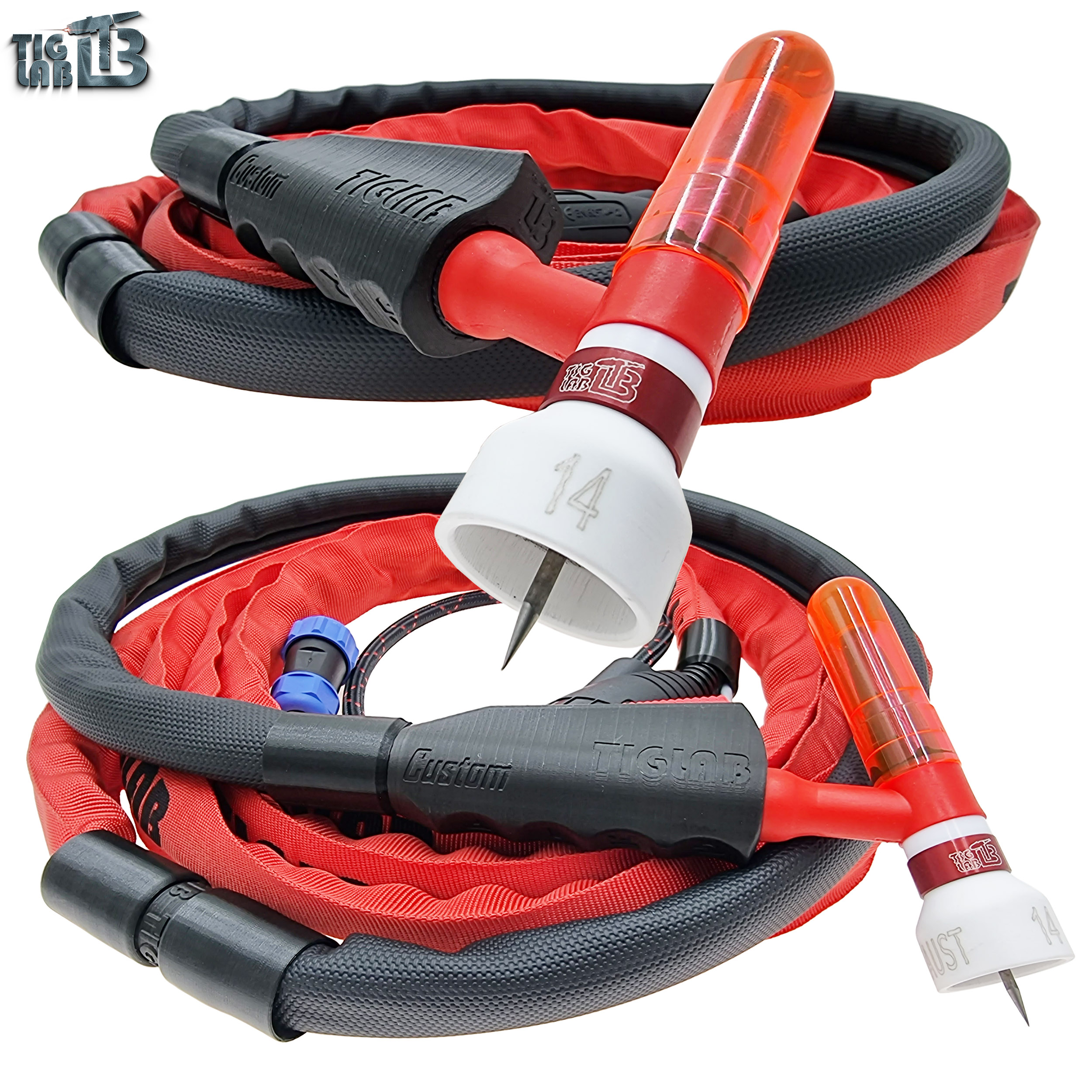

The TIGCUSTOM RFLEX TLB 9 - 4m mini version is a lightweight and versatile handle designed for precision welding. It's the lightest handle we've created so far for welding pipes in motorsports. The high-efficiency RFLEX cable ensures comfortable operation, while the SOFT SKIN RED sheathing protects the cable from abrasion. The advantages of the TIGCUSTOM TLB 9 handle can't be fully described; they must be experienced firsthand while welding. The TLB 9 torch body is an exceptional component that can be interchanged with the TLB 17 torch body.

The set includes the necessary accessories to start welding:

• reducer with double rotameter
• hose with quick coupler for TIG welder
• set of argon plugs Motorsport TLB - 2.25"-2.5"-2.75"-3" and two-stage for 42.4-44.5 mm manifolds.
• magnetic base tig
• tungsten electrodes - 6 pcs
• procup 20 - 1 pc
• procup GLASS R 16 - 1 pc
• procup EXHAUST 14 - 1 pc
• procup 10 - 1 pc
• tig lenses - 3 pcs
• Tig Collets - 3 pcs
• custom TIG Back Caps RED - 2 pcs
• Gas Lens Insulators - 1 pc
• ESAB SAVAGE A40 Helmet
• ARGON 8L cylinder with a protective cap

PROCUP EXHAUST is a new line of ceramic nozzles designed specifically for welding performance exhaust systems in the motorsport industry. The special 3D mesh diffusers effectively shield the welding area with gas and provide optimal cooling for the tungsten electrode and the welded joint. PROCUP EXHAUST nozzles are tailored for different applications based on their size:

• 20 - Suitable for stainless steel and titanium pipes. Offers the widest gas coverage and allows for flawless freehand welding.

• GLASS R16 - acid-resistant stainless steel pipes, butt welding of stainless steel sheets and duplex.

• 14 - pipes and butt welding. Perfect welds are made with the walking the cup technique.

• 10 - Ideal for thin-walled pipes and sheets.

Each of these ceramic nozzles has distinct requirements for shielding gas. Outstanding results can be achieved at low gas flow rates.

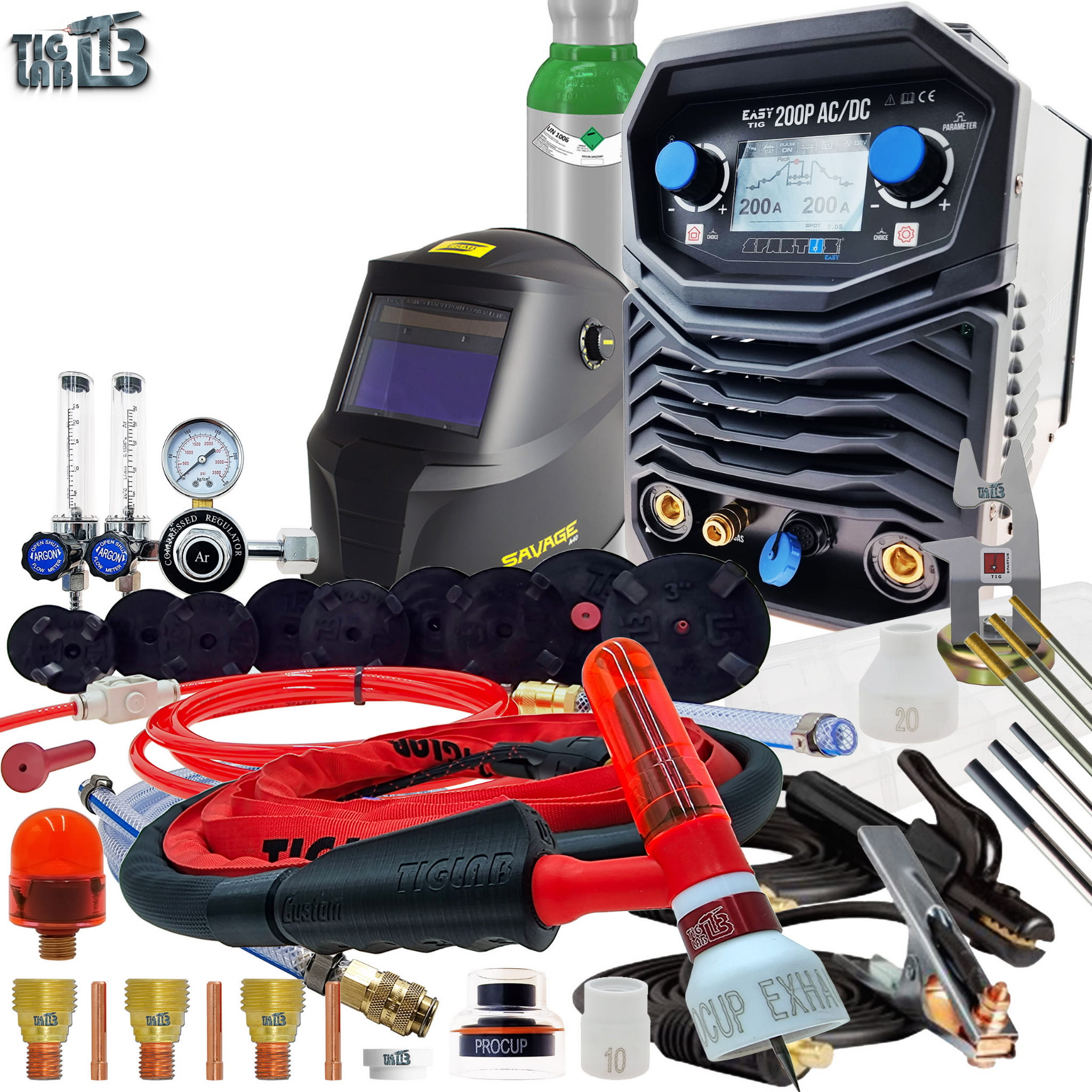

SET CONTAINS:

MACHINE EQUIPMENT:

• SPARTUS TIG 200 AC DC
• Welding torch TIGCUSTOM SFlex TLB 9 - 4 m - for welding aluminum and stainless steel
• Mass hose
• Electrode cable
• mma extension
• TIG magnetic base - 1 pc
• Reducer 2 ROT - 1 pc
• Set of Motorsport TLB argon plugs with accessories
• Gas hose with quick coupler
• Argon 8L cylinder with protective cap
• ESAB SAVAGE A40 helmet
• Instruction

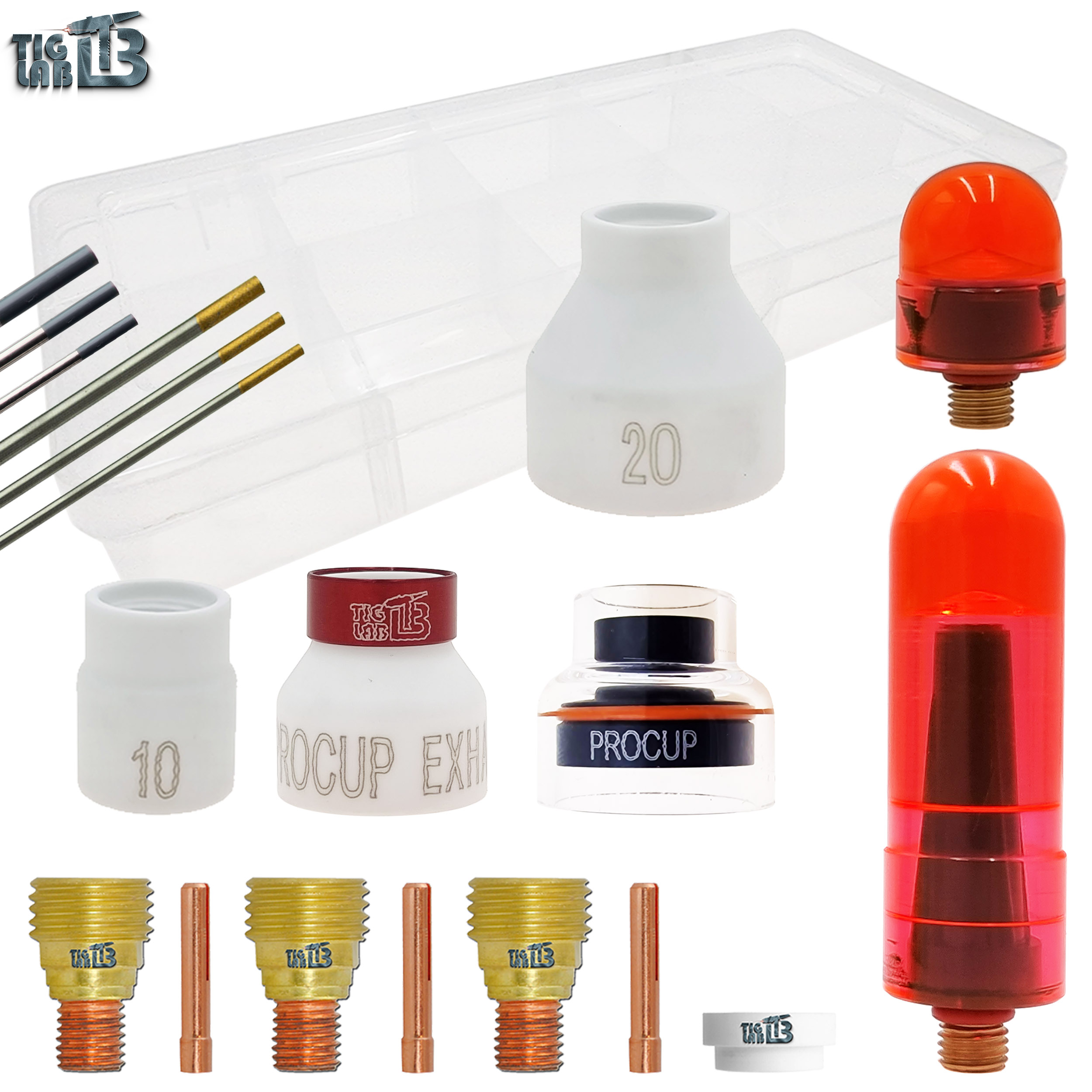

TIG PARTS:

• Tig Collets - 3 pcs
• Gas lenses - 3 pcs
• Procup 20 - 1 pc
• Procup GLASS R 16 - 1 pc
• Procup EXHAUST 14 - 1 pc
• Procup 10 - 1 pc
• Gas Lens Insulator - 1 pc
• Custom TIG Back Caps RED - 2 pcs
• Tungsten electrodes - 6 pcs
• TIGBOX organizer - 1 pc

If you need to add something to the set, call us and we will configure the set according to your preferences.

MANUFACTURER'S WARRANTY SPARTUS DOOR TO DOOR

SPARTUS products purchased in our store are brand new and have a manufacturer's warranty. The warranty card is filled in on the day of purchase and it is consistent with the numbers on the receipt. We provide warranty and post-warranty service for SPARTUS devices. If you buy SPARTUS products from us, you have a guarantee of support in the event of a failure and support during the first start-up of the machine. In the event of a fault, the courier picks up the damaged equipment from the location indicated in the service form and after repairing, delivers the equipment free of defects. Transport to the service is covered by the SPARTUS company.
