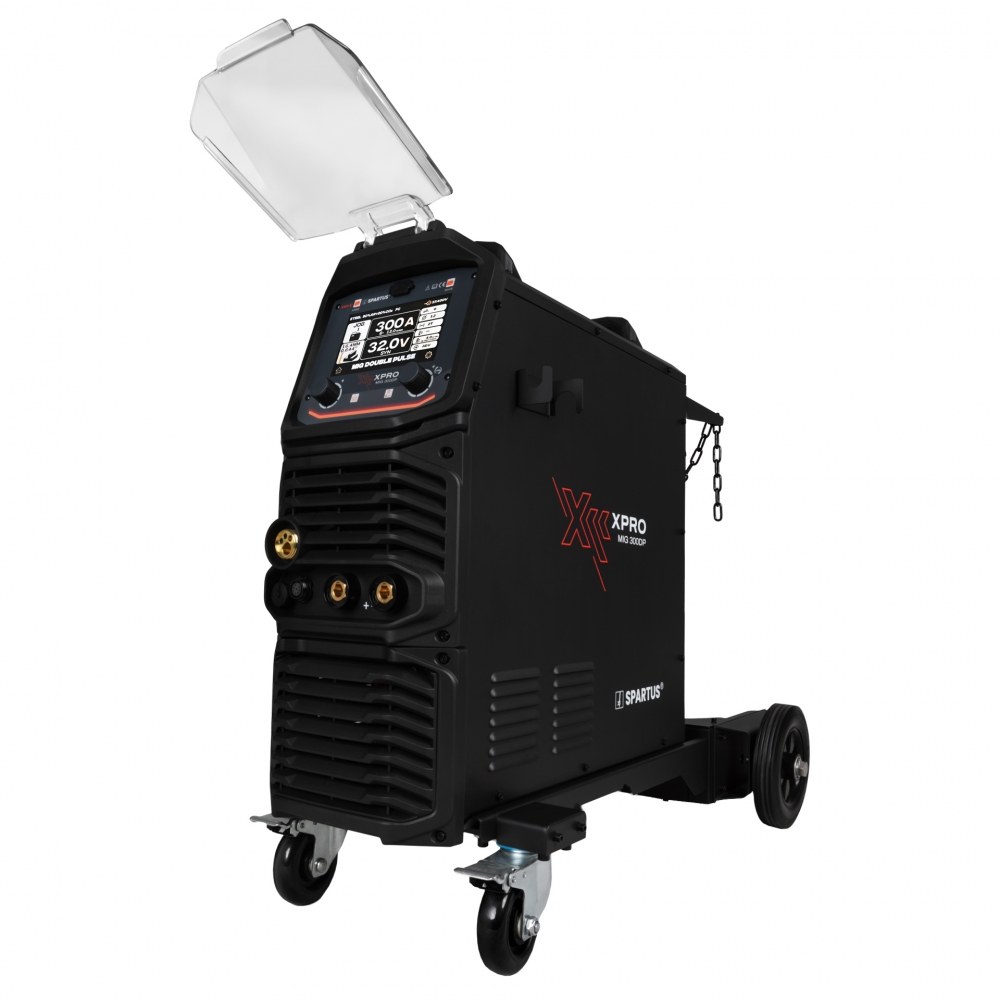

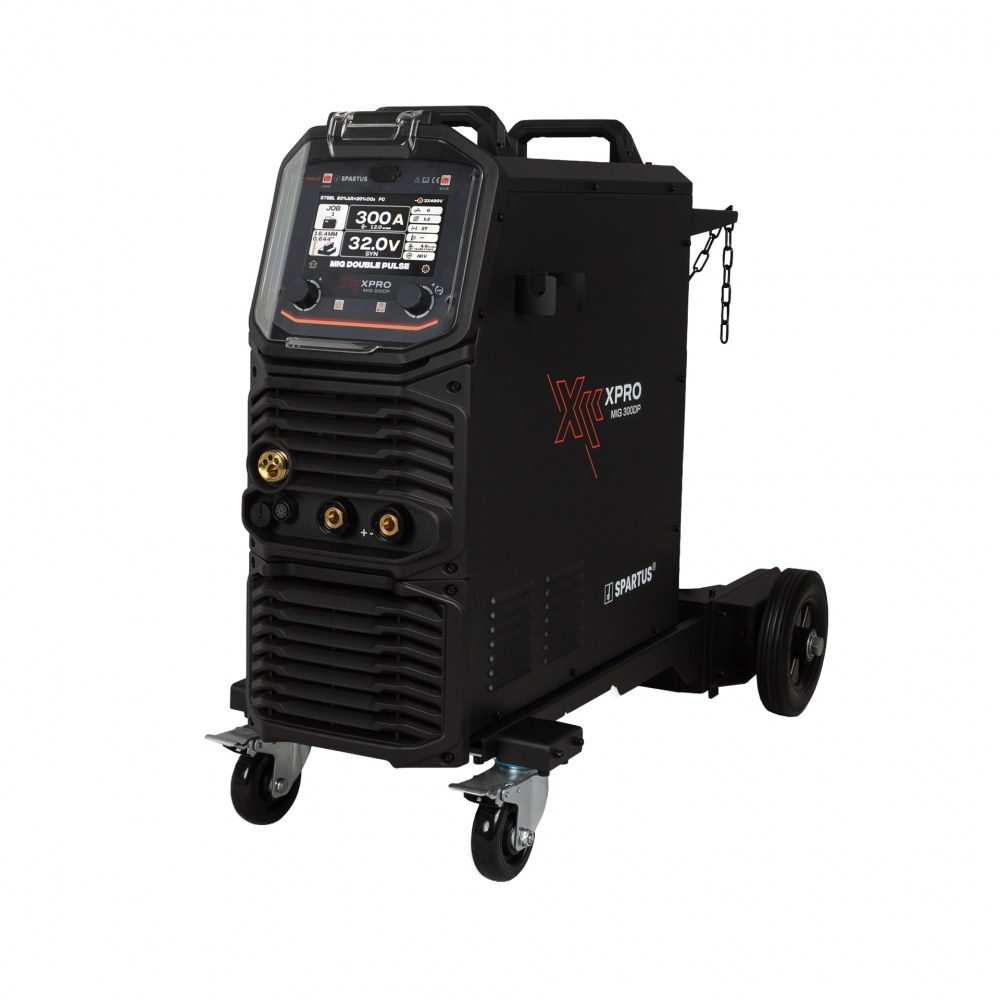

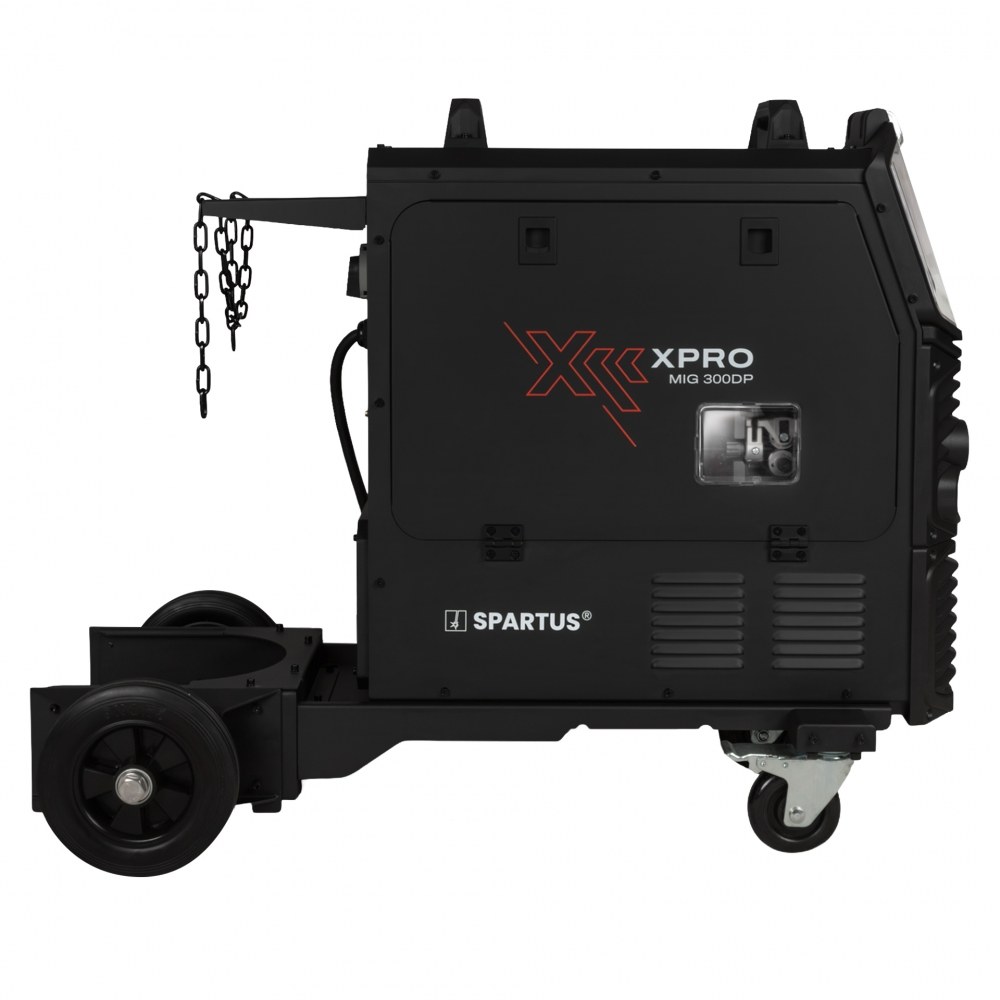

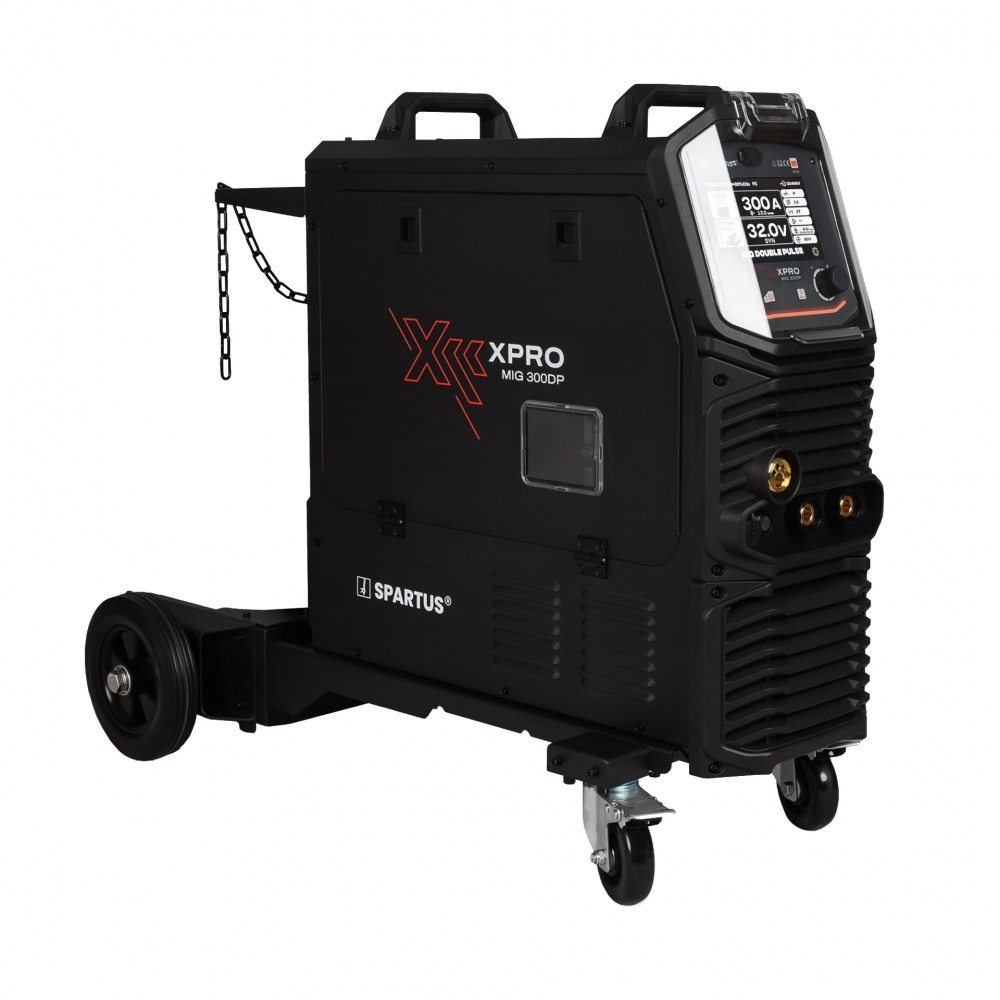

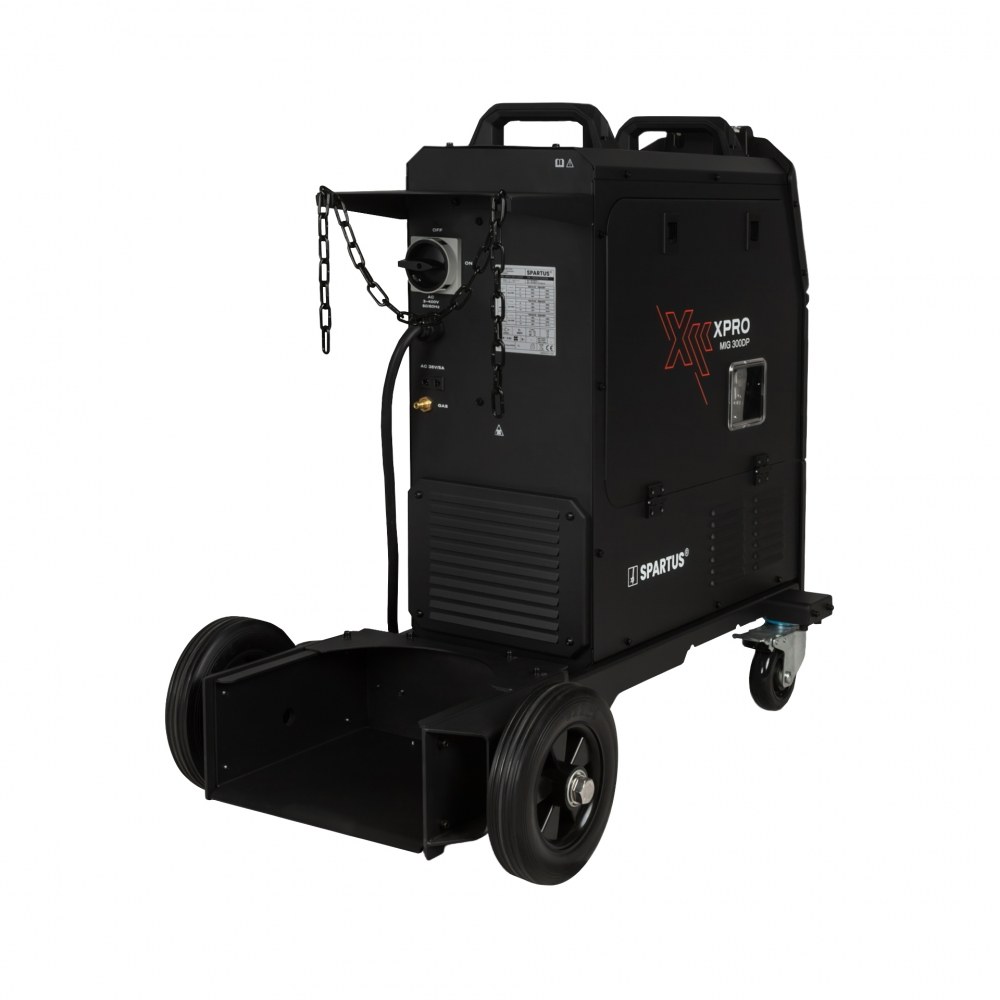

SPARTUS XPro MIG 300 Dual Pulse Inverter Semi-Automatic Welder

Industrial stability and full process control in a modern edition

SPARTUS XPro MIG 300 Dual Pulse is a modern, inverter semi-automatic welding machine designed for users who demand high efficiency, a stable arc, and maximum control over the welding process. Powered by a three-phase 400V supply, it delivers a maximum welding current of 300A at a high 60% duty cycle, ensuring an ample power reserve for demanding workshop, production, and assembly tasks. The device performs exceptionally well both in classic structural steel welding and in more challenging applications involving stainless steel or aluminum, where heat input control and weld aesthetics are paramount.

Advanced MIG/MAG Welding: Intelligent Synergy and Total Control

The primary area of operation for the SPARTUS XPro MIG 300 Dual Pulse is its advanced MIG/MAG process, engineered for stable arc guidance, quick configuration, and highly repeatable results. Operators can work in manual mode, which grants full freedom over settings, or utilize synergic programs that automatically select optimal parameters based on the material type, wire diameter, and shielding gas.

A key advantage of this model is its ability to operate in Pulse and Dual Pulse modes. Pulsation technology enables precise control over the amount of energy introduced into the material, translating into a more stable arc, minimal weld spatter, and superior weld pool control.

Advanced Arc Cycle Management and Operating Modes

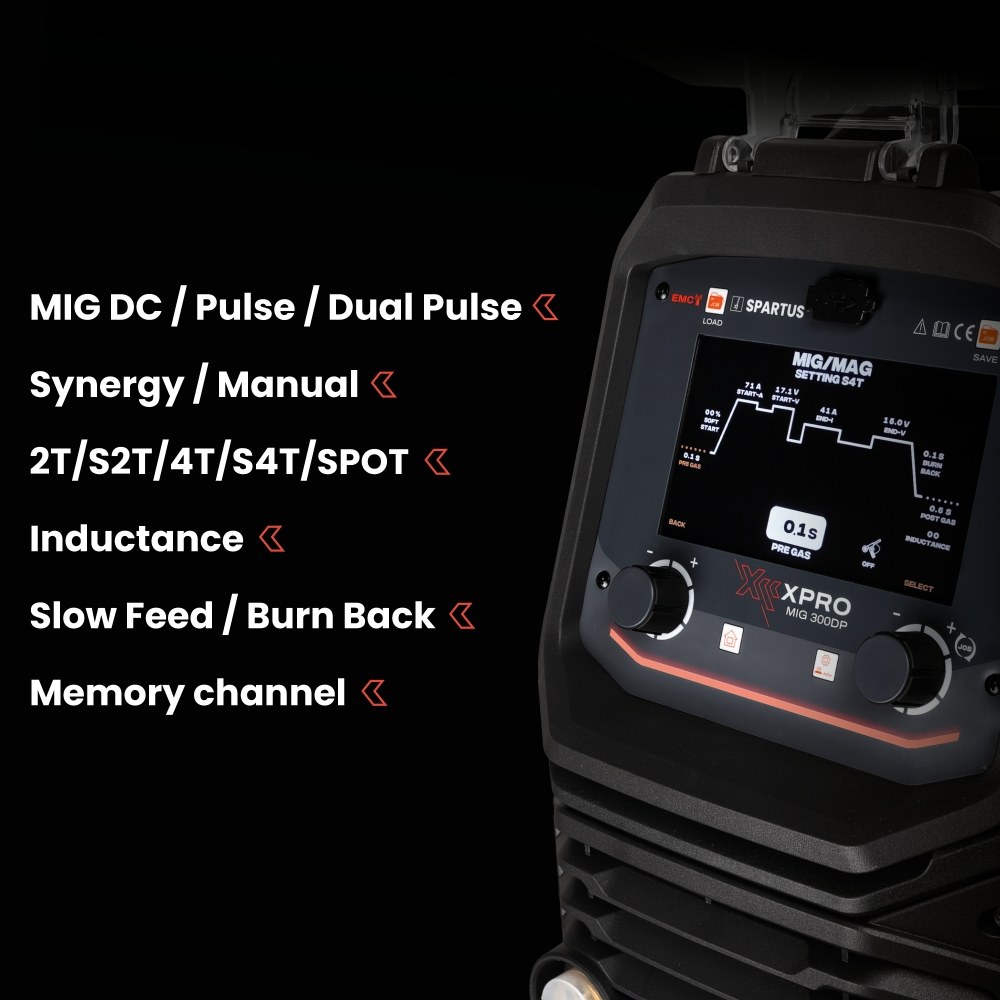

The SPARTUS XPro MIG 300DP provides the operator with a comprehensive suite of parameters to optimize the process from the initial trigger pull to final crater filling:

• Total Dynamic Parameter Control: Adjustable Pre-gas, Post-gas, Soft Start, start and end arc parameters, and Burn Back control guarantee clean arc ignition and an optimal weld finish without wire sticking.

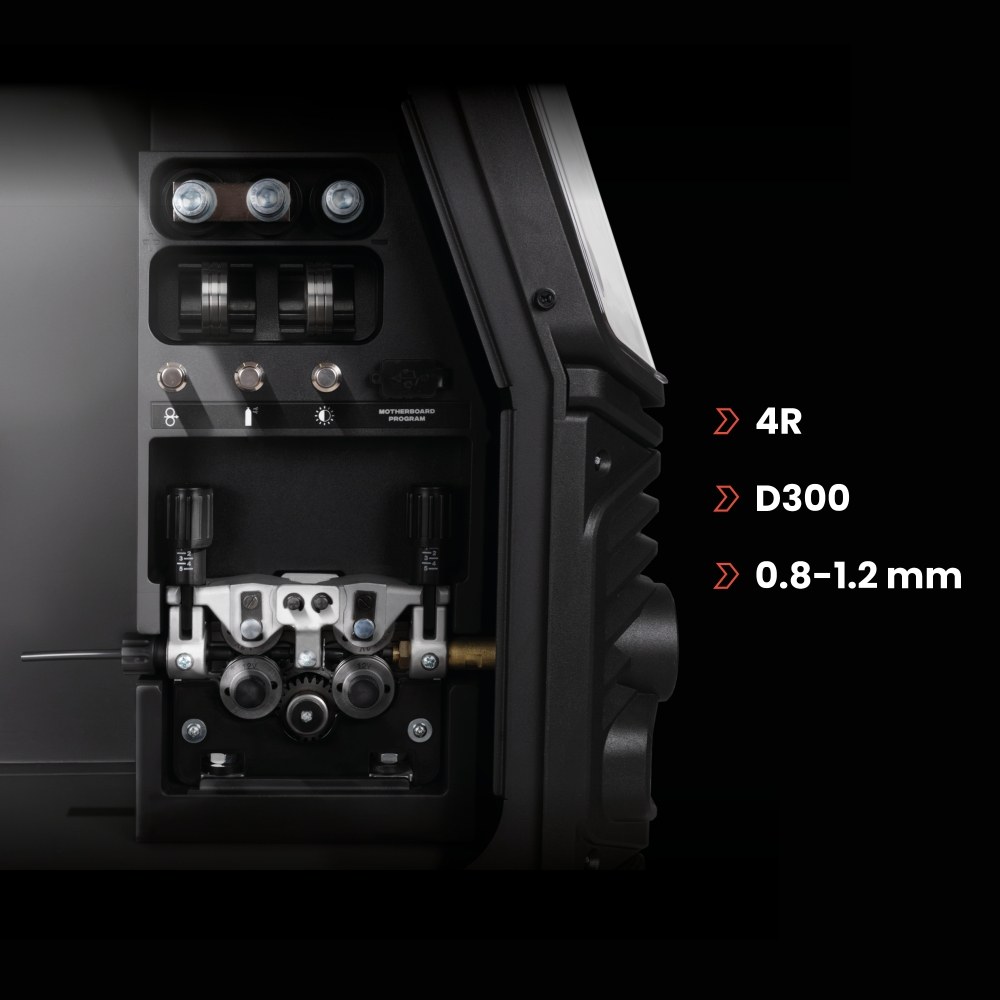

• Slow Feed Function: Provides a controlled, gentle wire feed startup, which vastly improves arc ignition stability and enhances general operating comfort.
• Inductance Adjustment: Allows you to adapt the arc characteristic to the material and welding position (from soft to dynamic and concentrated). This translates into superb penetration control and enables successful braze welding (CuSi3).
• 2T / 4T / S2T / S4T Modes: Classic trigger control is expanded with special S2T and S4T modes, enabling precise management of the starting current and ending parameters for flawless crater filling.
• SPOT Welding: Enables highly repeatable tack and spot welds thanks to precise control over the welding pulse duration.

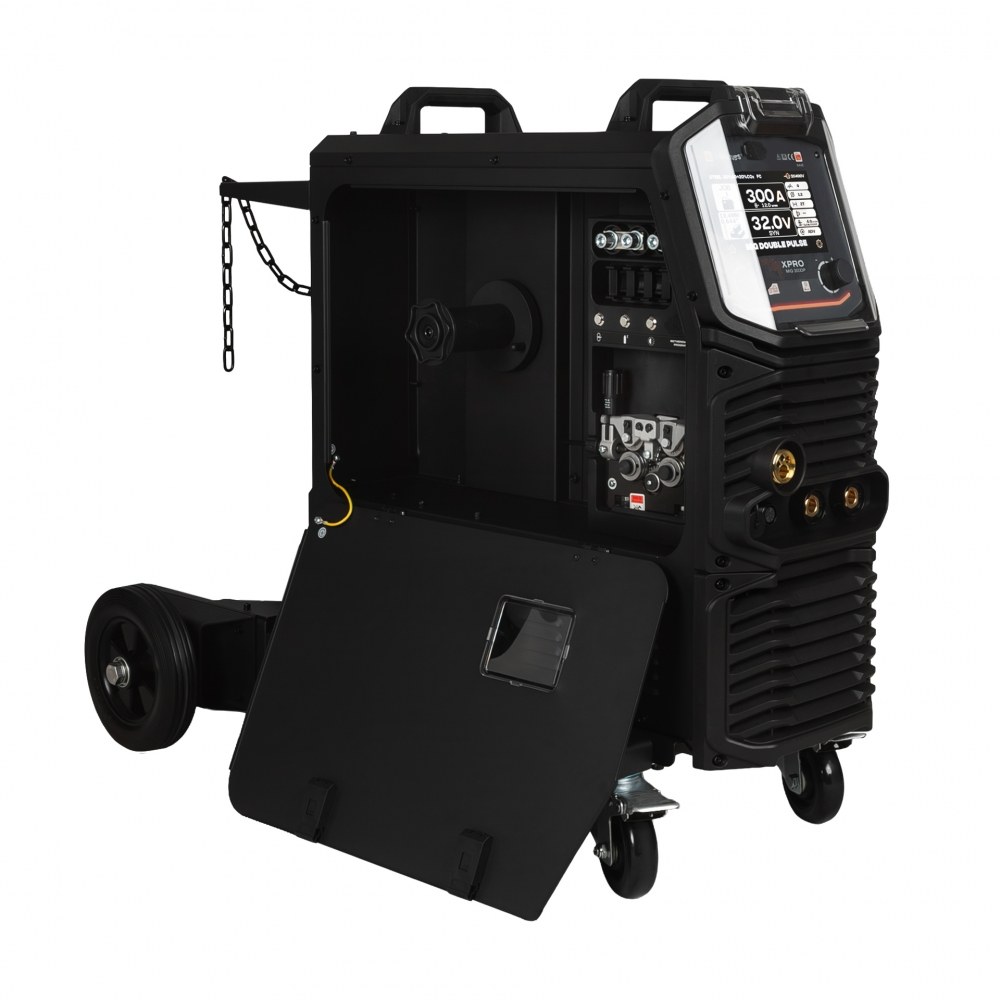

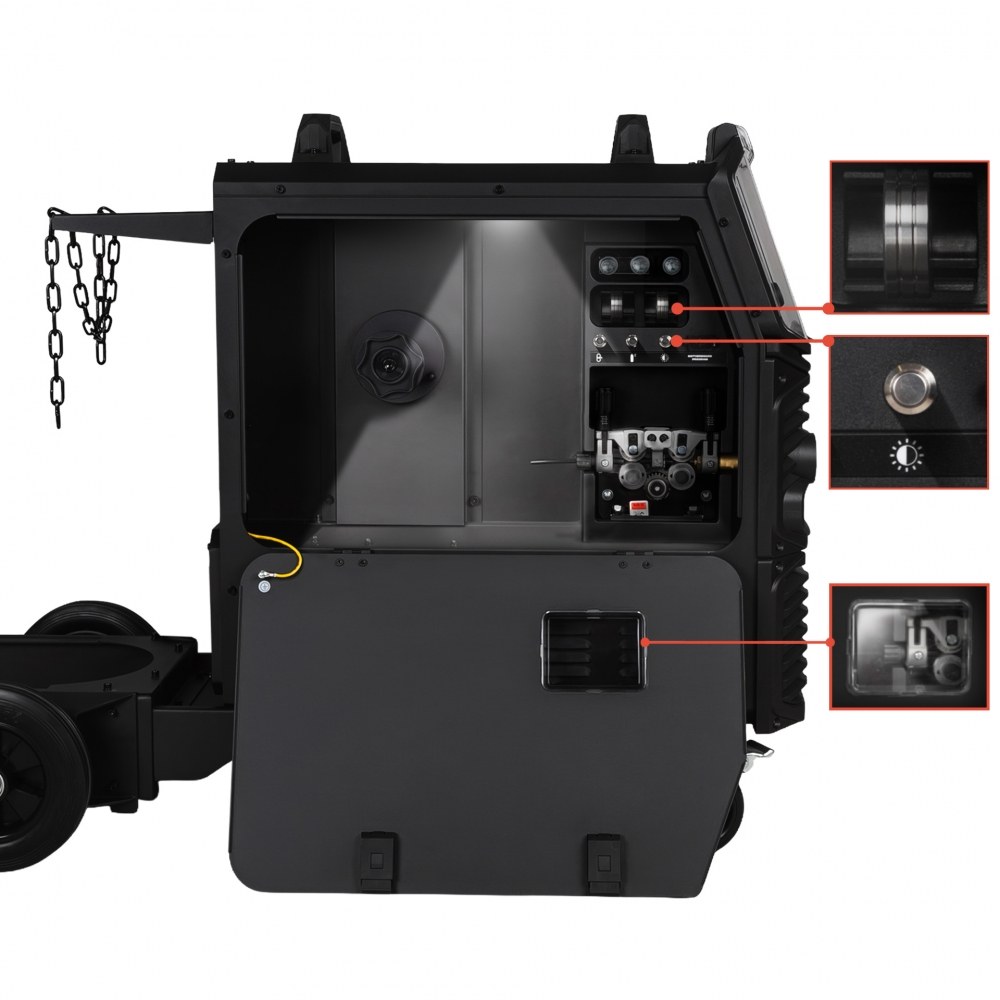

• Spool Gun Compatibility: The ability to connect a dedicated spool gun torch with an integrated mini-feeder eliminates feeding issues when running soft aluminum wires over longer distances.

Available Synergic Programs:

Expanded Capabilities in TIG Lift and MMA Methods

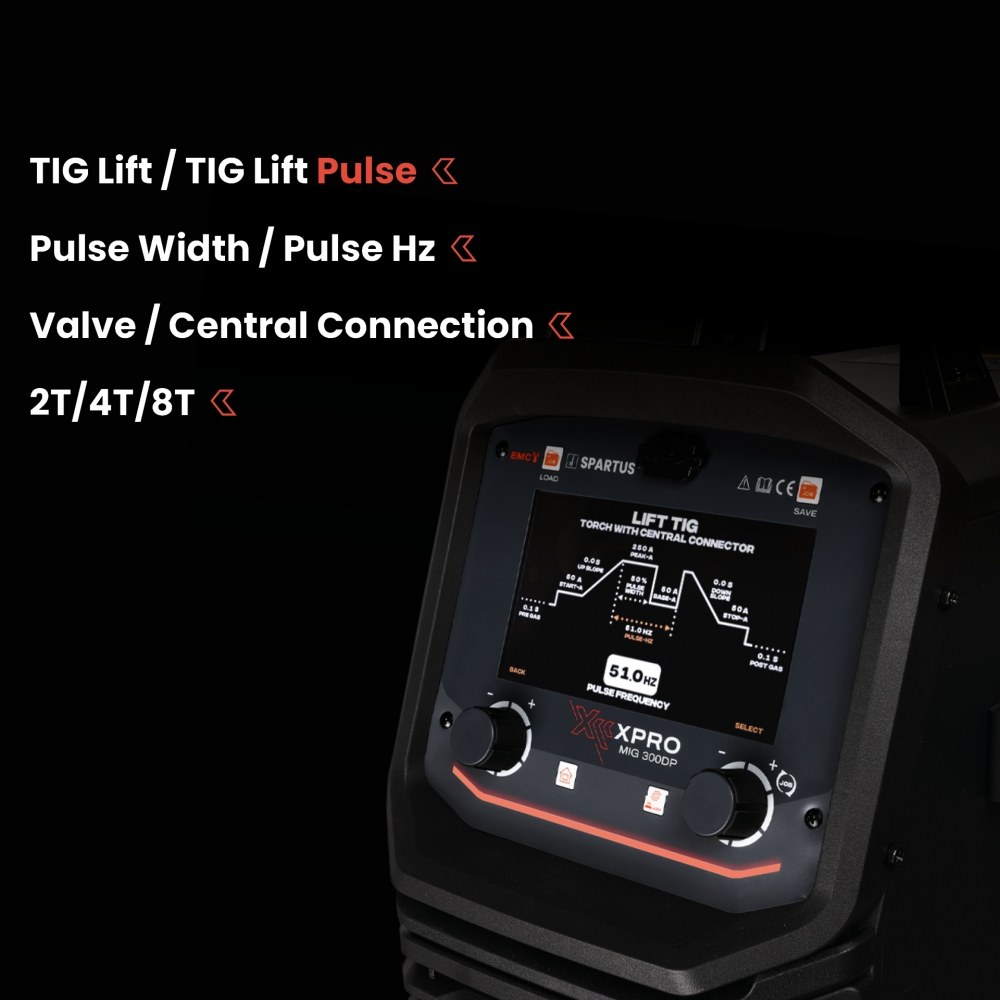

TIG Lift Pulse – Advanced Thermal Micro-Control

The TIG Lift mode allows for precise TIG DC welding with touch-start arc ignition, completely free from high-frequency HF interference, making it safe for surrounding sensitive electronics. The XPro series takes this a step further by offering a TIG Lift Pulse feature with full control over pulse frequency and width. The device supports advanced TIG torches equipped with integrated handle controls and a EURO connection. This grants access to an extended 8T operating cycle, which simplifies multi-stage welding processes and eliminates hand fatigue since the operator does not need to hold the trigger continuously.

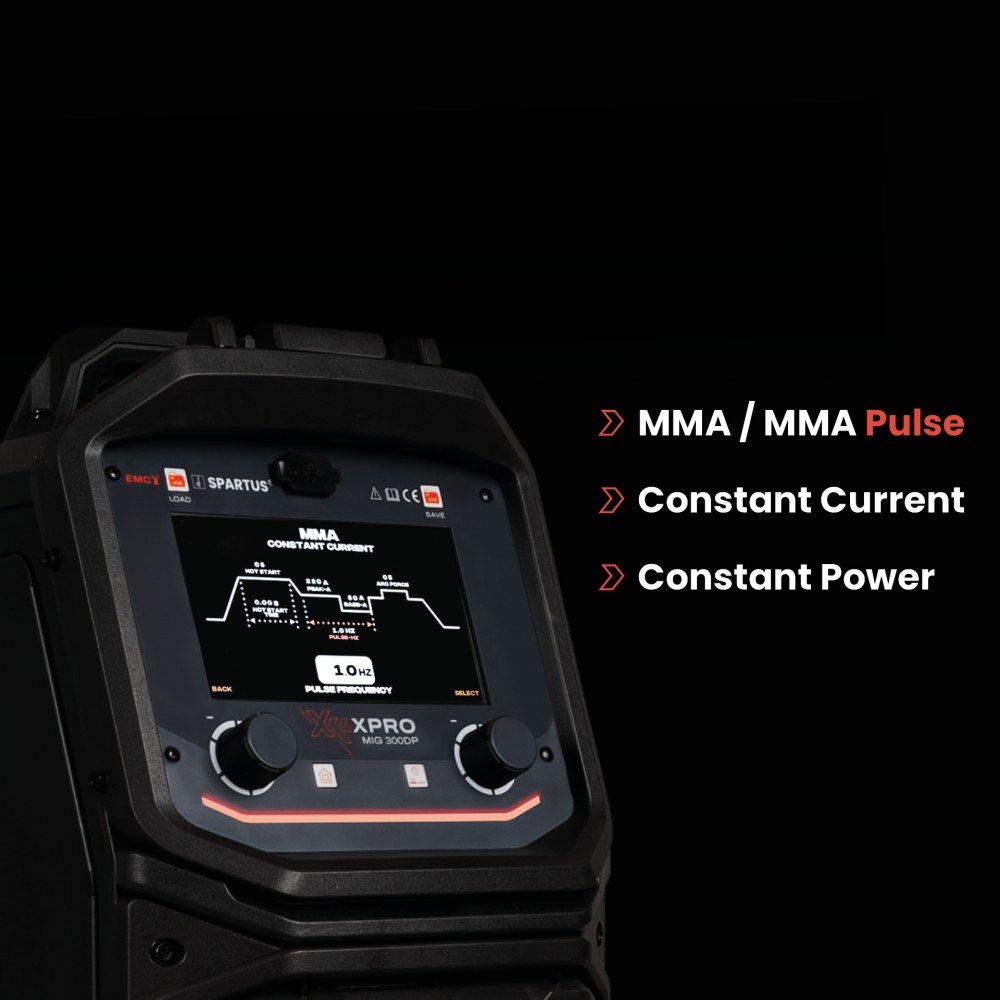

MMA Pulse – Intelligent Current and Constant Power Dynamics

Stick welding up to 250A is bolstered by an MMA Pulse mode for increased stability, along with proven assistance systems: Hot Start (easier electrode ignition), Arc Force (arc stabilization in tricky positions), and a protective VRD module (reduction of open-circuit voltage). Users can choose between two innovative operating characteristics:

• MMA Constant Current (CC): Keeps the welding current strictly fixed regardless of arc length fluctuations or hand movement, ensuring a highly predictable and stable arc.
• MMA Constant Power (CP): An intelligent algorithm continuously balances voltage and current to keep the total arc power constant, automatically adapting to changes in the welding position.

Industrial Innovations and Daily Operational Comfort

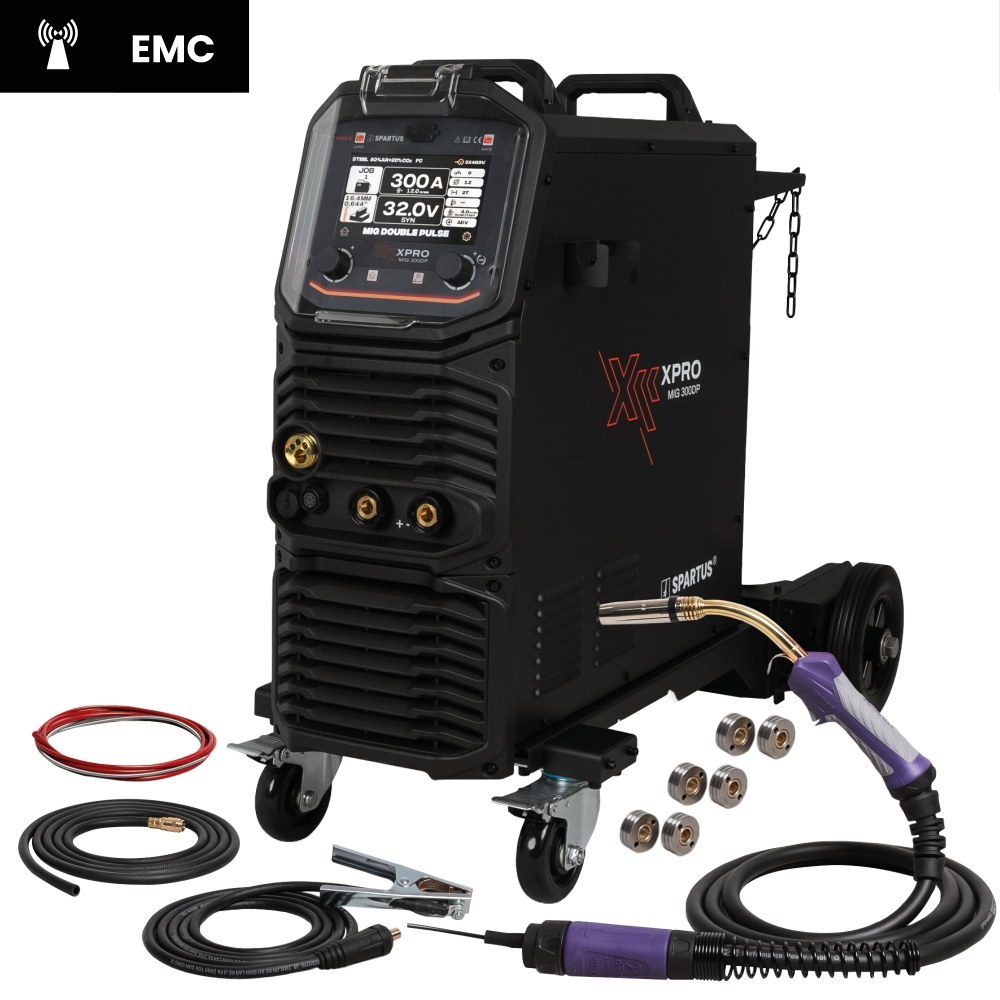

• Electromagnetic Compatibility (EMC): Full compliance with rigorous industrial standards ensures the unit is highly resistant to external interference and will not disrupt automated systems, robots, or control units nearby.
• 20 Memory Channels: Save your custom, field-tested configurations instantly. This slashes machine setup times to zero, eliminates adjustment errors, and ensures perfect repeatability across jobs.
• Fan Stop System: Smart cooling-on-demand activates the fans only when needed. This guarantees whisper-quiet operation during idle times, saves energy, and cuts down on grinding dust drawn inside the housing.

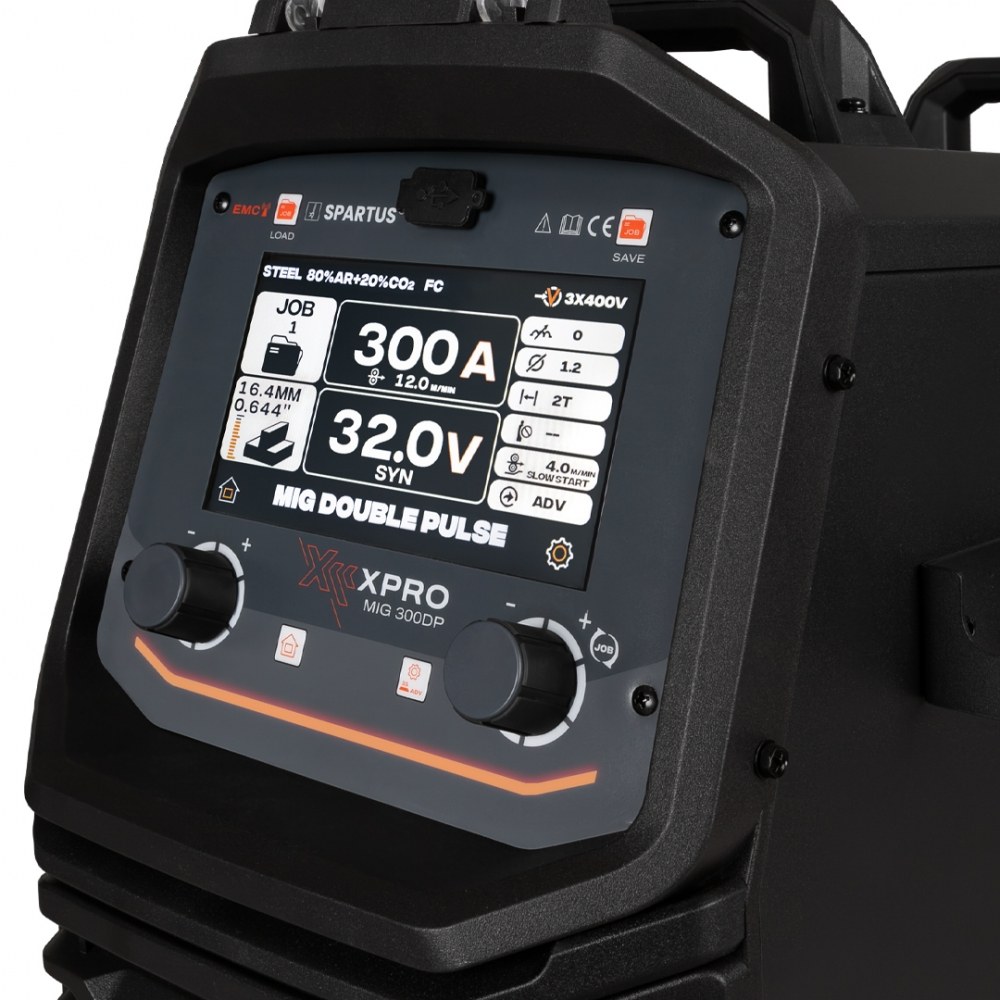

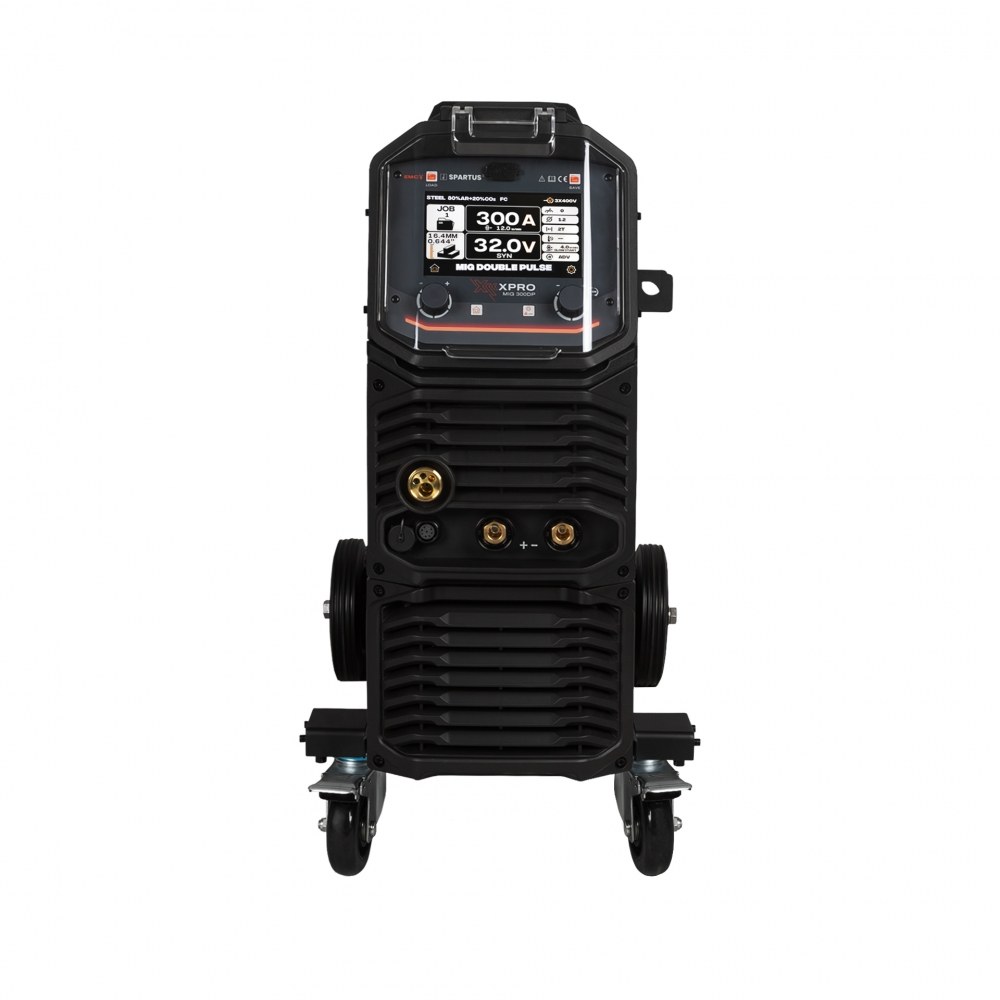

• Clear LCD Panel: A modern and highly intuitive graphical interface guides you smoothly through material selection and wire diameter settings while allowing effortless monitoring of active welding data.

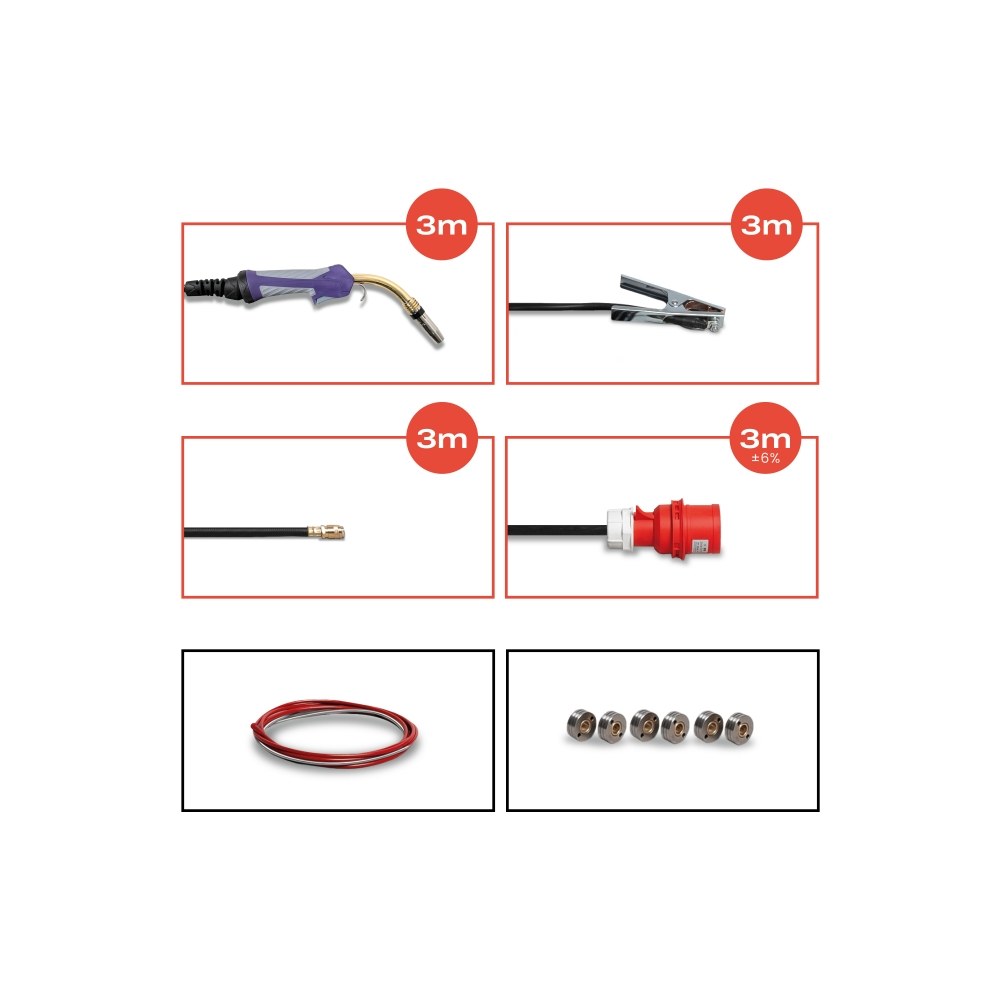

• Extended Working Range: Well-thought-out cable lengths (welding torch, ground cable, power cord, and a 3-meter gas hose equipped with a quick-connect coupling) give you real movement freedom without having to shift the machine constantly.
• Extended Warranty: The reliability of this professional-grade series is backed by a generous and dependable manufacturer warranty period of up to 36 months.
