Spartus Tig 206P dc pipe #1

SPARTUS TIG 200P DC Pulse inox is a set designed for welding industrial installations made of stainless steel, acid-resistant steel, duplex, and titanium. Carefully selected accessories and the TIG CUSTOM TLB17F torch enable long and comfortable work. The TIG welding torch features the TLB17F body, which allows welding with a maximum current of 180A at an 80% duty cycle and 200A at a 60% duty cycle. This solution enables the welding of thicker pipes and plates. The GRIP handle perfectly insulates against high temperatures and ensures long operation times when welding stainless steel. The professional and super-flexible TLBsflex cable allows for comfortable work in difficult conditions. The ergonomics of the torch will be appreciated by both professional welders and those beginning their adventure with TIG pipe welding.

SPARTUS TIG 206P DC Pulse is a digitally controlled inverter welder built on IGBT transistors. It enables TIG DC 200A and MMA welding at 200A current. It is powered by a single-phase 230V network. The cold welding function allows for the joining of very thin materials made of steel and stainless steel. The welder features an intuitive control panel that ensures quick navigation through all functions.

The device features high efficiency:

• 60% at an ambient temperature of 25°C
• 35% at an ambient temperature of 40°C

The manufacturer provides efficiency values for extreme conditions and high temperatures.

Cold Welding - COLD WELDING test:

IGBT TRANSISTORS offer a stronger, more concentrated, and stable arc while reducing energy consumption.

COLD WELDING - fast spot welding with times ranging from 1ms to 200ms.

COLD WELDING PULSE - cold welding with pulse. Fast spot welding from 1ms to 200ms with adjustable frequency up to 10Hz.

200A WELDING CURRENT enables welding of materials up to 10 mm thick.

SIMPLE PANEL - every selected function is backlit. An ideal solution for beginner users.

2T-4T trigger modes facilitate welding on short and long sections. 2T mode is used for short sections because the arc extinguishes in a set time after releasing the switch. In 4T mode, you do not need to hold the switch constantly while welding; simply click a second time to extinguish the arc automatically.

PRE-GAS enables faster arc ignition at the start for both low and high current values. Essential for spot joining thin and thick elements. Pre-gas time is adjustable from 0-2 s.

POST-GAS enables faster cooling of the joint and the tungsten electrode. Post-gas time can be adjusted from 0-10 s.

PULSE allows for the welding of very thin materials made of aluminum, steel, and stainless steel. The minimum pulse current is 10 A. Pulse frequency adjustment range is from 0.5 to 100Hz.

The SPARTUS TIG 206P DC is an upgraded version of the TIG 205P DC (enhanced with cold welding functions), which has been known on the market for several years and is a valued model in the industry. Many companies in the welding sector utilize this specific TIG welder model.

The greatest advantages of the welder are:

• Powerful HF - precise operation at both low and high welding currents.
• Reliable control panel and precise encoder for welding parameter adjustment.
• Pulse with a wide adjustment range.
• Cold welding - creating spot welds in a very short time. Cold welding of sheets thinner than 1mm.

MATERIALS YOU CAN WELD WITH THIS DEVICE:

• Carbon steel up to 10 mm.
• Stainless steel up to 8 mm.
• Pulsed braze welding with CUSI3-CUSN wire.
• Titanium up to 6 mm.
• Duplex up to 6 mm.
• Super duplex up to 6 mm.

The TIG CUSTOM TLB17F torch in the XD (1m leather - tlb flexg) version is a lightweight, super-flexible torch for TIG welding in all positions. The precise micro-switch allows for comfortable work using the "walking the cup" technique on pipes. The professional TLBsflex cable is the most flexible cable available for TIG torches. The cable does not react to low temperatures and always remains flexible. The high efficiency of the torch body and cable enables long welding sessions.

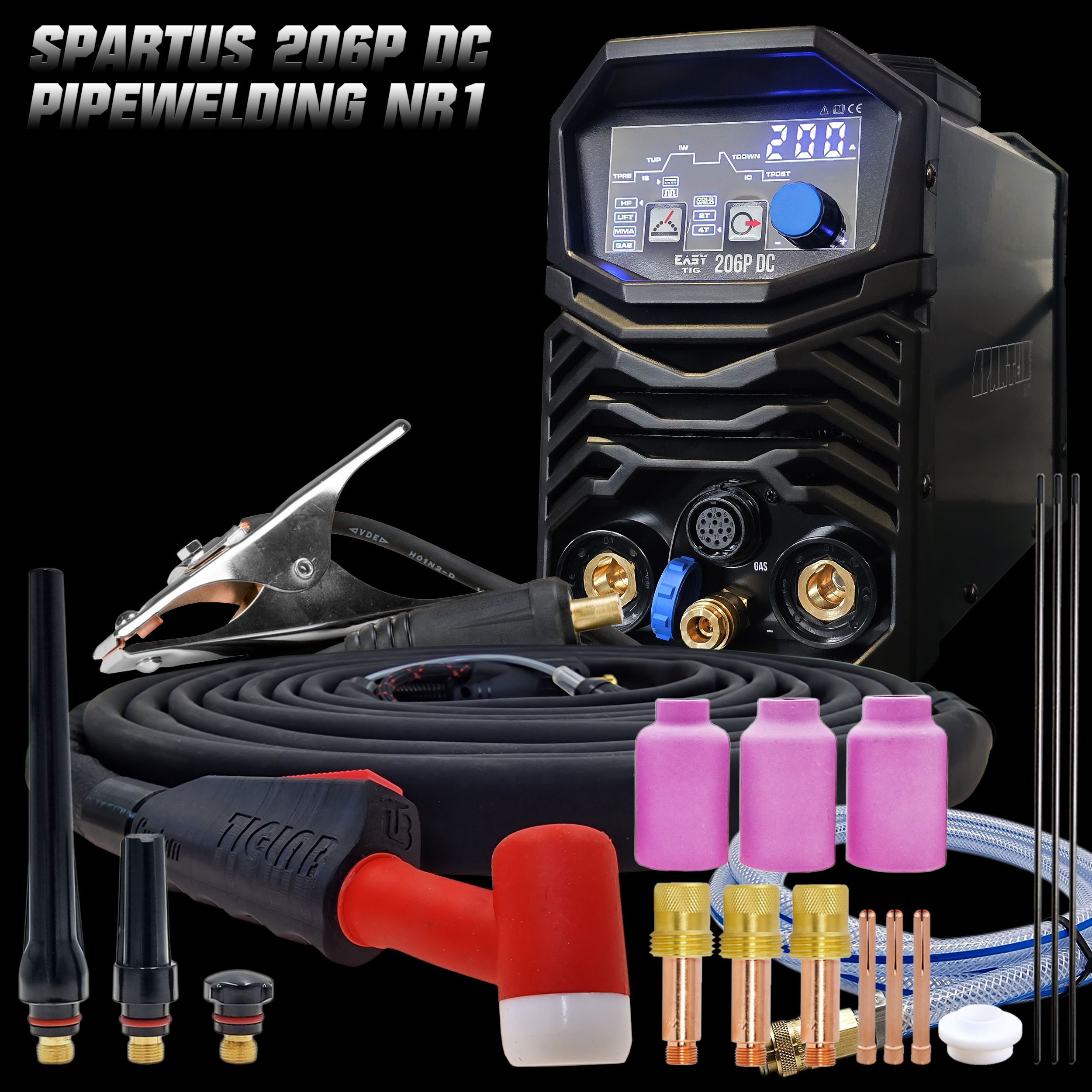

THE CONFIGURATION INCLUDES:

• Spartus TIG 206P DC Pulse
• Welding Torch TIGCUSTOM TLB17F XU (leather - tlb flexg) - 8m
• Work lead (ground cable) 5m
• Gas hose + quick connectors
• Manual
• TIGBOX organizer with consumable parts

Accessories to start pipe welding no.1. Starter kit included with the welder.

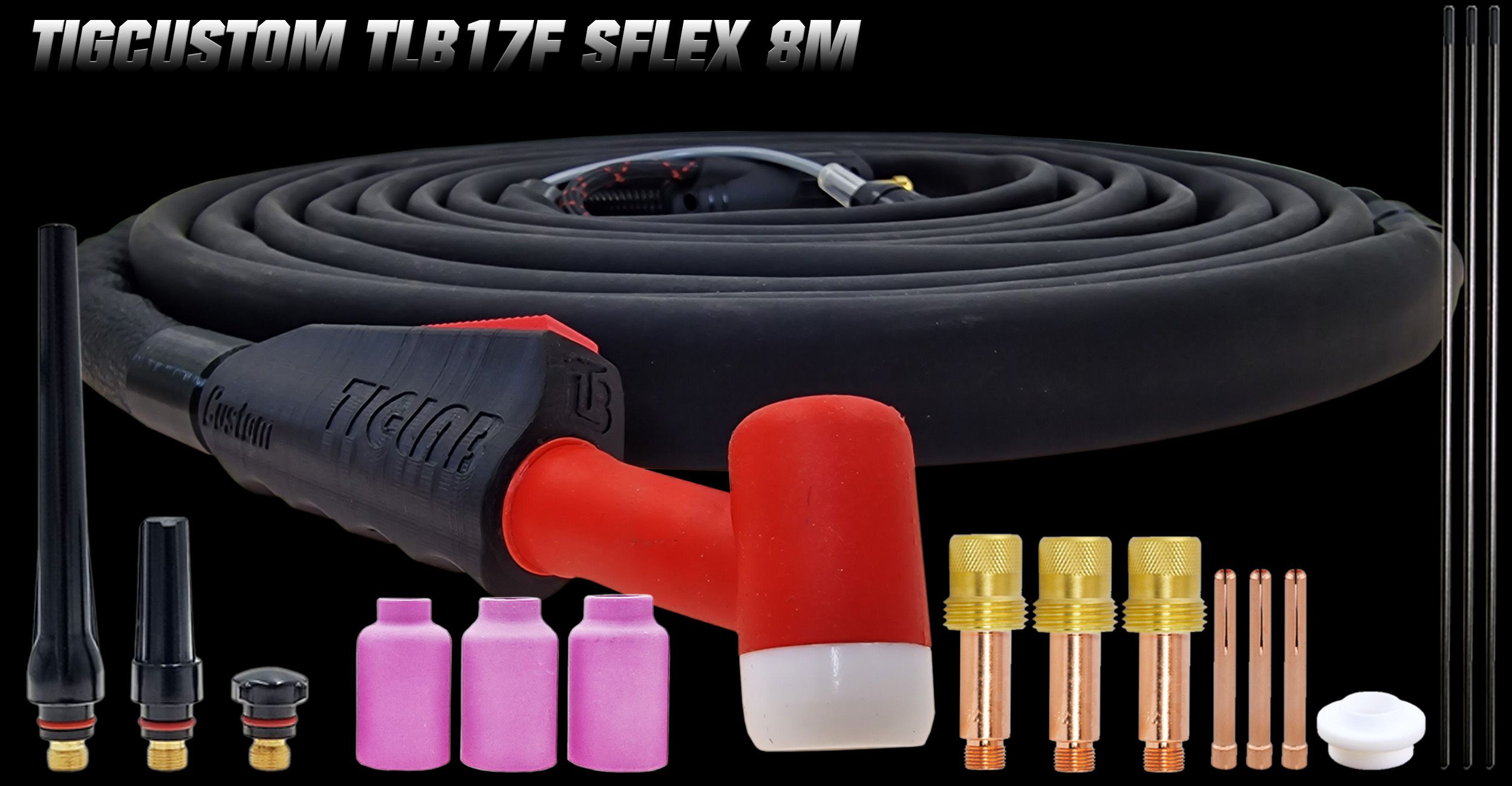

Stainless Steel Kit:

• TIGCUSTOM TLB17F sflex flexg 8m torch
• Tungsten electrodes - 3 pcs
• Gas lenses - 3 pcs
• Ceramic nozzles - 3 pcs
• Collets - 3 pcs
• Back caps - 3 pcs
• Lens insulator - 1 pc
• TIGBOX organizer for TIG parts

If you need to add something to the set, call us and we will configure the set to your preferences.
