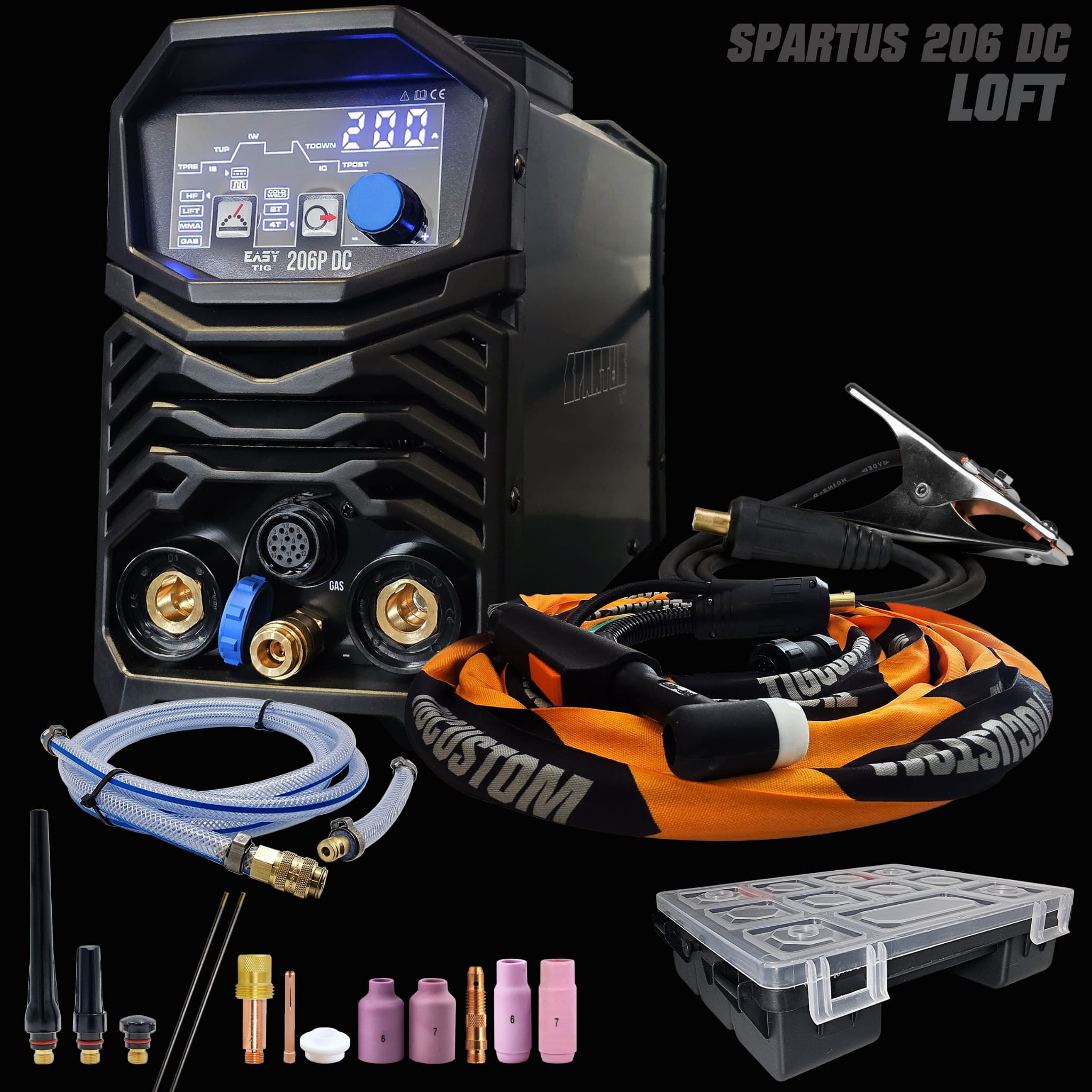

Spartus Tig 206P dc loft nr2

SPARTUS TIG 200p DC loft is a set designed for welding loft-style structures for welding academy participants working with stainless steel, carbon steel, and aluminum. Carefully selected accessories and the TIG CUSTOM GRIP sflex 17 torch enable long and comfortable work. The TIG welding torch features an SR17 torch body, which allows welding with a maximum current of 180A at a 60% duty cycle and 200A at a 45% duty cycle. This solution enables the welding of thicker materials. The GRIP handle perfectly isolates high temperatures and ensures long operating times when welding stainless steel, carbon steel, and aluminum. The ergonomics of the torch will be appreciated by both professional welders and those starting their adventure with TIG welding.

SPARTUS TIG 206P DC Pulse is a digitally controlled inverter welder, built based on IGBT transistors. It enables welding using TIG DC 200A and MMA with a current of 200A. It is powered by a single-phase 230V network. The cold welding function allows for joining very thin materials made of steel and stainless steel. The welder has an intuitive control panel that ensures quick navigation through the functions.

The device has high efficiency:

• 60% at an ambient temperature of 25 C
• 35% at an ambient temperature of 40 C

The manufacturer provides the efficiency value under the most extreme conditions and high temperatures.

Cold welding - COLD WELDING test:

IGBT TRANSISTORS offer a stronger, more concentrated, and more stable arc while maintaining lower energy consumption.

COLD WELDING - fast execution of spot welds in a time range from 1ms to 200ms.

COLD WELDING PULSE - cold welding with pulse. Fast execution of spot welds in a time range from 1ms to 200ms with adjustable frequency up to 10Hz.

WELDING CURRENT 200A enables welding materials up to 10 mm.

SIMPLE PANEL - every selected function is backlit. An ideal solution for beginner users.

2T-4T are welding modes that facilitate welding on short and long sections. 2T mode is used for welding short sections because the arc extinguishes within the set time after releasing the microswitch; in 4T mode, you do not have to hold the microswitch constantly during welding, but only click it a second time for the arc to extinguish automatically.

PRE-GAS enables faster arc ignition at the start on both low and high welding current values. An essential function when spot-joining thin and thick elements. Pre-gas flow time is adjustable from 0-2 s.

POST-GAS enables faster cooling of the joint and the tungsten electrode. Post-gas flow time can be adjusted from 0-10 s.

PULSE gives the possibility of welding very thin materials made of aluminum, steel, and stainless steel. The minimum pulse current is 10 A. Pulse adjustment range from 0.5 - 100Hz.

The SPARTUS TIG 206P DC welder is an upgraded version (with cold welding functions) of the TIG 205P DC, which has been known on the Polish market for several years and is a valued model in the industry. Many companies in the welding industry own this TIG welder model.

The greatest advantages of the welder are:

• powerful HF - precise operation at both low and high welding currents.
• reliable control panel and precise encoder for adjusting welding parameters.
• pulse with a wide adjustment range.
• cold welding - performing spot welds in a short time. Cold welding of sheets below 1mm.

WITH THIS DEVICE WE CAN WELD:

• Carbon steel up to 10 mm.
• Stainless steel up to 8 mm
• Brazing with pulse using CUSI3-CUSN wire
• Titanium up to 6 mm
• Duplex up to 6 mm
• Super duplex up to 6 mm

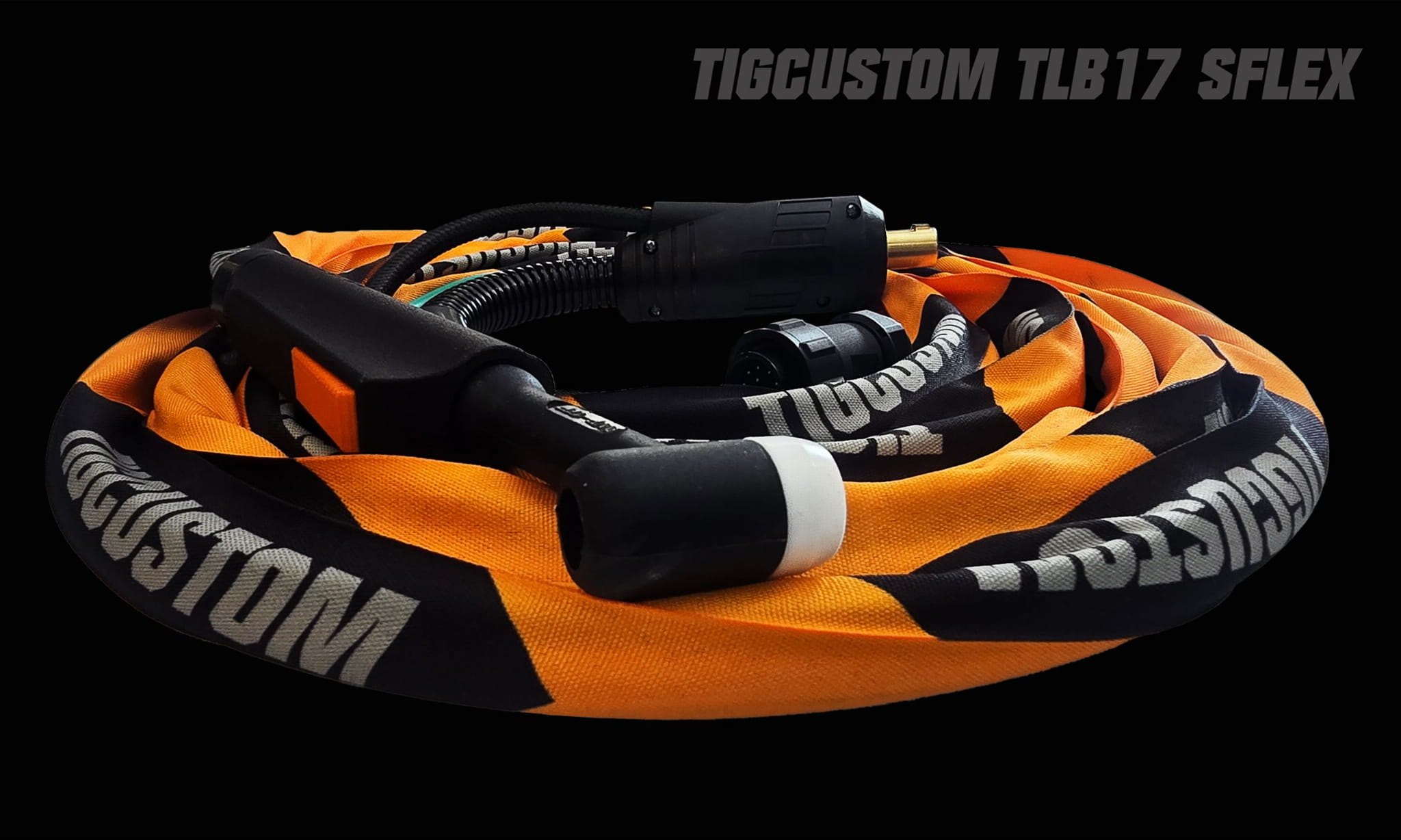

The TIG CUSTOM TLB17 SFLEX- 6m torch in the U version is a lightweight and universal super-flexible torch for precision welding. The precise microswitch and ergonomic handle allow for comfortable work when welding all materials using the walking the cup technique. The high-efficiency sflex cable will ensure comfortable work during longer welding cycles.

THE CONFIGURATION INCLUDES:

• Spartus tig 206p DC Pulse
• Welding torch TIGCUSTOM TLB17 U - 6m
• Mass cable 3m
• Gas hose + quick connectors
• Manual
• TIGBOX organizer with consumable parts

The set contains the necessary accessories to start welding:

Stainless steel and carbon steel:

• tungsten electrodes - 2 pcs
• tig lenses - 1 pc
• nozzle for lens - 1 pc
• collet body - 1 pc
• nozzle for collet body - 1 pc
• collets - 2 pcs
• back caps - 3 pcs
• lens insulator - 1 pc
• tigbox organizer

THE SET INCLUDES:

DEVICE EQUIPMENT:

• SPARTUS TIG 206p DC SPOT
• Welding torch TIGCUSTOM 17 SFLEX U ( nylon ) - 6 m for welding steel and stainless steel
• Mass cable
• Gas hose with quick connector
• Manual

If you need to add something to the set, call us and we will configure the set according to your preferences.
