Spartus TIG 220P AC DC Custom GRIP 17 #6

The kit includes a specially designed TIG CUSTOM GRIP RF 17 SFLEX handle for welding aluminum with a high-duty cycle. I invite you to watch a video presentation of the handle tests while welding aluminum at a current of 200A. During welding aluminum, the welding handles heat up significantly, which shortens the work time at high welding currents. With the TIG CUSTOM GRIP welding handle, work is more efficient, and the handle's duty cycle is at 80%, which is not found in any other TIG handle. The handle's advantages include ergonomics, weight, small size, and a flexible and high-temperature-resistant cable SFLEX. It is the only such product specifically made for aluminum welders.

VIDEO PRESENTATION SPARTUS PROTIG 220 AC DC:

WELDING OF STAINLESS PIPES:

SPARTUS PROTIG 220 AC/DC is a digitally controlled inverter welding machine based on IGBT transistors. It allows TIG AC/DC and MMA AC/DC welding with current up to 200A. The device is powered by a 230V one-phase network.

Thanks to the solutions used, the PROTIG 220P AC/DC also enables advanced TIG AC and TIG DC welding with a choice of arc ignition method: TIG HF (by radio frequency) and TIG Lift (by friction). The device is equipped with a pulse welding function, which makes the machine perfect for welding very thin sheets and aluminum.

The welding machine has an intuitive control panel that ensures fast navigation through the functions. For suitable welding processes, the adjustment range of the welding current is between 5-200A (AC) and 5-200A (DC). The TIG-AC welding mode with selectable output AC waveforms (square, sinusoidal, triangular), AC balance, AC frequency, pulse frequency, pulse width, and pulse amps adjustment, enables welding of the most demanding aluminium alloys.

The device has high efficiency:

• 60% at an ambient temperature of 25° C
• 40% at an ambient temperature of 40° C

The manufacturer gives the value of efficiency in the most extreme conditions and high ambient temperatures.

BENEFITS OF THE SPARTUS PROTIG 220 AC/DC:

IGBT TRANSISTORS offer a stronger, more concentrated, and more stable arc with lower energy consumption.

WELDING CURRENT 200A allows welding materials up to 10 mm.

AC DC CURRENT has versatile applications thanks to the ability to weld with both direct and alternating current.

SIMPLE LCD PANEL each adjustable function is displayed graphically. Perfect solution for beginners.

2T-4T are welding modes that make it easier to work on short and long welding distances. The 2T mode is used for welding short distances, as the arc is switched off after disconnecting the micro switch. In 4T mode, we do not have to hold the micro switch constantly while welding, but only click a second time to turn off the arc automatically.

PRE-GAS allows faster arc ignition at the start, both at low and high values of welding current. An indispensable function for point joining of thin and thick elements. Gas flow time is adjustable from 0-2 sec.

POST-GAS allows faster cooling of the connection and the tungsten electrode. The gas flow time is adjustable from 0.1-10 sec.

TIG PULS MODE makes it possible to weld very thin materials of aluminum, steel, and stainless steel. The minimum pulse current is 5 A. The pulse control range is from 0.5 - 250Hz.

AC FREQUENCY is adjustable in the range of 50-250Hz. The function is responsible for narrowing the arc and faster penetration of the welded material.

AC WAVES selectable from the control panel are responsible for changing the AC properties. The principle of operation and selection of a wave is presented in the video above. Choosing the waveform of the alternating current allows a quick adjustment of the welding machine for welding thick and thin materials.

HOW THE TIG PULS FUNCTION WORKS:

DINSE STANDARD allows the use of different TIG handles. We can use handles with a length of up to 24 m.

AC BALANCE wide range of 10-99 is responsible for the cleanliness of welds in aluminum welding. The function is responsible for the heat input into the material and the cleaning of oxides on the aluminum surface.

MULTI-CONTROL in the device we can use handles with UP&DOWN adjustment and foot control with smooth regulation of the welding current. The foot control can be wired or wireless.

HOT START is a momentary increase of the welding current at the moment when the arc is struck. This prevents the electrode from sticking in the initial phase of welding. This feature allows a faster invasion of the arc with rutile and base electrodes.

ARC FORCE dynamics shorten the arc length while increasing the welding current, which prevents arc extinction when the electrode comes into contact with the welding material. This function facilitates learning MMA welding.

TIGLIFT enables the welding of steel in places where HF welding is impossible.

The device guarantees clean welds in aluminum:

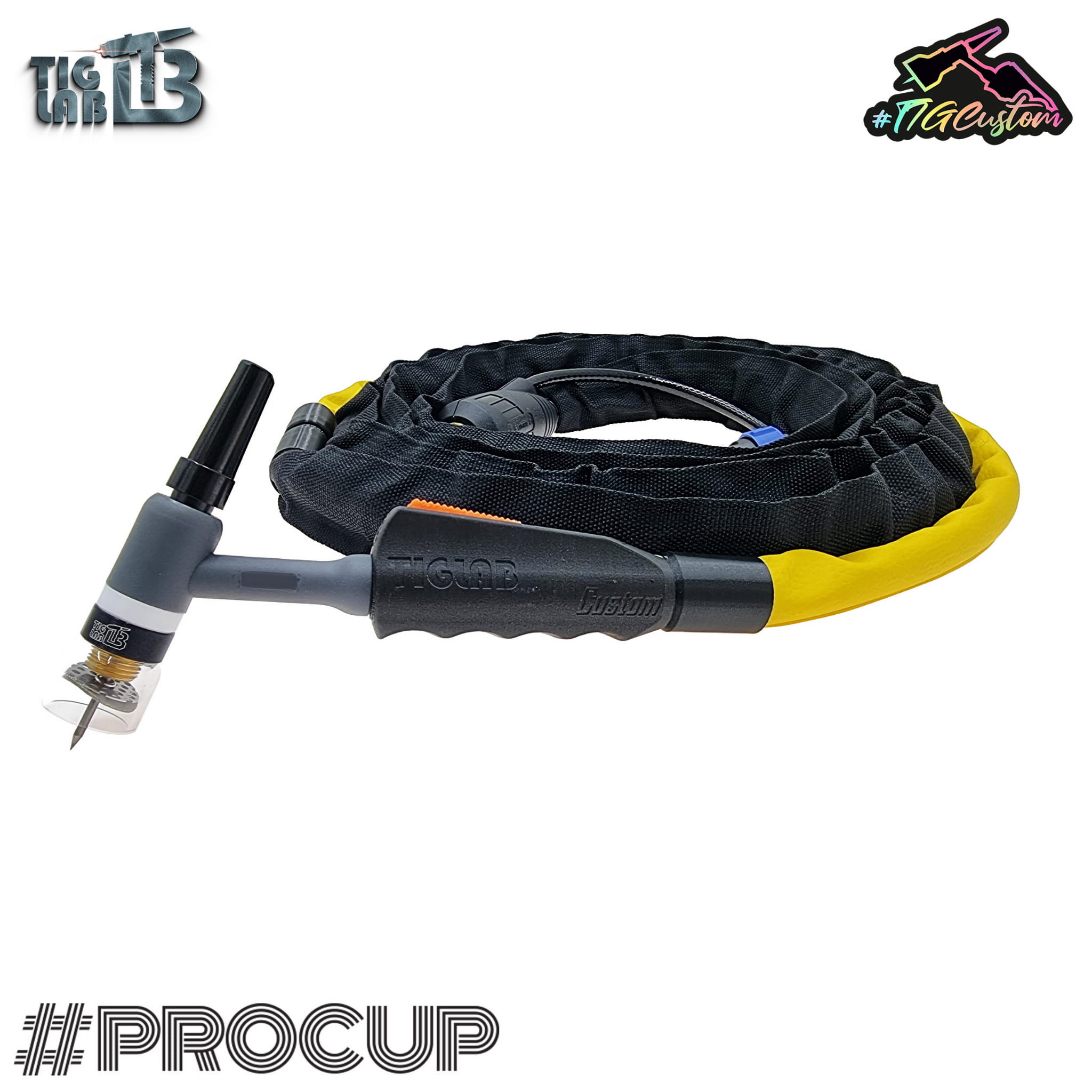

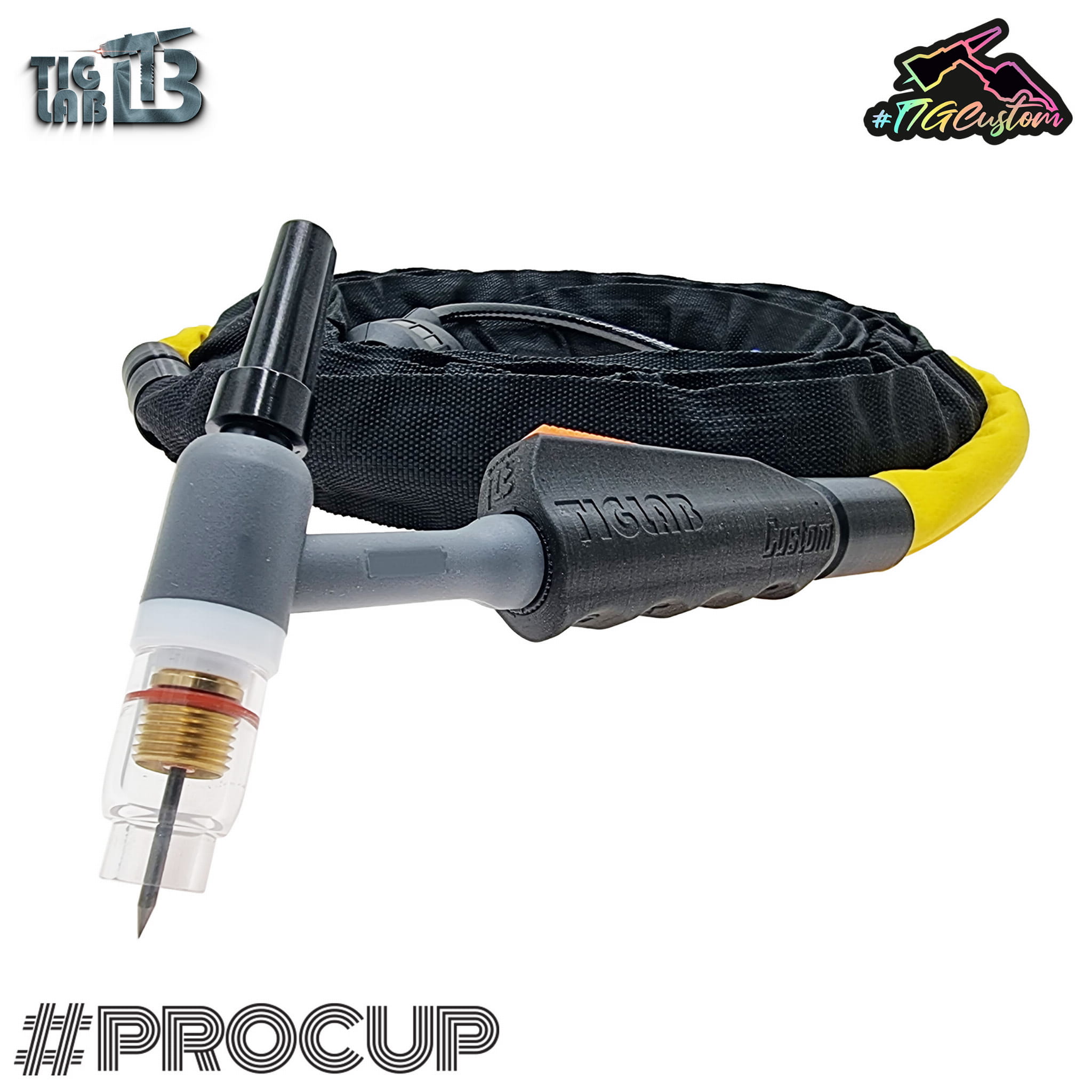

The TIG CUSTOM 17 SFLEX - 4m torch in the XU version is a lightweight and universal precision welding torch made according to the requirements of pipe welders who value ergonomics and quality. A precise microswitch allows for comfortable work when welding with the walking-the-cup technique and welding aluminum. High-efficiency and flexible cables ensure long-lasting work. The torch body allows for comfortable welding with a current of 200A.

TIG CUSTOM GRIP 17 SFLEX ALUMINUM WELDING:

WITH THIS MACHINE WE CAN WELD:

• Carbon steel up to 8 mm
• Stainless steel up to 8 mm
• Aluminum up to 10 mm
• Braze-weld with a pulse with a CUSI3-CUSN wire
• Titanium up to 6 mm
• Duplex up to 6 mm
• Superduplex up to 6 mm
• MMA - electrodes with a diameter of 4 mm
• TIGLIFT carbon steel up to 6 mm

The included PROCUP 10 and 16 nozzles for welding stainless steel will increase the quality and aesthetics of the welds.

PROCUP 10 TIG WELDING:

PROCUP 16 TIG WELDING:

The set also includes the PROCUP CLEAR 12 nozzle for precise free-hand welding of stainless steel and the ALU CLEAR set for aluminum welding. Free trial version PROCUP HYBRID for welding exhaust systems and pipes with a maximum current of 100A.

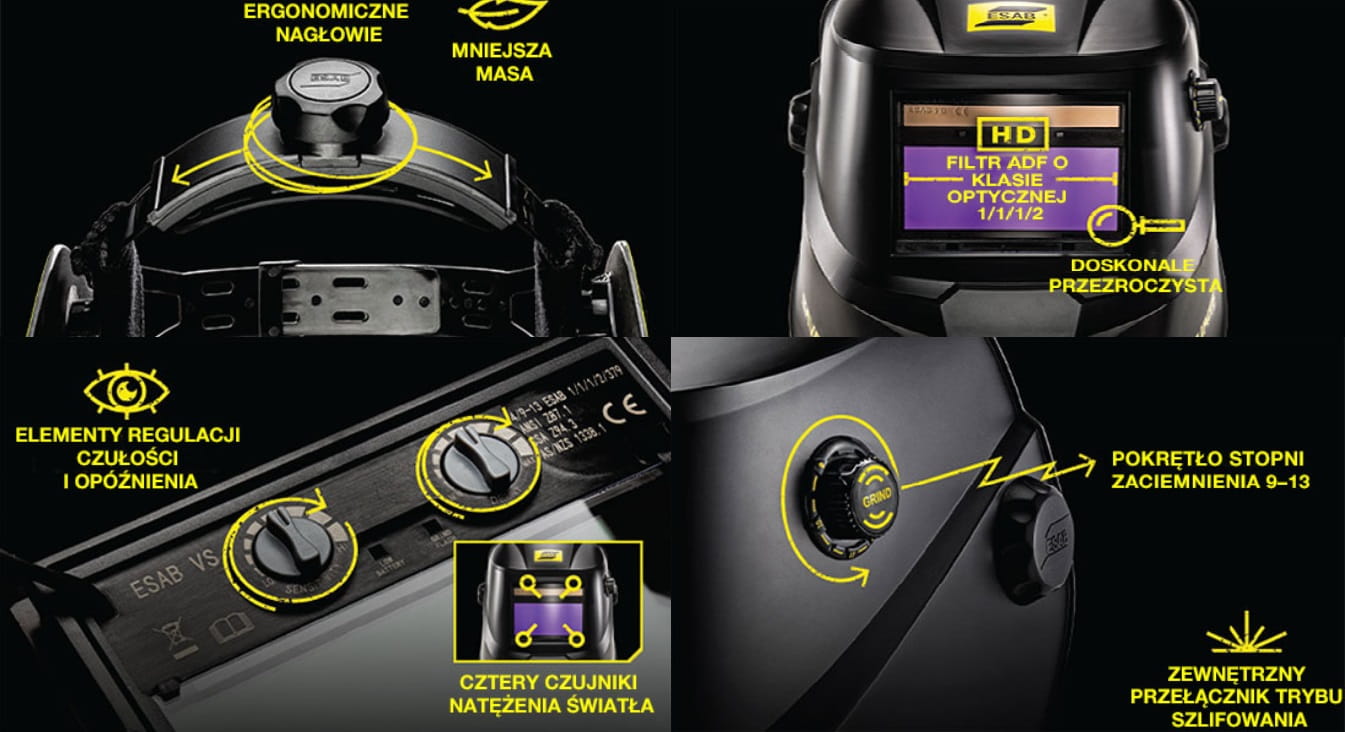

The ESAB SAVAGE A40 Helmet

The lightweight shell comes with all-new adjustable headgear to provide exceptional comfort while protecting from heat, sparks, and spatter…no matter the application.

Savage A40 is equipped with a 100 x 50 mm viewing area for a wider field of vision and greater spatial awareness. The ADF filter with 1/1/1/2 optical-class lens features ultra-clear, true-color technology for increased weld pool clarity and enhanced definition. The result? A bigger, better view.

With Savage A40, the sensitivity and delay settings are completely in your control. Adjust the sensitivity before low-amp TIG welding for a better reaction to darker arc light, or fine-tune the delay to set how long the lens stays dark after the welding arc stops. And with Savage A40’s four light sensors, you’ll get a faster auto-darkening response, especially when working out of position.

Savage A40 comes with an externally activated grind mode button for superior convenience. And its DIN 9-13 adjustment knob makes it easy to change shades, even while wearing a heavy glove.

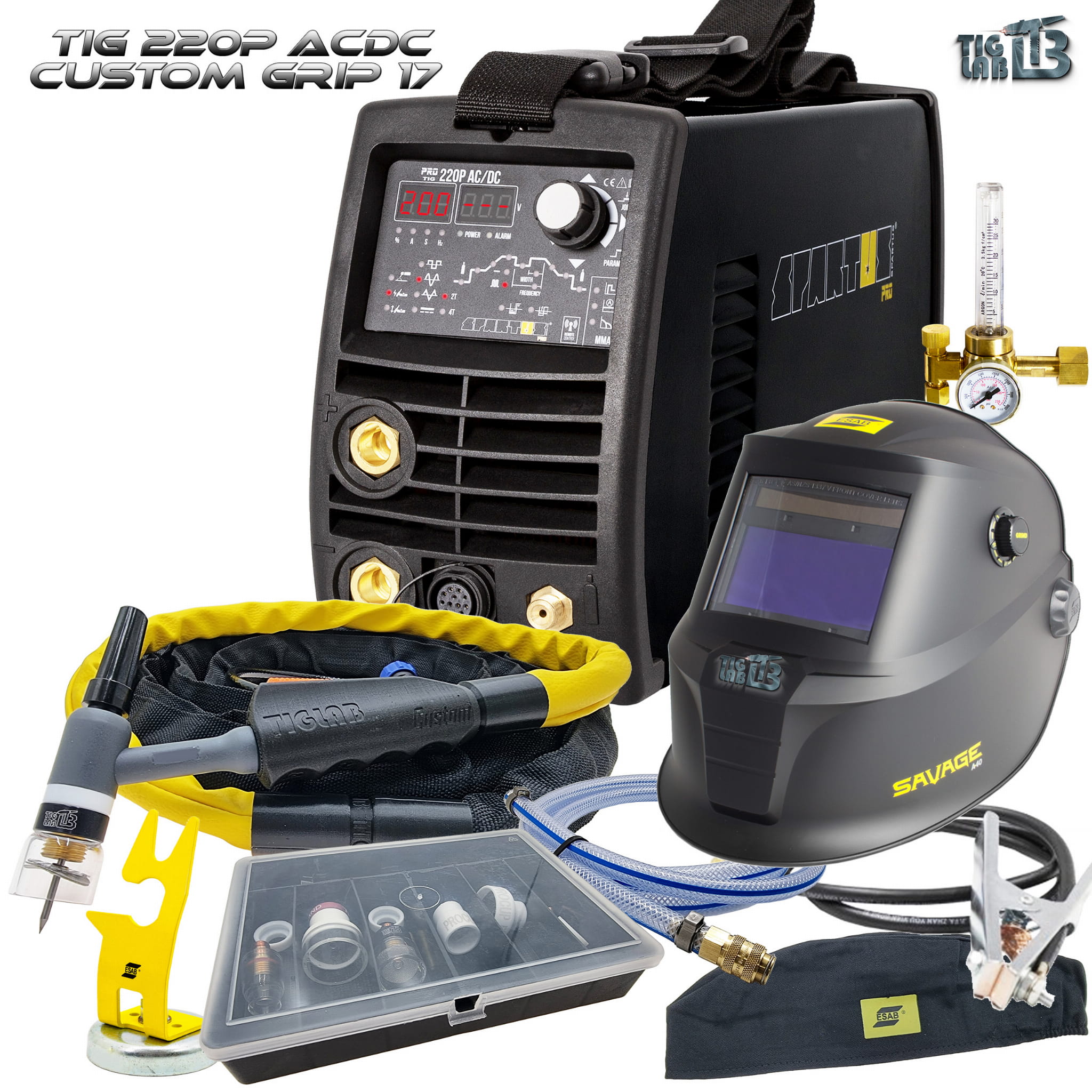

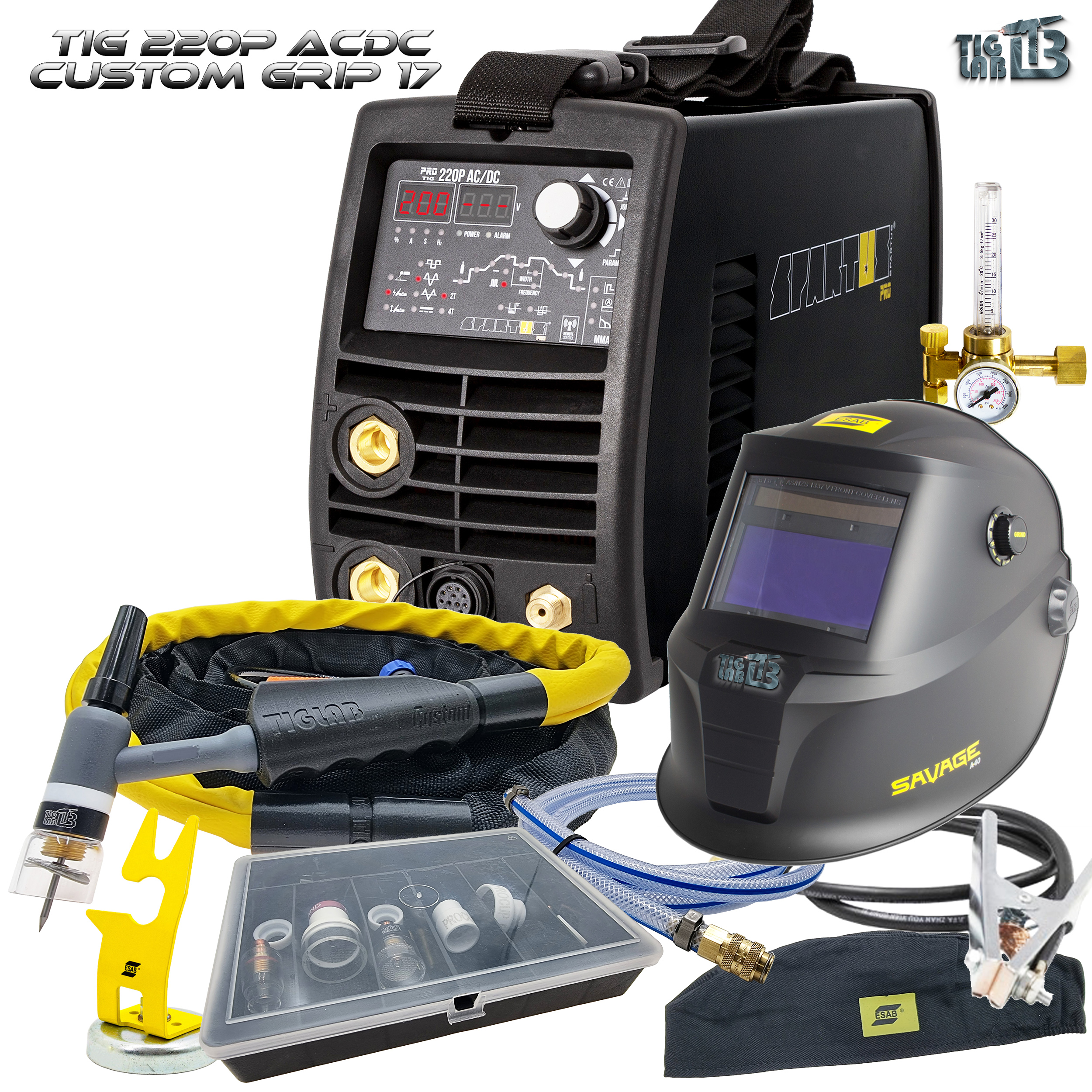

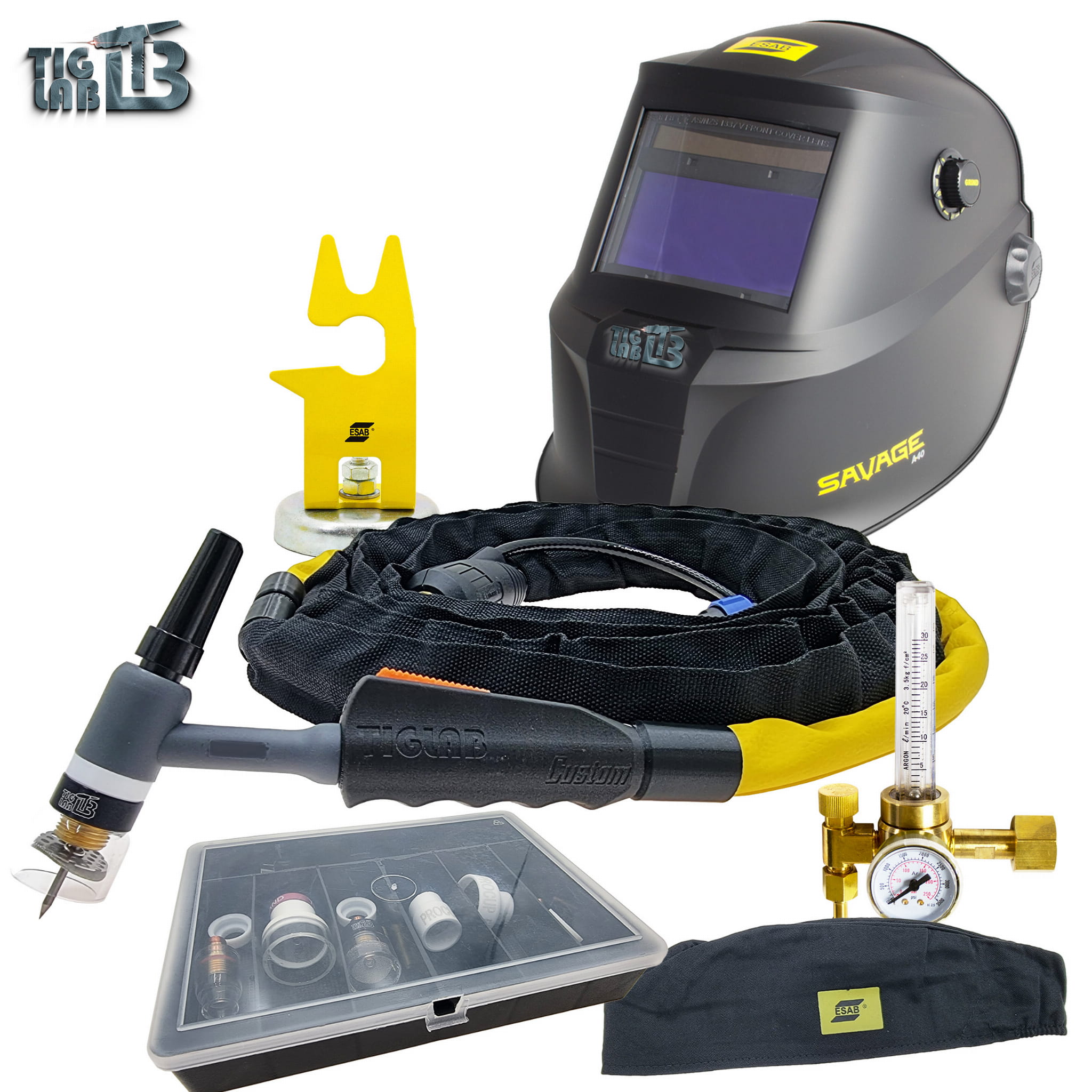

MACHINE EQUIPMENT:

• SPARTUS PROTIG 220 AC/DC LCD
• Welding torch TIG CUSTOM GRIP RF 17/4 m yellow - for welding aluminum and stainless steel
• Mass hose 3 m
• Magnetic base TIG ESAB - 1 pc
• Cap under the ESAB helmet - 1 pc
• Ar/Co2 reducer 1 rotameter - 1 pc
• ESAB SAVAGE A40 Helmet True Color
• Gas hose with quick coupler - 1 pc

TIG PARTS:

• Gas lenses - 2 pcs
• Tig Collets - 2 pcs
• PROCUP CLEAR 12 nozzle - 1 set (lens, collet, glass nozzle, insulator)
• PROCUP HYBRID nozzle - 1 pc
• PROCUP 16 nozzle - 1 pc
• PROCUP 10 nozzle - 1 pc
• ALU CLEAR set - 1 set (lens, collet, glass nozzle, insulator)
• Gas Lens Insulators - 3 pcs
• TIG Back Caps - 3 pcs
• Tungsten electrodes - 4 pcs
• TIGBOX organizer - 1 pc

If you need to add something to the set, call us and we will configure the set according to your preferences.
