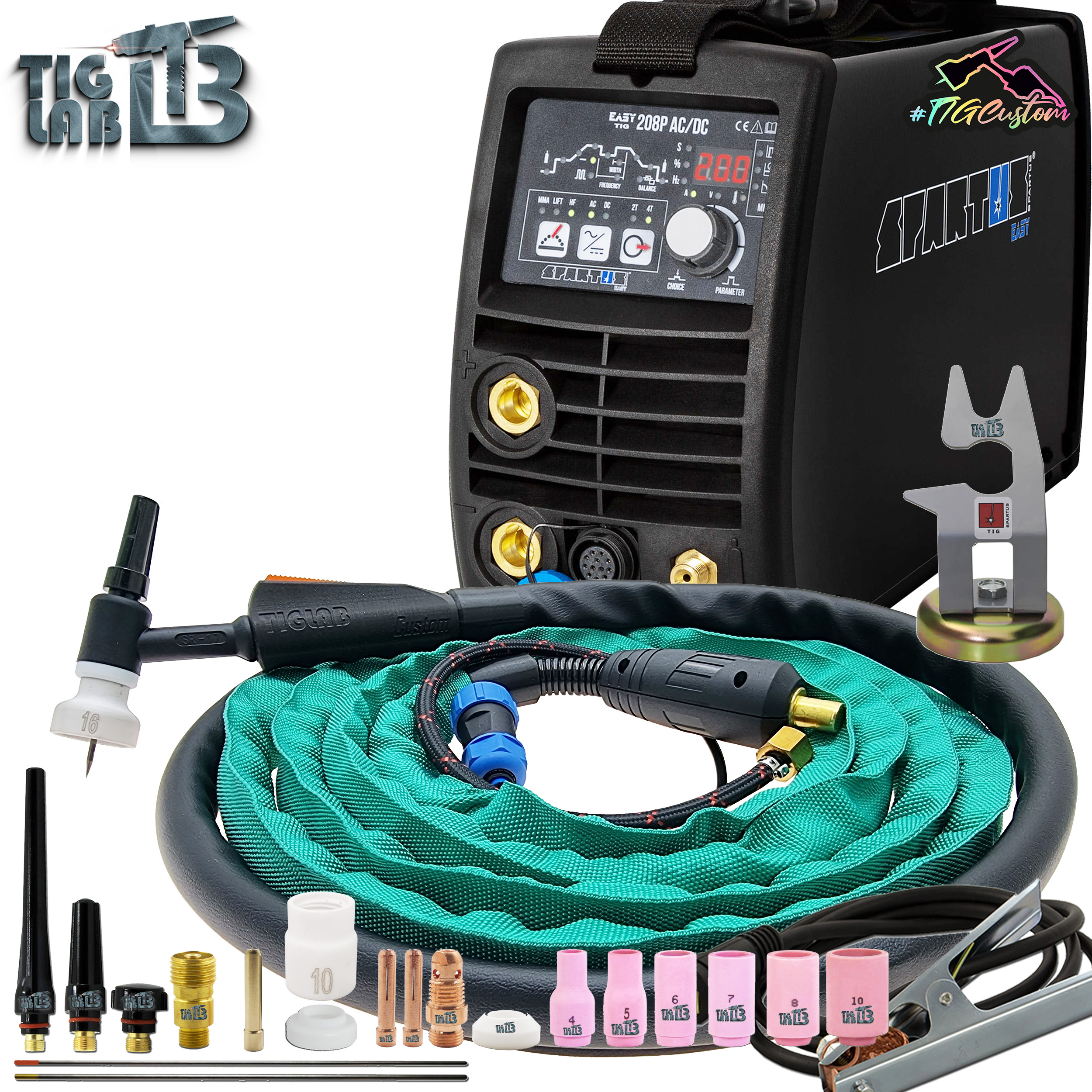

Spartus TIG 208P AC DC Alu Inox #1

Introducing the SPARTUS TIG 208P AC DC welding set, a comprehensive kit for welding stainless steel, duplex, titanium, and aluminum exhaust systems. This set comes with carefully selected accessories and a TIG CUSTOM SLIM GRIP 17 holder, enabling comfortable and extended work sessions. The TIG welding torch features an SR17 torch body that can weld with a maximum current of 180A in a 60% cycle and 200A in a 40% cycle, allowing for the welding of thicker pipes and sheets.

The SLIM GRIP handle is designed to perfectly insulate high temperatures, ensuring a long working time when welding stainless steel and aluminum. The ergonomic design of the handle makes it suitable for professional welders as well as those just starting their adventure with TIG welding.

The SPARTUS TIG 208P AC DC is a digitally controlled inverter welder based on IGBT transistors. It enables welding using the TIG AC 200A - TIG DC 170A and MMA AC/DC methods with a current of 170A, powered from a single-phase 230V network. The pulse function allows for the joining of very thin materials in aluminum, steel, stainless steel, and many other materials. The intuitive control panel provides quick navigation through the functions, making it easy to use even for beginners.

The device has high efficiency:

• 60% at an ambient temperature of 25° C
• 35% at an ambient temperature of 40° C

The manufacturer gives the value of efficiency in the most extreme conditions and high ambient temperatures.

BENEFITS OF THE SPARTUS TIG 208P AC DC

IGBT TRANSISTORS offer a stronger, more concentrated, and more stable arc with lower energy consumption.

WELDING CURRENT 200A allows welding materials up to 10 mm.

AC DC CURRENT has versatile applications thanks to the ability to weld with both direct and alternating current.

SIMPLE LCD PANEL each adjustable function is displayed graphically. Perfect solution for beginners.

2T-4T are welding modes that make it easier to work on short and long welding distances. The 2T mode is used for welding short distances, as the arc is switched off after disconnecting the micro switch. In 4T mode, we do not have to hold the micro switch constantly while welding, but only click a second time to turn off the arc automatically.

PRE-GAS allows faster arc ignition at the start, both at low and high values of welding current. An indispensable function for point joining of thin and thick elements. Gas flow time is adjustable from 0-2 sec.

POST-GAS allows faster cooling of the connection and the tungsten electrode. The gas flow time is adjustable from 0.1-10 sec.

TIG PULS MODE makes it possible to weld very thin materials of aluminum, steel, and stainless steel. The minimum pulse current is 10 A. The pulse control range is from 0.5 - 200Hz.

DINSE STANDARD allows the use of different TIG handles. We can use handles with a length of up to 24 m.

AC BALANCE wide range of 10-99 is responsible for the cleanliness of welds in aluminum welding. The function is responsible for the heat input into the material and the cleaning of oxides on the aluminum surface.

MULTI-CONTROL in the device we can use handles with UP&DOWN adjustment and foot control with smooth regulation of the welding current. The foot control can be wired or wireless.

HOT START is a momentary increase of the welding current at the moment when the arc is struck. This prevents the electrode from sticking in the initial phase of welding. This feature allows a faster invasion of the arc with rutile and base electrodes.

ARC FORCE dynamics shorten the arc length while increasing the welding current, which prevents arc extinction when the electrode comes into contact with the welding material. This function facilitates learning MMA welding.

TIGLIFT enables the welding of steel in places where HF welding is impossible.

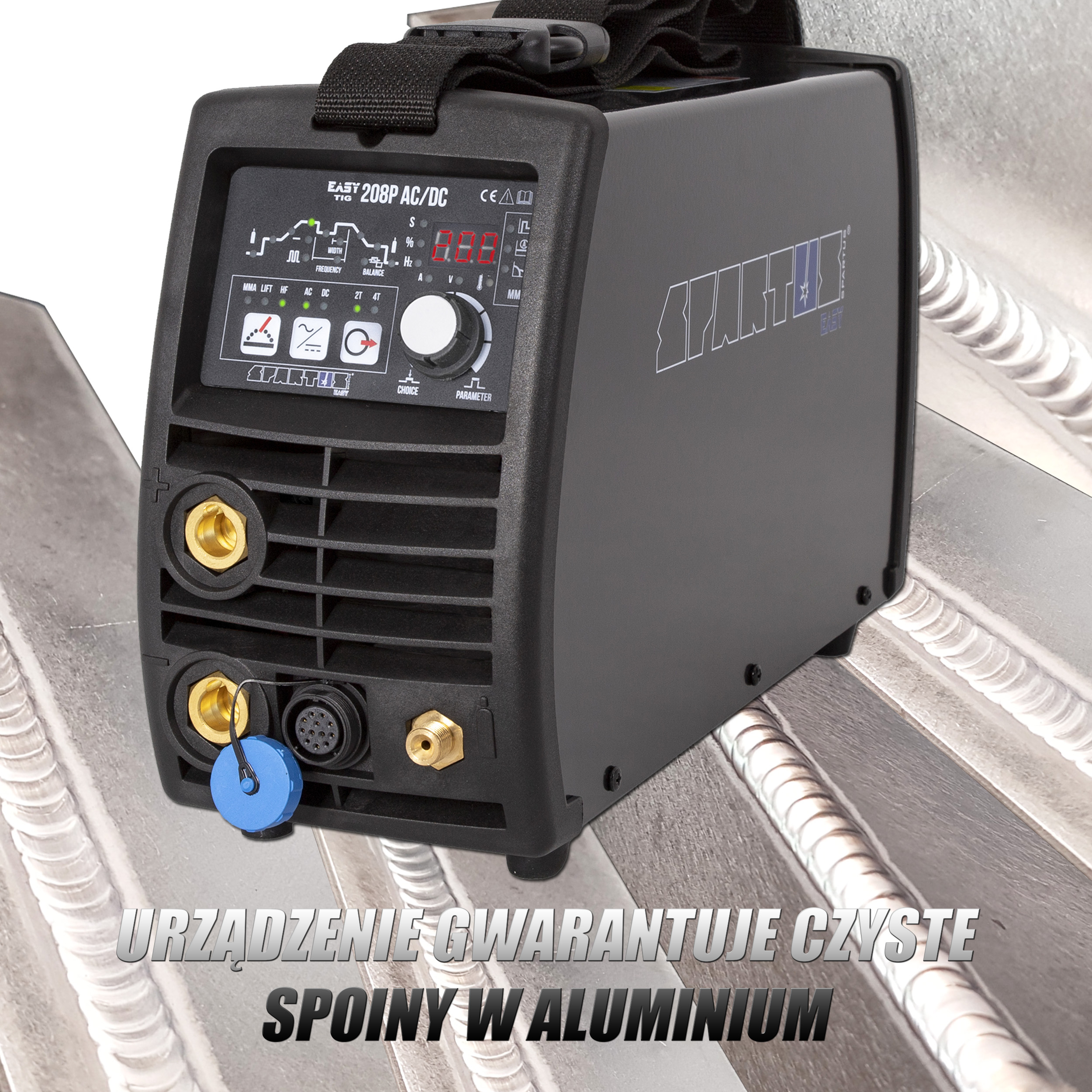

The device guarantees clean welds in aluminum:

Looking for a reliable and efficient welding machine? Look no further than the SPARTUS TIG 208P AC DC welder! Here are some of the advantages that make this model stand out:

• Strong HF: enjoy precise operation at both low and high welding currents.
• Reliable control panel: the intuitive interface and precise encoder make it easy to navigate through the functions.
• Pulse function: adjust the pulse width and frequency to join even the thinnest materials with precision.
• Smooth current regulation: use the foot control or up&down control to regulate the welding current and achieve the perfect weld.

This welder is perfect for welding stainless steel, duplex, titanium, aluminum, and many other materials, making it an essential tool for any welding professional or enthusiast.

WITH THIS MACHINE WE CAN WELD:

• Carbon steel up to 8 mm
• Stainless steel up to 7 mm
• Aluminum up to 10 mm
• Braze-weld with a pulse with a CUSI3-CUSN wire
• Titanium up to 6 mm
• Duplex up to 6 mm
• Superduplex up to 6 mm
• MMA - electrodes with a diameter of 4 mm
• TIGLIFT carbon steel up to 6 mm

The TIG CUSTOM SLIM GRIP 17 - 4m torch in the XU version is a lightweight and universal precision welding torch made according to the requirements of pipe welders who value ergonomics and quality. A precise microswitch allows for comfortable work when welding with the walking-the-cup technique and welding aluminum. High-efficiency and flexible cables ensure long-lasting work. The torch body allows for comfortable welding with a current of 200A.

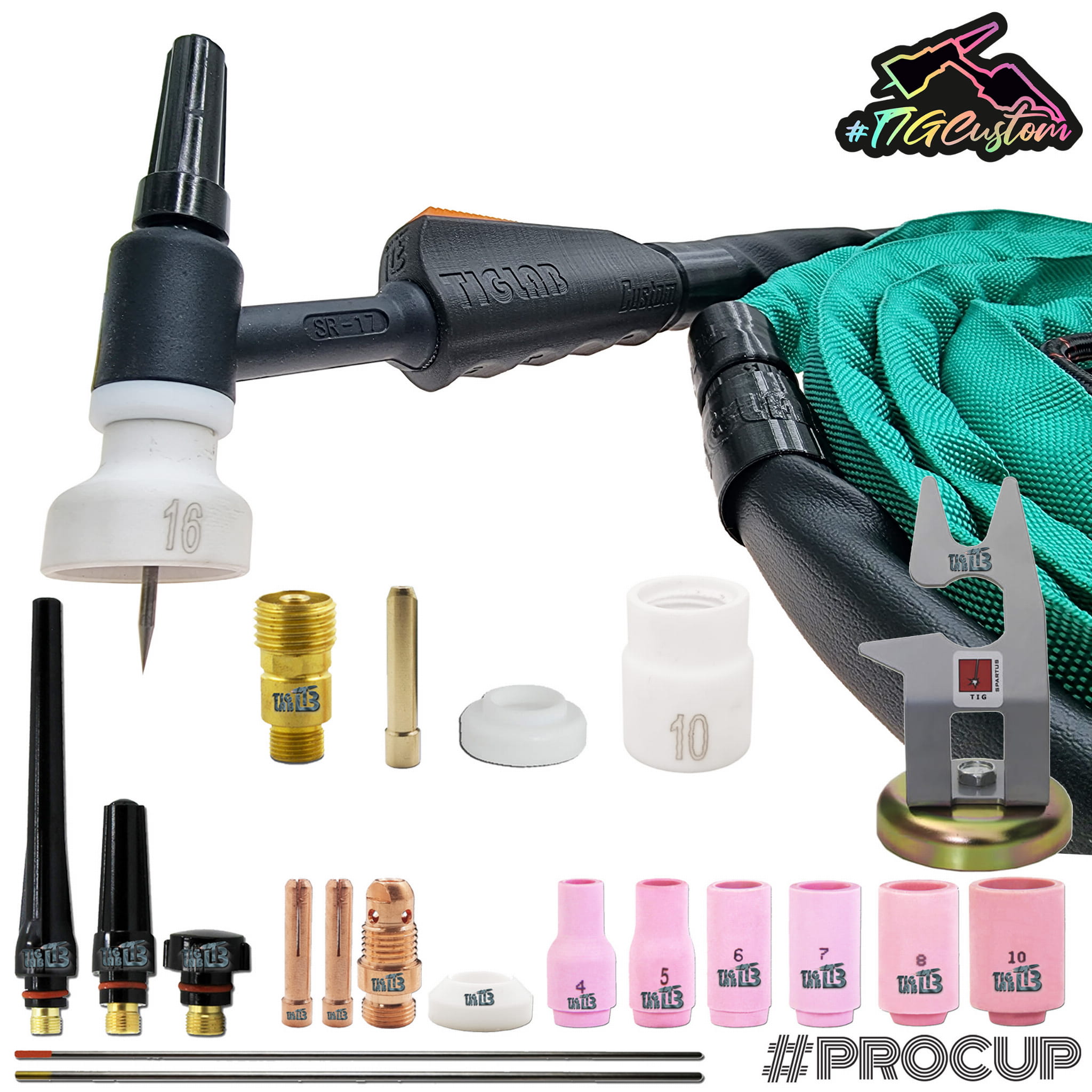

The set includes the necessary accessories to start welding:

Stainless steel:

• Tungsten electrodes - 2 pcs
• TIG lenses - 1 pc
• PROCUP 10 - 1 pc
• PROCUP  16 - 1 pc
• TLB collets - 1 pc
• TIG Back Caps - 3 pcs
• Gas Lens Insulators - 1 pc

Aluminium:

• Stubby Collet Body - 1 pc
• Tig Collets - 2 pcs
• Gas Lens Insulators - 1 pc
• Short ceramic nozzles - 6 pcs

PROCUP #10 - #16 are ceramic nozzles, specially designed for welding stainless steel pipes and sheets, and other materials that require a perfect gas shield. These nozzles come with special diffusers made of 3D mesh that ensures perfect coverage of the welding spot with gas and cools the tungsten electrode and welded joint. PROCUP nozzles are dedicated to various applications:

• PROCUP 10 - for stainless steel pipes, producing gold or silver welds depends on the amount of shielding gas outflow and electrode protrusion.
• PROCUP 16 - for pipes and butt welding of stainless steel and titanium.

PROCUP 10 nozzle is compatible with WP17/26/18 and WP9/20 TIG torches.

Welds made with PROCUP 10:

PROCUP nozzles are designed for direct current DC welding and it is not recommended for use with alternating current AC. The nozzle requires a minimum shielding gas flow of 5L/min-10L/min and has a diffuser size of 3/3.2 inches (2.4mm). It is equipped with gas diffusers that provide the best gas shield during welding. The nozzle is compatible with standard TIG torches when using appropriate gas lenses, and it allows for high welding current values.

PROCUP 16 nozzle is compatible with WP17/26/18 and WP9/20 TIG torches.

Welds made with PROCUP 16:

PROCUP 16 nozzle requires a minimum shielding gas flow of 10L/min-16L/min. It has a diffuser size of 3/3.2 inches (2.4mm) and is equipped with gas diffusers that provide the best gas shield during welding. The nozzle is compatible with standard TIG torches when using appropriate gas lenses, and it allows for high welding current values.

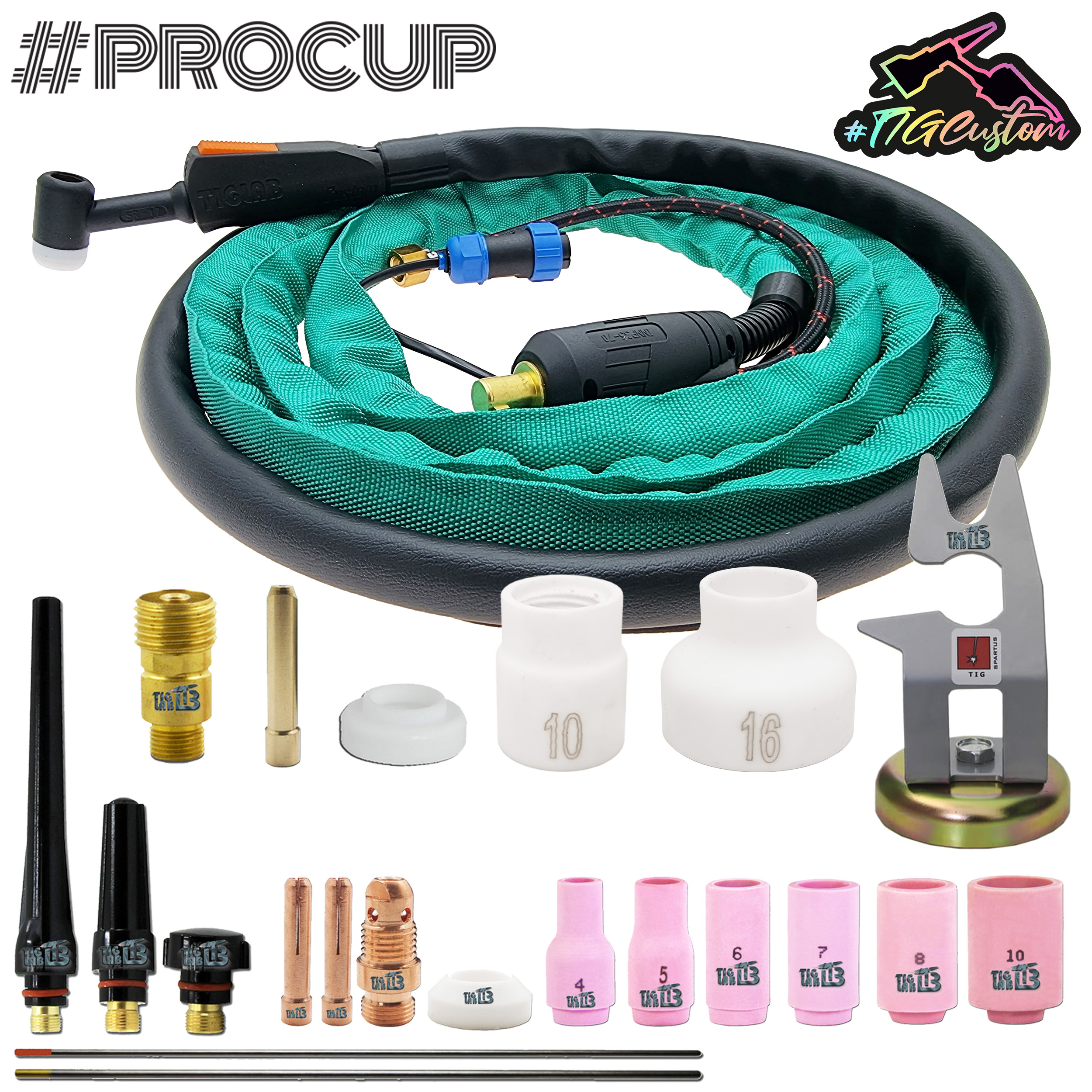

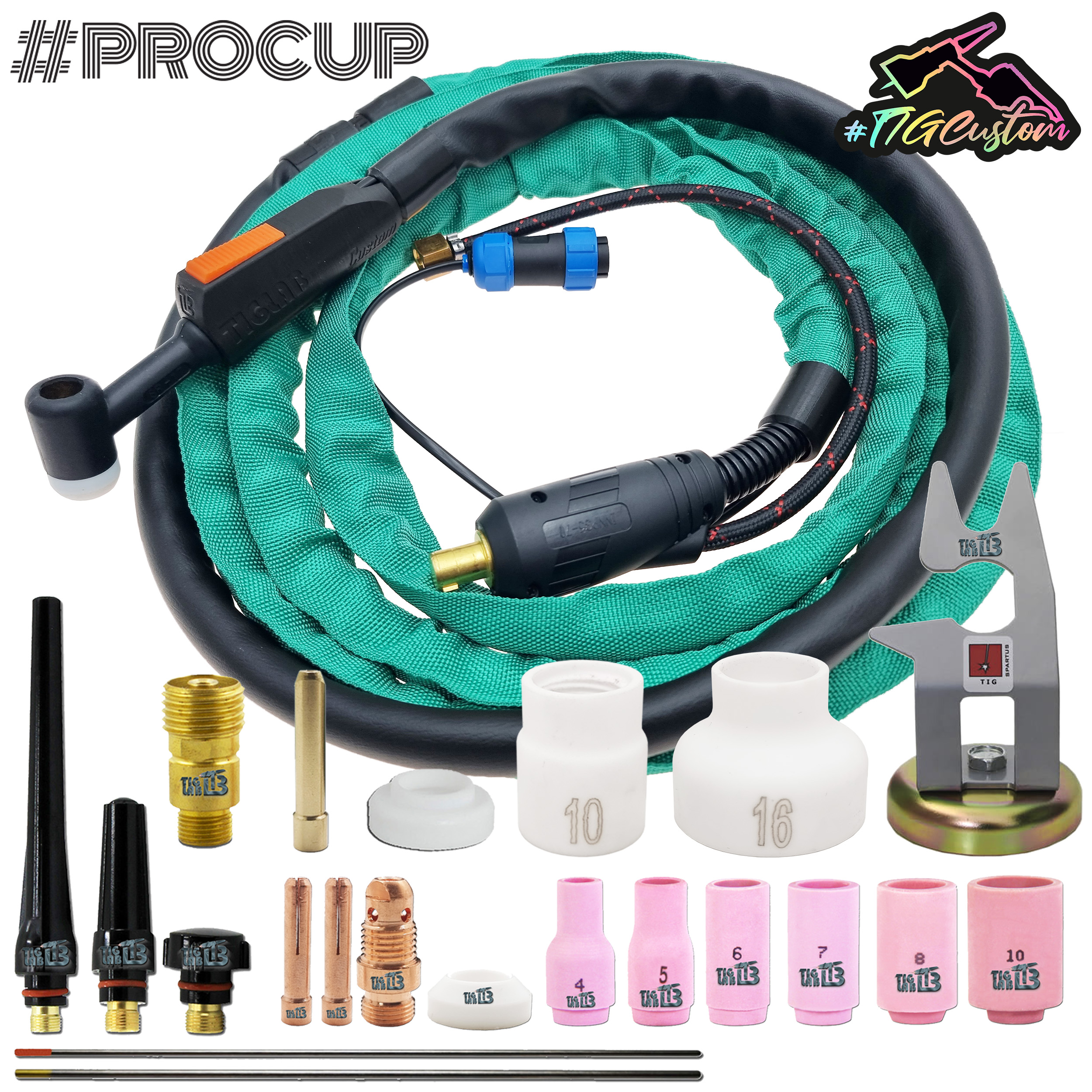

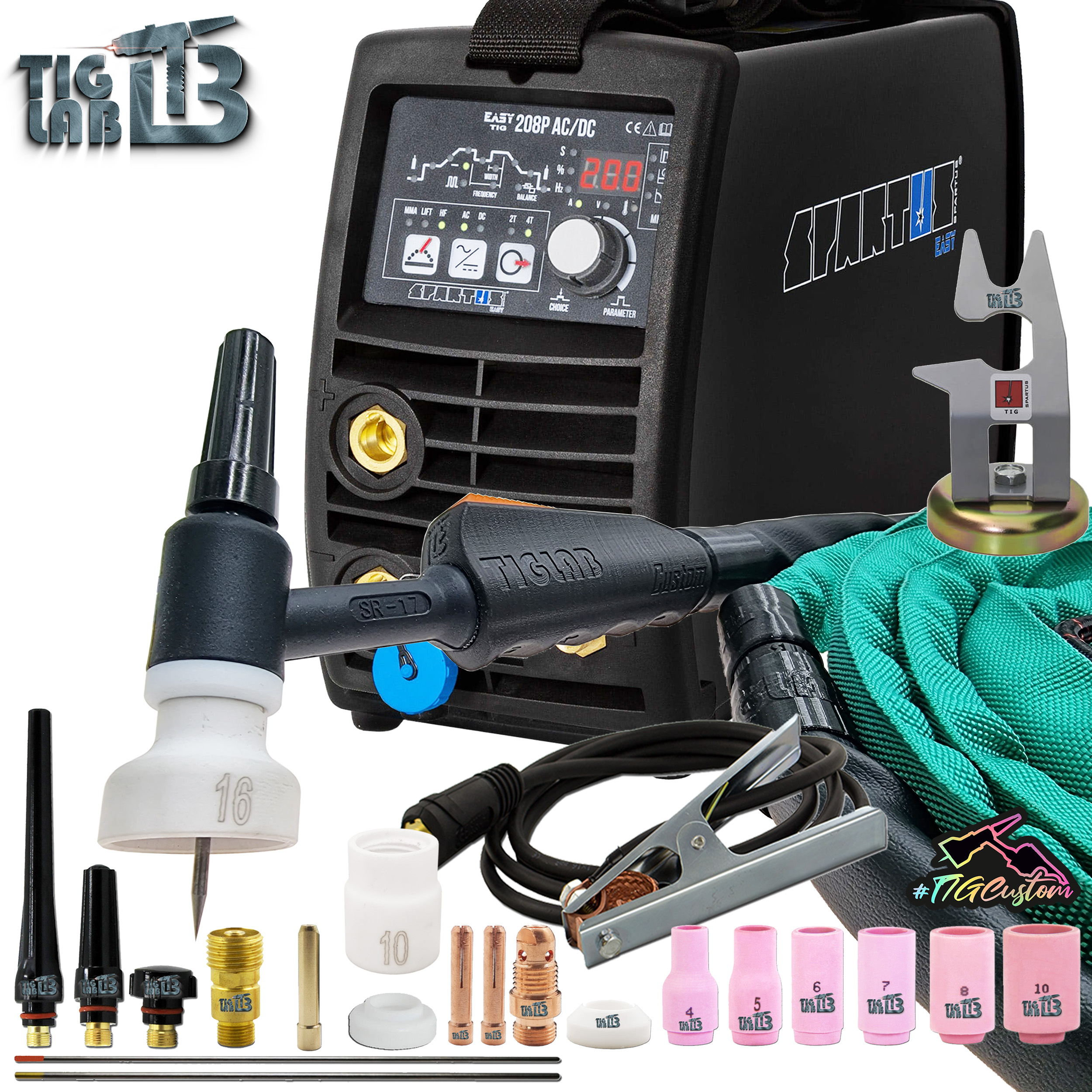

SET CONTAINS:

MACHINE EQUIPMENT:

• SPARTUS TIG 208P AC DC
• Welding torch TIG CUSTOM SLIM GRIP SR17 XU ( nylon leather ) - 4 m for welding aluminum and stainless steel
• Mass hose 3 m
• Magnetic base TIG - 1 pc
• Gas hos
• Instruction

TIG PARTS:

• Tig Collets - 3 pcs
• Gas lenses - 1 pc
• PROCUP 10 nozzle - 1 pc
• PROCUP 16 nozzle - 1 pc
• Gas Lens Insulators - 2 pcs
• TIG Back Caps - 3 pcs
• Tungsten electrodes - 2 pcs
• Ceramic nozzles - 6 pcs
• Stubby Collet Body - 1 pc
• TIGBOX organizer - 1 pc

If you need to add something to the set, call us and we will configure the set according to your preferences.

MANUFACTURER'S WARRANTY SPARTUS DOOR TO DOOR

SPARTUS products purchased in our store are brand new and have a manufacturer's warranty. The warranty card is filled in on the day of purchase and it is consistent with the numbers on the receipt. We provide warranty and post-warranty service for SPARTUS devices. If you buy SPARTUS products from us, you have a guarantee of support in the event of a failure and support during the first start-up of the machine. In the event of a fault, the courier picks up the damaged equipment from the location indicated in the service form and after repairing, delivers the equipment free of defects. Transport to the service is covered by the SPARTUS company.
