Spartus TIG 208 AC DC

Introducing the SPARTUS TIG 208P AC DC welding set, a comprehensive kit for welding stainless steel, duplex, titanium, and aluminum exhaust systems. This set comes with carefully selected accessories and a TIG CUSTOM SLIM GRIP 17 holder, enabling comfortable and extended work sessions. The TIG welding torch features an SR17 torch body that can weld with a maximum current of 180A in a 60% cycle and 200A in a 40% cycle, allowing for the welding of thicker pipes and sheets.

The SPARTUS TIG 208P AC DC is a digitally controlled inverter welder based on IGBT transistors. It enables welding using the TIG AC 200A - TIG DC 170A and MMA AC/DC methods with a current of 170A, powered from a single-phase 230V network. TIG 208P AC DC also enables advanced TIG AC and TIG DC welding with a choice of arc ignition method: TIG HF (by radio frequency) and TIG Lift (by friction). The pulse function allows for the joining of very thin materials in aluminum, steel, stainless steel, and many other materials. The intuitive control panel provides quick navigation through the functions, making it easy to use even for beginners.

The device has high efficiency:

• 60% at an ambient temperature of 25° C
• 35% at an ambient temperature of 40° C

The manufacturer gives the value of efficiency in the most extreme conditions and high ambient temperatures.

SPARTUS TIG 208P ACDC WELDING ALUMINUM STEEL AND STAINLESS STEEL.

 SPARTUS TIG 208P ACDC ALUMINUM WELDING.

WELDING OF THIN AIR CONDITIONING PIPE:

 SPARTUS TIG 208P ACDC WELDING COLLECTOR.

SPARTUS TIG 208P ACDC PULSE FUNCTION TEST.

SPARTUS TIG 208P ACDC ALUMINUM WELDING.

SPARTUS TIG 208P ACDC PIPE WELDING.

TIG 17 - 4m D version is a universal welding handle supplied with the welder.  The 40% efficiency wire allows welding alumnium and stainless steel. The torch body allows comfortable welding with 180AC DC current.

BENEFITS OF THE SPARTUS TIG 208P AC DC

IGBT TRANSISTORS offer a stronger, more concentrated, and more stable arc with lower energy consumption.

WELDING CURRENT 200A allows welding materials up to 10 mm.

AC DC CURRENT has versatile applications thanks to the ability to weld with both direct and alternating current.

SIMPLE LCD PANEL each adjustable function is displayed graphically. Perfect solution for beginners.

2T-4T are welding modes that make it easier to work on short and long welding distances. The 2T mode is used for welding short distances, as the arc is switched off after disconnecting the micro switch. In 4T mode, we do not have to hold the micro switch constantly while welding, but only click a second time to turn off the arc automatically.

PRE-GAS allows faster arc ignition at the start, both at low and high values of welding current. An indispensable function for point joining of thin and thick elements. Gas flow time is adjustable from 0-2 sec.

POST-GAS allows faster cooling of the connection and the tungsten electrode. The gas flow time is adjustable from 0.1-10 sec.

AC BALANCE wide range of 10-99 is responsible for the cleanliness of welds in aluminum welding. The function is responsible for the heat input into the material and the cleaning of oxides on the aluminum surface.

MULTI-CONTROL in the device we can use handles with UP&DOWN adjustment and foot control with smooth regulation of the welding current. The foot control can be wired or wireless.

The device guarantees clean welds in aluminum:

BENEFITS OF THE SPARTUS TIG 208P AC DC

Looking for a reliable and efficient welding machine? Look no further than the SPARTUS TIG 208P AC DC welder! Here are some of the advantages that make this model stand out:

• Strong HF: enjoy precise operation at both low and high welding currents.
• Reliable control panel: the intuitive interface and precise encoder make it easy to navigate through the functions.
• Pulse function: adjust the pulse width and frequency to join even the thinnest materials with precision.
• Smooth current regulation: use the foot control or up&down control to regulate the welding current and achieve the perfect weld.

WITH THIS MACHINE WE CAN WELD:

• Carbon steel up to 8 mm
• Stainless steel up to 7 mm
• Aluminum up to 10 mm
• Braze-weld with a pulse with a CUSI3-CUSN wire
• Titanium up to 6 mm
• Duplex up to 6 mm
• Superduplex up to 6 mm

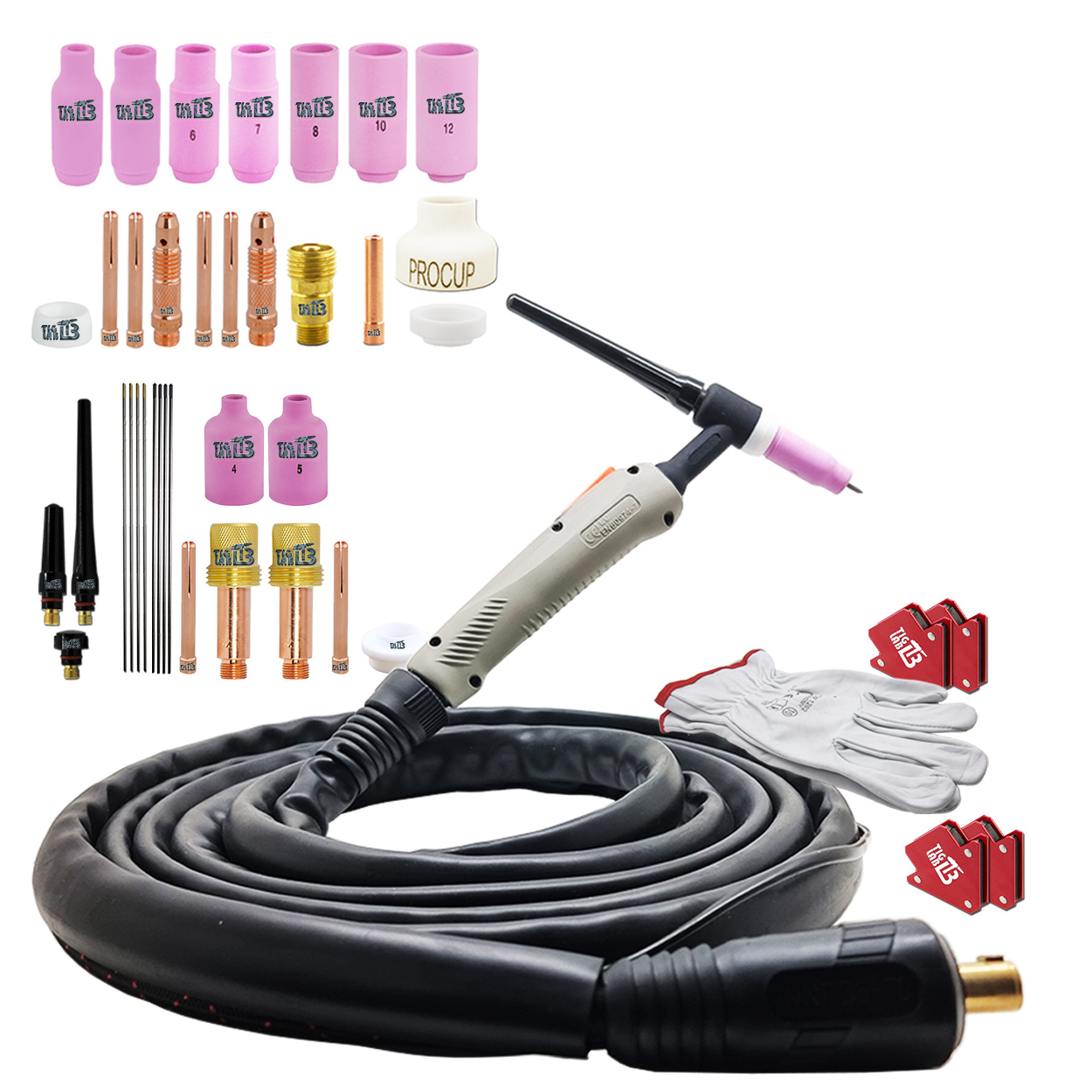

This kit contains the necessary accessories to start welding:

MACHINE EQUIPMENT:

• SPARTUS EASYTIG 208 AC DC
• Welding torch TIG CUSTOM GRIP RF 17/4
• Mass hose 3 m
• Leather gloves - 1 pcs
• Set of magnetic angle brackets - 4 pcs
• Gas hose - 1 pc

TIG PARTS:

• Gas lenses - 3 pcs
• Tig Collets - 7 pcs
• Ceramic nozzles STD - 7 pcs
• Ceramic nozzles for lens - 2 pcs
• PROCUP 16 nozzle - 1 pc
• PROCUP 16 gas diffuser - 1 pc
• Collet Body - 2 pcs
• Gas Lens Insulators - 3 pcs
• TIG Back Caps - 3 pcs
• Tungsten electrodes - 8 pcs

If you need to add something to the set, call us and we will configure the set according to your preferences.

MANUFACTURER'S WARRANTY SPARTUS DOOR TO DOOR

SPARTUS products purchased in our store are brand new and have a manufacturer's warranty. The warranty card is filled in on the day of purchase and it is consistent with the numbers on the receipt. We provide warranty and post-warranty service for SPARTUS devices. If you buy SPARTUS products from us, you have a guarantee of support in the event of a failure and support during the first start-up of the machine. In the event of a fault, the courier picks up the damaged equipment from the location indicated in the service form and after repairing, delivers the equipment free of defects. Transport to the service is covered by the SPARTUS company.
