Spartus TIG 208 AC DC std

If you are looking for a reliable and simple TIG system for welding aluminum and stainless steel, you've come to the right place. Read the description and watch the videos on how we weld with this device. Note the dimensions of the device and the possibility of welding thin and thick materials. The machine is extremely intuitive to use and welding demanding materials is not a problem.

SPARTUS TIG 208 AC DC VIDEO PRESENTATION:

WELDING THIN AIR CONDITIONING PIPES:

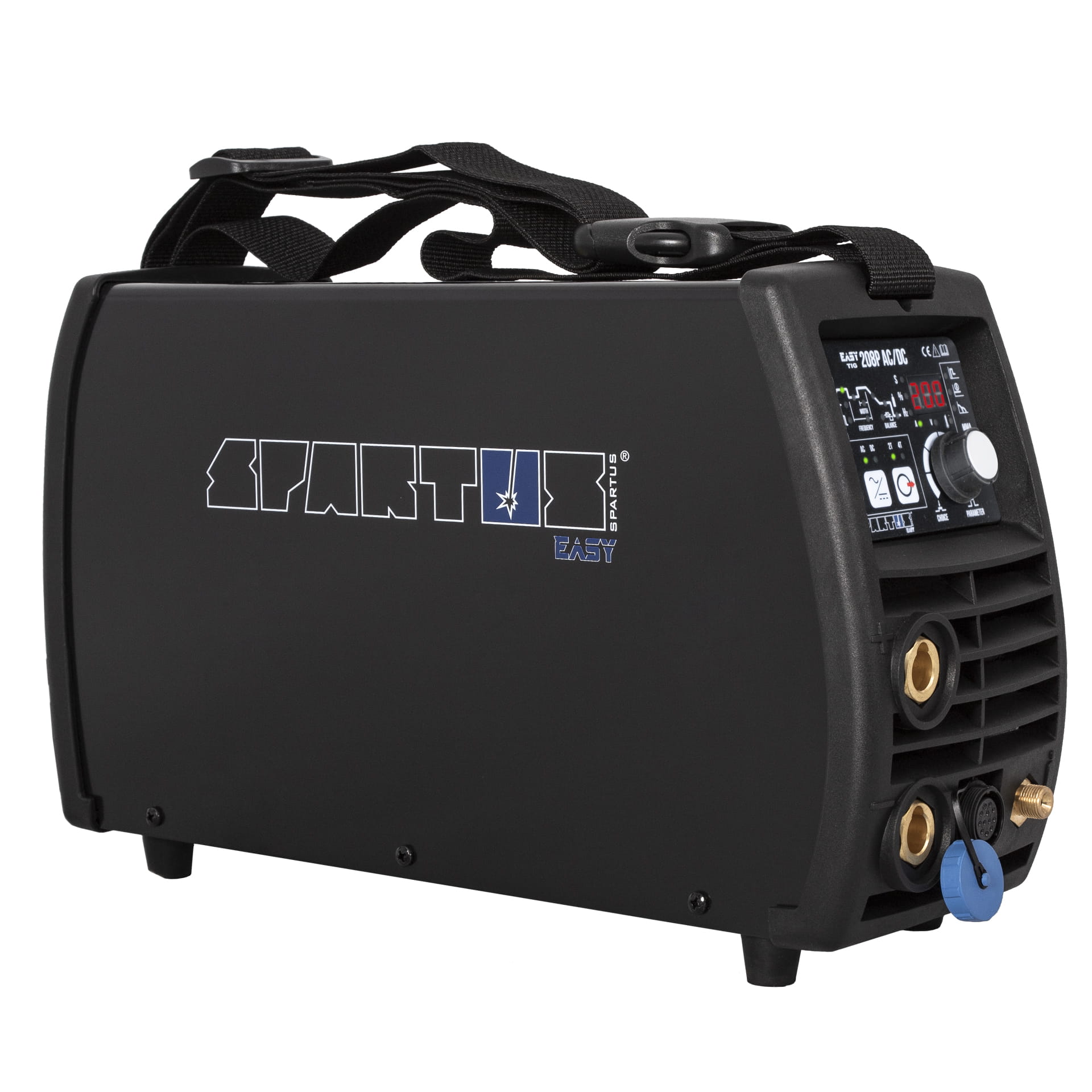

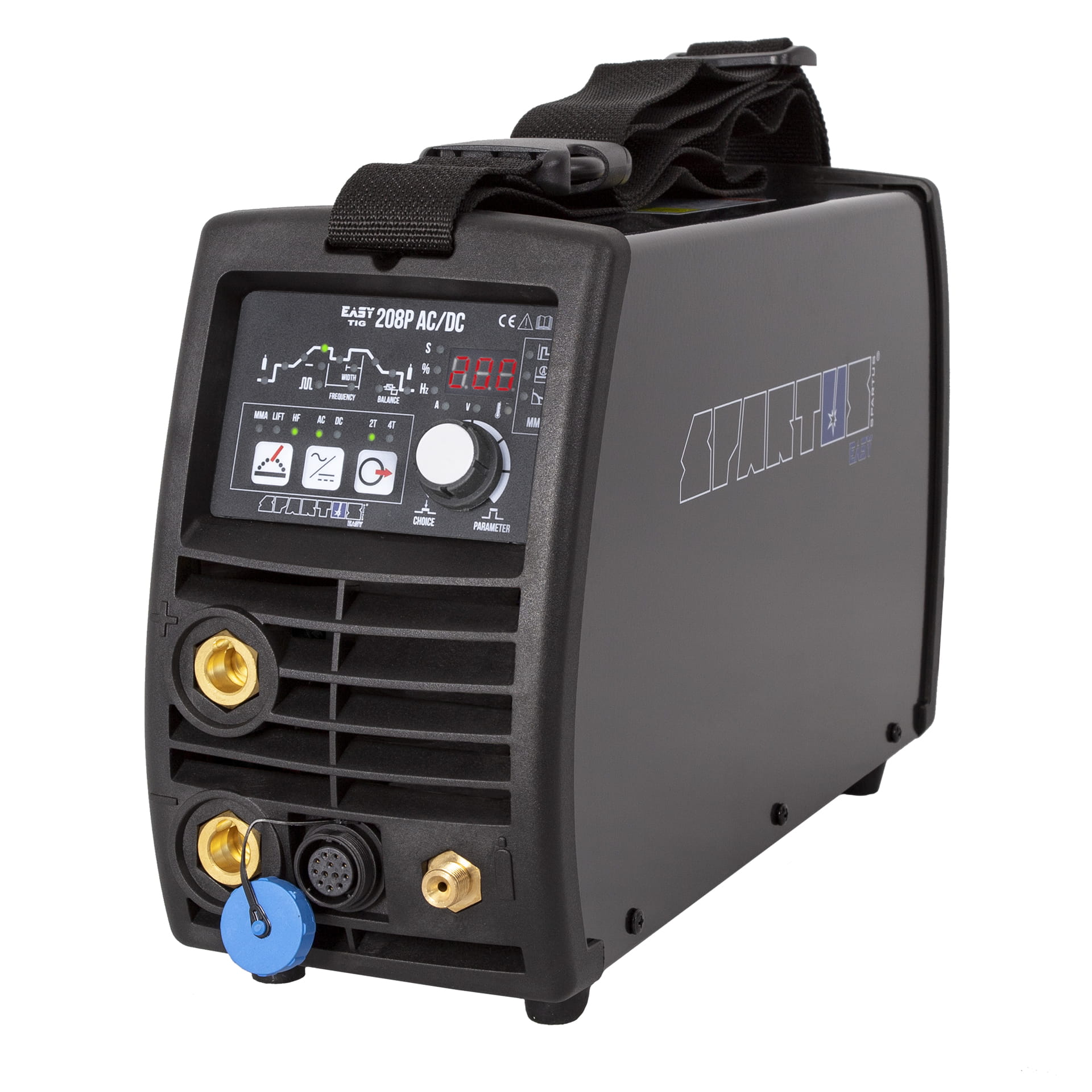

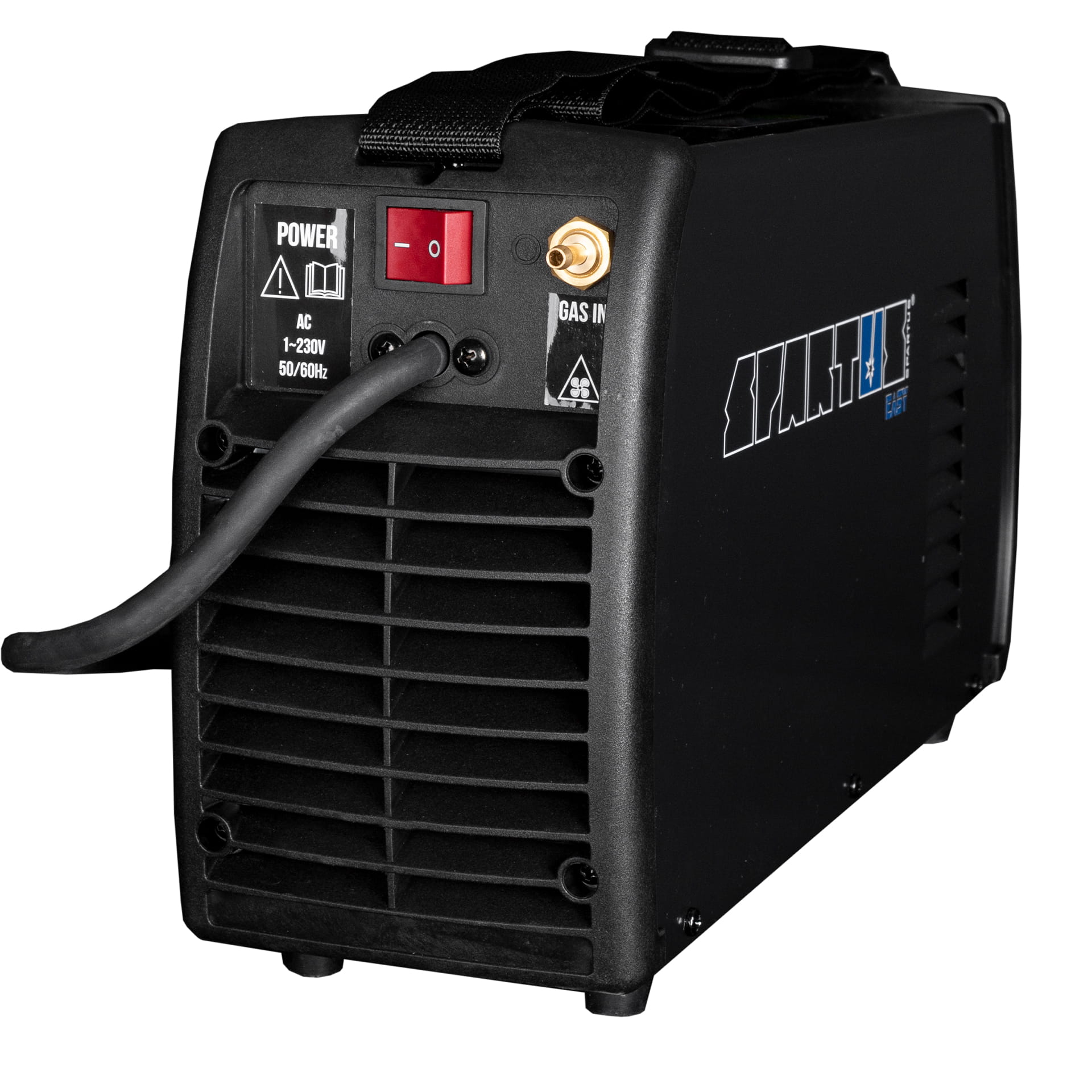

SPARTUS TIG 208P AC DC is a digitally controlled inverter welding machine based on IGBT transistors. It allows TIG AC / DC and MMA AC / DC welding with current up to 200A. The device is powered by a 230V one-phase network. Thanks to the solutions used, the TIG 208P AC/DC also enables advanced TIG AC and TIG DC welding with a choice of arc ignition method: TIG HF (by radio frequency) and TIG Lift (by friction). The device is equipped with a pulse welding function, which makes the machine perfect for welding very thin sheets and aluminum. The welding machine has an intuitive control panel that ensures fast navigation through the functions.

The device has high efficiency:

• 60% at an ambient temperature of 25° C
• 35% at an ambient temperature of 40° C

The manufacturer gives the value of efficiency in the most extreme conditions and high ambient temperatures.

BENEFITS OF THE SPARTUS TIG 208P AC DC

IGBT TRANSISTORS offer a stronger, more concentrated, and more stable arc with lower energy consumption.

WELDING CURRENT 200A allows welding materials up to 10 mm.

WELDING OF THICK MATERIALS:

AC DC CURRENT has versatile applications thanks to the ability to weld with both direct and alternating current.

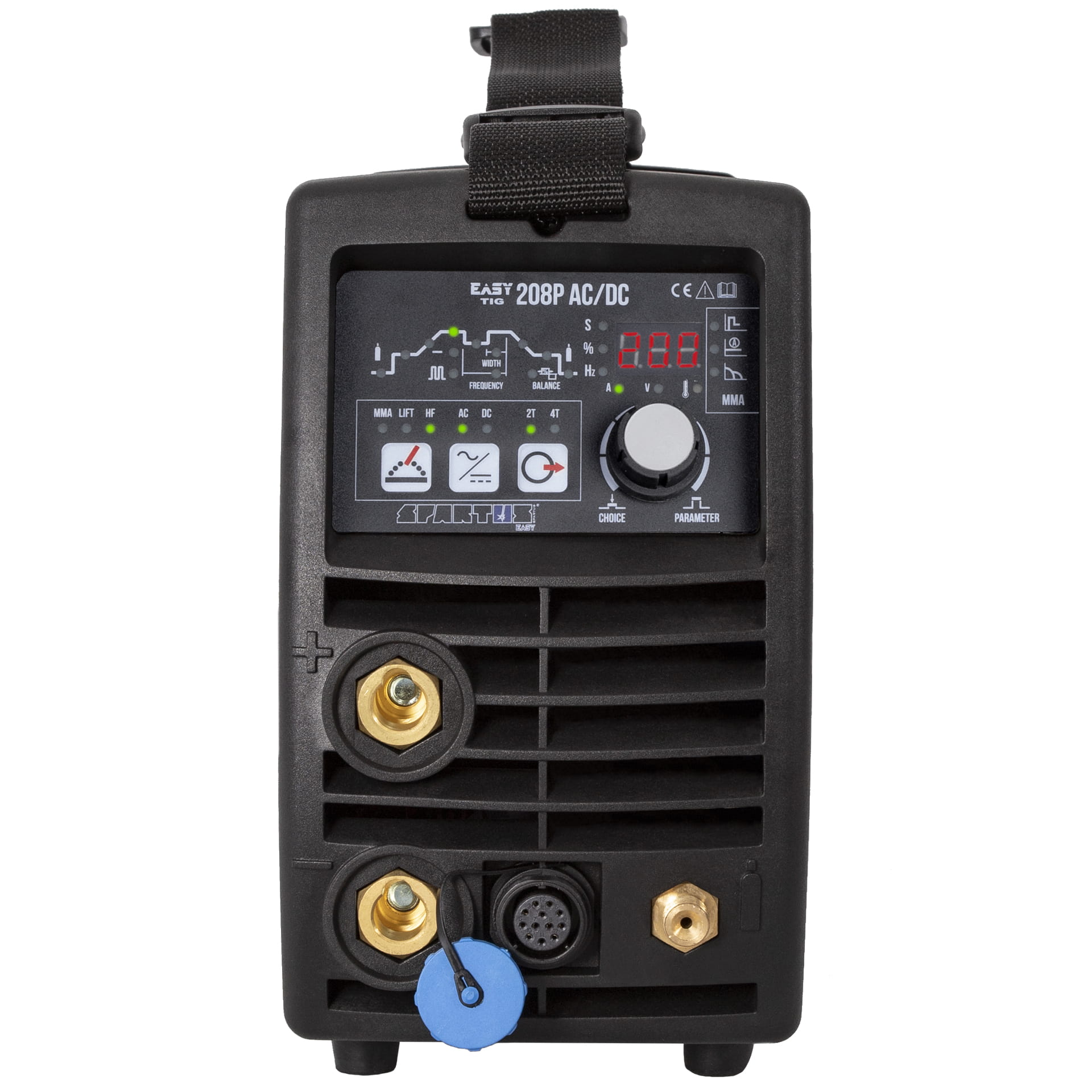

SIMPLE LCD PANEL each adjustable function is displayed graphically. Perfect solution for beginners.

2T-4T are welding modes that make it easier to work on short and long welding distances. The 2T mode is used for welding short distances, as the arc is switched off after disconnecting the micro switch. In 4T mode, we do not have to hold the micro switch constantly while welding, but only click a second time to turn off the arc automatically.

PRE-GAS allows faster arc ignition at the start, both at low and high values of welding current. An indispensable function for point joining of thin and thick elements. Gas flow time is adjustable from 0-2 sec.

POST-GAS allows faster cooling of the connection and the tungsten electrode. The gas flow time is adjustable from 0.1-10 sec.

TIG PULS MODE makes it possible to weld very thin materials of aluminum, steel, and stainless steel. The minimum pulse current is 10 A. The pulse control range is from 0.5 - 200Hz.

HOW THE TIG PULS FUNCTION WORKS:

DINSE STANDARD allows the use of different TIG handles. We can use handles with a length of up to 24 m.

AC BALANCE wide range of 10-99 is responsible for the cleanliness of welds in aluminum welding. The function is responsible for the heat input into the material and the cleaning of oxides on the aluminum surface.

MULTI-CONTROL in the device we can use handles with UP&DOWN adjustment and foot control with smooth regulation of the welding current. The foot control can be wired or wireless.

HOT START is a momentary increase of the welding current at the moment when the arc is struck. This prevents the electrode from sticking in the initial phase of welding. This feature allows a faster invasion of the arc with rutile and base electrodes.

ARC FORCE dynamics shorten the arc length while increasing the welding current, which prevents arc extinction when the electrode comes into contact with the welding material. This function facilitates learning MMA welding.

TIGLIFT enables the welding of steel in places where HF welding is impossible.

The device guarantees clean welds in aluminum:

WELDING OF MOTORCYCLE COMPONENTS:

TIG CUSTOM TORCH LOGO MAKING DEMONSTRATION.

WITH THIS MACHINE WE CAN WELD:

• Carbon steel up to 8 mm
• Stainless steel up to 7 mm
• Aluminum up to 10 mm
• Braze-weld with a pulse with a CUSI3-CUSN wire
• Titanium up to 6 mm
• Duplex up to 6 mm
• Superduplex up to 6 mm
• MMA - electrodes with a diameter of 4 mm
• TIGLIFT carbon steel up to 6 mm

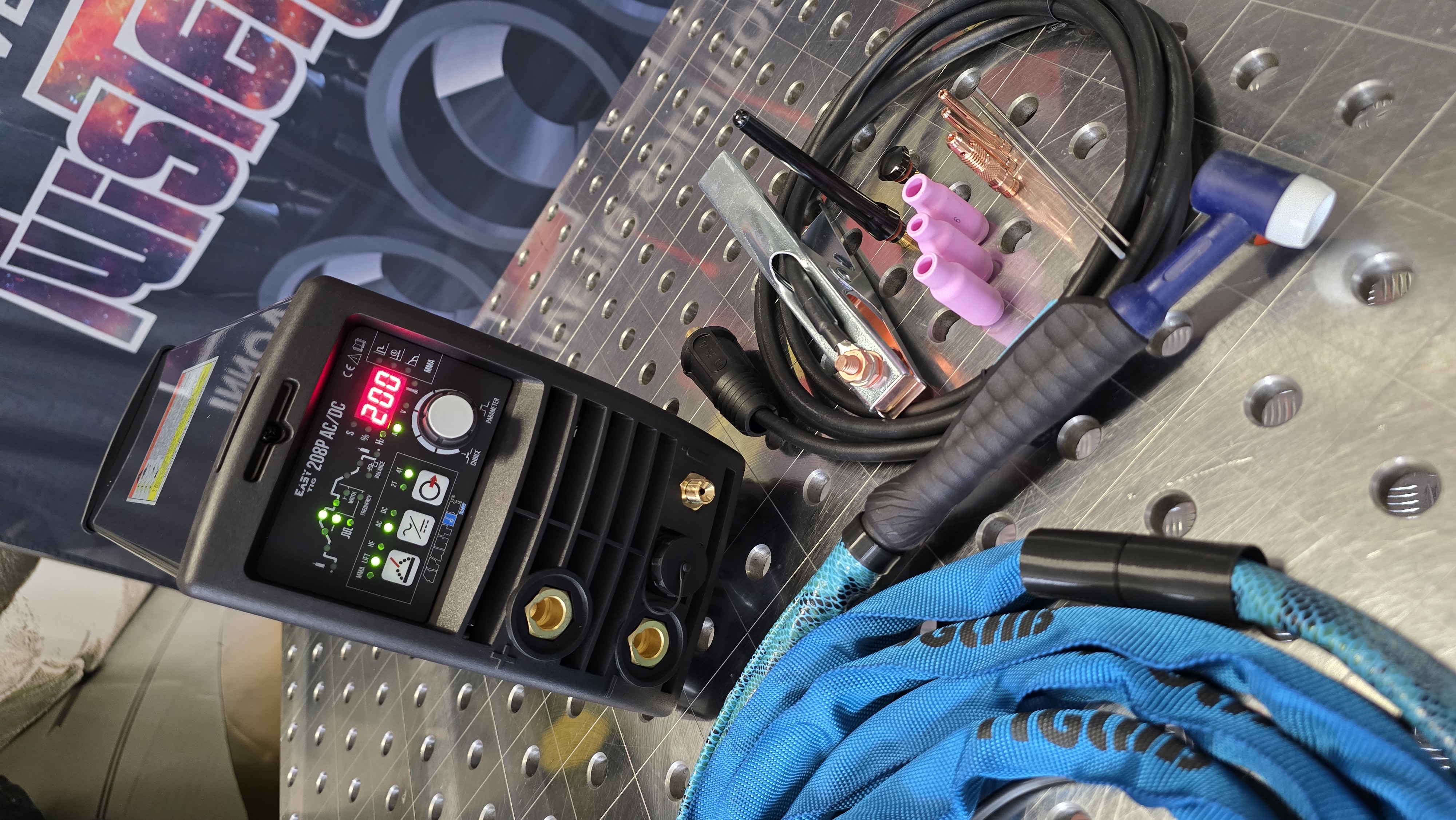

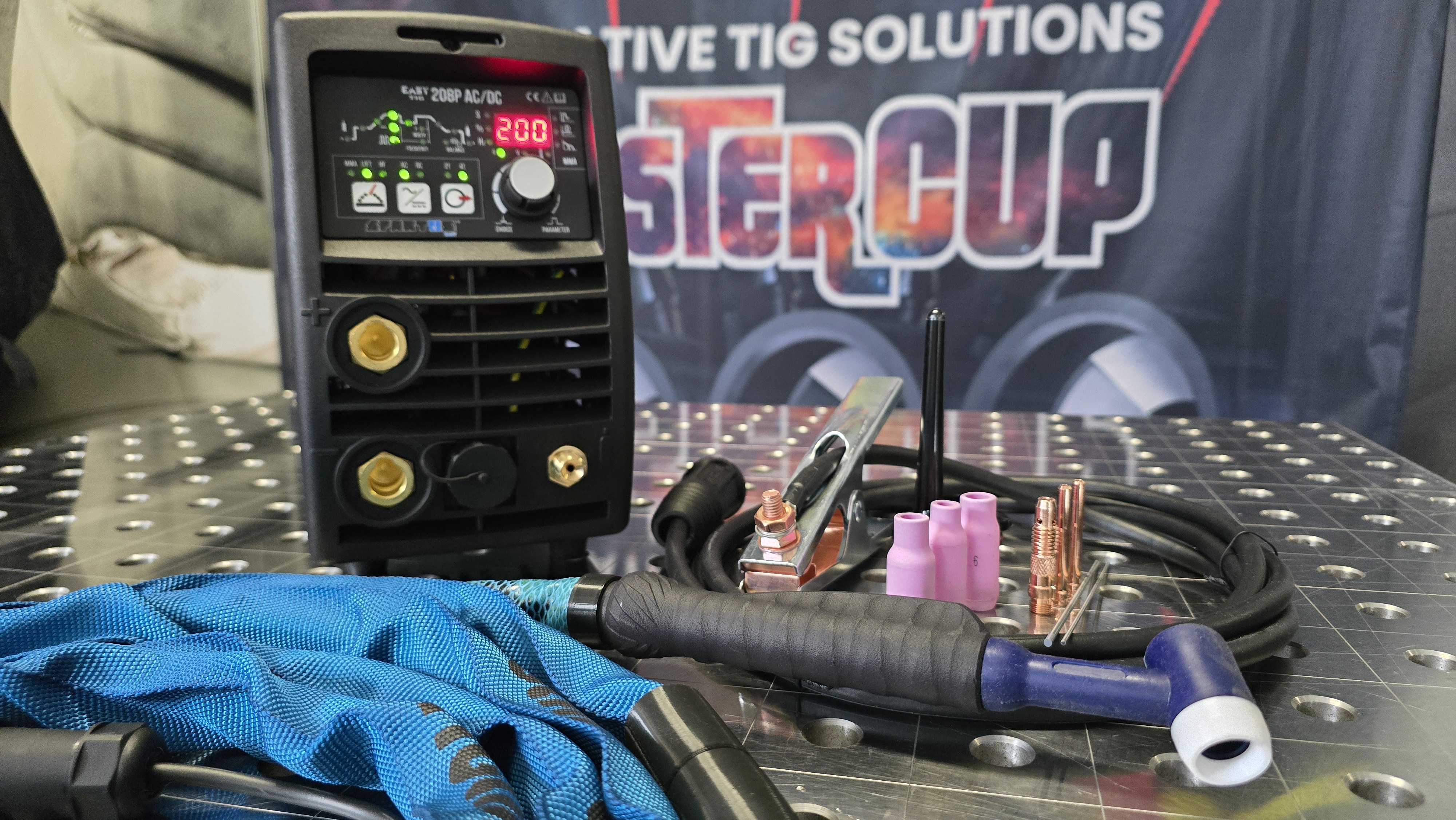

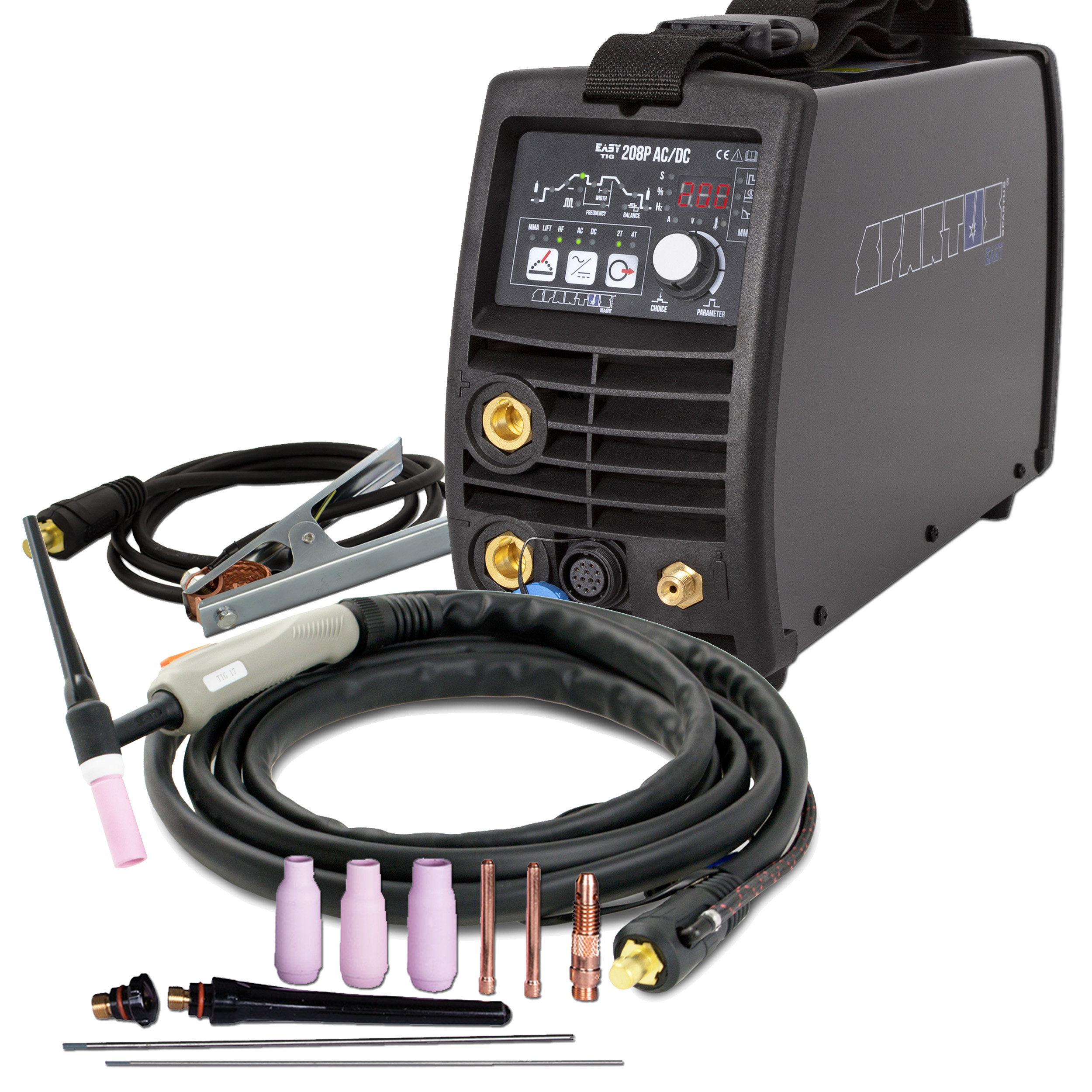

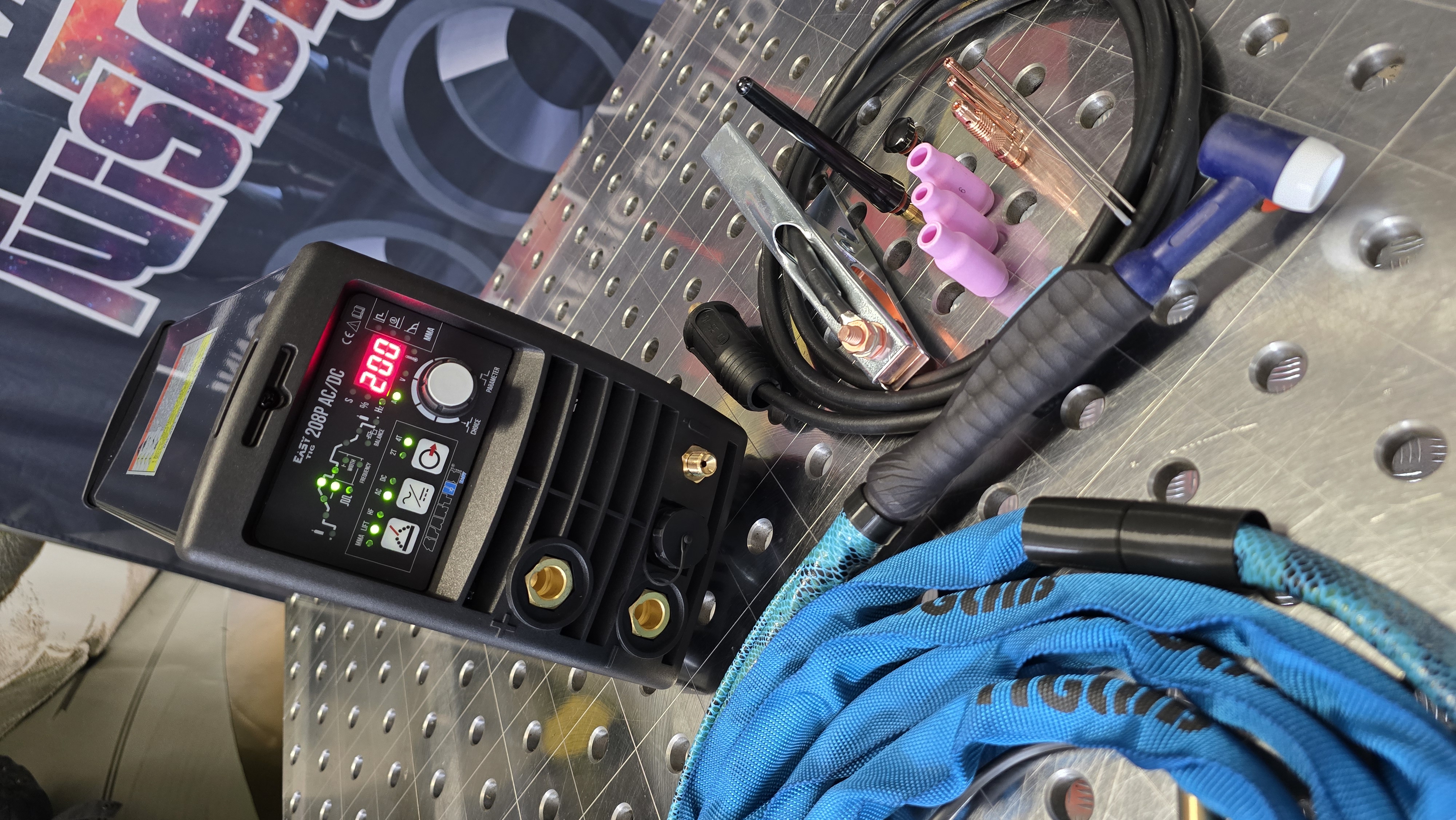

SET CONTAINS:

MACHINE EQUIPMENT:

• SPARTUS EASYTIG 208 AC DC
• Welding torch TIG CUSTOM GRIP RF 17/4 m
• Mass hose 3 m
• Gas hose - 1 pc

TIG PARTS:

• Collets - 2 pcs
• Ceramic nozzles STD - 3 szt
• Current connector - 1 pc
• Insulators - 1 pc
• Clamping plugs - 2 pcs
• Tungsten electrodes - 2 pcs

If you need to add something to the set, call us and we will configure the set according to your preferences.

MANUFACTURER'S WARRANTY SPARTUS DOOR TO DOOR

SPARTUS products purchased in our store are brand new and have a manufacturer's warranty. The warranty card is filled in on the day of purchase and it is consistent with the numbers on the receipt. We provide warranty and post-warranty service for SPARTUS devices. If you buy SPARTUS products from us, you have a guarantee of support in the event of a failure and support during the first start-up of the machine. In the event of a fault, the courier picks up the damaged equipment from the location indicated in the service form and after repairing, delivers the equipment free of defects. Transport to the service is covered by the SPARTUS company.
