Spartus TIG 206p dc GTP exhaust sflex 9g

SPARTUS TIG 206P DC Pulse is a specialized set designed for welding exhaust systems made of stainless steel, acid-resistant steel, and titanium. Carefully selected accessories and the GTP CUSTOM TLB9 SFLEX torch enable long and comfortable work. The TIG welding torch features a reinforced TLB9 torch body. The GRIP handle perfectly isolates high temperatures and ensures a long duty cycle. The professional and super-flexible TLBsflex cable allows for comfortable work in difficult conditions. The ergonomics of the torch will be appreciated by professional welders as well as those beginning their adventure with TIG pipe welding.

SPARTUS TIG 206P DC Pulse is a digitally controlled inverter welder built on IGBT transistors. It enables welding using TIG DC 200A and MMA methods with a current of 200A. It is powered by a single-phase 230V network. The cold welding function allows for joining very thin materials made of steel and stainless steel. The welder features an intuitive control panel that ensures quick navigation through all functions.

The device features high efficiency:

• 60% at an ambient temperature of 25°C
• 35% at an ambient temperature of 40°C

The manufacturer provides efficiency values under the most extreme conditions and high temperatures.

Cold Welding - COLD WELDING test:

IGBT TRANSISTORS offer a more powerful, more concentrated, and more stable arc while maintaining lower energy consumption.

COLD WELDING - fast execution of spot welds in a time range from 1ms to 200ms.

COLD WELDING PULSE - cold welding with pulse. Fast execution of spot welds in a time range from 1ms to 200ms with adjustable frequency up to 10Hz.

200A WELDING CURRENT enables welding of materials up to 10 mm.

SIMPLE PANEL every selected function is backlit. An ideal solution for beginner users.

2T-4T are welding modes that facilitate welding on short and longer sections. 2T mode is used for welding short sections because after releasing the microswitch, the arc extinguishes in a set time; in 4T mode, you do not have to hold the microswitch constantly during welding, but only click it a second time for the arc to extinguish automatically.

PRE-GAS enables faster arc ignition at the start on both low and high welding current values. An essential function for spot joining thin and thick elements. Pre-gas flow time is adjustable from 0-2 s.

POST-GAS enables faster cooling of the joint and the tungsten electrode. Post-gas flow time can be adjusted from 0-10 s.

PULSE gives the possibility of welding very thin materials in steel and stainless steel. Minimum pulse current is 10 A. Pulse frequency adjustment range from 0.5 - 100Hz.

The SPARTUS TIG 206P DC welder is an upgraded version of the TIG 205P DC, which has been well-known on the market for several years and is a highly valued industrial model. Many companies in the welding industry utilize this TIG welder model.

The greatest advantages of the welder are:

• Powerful HF - precise ignition at both low and high welding currents.
• Reliable control panel and precise encoder for adjusting welding parameters.
• Pulse with a wide range of adjustment.
• Cold welding - creating spot welds in a very short time. Cold welding of sheets thinner than 1mm.

MATERIALS THAT CAN BE WELDED WITH THIS DEVICE:

• Carbon steel up to 10 mm.
• Stainless steel up to 8 mm.
• Brazing with pulse using CUSI3-CUSN wire.
• Titanium up to 6 mm.
• Duplex up to 6 mm.
• Super duplex up to 6 mm.

The TIG CUSTOM TLB9 torch is a lightweight, super-flexible torch for TIG welding in all positions. The precise microswitch allows for comfortable work when using the "walking the cup" technique for pipes. The professional TLBsflex cable is the most flexible cable available in TIG torches. The cable remains flexible even at low temperatures. High efficiency of the body and cable enables long welding sessions.

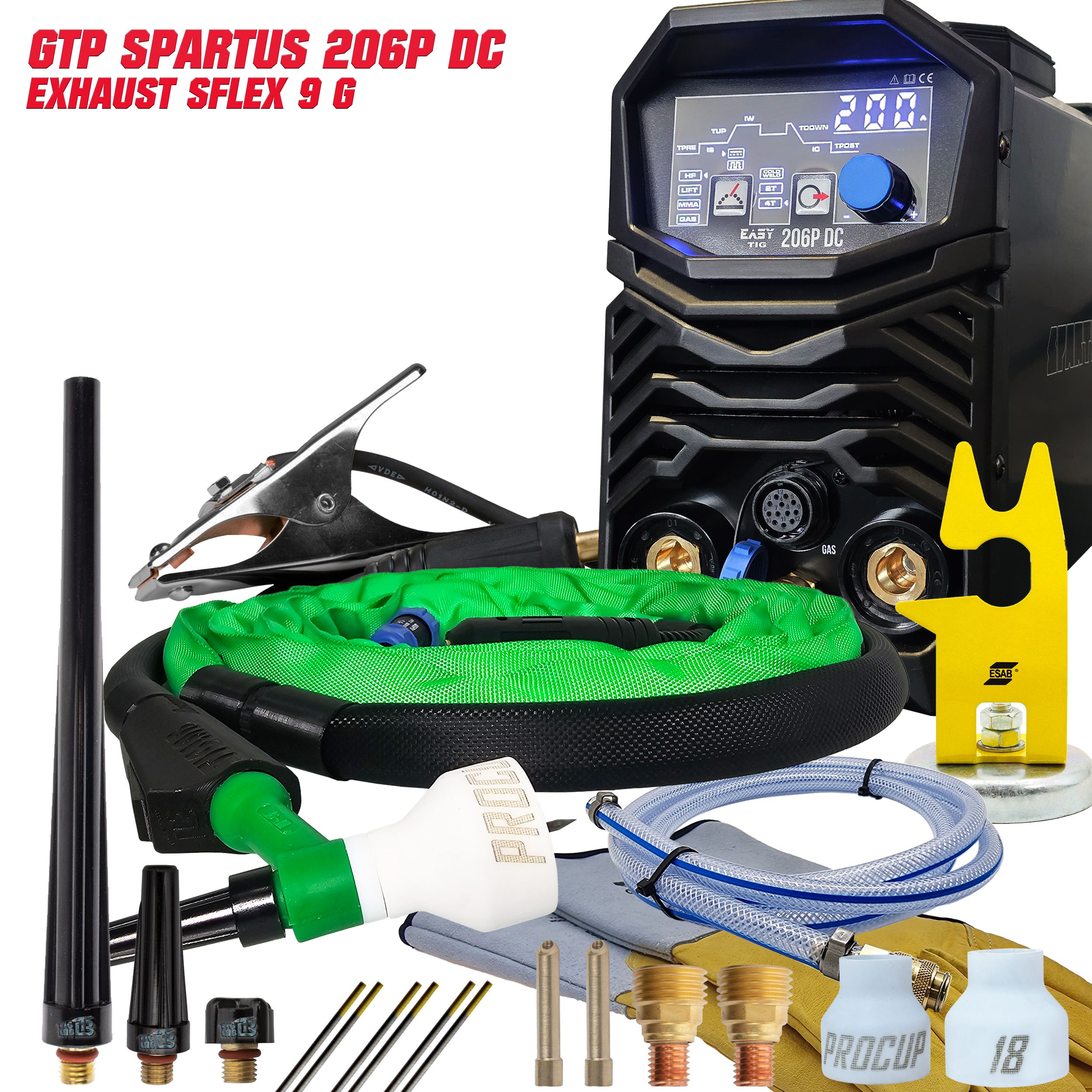

CONFIGURATION INCLUDES:

• Spartus TIG 206P DC Pulse
• GTPCUSTOM TLB9 SFLEX welding torch - 4m
• Ground cable
• Instruction manual

ACCESSORIES TO START WELDING:

• Gas hose + quick connector
• Clamps - 2 pcs
• Magnetic TIG stand
• Leather TIG gloves
• Procup nozzles - 3 pcs
• Gas lenses - 2 pcs
• Collets - 2 pcs
• Back caps - 3 pcs
• Tungsten electrodes - 6 pcs
• TIGBOX organizer

Additional accessories for the set are available to choose from in the menu using the slider.

If you need to add something specific to the set, call us – we will configure the kit to your preferences.

MANUFACTURER'S DOOR-TO-DOOR WARRANTY

SPARTUS products purchased from our store are brand new and carry a manufacturer's warranty. The warranty card is filled out on the day of purchase and corresponds to the sales document numbers. We provide warranty and post-warranty service for SPARTUS devices. By purchasing SPARTUS brand products from us, you are guaranteed support in case of failure and assistance with the initial startup of the device. If a failure occurs, a courier picks up the damaged equipment from the location specified in the service form and, after the fault is repaired, delivers the defect-free equipment back. Transport to the service center is covered by SPARTUS.
