Spartus TIG 206p dc GTP custom 9 sflex 2w1

SPARTUS TIG 206P DC Puls is a specialized kit designed for welding exhaust systems made of stainless steel, acid-resistant steel, and titanium. It features carefully selected accessories and a unique GTP CUSTOM 2-in-1 micro-torch on an SFLEX cable with a detachable, 360-degree rotating micro-switch. The torch body allows for interchangeable SR9 or SR17 heads at various angles, making it highly adaptable to your existing TIG parts and diverse welding tasks. This is the shortest and lightest welding torch ever designed. The detachable micro-switch enables welding via a foot pedal (on-off or seamless current regulation). The torch was designed and manufactured to meet the high standards of GTPerformance and the TIGLAB team.

SPARTUS TIG 206P DC Puls is a digitally controlled inverter welder built on IGBT transistors. It enables TIG DC 200A and MMA welding with a current of 200A. Powered by a single-phase 230V network, the cold welding function allows for joining ultra-thin steel and stainless steel materials. The welder features an intuitive control panel for rapid navigation through all settings.

The device features high efficiency:

• 60% at an ambient temperature of 25°C
• 35% at an ambient temperature of 40°C

The manufacturer specifies efficiency values under extreme conditions and high temperatures for maximum reliability.

COLD WELDING test:

IGBT TRANSISTORS offer a stronger, more concentrated, and stable arc while maintaining lower energy consumption.

COLD WELDING - Rapid spot welding with pulse times ranging from 1ms to 200ms.

COLD WELDING PULSE - Pulse spot welding with times from 1ms to 200ms and an adjustable frequency up to 10Hz.

200A WELDING CURRENT enables the welding of materials up to 10 mm thick.

SIMPLE PANEL - Every active function is backlit, making it an ideal solution for beginners.

2T-4T MODES - Welding modes for short and long sections. 2T mode stops the arc when the trigger is released. In 4T mode, you don't need to hold the trigger constantly; a second click extinguishes the arc.

PRE-GAS ensures cleaner starts and faster arc ignition. Adjustable from 0-2 s.

POST-GAS protects the weld pool and the tungsten electrode during cooling. Adjustable from 0-10 s.

PULSE enables welding of ultra-thin steel and stainless steel. Minimum pulse current is 10 A. Pulse adjustment range: 0.5 - 100Hz.

The SPARTUS TIG 206P DC is an upgraded version of the TIG 205P DC, enhanced with cold welding functions. It is a well-known and highly valued model in the Polish industrial sector.

Key advantages of this welder:

• Powerful HF - Precise ignition at both low and high welding currents.
• Reliable control panel with a precision encoder for fine-tuned parameter adjustment.
• Wide-range Pulse settings.
• Cold Welding - High-speed spot welding for sheets thinner than 1mm.

SUITABLE FOR WELDING:

• Carbon steel up to 10 mm.
• Stainless steel up to 8 mm.
• Pulse braze-welding with CUSI3-CUSN wire.
• Titanium, Duplex, and Super Duplex up to 6 mm.

The GTP CUSTOM SFLEX 9 - 4m 2-in-1 micro-torch is a masterpiece of ergonomics. Designed for the motorsport industry, it is the shortest and lightest torch ever created for precision pipe welding. The detachable, rotating micro-switch allows for seamless use with foot pedals. The high-performance SFLEX cable ensures comfort, while the SOFT SKIN toxic green braiding protects against abrasion. The SR9 torch head is interchangeable and available in three versions:

• 70 degrees - Standard welding for stainless steel, duplex, and titanium pipes and sheets.
• 90 degrees - Primarily for aluminum, where vertical gas shielding is required for clean, mirrored welds.
• 90 degrees straight - Machine-style heads used for "Welding Art" or hard-to-reach areas.

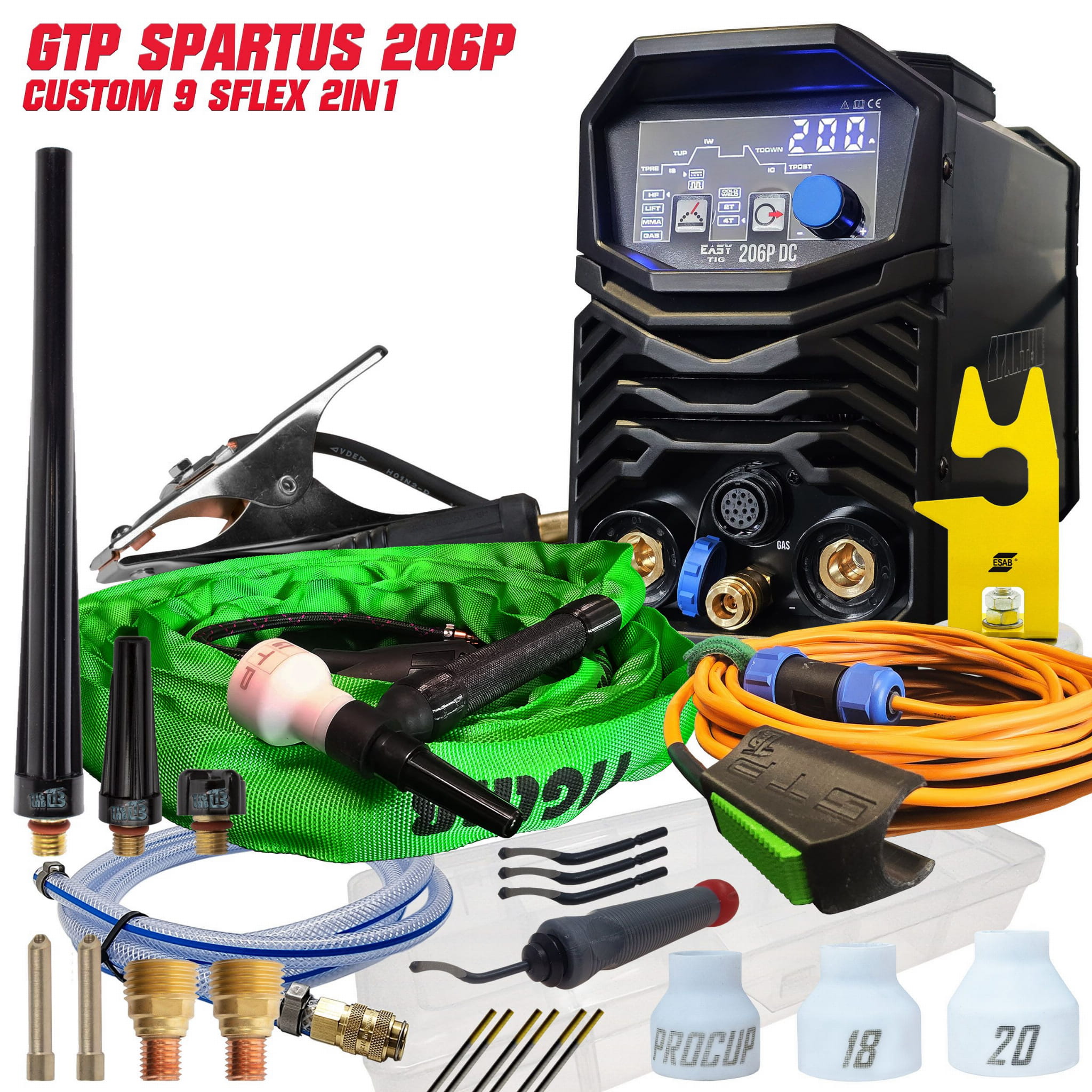

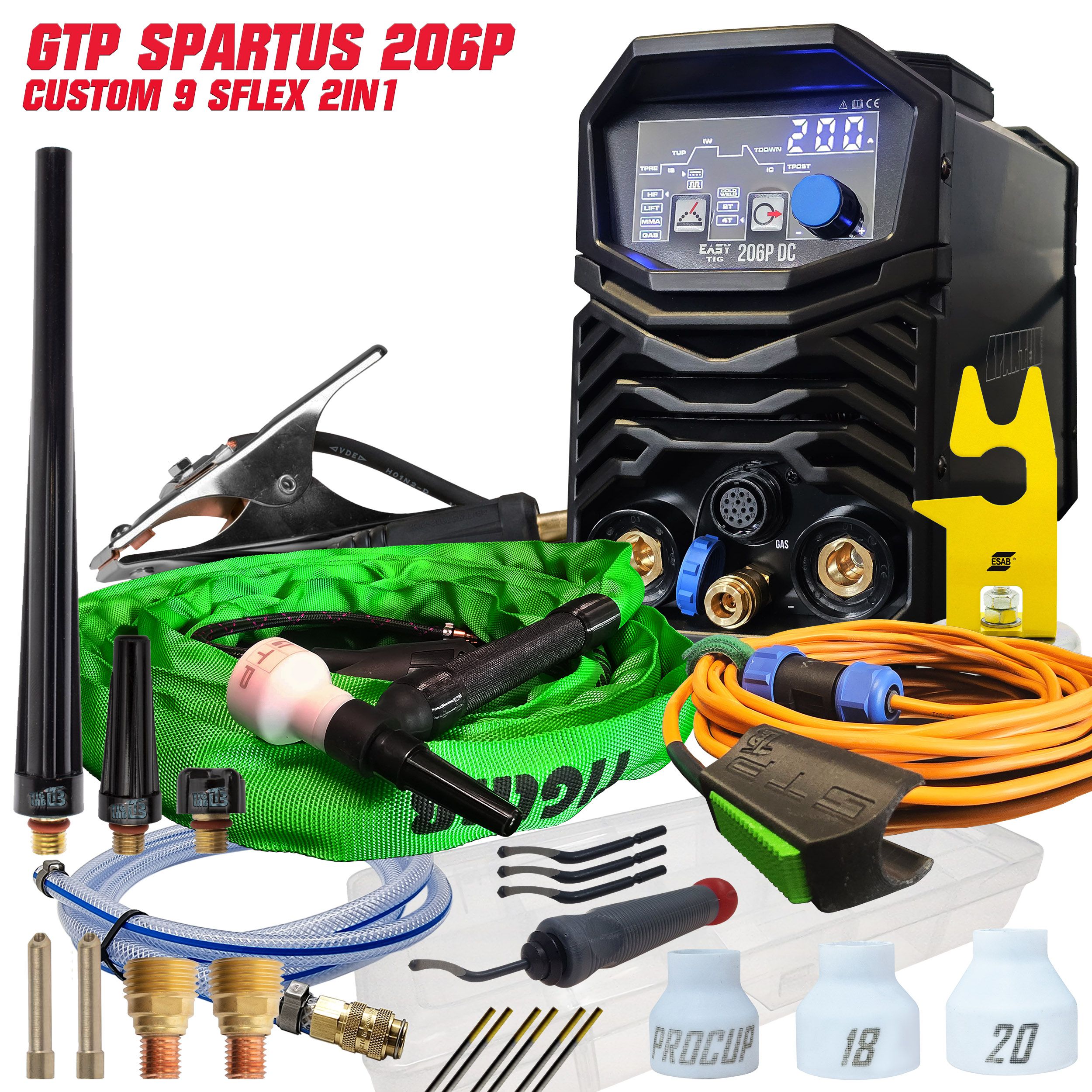

THE SET INCLUDES:

• Spartus TIG 206P DC Puls Power Source
• GTP CUSTOM 9 Sflex 2-in-1 Welding Torch - 4m
• Work Clamp Cable
• User Manual

WELDING START-UP ACCESSORIES:

• Gas hose + quick coupler
• Hose clamps - 2 pcs
• Magnetic TIG torch stand
• Pipe scraper with interchangeable blades
• Procup nozzles - 3 pcs
• Gas lenses - 2 pcs
• Collets - 2 pcs
• Back caps - 3 pcs
• Tungsten electrodes - 6 pcs
• TIGBOX organizer

Additional accessories for the kit are available via the slider menu.

Need to add something to the set? Call us and we will configure the kit to your preferences.

DOOR-TO-DOOR MANUFACTURER'S WARRANTY

SPARTUS products purchased from our store are brand new and covered by a full manufacturer's warranty. We provide comprehensive warranty and post-warranty service. When buying from us, you are guaranteed technical support and assistance with initial setup. In the event of a fault, the "Door-to-Door" service handles the pickup and return of repaired equipment at no shipping cost to you. Transport costs for warranty service are fully covered by SPARTUS.

```
