Spartus TIG 200XP acdc GTP exhaust sflex 9g

SPARTUS TIG 200XP ACDC Pulse is a comprehensive set designed for welding exhaust systems made of stainless steel, acid-resistant steel, and titanium. Carefully selected accessories and the GTP CUSTOM TLB9 SFLEX torch enable long and comfortable work. The TIG welding torch features a reinforced TLB9 torch body. The GRIP handle perfectly isolates high temperatures and ensures a long duty cycle. The professional and super-flexible TLB sflex cable allows for comfortable work in difficult conditions. Both professional welders and those beginning their journey with TIG pipe welding will appreciate the torch's ergonomics.

SPARTUS TIG 200XP AC DC is a digitally controlled inverter welder built on IGBT transistors. It enables welding using TIG AC 200A - TIG DC 200A and MMA AC/DC at a current of 200A. It is powered by a single-phase 230V network. The pulse function allows for joining very thin materials in aluminum, steel, stainless steel, and many other materials. The welder features an intuitive control panel that ensures quick navigation through all functions.

The device features high efficiency:

• 60% at an ambient temperature of 25°C
• 35% at an ambient temperature of 40°C

The manufacturer provides efficiency values under the most extreme conditions and high temperatures.

SPARTUS TIG 200P ACDC VIDEO PRESENTATION:

IGBT TRANSISTORS offer a more powerful, more concentrated, and more stable arc while maintaining lower energy consumption.

200A WELDING CURRENT enables welding of materials up to 10 mm.

AC DC CURRENT versatile application thanks to the ability to weld with both direct and alternating current.

SIMPLE PANEL every selected function is backlit. An ideal solution for beginner users.

2T-4T are welding modes that facilitate welding on short and longer sections. 2T mode is used for welding short sections because after releasing the microswitch, the arc extinguishes in a set time; in 4T mode, you do not have to hold the microswitch constantly during welding, but only click it a second time to extinguish the arc automatically.

PRE-GAS enables faster arc ignition at the start on both low and high welding current values. An essential function for spot joining thin and thick elements. Pre-gas flow time is adjustable from 0-1 s.

POST-GAS enables faster cooling of the joint and the tungsten electrode. Post-gas flow time can be adjusted from 0.1-10 s.

PULSE gives the possibility of welding very thin materials in aluminum, steel, and stainless steel. Minimum pulse current is 10 A. Pulse frequency adjustment range from 0.5 - 200Hz.

AC BALANCE a wide range of 20-80 is responsible for the cleanliness of welds in aluminum welding. The function controls the amount of heat input into the material and the cleaning of oxides on the aluminum surface.

AC FREQUENCY - stabilizes and focuses the arc during welding. A wide range of 40-250 Hz enables professional welding of any aluminum and magnesium alloy.

MULTI CONTROL the device can be used with adjustable torches and foot controls for smooth welding current adjustment.

PROGRAM MEMORY - the welder can save welding parameter settings to memory. Multiple channels allow for quick selection of a previously saved welding program. This function is useful for serial welding of aluminum and stainless steel components.

SPOT COLD WELDING - this function enables the welding of very thin sheets and the creation of perfect tack welds. Thanks to this function, you can "cold weld" highly demanding materials. The function significantly facilitates the welding of stainless steel pipes and structures.

The device guarantees clean welds in aluminum:

• Powerful HF - precise operation at both low and high welding currents.
• Reliable control panel and precise encoder.
• Pulse with a wide range of adjustment.
• Welding with smooth current adjustment via foot control or torch control.
• Wide range of balance functions for superior weld aesthetics and quality.
• Adjustable AC frequency over a wide range for a perfectly stable arc.
• Memory channels for saving welding parameter programs.
• SPOT - cold welding. Fast spot welding of thin stainless steel sheets.

Materials you can weld with this device:

• Carbon steel up to 8 mm.
• Stainless steel up to 7 mm.
• Aluminum up to 10 mm.
• Brazing with pulse using CUSI3-CUSN wire.
• Titanium up to 6 mm.
• Duplex up to 6 mm.
• Super duplex up to 6 mm.

The TIG CUSTOM TLB9 sflex torch is a lightweight, super-flexible torch for TIG welding in all positions. The precise microswitch allows for comfortable work when using the "walking the cup" technique for pipes. The professional TLB sflex cable is the most flexible cable available in TIG torches. The cable remains flexible even at low temperatures. The high efficiency of the body and cable enables long welding sessions.

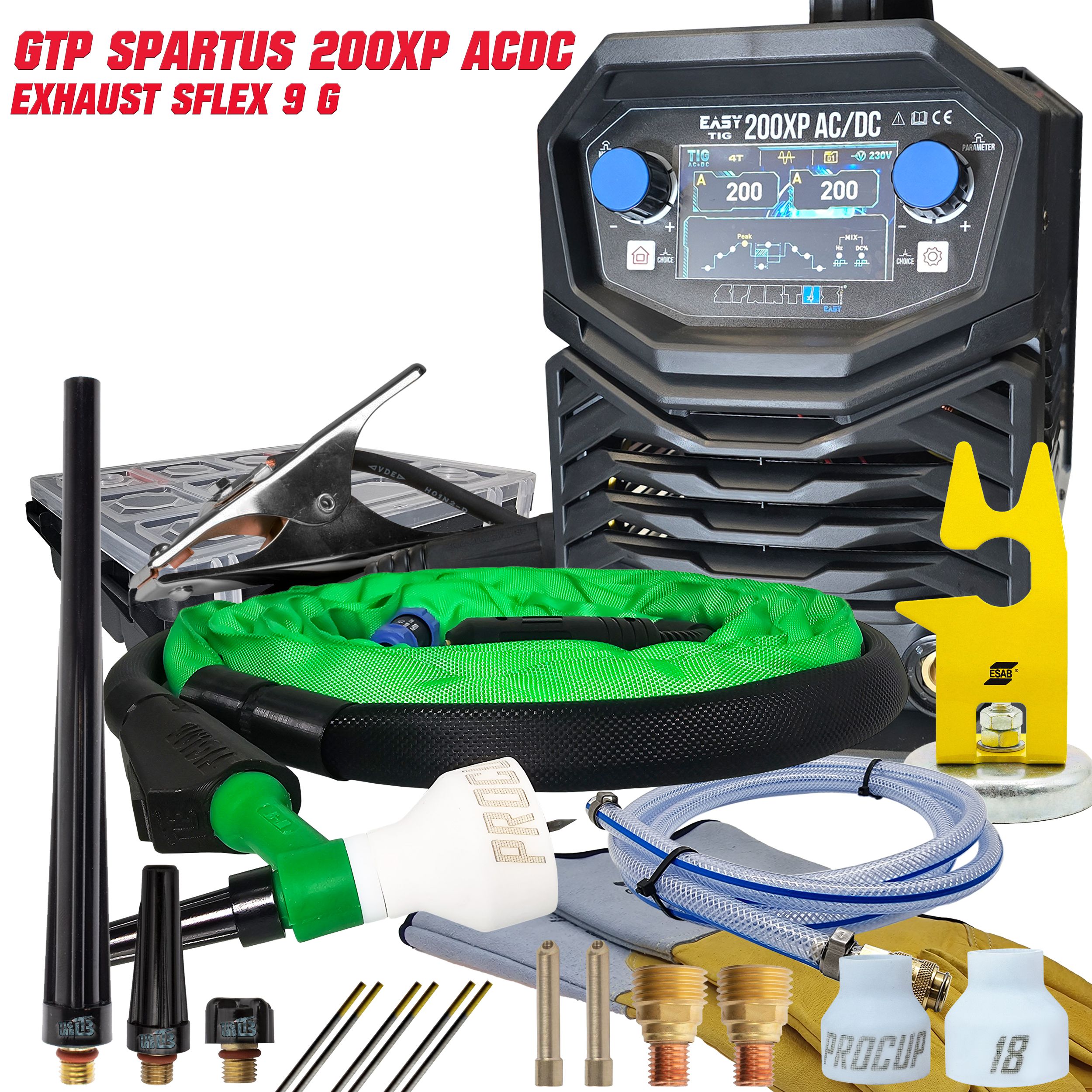

CONFIGURATION INCLUDES:

• Spartus TIG 200XP ACDC Pulse
• GTPCUSTOM TLB9 SFLEX welding torch - 4m
• Work lead (ground cable)
• Instruction manual

ACCESSORIES TO START WELDING:

• Gas hose + quick connector
• Clamps - 2 pcs
• Magnetic TIG torch stand
• Leather TIG gloves
• Procup nozzles - 3 pcs
• Gas lenses - 2 pcs
• Collets - 2 pcs
• Back caps - 3 pcs
• Tungsten electrodes - 6 pcs
• TIGBOX organizer

Additional accessories for the set can be selected in the menu using the slider.

If you need to add something else to the set, call us and we will configure a set tailored to your preferences.

MANUFACTURER'S DOOR-TO-DOOR WARRANTY

SPARTUS products purchased in our store are brand new and covered by a manufacturer's warranty. The warranty card is filled out on the day of purchase and corresponds to the sales document numbers. We provide warranty and post-warranty service for SPARTUS devices. By purchasing SPARTUS products from us, you are guaranteed support in case of failure and assistance with the initial setup of the device. If a failure occurs, a courier picks up the damaged equipment from the location indicated in the service form and, after the repair, delivers the defect-free equipment back to you. Transport costs to the service center are covered by SPARTUS.
