Spartus TIG 200XP acdc GTP exhaust sflex 17r

SPARTUS TIG 200XP ACDC Pulse is a specialized set designed for welding exhaust systems made of stainless steel, acid-resistant steel, and titanium. Carefully selected accessories and a 360-degree rotating GTP CUSTOM TLB17R SFLEX torch with foot control enable long and comfortable work. The TIG welding torch features the TLB17R rotating torch body. The professional and super-flexible TLB sflex cable allows for comfortable work in difficult conditions. The ergonomics of the torch will be appreciated by professional welders as well as those beginning their adventure with TIG pipe welding.

SPARTUS TIG 200XP AC DC is a digitally controlled inverter welder built on IGBT transistors. It enables welding using TIG AC 200A - TIG DC 200A and MMA AC/DC methods with a current of 200A. It is powered by a single-phase 230V network. The pulse function allows for joining very thin materials in aluminum, steel, stainless steel, and many other materials. The welder features an intuitive control panel that ensures quick navigation through functions.

The device has high efficiency:

• 60% at an ambient temperature of 25°C
• 35% at an ambient temperature of 40°C

The manufacturer provides efficiency values under the most extreme conditions and high temperatures.

SPARTUS TIG 200P ACDC VIDEO PRESENTATION:

IGBT TRANSISTORS offer a more powerful, more concentrated, and more stable arc while consuming less energy.

200A WELDING CURRENT enables welding materials up to 10 mm.

AC DC CURRENT versatile use thanks to the ability to weld with both direct and alternating current.

SIMPLE PANEL each selected function is highlighted. An ideal solution for beginner users.

2T-4T are welding modes that facilitate welding on short and longer sections. 2T mode is used for welding short sections because after releasing the microswitch, the arc extinguishes in a set time; in 4T mode, we do not have to hold the microswitch constantly during welding, but only click it a second time for the arc to extinguish automatically.

PRE-GAS enables faster arc ignition at the start on both low and high welding current values. An essential function for spot joining thin and thick elements. Pre-gas flow time is adjustable from 0-1 s.

POST-GAS enables faster cooling of the joint and the tungsten electrode. Post-gas flow time can be adjusted from 0.1-10 s.

PULSE gives the possibility of welding very thin materials from aluminum, steel, and stainless steel. Minimum pulse current is 10 A. Pulse frequency adjustment range from 0.5 - 200Hz.

AC BALANCE a wide range of 20-80 is responsible for the cleanliness of welds in aluminum welding. The function controls the amount of heat input into the material and the cleaning of oxides on the aluminum surface.

AC FREQUENCY - stabilizes and focuses the arc during welding. A wide range of 40-250 Hz enables professional welding of any aluminum and magnesium alloy.

MULTI CONTROL the device can be used with adjustable torches and foot control for smooth welding current adjustment.

PROGRAM MEMORY - the welder has the ability to save welding parameter settings to memory. Multiple channels allow for quick selection of the appropriate saved welding program. Useful for serial welding of aluminum and stainless steel components.

SPOT COLD WELDING - this function enables the welding of very thin sheets and making perfect tack welds. Thanks to this function, very demanding materials can be cold welded. This function significantly facilitates the welding of stainless steel pipes and structures.

The device guarantees clean welds in aluminum:

• powerful HF - precise operation at both low and high welding currents.
• reliable control panel and precise encoder.
• pulse with a wide range of adjustment.
• welding with smooth current adjustment via foot control or torch control.
• wide range of balance functions responsible for the aesthetics and quality of welds.
• adjustable AC frequency in a very wide range for a perfect, stable arc.
• memory channels for saving welding parameter programs.
• SPOT - cold welding. Fast spot welding of thin stainless steel sheets.

With this device we can weld:

• Carbon steel up to 8 mm.
• Stainless steel up to 7 mm.
• Aluminum up to 10 mm.
• Brazing with pulse using CUSI3-CUSN wire.
• Titanium up to 6 mm.
• Duplex up to 6 mm.
• Super duplex up to 6 mm.

The TIG CUSTOM TLB17R torch is a lightweight, super-flexible 360-degree rotating torch for TIG welding in all positions. The precise foot microswitch allows for comfortable work when welding exhaust systems. The professional TLB sflex cable is the most flexible cable available in TIG torches. The cable remains flexible even at low temperatures. High efficiency of the body and cable enables long welding sessions.

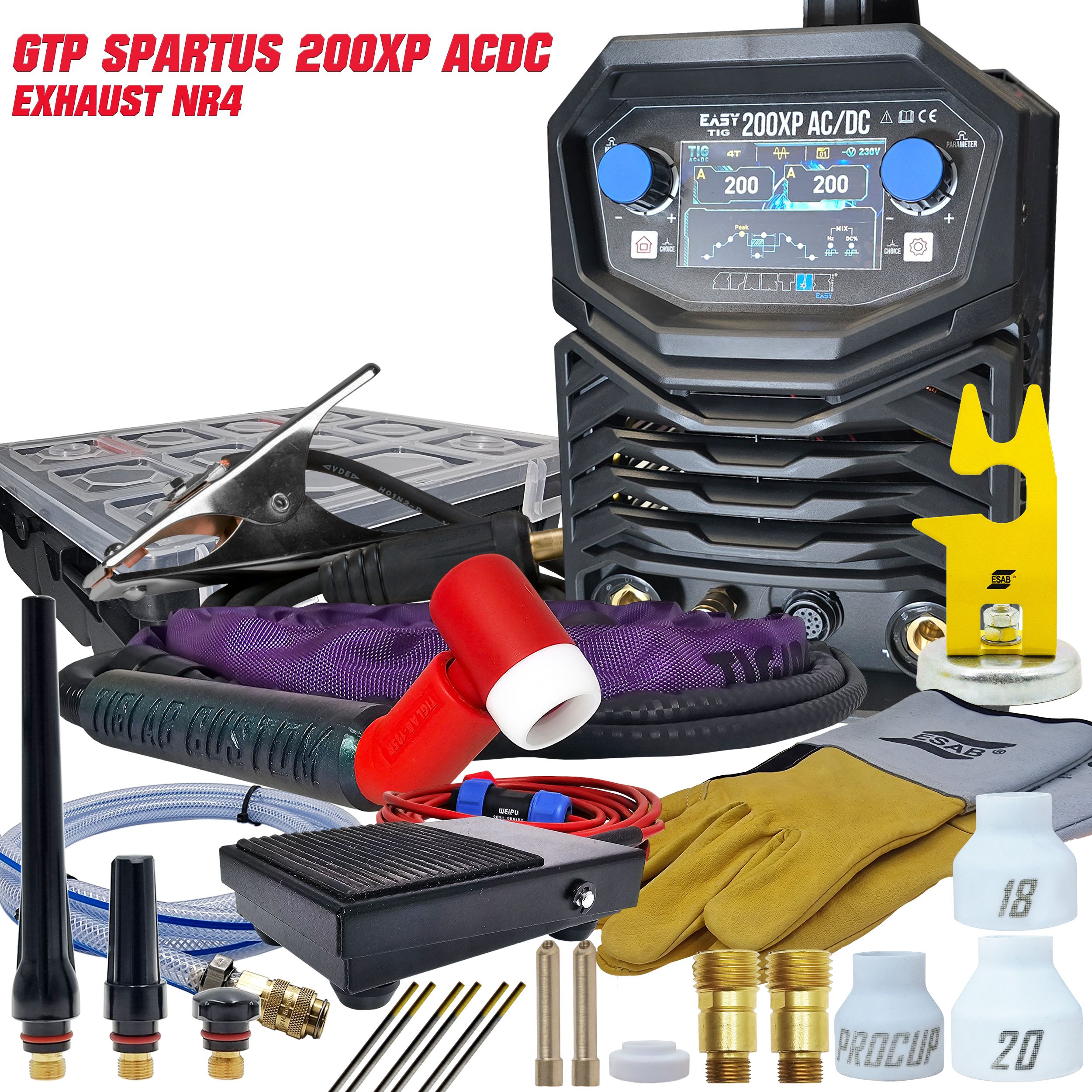

CONFIGURATION INCLUDES:

• Spartus TIG 200XP ACDC Pulse
• GTPCUSTOM TLB17R SFLEX rotating welding torch - 4m
• Ground cable
• Manual

ACCESSORIES TO START WELDING:

• Gas hose + quick connector
• Clamps - 2 pcs
• Magnetic TIG stand
• Leather TIG gloves
• Procup nozzles - 3 pcs
• Gas lenses - 2 pcs
• Collets - 2 pcs
• Back caps - 3 pcs
• Tungsten electrodes - 6 pcs
• On-off foot control
• TIGBOX organizer

Additional accessories for the set are available to choose from in the menu using the slider.

If you need to add something to the set, call us and we will configure the set to your preferences.
