Spartus TIG 200P AC DC Custom Grip 17/8 #1

SPARTUS TIG 200P AC DC is a kit designed for welding exhaust systems made of stainless steel, duplex, titanium, and aluminum. Carefully selected accessories and the TIG CUSTOM GRIP RF 17 handle will allow for long and comfortable work. The TIG welding handle has an SR17 torch body that allows us to weld at a maximum current of 180A in an 80% cycle and 200A in a 60% cycle. This solution enables the welding of thicker pipes and sheets. The SLIM GRIP handle perfectly insulates high temperatures and provides a long welding time for stainless steel and aluminum. Both professional welders and those starting their adventure with TIG welding will appreciate the ergonomics of the handle.

VIDEO PRESENTATION SPARTUS TIG 200P AC DC:

The kit includes a specially designed TIG CUSTOM GRIP RF 17 handle for welding aluminum with a high-duty cycle. We invite you to watch a video presentation of the handle tests while welding aluminum at a current of 200A. During aluminum welding, standard handles heat up significantly, which shortens the work time at high currents. With the TIG CUSTOM GRIP welding handle, work is more efficient, and the handle's duty cycle is at 80%, which is not found in any other TIG handle. The handle's advantages include ergonomics, weight, small size, and a flexible, high-temperature-resistant cable package. It is the only such product specifically made for aluminum welders.

HOLDERS TEST DURING ALUMINUM WELDING:

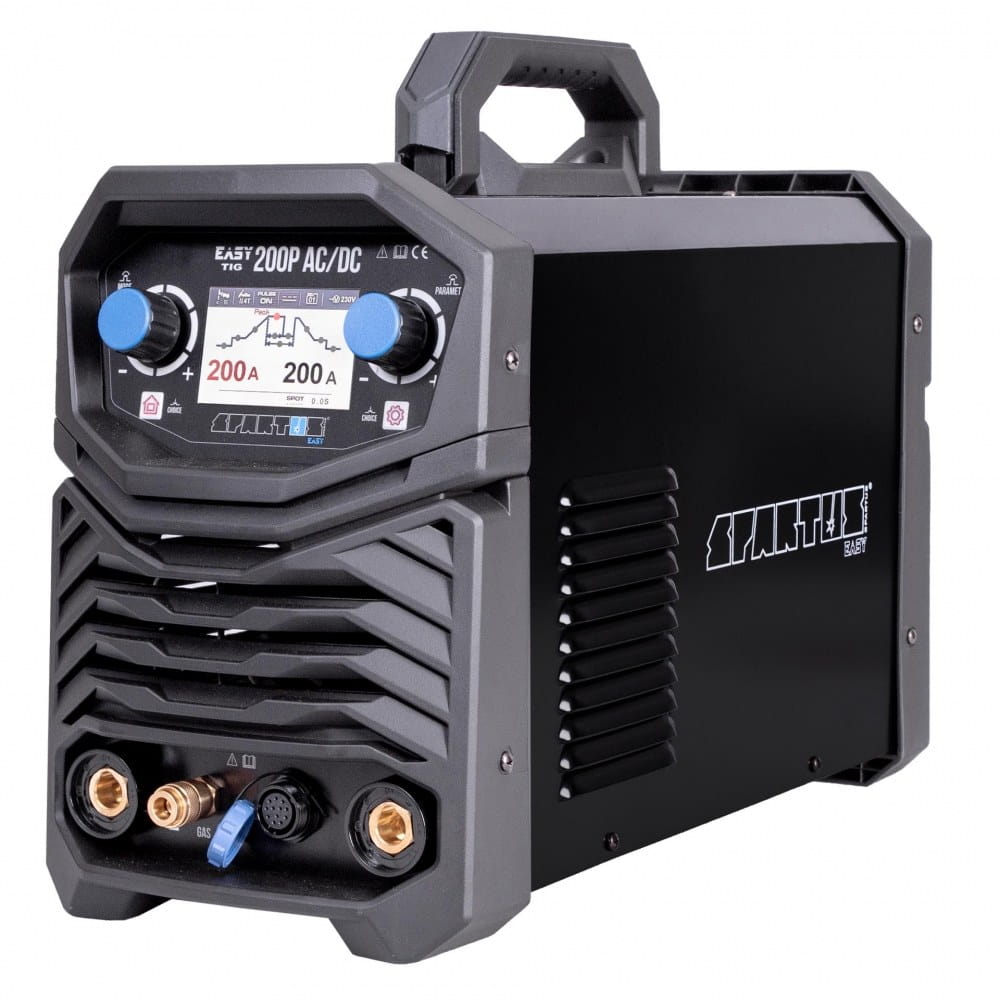

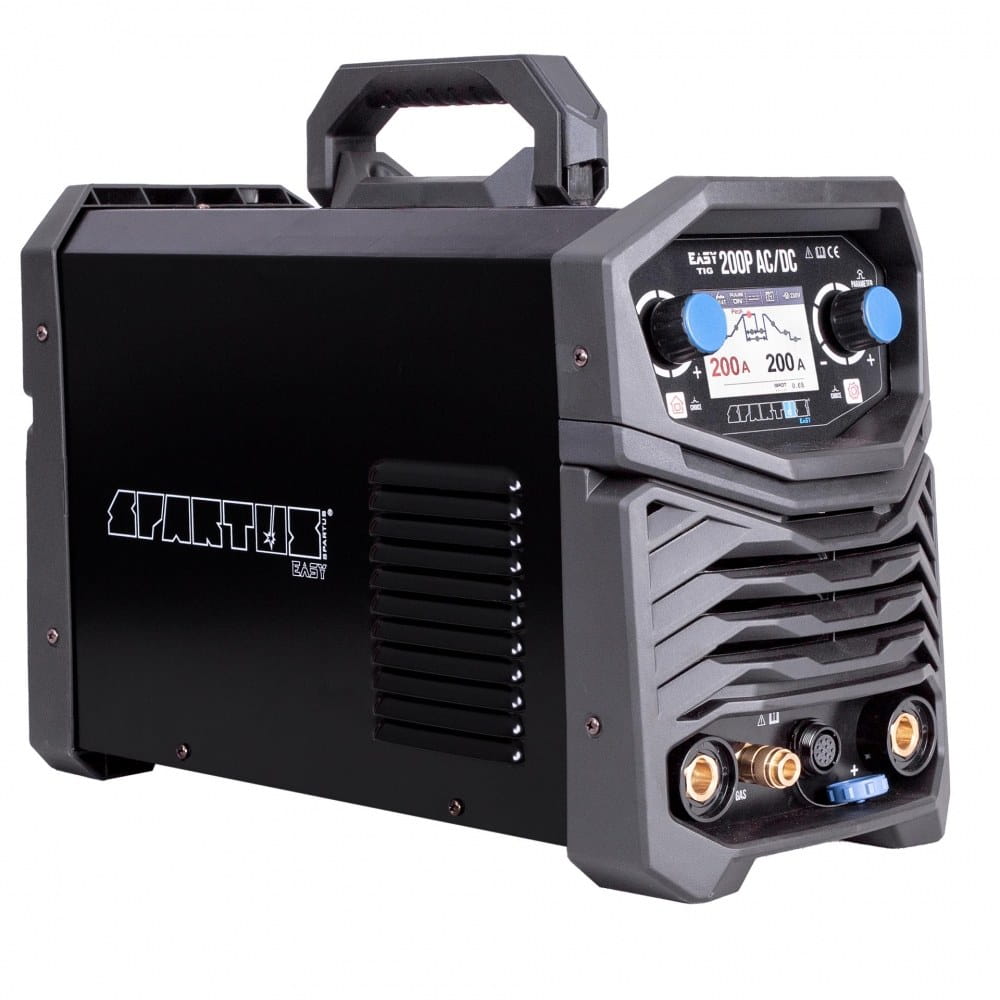

SPARTUS TIG 200P AC DC is a digitally controlled inverter welder, constructed based on IGBT transistors. It enables TIG AC 200A - TIG DC 200A welding methods and MMA AC/DC with a current intensity of 200A. It is powered by a single-phase 230V network. The pulse function allows for joining very thin materials in aluminum, steel, stainless steel, and many other materials. The welder has an intuitive control panel that provides quick navigation through functions.

The device has high efficiency:

• 60% at an ambient temperature of 25°C
• 35% at an ambient temperature of 40°C

The manufacturer provides the efficiency value in the most extreme conditions and high temperatures.

BENEFITS OF THE SPARTUS TIG 200P AC DC

IGBT TRANSISTORS offer a stronger, more concentrated, and more stable arc with lower energy consumption.

WELDING CURRENT 200A allows welding materials up to 10 mm.

AC DC CURRENT has versatile applications thanks to the ability to weld with both direct and alternating current.

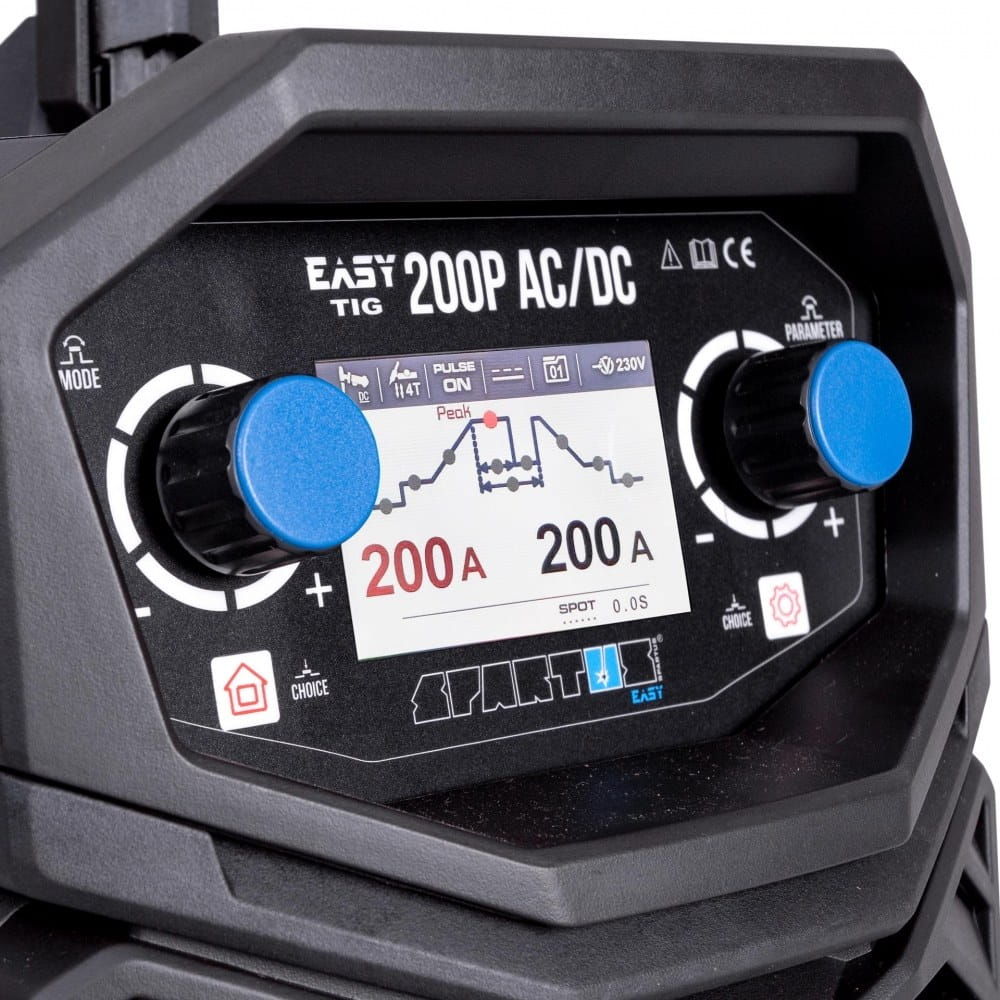

SIMPLE LCD PANEL each adjustable function is displayed graphically. Perfect solution for beginners.

2T-4T are welding modes that make it easier to work on short and long welding distances. The 2T mode is used for welding short distances (arc switches off after releasing the switch). In 4T mode, you do not have to hold the switch constantly while welding; simply click a second time to turn off the arc.

PRE-GAS allows faster arc ignition at the start, at both low and high welding currents. An indispensable function for point joining. Gas flow time is adjustable from 0-1 sec.

POST-GAS allows faster cooling of the weld and the tungsten electrode. The gas flow time is adjustable from 0.1-10 sec.

TIG PULS MODE makes it possible to weld very thin materials (aluminum, steel, stainless steel). The minimum pulse current is 10 A. The pulse control range is from 0.5 - 200Hz.

AC FREQUENCY is adjustable in the range of 40-250Hz. The function is responsible for narrowing the arc and faster penetration.

AC BALANCE wide range of 20-80 is responsible for the cleanliness of welds in aluminum welding, heat input, and oxide cleaning.

MULTI-CONTROL the device supports handles with UP&DOWN adjustment and foot control with smooth regulation of the welding current (wired or wireless).

PROGRAM MEMORY - the machine can save parameter settings. Several channels allow for quick selection, helpful for serial welding of aluminum and stainless steel.

SPOT COLD WELDING - the function allows for welding very thin sheets and making perfect "cold" butt welds. It greatly facilitates welding stainless steel pipes and structures.

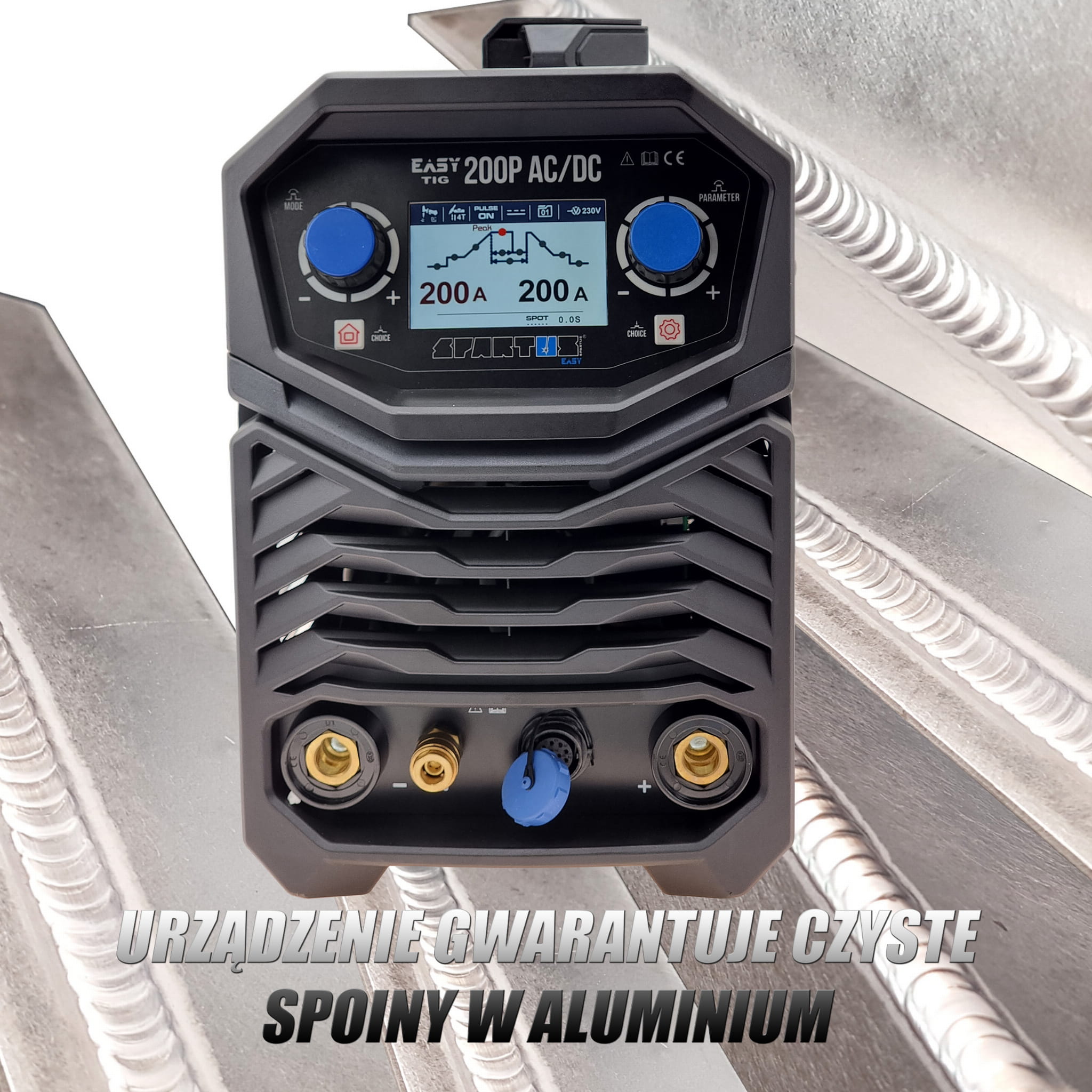

The device guarantees clean welds in aluminum:

The SPARTUS TIG 200P AC DC welder is an upgrade of the well-known and highly valued SPARTUS 210P AC DC model, which has been on the market for many years.

ADVANTAGES OF THE WELDING MACHINE:

• Powerful HF - precise operation at low and high welding currents.
• Reliable control panel and precise encoder.
• Wide range of pulse regulation.
• Welding with smooth current regulation via foot control or Up&Down control.
• Wide range of balance functions for aesthetics and weld quality.
• Adjustable AC frequency for an ideal stable arc.
• Memory channels for saving programs.
• SPOT - cold welding for fast spot welding of thin stainless sheets.

WITH THIS MACHINE WE CAN WELD:

• Carbon steel up to 8 mm
• Stainless steel up to 7 mm
• Aluminum up to 10 mm
• Brazing with pulse using CUSI3-CUSN wire
• Titanium up to 6 mm
• Duplex up to 6 mm
• Superduplex up to 6 mm

The included PROCUP nozzles for welding stainless steel will increase the quality and aesthetics of the welds.

PROCUP 10 TIG WELDING:

PROCUP 18 TIG WELDING:

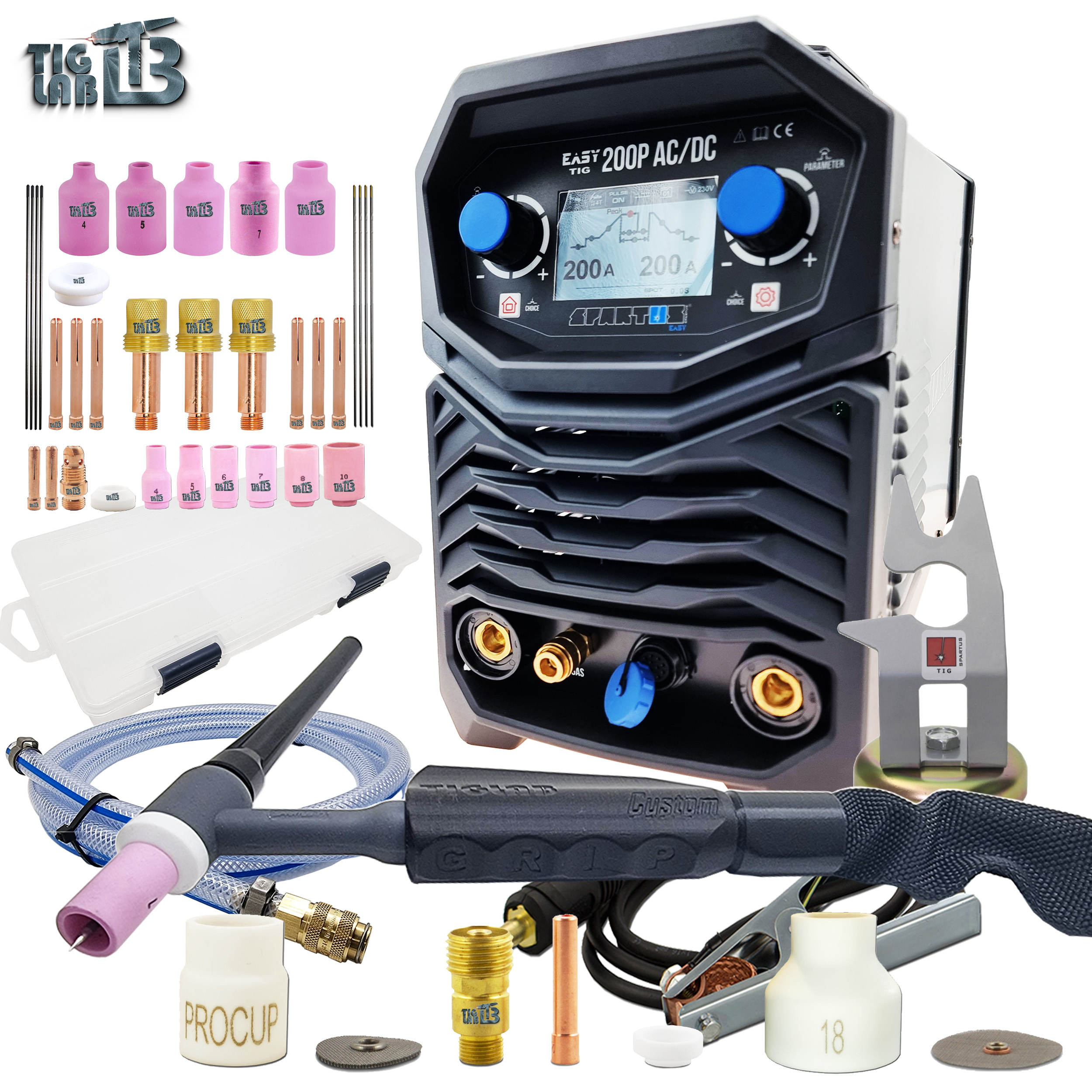

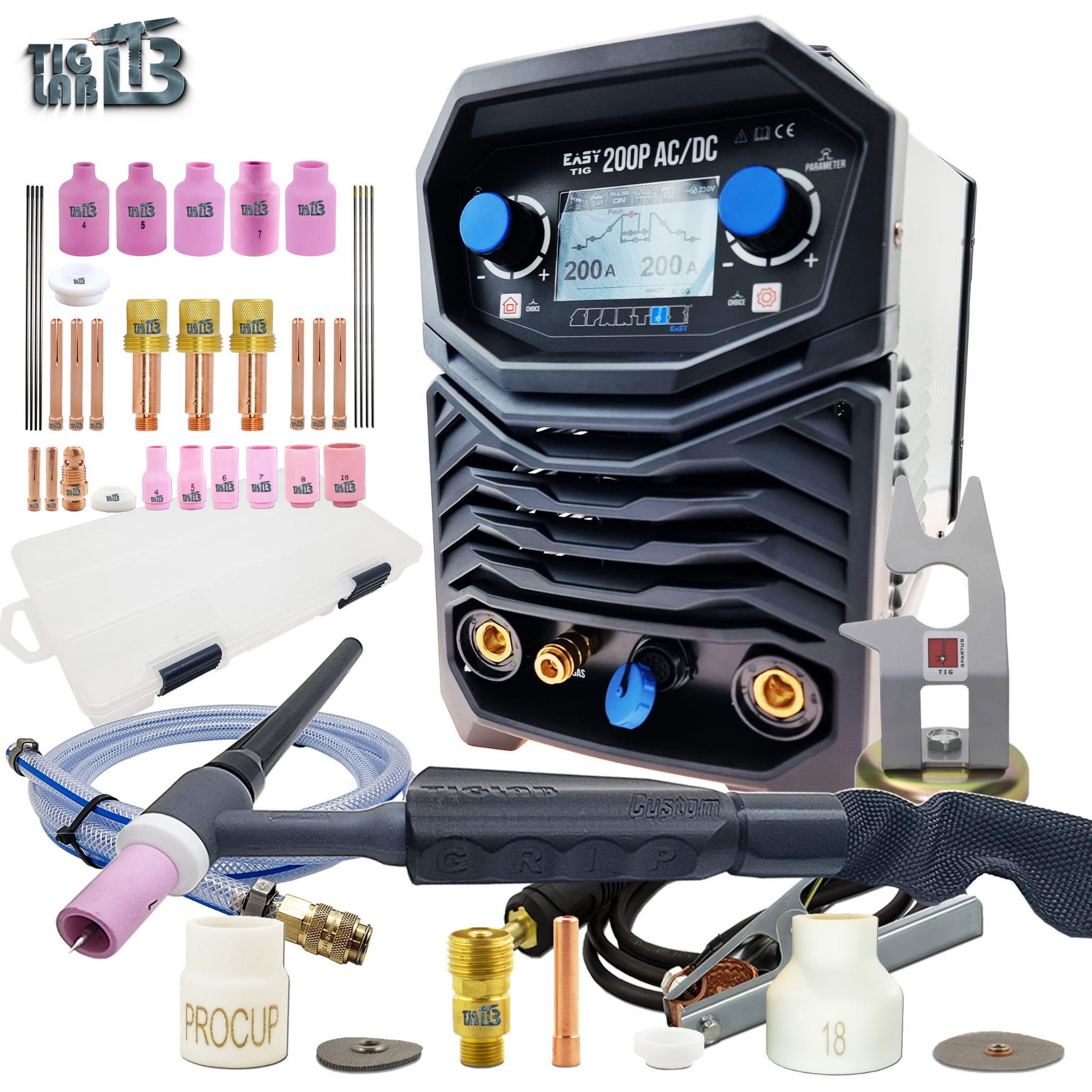

MACHINE EQUIPMENT:

• SPARTUS TIG 200 AC DC machine
• Welding torch TIG CUSTOM GRIP RF 17/4 m yellow - for aluminum and stainless steel
• Work clamp cable 3 m
• Magnetic TIG torch stand - 1 pc
• Gas hose with quick coupler - 1 pc

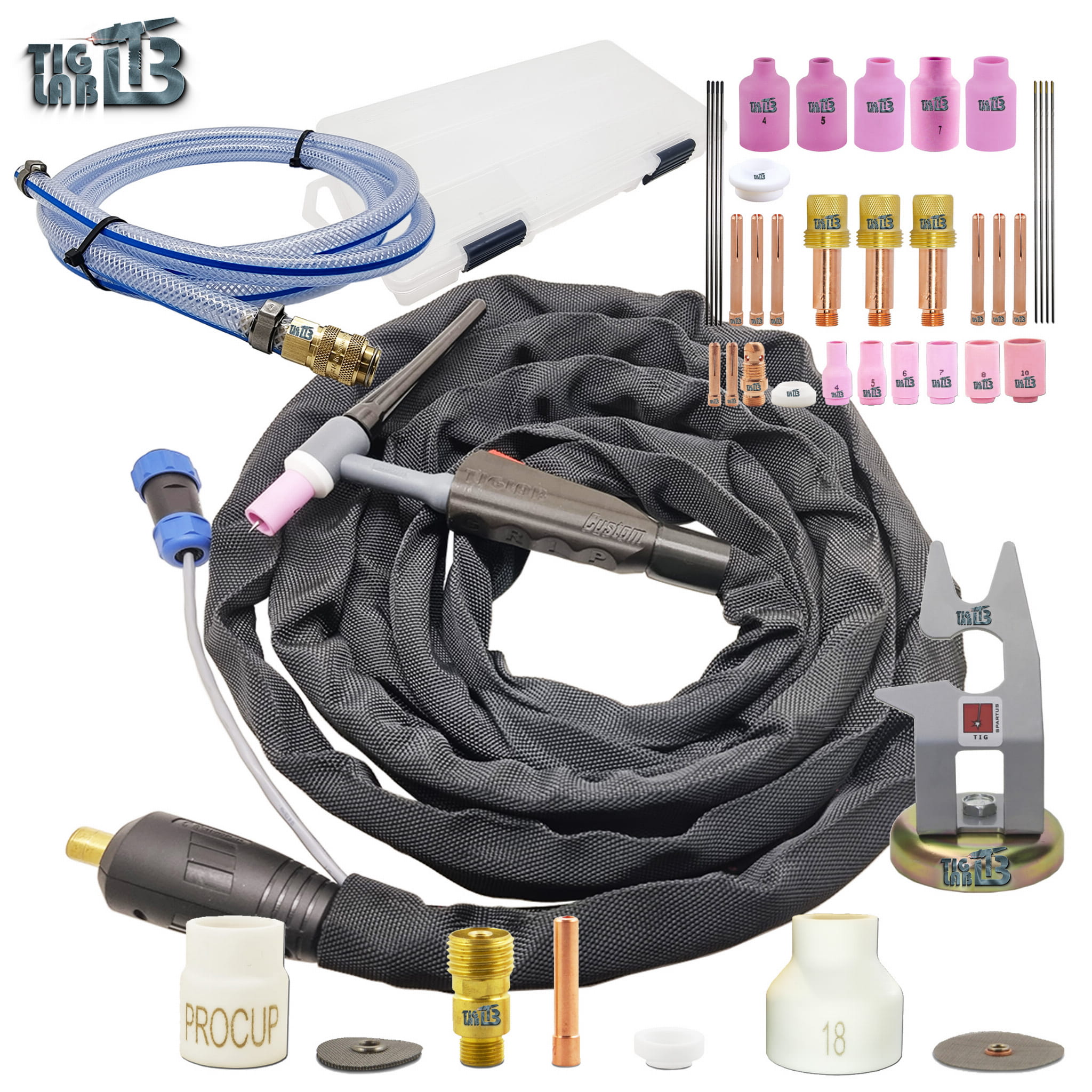

TIG PARTS:

• Gas lenses - 3 pcs
• Collets - 6 pcs
• Ceramic nozzles SR9 - 6 pcs
• Ceramic nozzles for lens - 5 pcs
• PROCUP 18 nozzle - 1 pc
• PROCUP 18 gas diffuser - 1 pc
• PROCUP 10 - kit
• Collet Body - 1 pc
• Gas Lens Insulators - 2 pcs
• Back Caps - 1 pc
• Tungsten electrodes - 8 pcs
• TIGBOX organizer - 1 pc

If you need to add something to the set, call us and we will configure it according to your preferences.
