Spartus MIG 375 LCD NR2

INVERTER 3-IN-1 WELDER SPARTUS EASY MIG 375 LCD - SEMI-AUTOMATIC WITH SIMPLE SYNERGY

SPARTUS MIG 375 is a modern, inverter semi-automatic welding machine built on IGBT transistors. It enables MIG/MAG welding in inert and active gas shields, MMA shielded electrode welding, and TIG Lift welding with friction arc ignition. Additionally, thanks to polarity reversal, the device allows welding with self-shielding wire without gas. The maximum welding current for MIG/MAG/TIG methods is 350A, and for MMA: 300A. The device is powered by a three-phase 400V network. The machine is equipped with synergistic programs for MIG/MAG welding of steel wires in the diameter range of 0.8 / 1.0 / 1.2 mm and aluminum 1.0 mm, with the possibility of manual parameter adjustment. The user can choose from programs: CO2 steel, mixed gas steel, aluminum, and flux-cored wire welding. The device also works in manual welding mode. It supports wire spools of 5 kg and 15 kg. The four-roll feeder ensures smooth operation with torches up to 5 m in length.

ADVANTAGES OF THE SPARTUS EASY MIG 375 LCD DEVICE:

POWERFUL 4x4 FEEDER (4 ROLLS) enables the use of welding torches up to 5 m in length.

IGBT TRANSISTORS offer a stronger, more concentrated, and stable arc with lower energy consumption.

350A WELDING CURRENT allows welding of materials up to 18 mm.

LCD DISPLAY which graphically indicates adjustable parameters. An ideal solution for beginners.

2T-4T are welding modes that facilitate work on short and long welding sections. 2T mode is used for short sections because the arc extinguishes immediately after releasing the microswitch; in 4T mode, you don't have to hold the microswitch constantly during welding, just click it a second time for the arc to extinguish automatically.

15 KG WIRE SPOOLS the device supports 5 kg and 15 kg spools.

SYNERGIC PROGRAMS the semi-automatic machine has built-in welding programs, making the welding of demanding materials much easier. By selecting the appropriate program, you can start working. Regulation of welding voltage and wire feed is done with a single knob. There is also the option to make manual corrections to the welding parameters. Voltage correction graphically shows how the weld face will look. The weld will be convex or flat depending on the settings.

MANUAL MODE (SP) this function is responsible for manual settings. You can adjust the welding current voltage and wire feed separately.

INDUCTANCE adjustable, responsible for the amount of heat introduced into the material. Additionally, regulation affects the width of the weld face and the depth of penetration. This function is mainly used in BRAZE WELDING with copper alloy wires. Copper alloy wires have a lower melting point, allowing the semi-automatic machine to be used for spot-welding car body sheets.

PRE-GAS allows for faster arc ignition at the start on both low and high welding current values. An essential function for tack welding thin and thick elements. Pre-gas flow time adjustable from 0-2 s.

SLOW START slow feed start ensures a low wire approach speed to the welded material, preventing wire "bounce" before welding begins. Essential for tack welding sheets, e.g., BRAZE WELDING.

POLARITY REVERSAL gives the possibility to weld with FLUX self-shielding wire without gas.

EURO SOCKET enables the use of various interchangeable MIG torches. Torches up to 5 m in length can be used with the device.

HOT START involves a temporary increase in welding current at the moment of arc ignition. This prevents the electrode from sticking in the initial phase of welding. The function enables faster arc ignition with rutile and basic electrodes.

ARC FORCE dynamics shorten the arc length while increasing welding current, which prevents the arc from extinguishing when the electrode touches the material. This function makes learning MMA welding easier.

VRD this function turns off the power within milliseconds after finishing welding and reduces the voltage on the shielded electrode to a safe level. A particularly useful function when welding in rooms or trenches with high humidity.

TIG LIFT enables welding of steel and stainless steel in an argon shield.

WITH THIS DEVICE WE CAN WELD:

• Carbon steel up to 18 mm.
• Stainless steel up to 12 mm
• Aluminum up to 15 mm
• Braze weld with CUSI3-CUSN wire
• Weld with self-shielding wire (WITHOUT GAS)
• Weld with MMA electrode - up to 6 mm diameter
• TIG LIFT weld carbon steel up to 8 mm

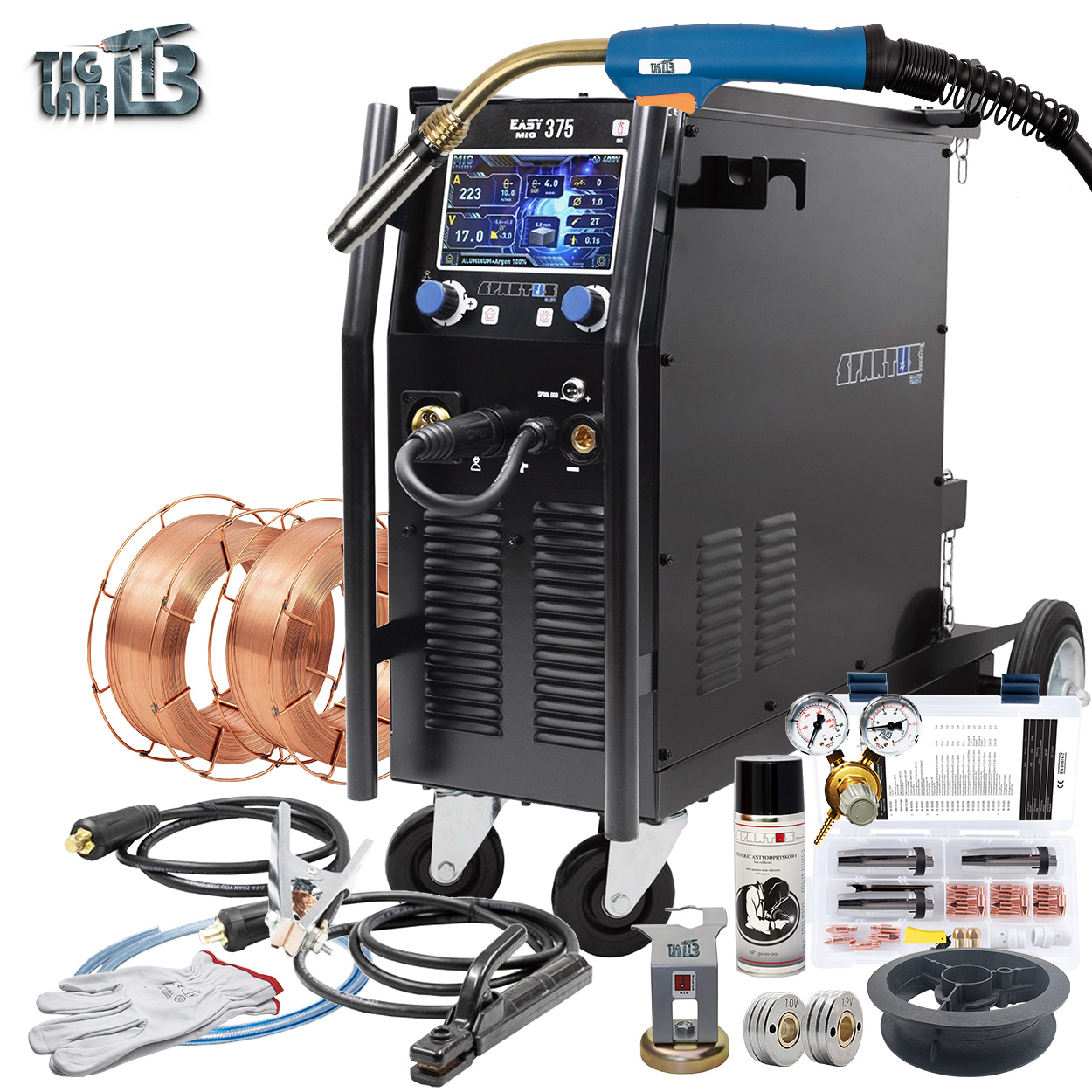

THE SET INCLUDES:

DEVICE EQUIPMENT:

• SPARTUS MIG 375 LCD
• 36/3 m Welding Torch
• Ar/Co2 Regulator - 2 gauges
• Electrode cable
• Ground cable
• Steel rollers 0.8 - 1.0 in the feeder - 1 set
• Steel rollers 1.0 - 1.2 - 1 set
• Steel liner in the torch - 1 pc
• Leather gloves - 1 pc
• Anti-spatter spray - 1 pc
• 5 kg spool adapter - 1 pc
• MIG stand - 1 pc

MIG/MAG PARTS:

• SG2 Wire - 0.8 - 15 kg
• SG2 Wire - 1.2 - 15 kg
• 15 kg spool adapters - 2 pcs
• Contact tip 0.8 - 5 pcs
• Contact tip 1.0 - 5 pcs
• Contact tip 1.2 - 5 pcs
• Contact tip 1.0A - 5 pcs
• Gas diffuser - 2 pcs
• Gas nozzle - 3 pcs
• Contact tip holder - 2 pcs
• MIG microswitch - 1 pc
• MIG wire cleaner - 1 pc
• MIGBOX organizer - 1 pc

If you need to add or remove something from the set, call us and we will configure the set according to your preferences.
