SPARTUS 200XP Custom Joker #2

Welding Set 200XP AC DC JOKER – Limited Edition

Introducing the exceptional, limited edition of the 200XP AC DC JOKER set. This offer is dedicated to professionals and enthusiasts looking for equipment that is not only reliable, but also unique. The series has been manufactured in a strictly limited run of just 50 units. Each welder features its own individual number, making it an absolutely unique collector's piece. The set's unique character is emphasized by specially designed JOKER graphics and eye-catching LED lighting that make the unit stand out in any workshop. The set is completed with dedicated accessories refined down to the smallest detail. It features a super small, ergonomic CYBERGRIP handle combined with the most flexible SFlex cable – a combination that provides full freedom of movement, precision, and unprecedented working comfort.

A welder's dream in hand! The combination of unique style, limited availability, and ultimate ergonomics creates a set like no other before.

SPARTUS TIG 200XP AC DC is a digitally controlled inverter welding machine built based on IGBT transistors. It enables welding using TIG AC 200A - TIG DC 200A and MMA AC/DC at a current of 200A. Powered by a single-phase 230V grid. The pulse function allows joining very thin materials made of aluminum, steel, stainless steel, and many other materials. The welder features an intuitive control panel that ensures quick navigation through functions.

The device features high efficiency:

• 60% at an ambient temperature of 25 C
• 35% at an ambient temperature of 40 C

The manufacturer provides the duty cycle value under the most extreme conditions and high temperatures.

IGBT TRANSISTORS offer a stronger, more concentrated, and stable arc with lower power consumption at the same time.

200A WELDING CURRENT enables welding of materials up to 10 mm.

AC DC CURRENT versatile application thanks to the ability to weld with direct and alternating current.

SIMPLE PANEL every selected function is illuminated. An ideal solution for beginner users.

2T-4T welding modes that make it easier to weld short and longer sections. 2T mode is used for welding short sections because after releasing the microswitch, the arc extinguishes in a preset time; in 4T mode, there is no need to hold the microswitch continuously while welding, but only click it a second time for the arc to extinguish automatically.

PRE-GAS enables faster arc ignition at start-up for both low and high welding current values. An essential feature when spot-joining thin and thick components. Pre-gas flow time adjustable from 0-1 s.

POST-GAS allows faster cooling of the joint and the tungsten electrode. Post-gas flow time can be adjusted from 0.1-10 s.

PULSE gives the possibility to weld very thin materials made of aluminum, steel, and stainless steel. Minimum pulse current is 10 A. Pulse adjustment range from 0.5 - 200Hz.

AC BALANCE wide range from 20-80 is responsible for weld cleanliness when welding aluminum. The function determines the amount of heat input into the material and cleaning oxide layers from the aluminum surface.

AC FREQUENCY - stabilizes and focuses the arc during welding. Wide range of 40-250 Hz allows professional welding of any aluminum and magnesium alloy.

MULTI-CONTROL torch handles with UP&DOWN regulation as well as foot control with smooth welding current adjustment can be used with the unit.

PROGRAM MEMORY - the welding machine allows saving welding parameter settings to memory. Several channels will allow quick selection of a suitable saved welding program. Useful function for serial welding of aluminum and stainless steel components.

SPOT COLD WELDING - allows welding very thin sheets and making perfect tack welds. Thanks to this feature, very demanding materials can be cold-welded. The feature significantly facilitates welding pipes and stainless steel structures.

SPARTUS EASYTIG 200P ACDC VIDEO PRESENTATION:

The SPARTUS TIG 200P AC DC welder is an upgrade of the well-known and appreciated SPARTUS 200P AC DC welder, which has been on the Polish market for many years.

The main advantages of the welder are:

• strong HF - precise operation at both low and high welding currents.
• reliable control panel and precise encoder.
• pulse with a wide adjustment range.
• welding with smooth current regulation via foot control or handle control
• wide balance control range responsible for weld aesthetics and quality
• adjustable AC frequency in a very wide range responsible for an ideally stable arc
• memory channels for storing welding parameter programs
• COLD WELDING - SPOT - cold welding. Fast spot welding of thin stainless steel sheets.

THE DEVICE CAN WELD:

• Carbon steel up to 8 mm.
• Stainless steel up to 7 mm
• Aluminum up to 10 mm
• Brazing with pulse using CUSI3-CUSN wire
• Titanium up to 6 mm
• Duplex up to 6 mm
• Super duplex up to 6 mm

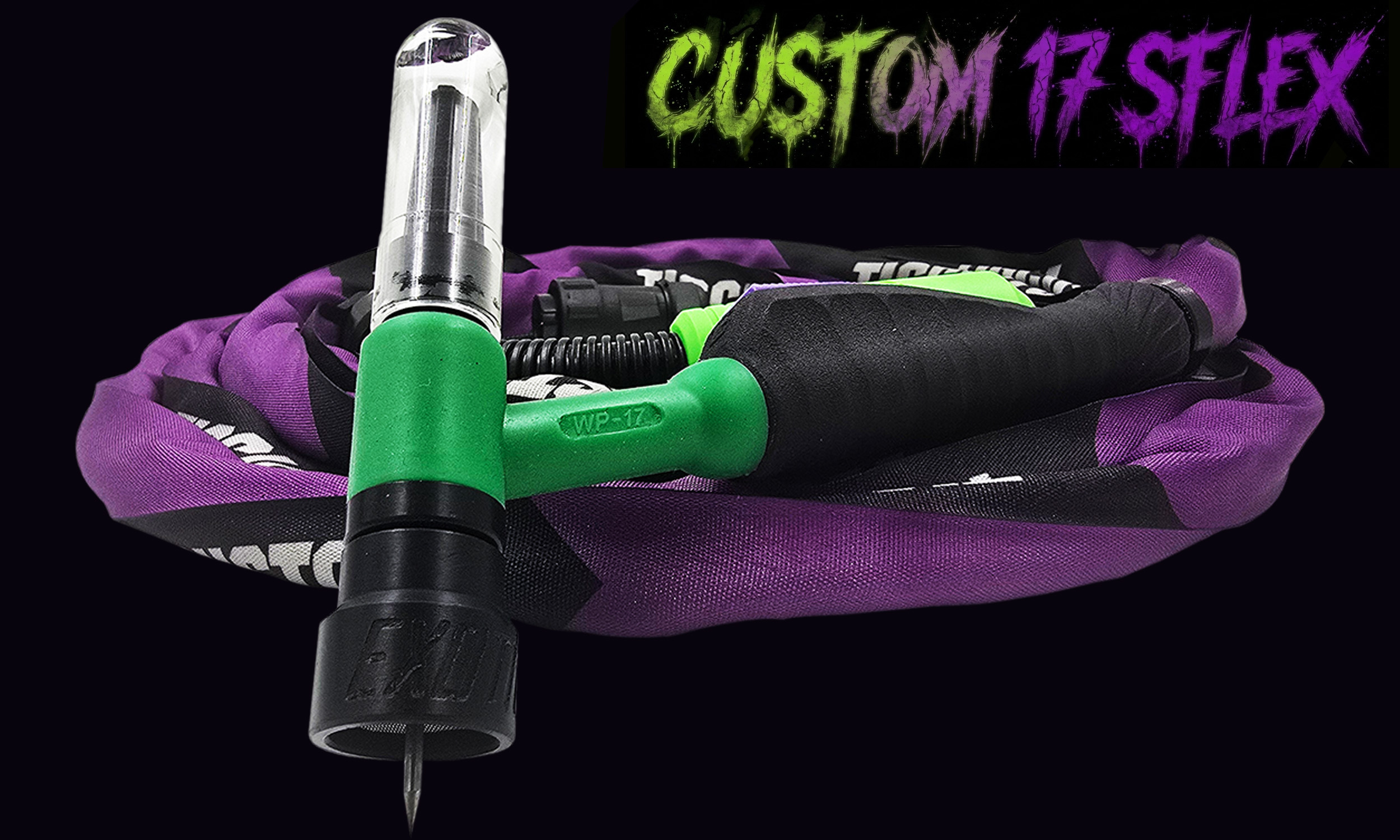

The TIG CUSTOM TLB17 SFLEX- 4m torch in the U version is a lightweight and versatile super-flexible torch for precise welding. The precise microswitch and ergonomic handle allow comfortable work when welding all materials using the walking the cup technique. High-efficiency sflex cable will ensure comfortable work during longer welding cycles.

CONFIGURATION INCLUDES:

• Spartus tig 200xp AC DC joker
• Welding torch TIGCUSTOM TLB17 joker sflex - 4m
• Work lead / Ground cable 3m
• User manual
• TIGBOX organizer with consumable parts

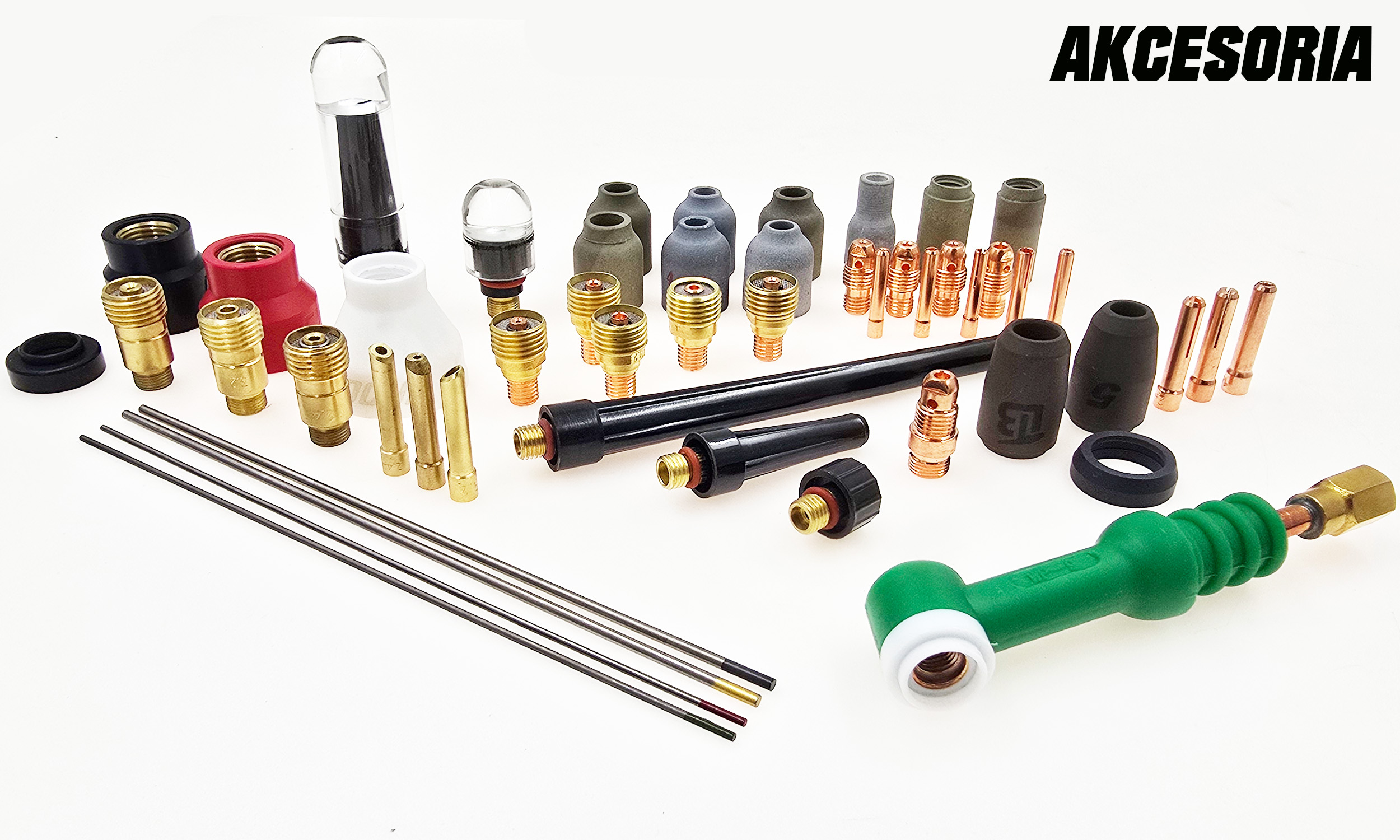

The set includes essential accessories to start welding:

Stainless steel, carbon steel and aluminum:

• tungsten electrodes - 4 pcs
• sr9 tig gas lenses - 5 pcs
• alumina cups for gas lens - 6 pcs
• titanium - inox gas lens cups - 3 pcs
• std sr9 collet bodies - 4 pcs
• nozzles for collet body - 3 pcs
• sr9 collets - 5 pcs
• custom back caps - 2 pcs
• sr9 back caps - 3 pcs
• insulator for KR gas lens - 1 pc
• short gas lenses - 3 pcs
• collets for KR gas lens - 3 pcs
• alucup 5,6 sr17 set
• collets for alucup - 3 pcs
• tlb9 pro torch body - for system swap - 1 pc
• tigbox organizer

SET INCLUDES:

DEVICE EQUIPMENT:

• SPARTUS TIG 200XP AC DC Joker
• TIGCUSTOM 17 SFLEX U welding torch ( nylon ) - 4 m for welding steel, stainless steel, and aluminum
• Work lead / Ground cable
• Gas hose
• User manual
• Organizer with TIG parts shown in the picture

Need to add something to the set? Call us and we will configure the set according to your preferences.
