Procup Twister 17 - 3.2 mm nozzle

Availability: duża ilość

Dispatched within: 24 godziny

Delivery: The price does not include any possible payment costs check the delivery methods

Price brutto: €14.13 14.13

Net price: €11.49

quantity szt.

add to wish list

Rating:

Vendor: PROCUP

Product code: Twister 17 - 3.2mm

ask about product
recommend to a friend
add your review

Description

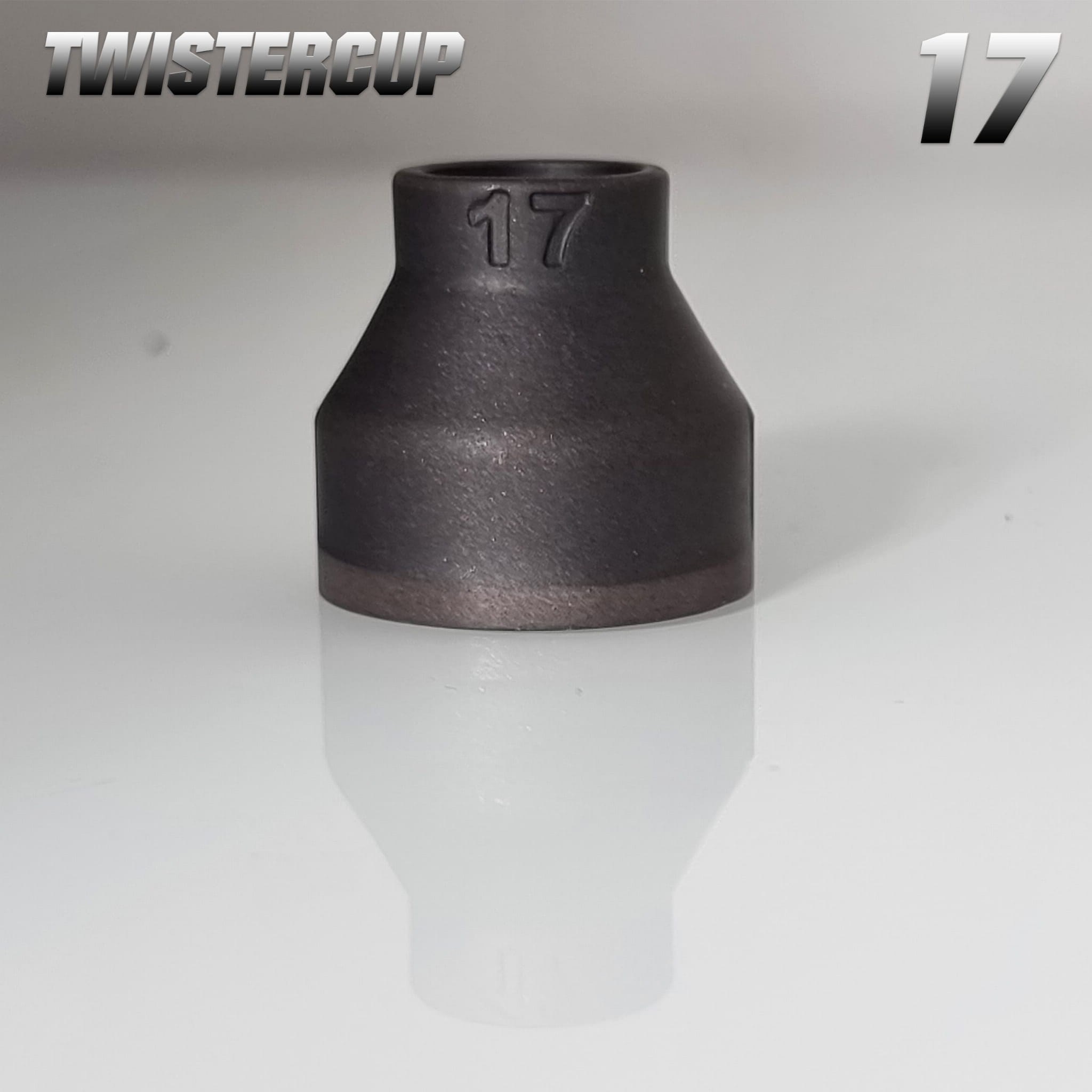

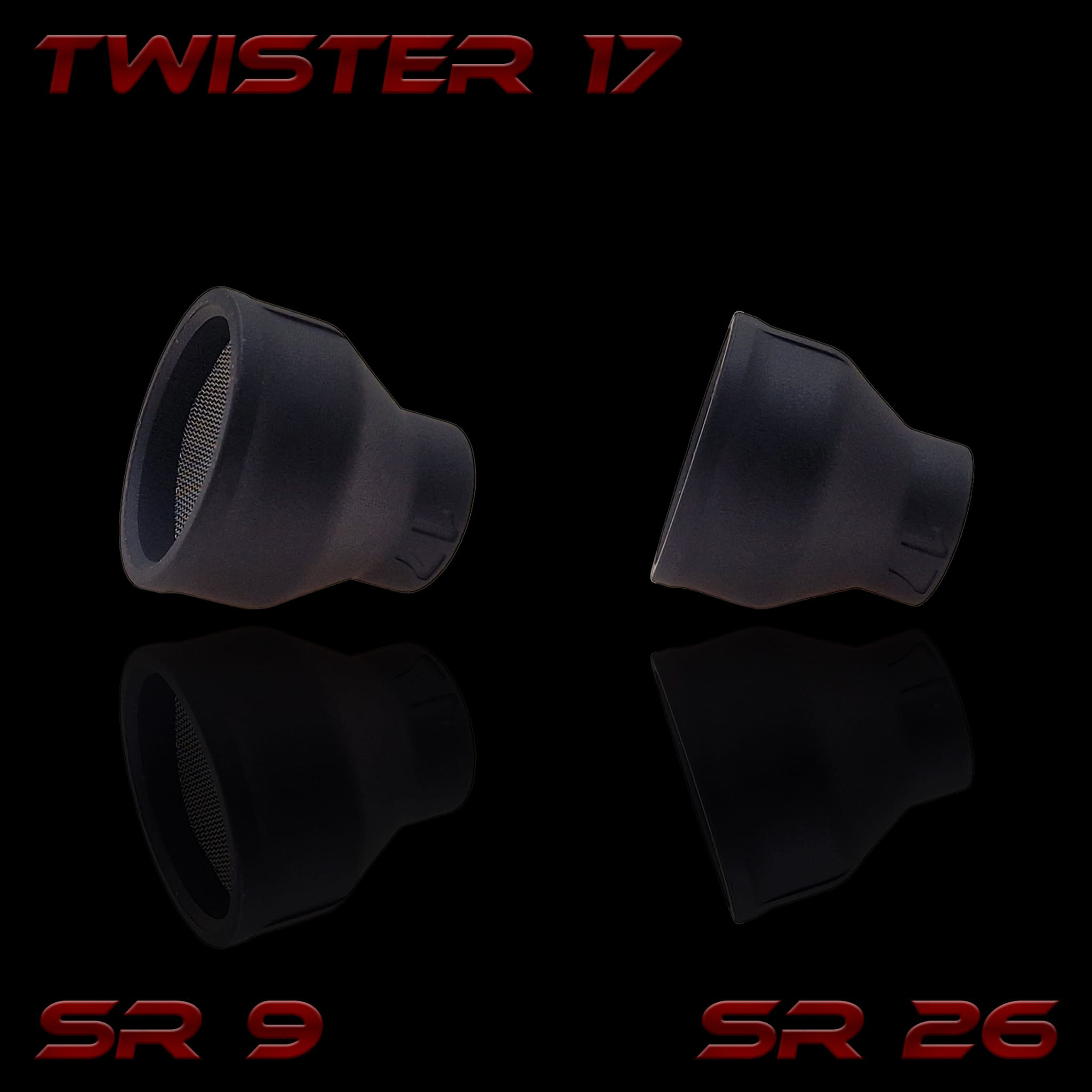

PROCUP TWISTER 17 Ceramic Nozzle – Aerospace and Space Standard

The PROCUP TWISTER 17 nozzle is the absolute pinnacle of technology in the Twister family. Designed for industries that do not accept compromises – Aerospace and Space. It provides the widest gas shielding available, which is essential when working with materials such as titanium and Inconel, where perfectly clean, silvery welds are required.

Key Advantages of PROCUP TWISTER 17:

✅ Maximum Shielding Width: Model 17 offers a record-breaking protection area, guaranteeing perfect gas coverage even for very wide bead passes and very large diameter pipes.
✅ Perfection on Titanium and Inconel: The special filter arrangement eliminates even the smallest turbulences, allowing for welds with mirror-like purity, free from oxidation.

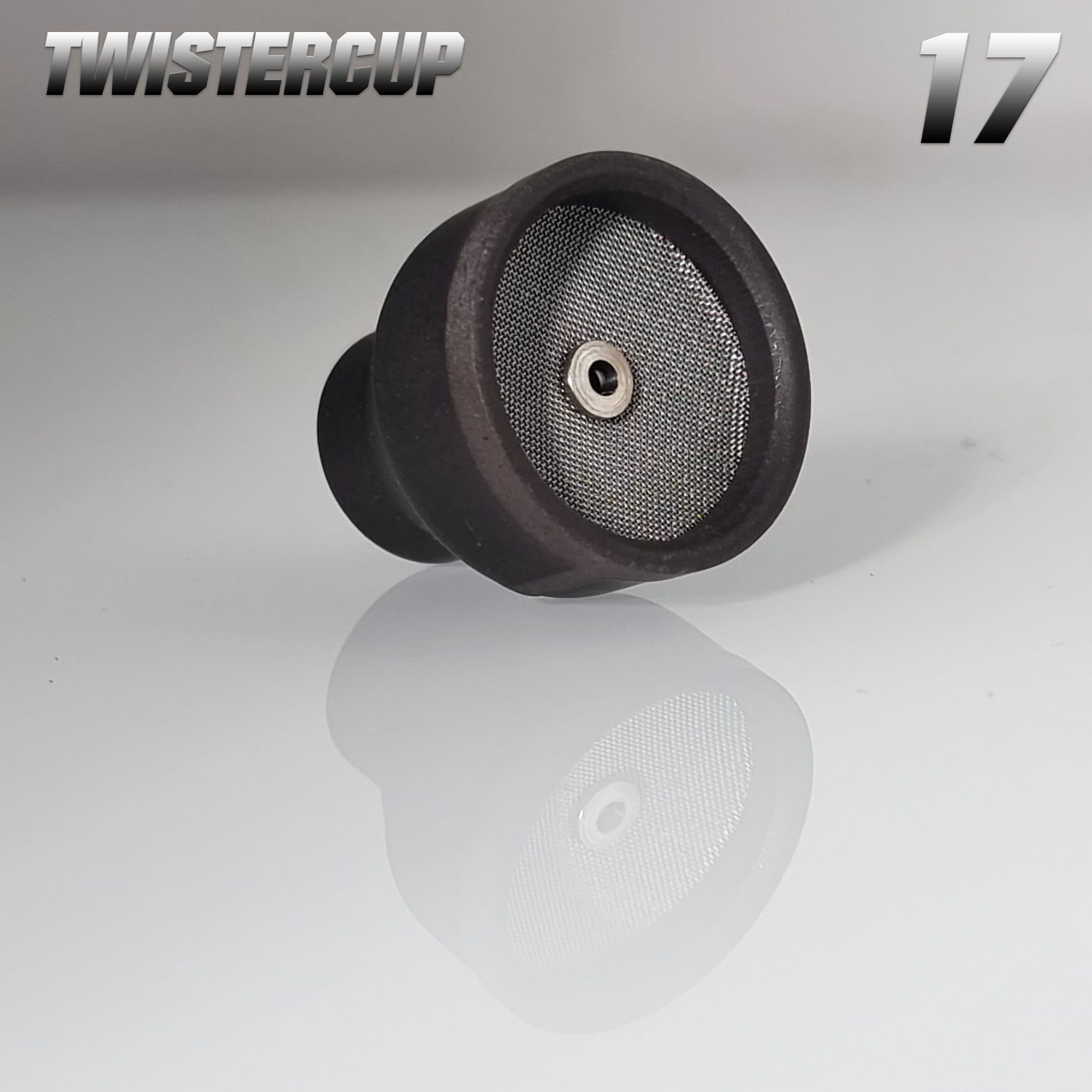

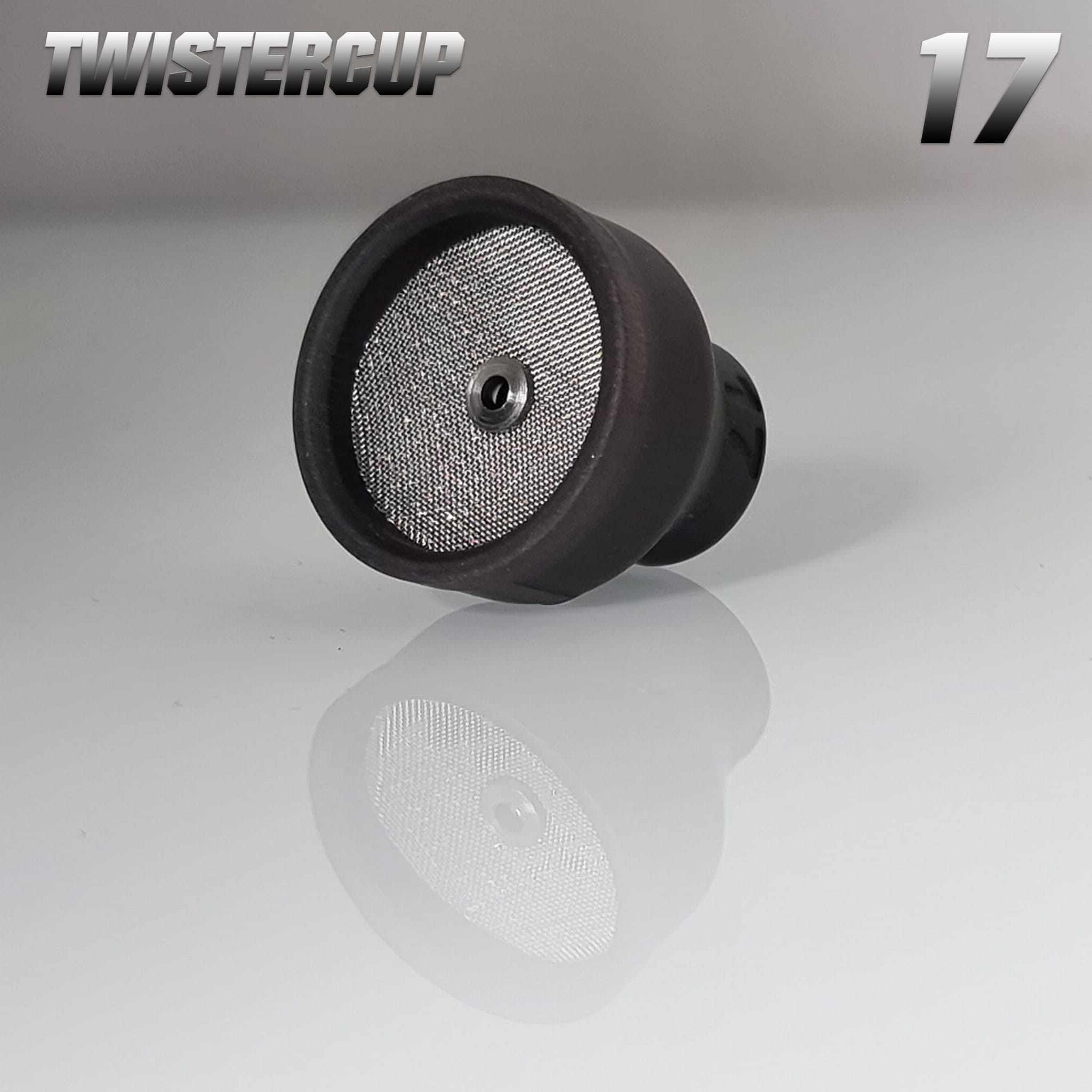

✅ Precision Diffuser (3.2 mm): The 3D diffusion system ensures stable, laminar gas flow, which is crucial for extreme electrode stick-out.
✅ Industrial Durability: Design optimized for continuous operation at high currents (up to 400A) in the most demanding production environments.
✅ Stability on Large Radii: The wide nozzle profile facilitates torch guidance on large-diameter pipelines, providing a steady support for the welder's hand.

Application and Compatibility

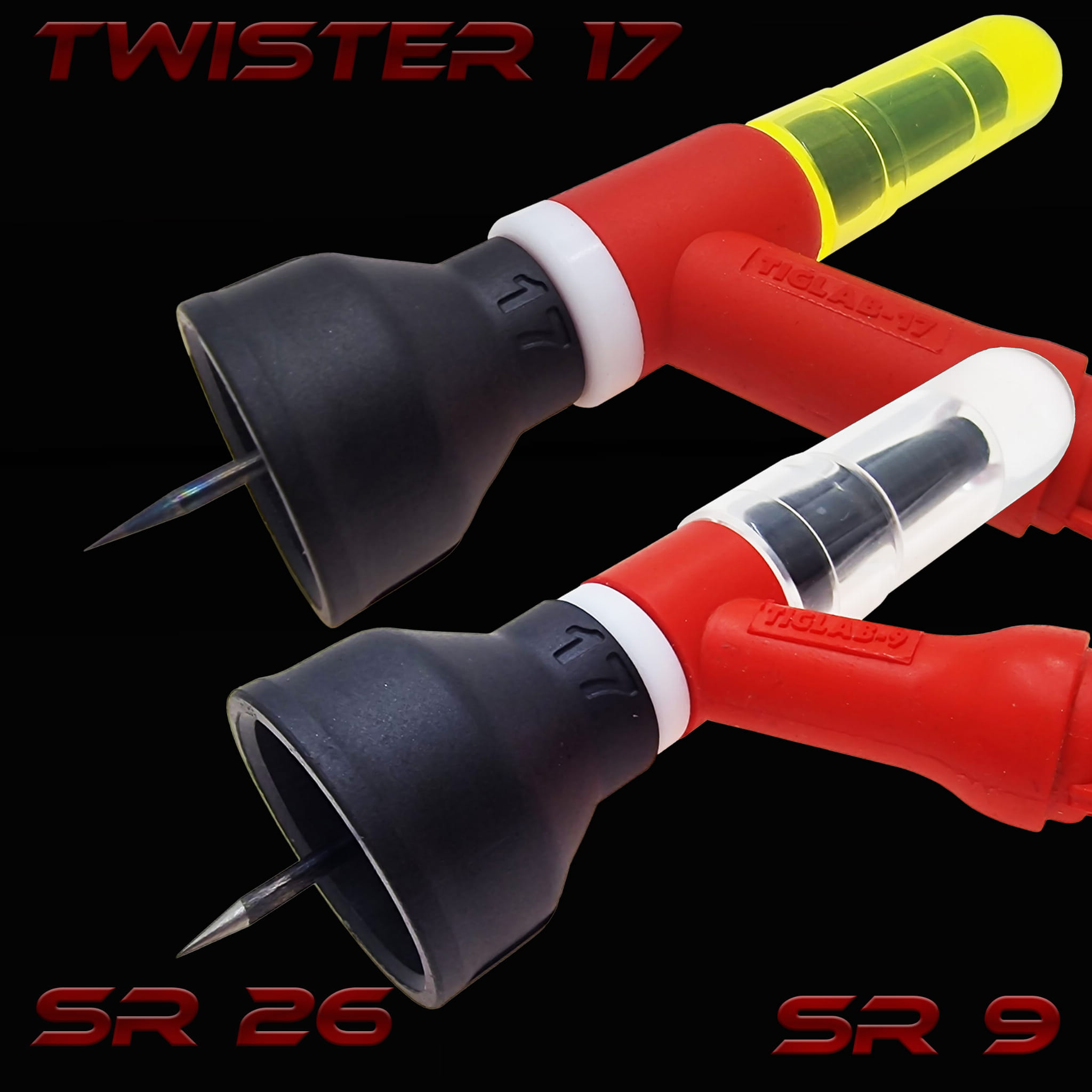

The nozzle is compatible with standard TIG WP17/26/18 and WP9/20 torches (when using appropriate gas lenses). It is a dedicated tool for building jet engines, fuel systems in the space sector, and advanced chemical apparatus.

Technical Information
Current Type	DC only (do not use for AC)
Recommended Gas Flow	12 - 18 L/min
Diffuser Size	3.2 mm (1/8 inch)
Max. Welding Current	400 A

What's in the kit?

TWISTECUP 17 nozzle.
TWISTER filter matched to 3.2 mm electrode diameter.

Who is this product for?

The TWISTERCUP 17 set is the ultimate tool for specialists working where there is no room for error. If your work requires the highest metallurgical purity on titanium or Inconel, and the welded elements involve very large diameter pipes, model 17 will provide you with the control and quality demanded by Aerospace and Space standards.
