3-IN-1 INVERTER WELDER SPARTUS EASY MIG 227 LCD 4R DUAL PULSE - SEMI-AUTOMATIC WITH SYNERGY AND MANUAL MODE

SPARTUS MIG 227 LCD DUAL PULSE is a modern, inverter semi-automatic welding machine, constructed based on IGBT transistors. It features MIG/MAG welding in inert and active gas shielding, MMA coated electrode welding, and TIG Lift welding with arc ignition by friction. The device can join materials such as: carbon steel, stainless steel, magnesium alloys, aluminum, nickel, as well as copper and its alloys. The device can perform short-circuit or pulse brazing of car body sheets. After setting the welding current below 40A in the pulse function, the device switches to a special pulse for welding thin materials COOL PULSE. It is currently the only such MIG/MAG welder with single and double pulse on the market that offers such a low pulse current of 30A and cold pulse functions in the 30-40A welding current range. Thanks to high output parameters, the SPARTUS MIG 227 LCD DUAL PULSE has no problem achieving a flat bead on thick materials compared to competing devices.

Easy polarity reversal enables welding with self-shielding wire without gas. The maximum welding current for MIG-MAG-TIG methods is 220A and for the MMA method - 200A. The device is powered from a single-phase 230V network. In SP MANUAL welding mode, we can adjust the voltage and wire feed to our own needs. SPARTUS MIG 227 LCD DUAL PULSE is equipped with a synergic system for MIG-MAG welding:

Short-circuit arc welding:

• carbon steel with 0.8-1.0 wires
• stainless steel with 0.8-1.0 wire
• aluminum with 1.0-1.2 wire
• flux-cored wire 1.0-1.2
• self-shielding wire without gas 0.9
• CUSI-CUSN wire - 0.8-1.0

with the possibility of manual parameter correction.

Single pulse welding:

• carbon steel with 0.8-1.0 wire
• stainless steel with 0.8-1.0 wire
• ALSI-ALMG aluminum with 1.0-1.2 wire
• CUSI brazing with 0.8-1.0 wire

Double pulse welding:

• carbon steel with 0.8-1.0 wire
• stainless steel 0.8-1.0
• ALSI-ALMG aluminum with 1.0-1.2 wire
• CUSI brazing with 0.8-1.0 wire

ADVANTAGES OF THE SPARTUS EASY MIG 227 LCD Dual Pulse:

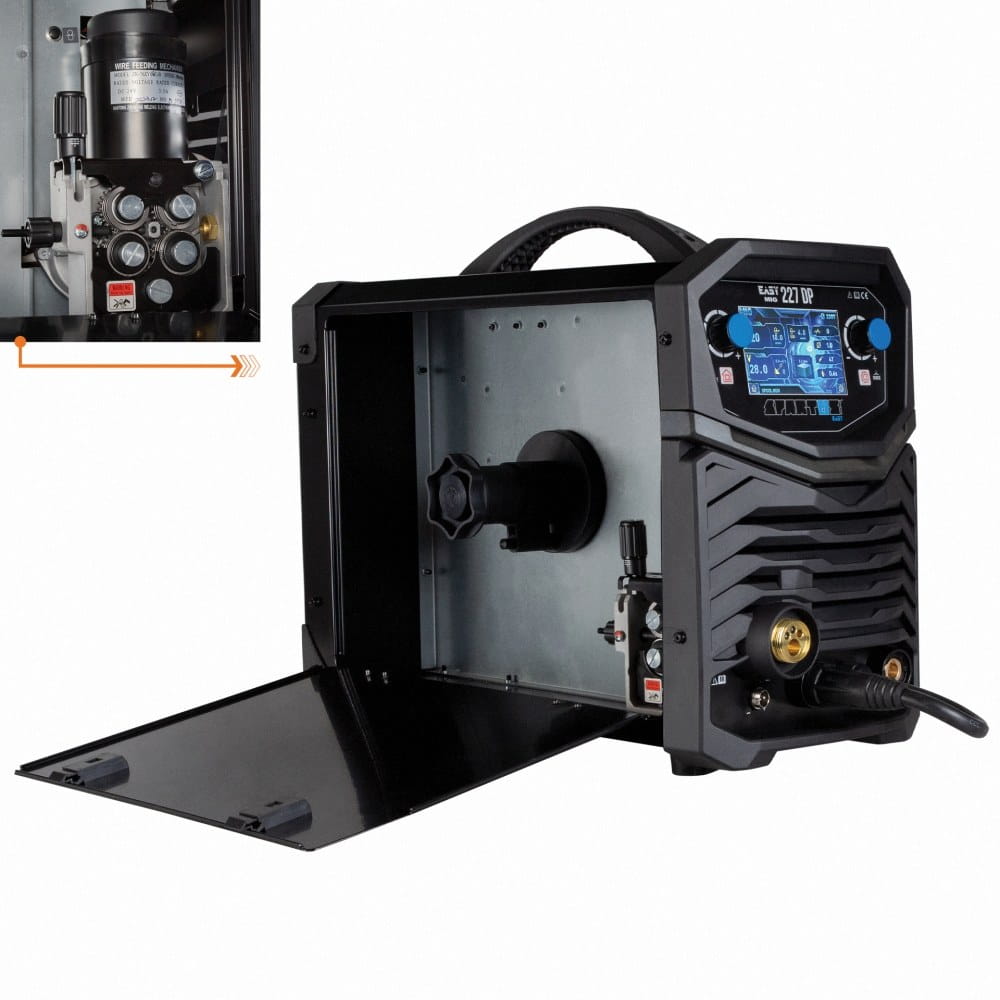

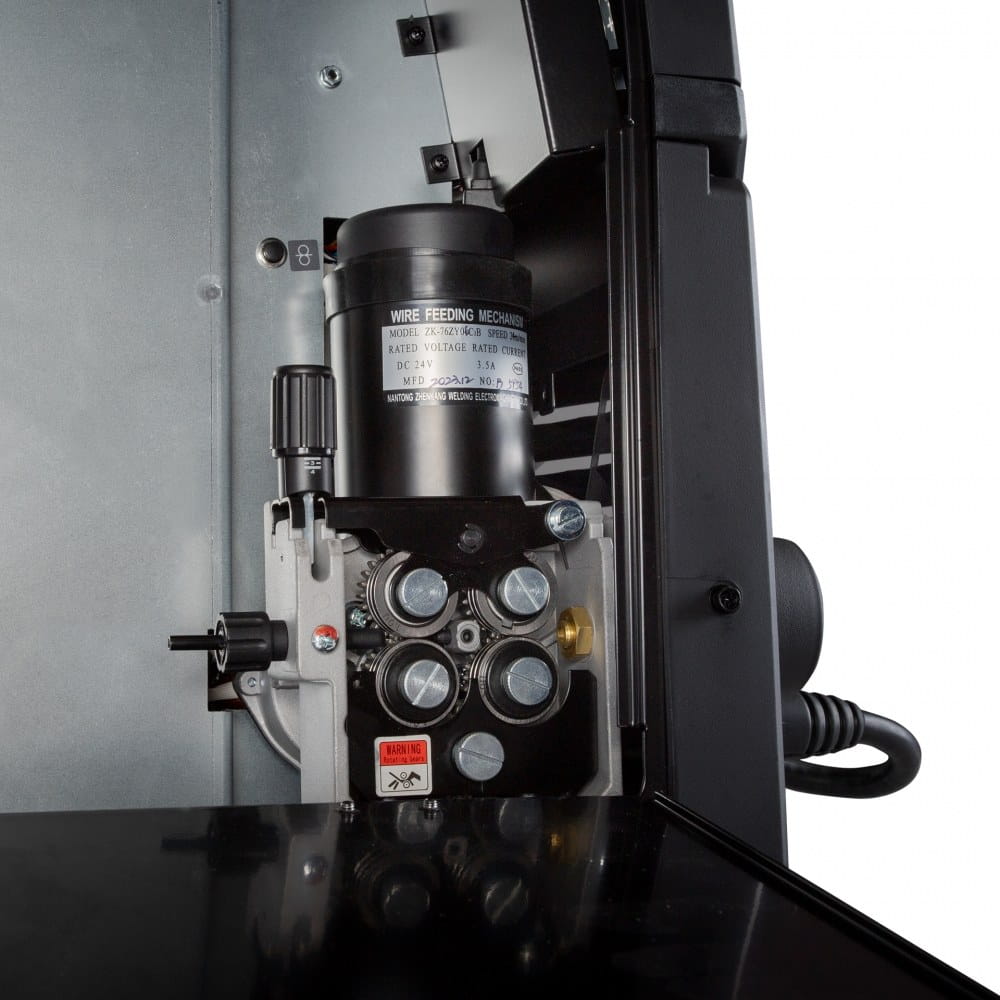

POWERFUL 4R FEEDER (four-roll) enables the use of welding torches up to 5 m long.

VERSATILE MATERIAL SELECTION - possibility of using 15kg and 5kg spools.

IGBT TRANSISTORS offer a stronger, more concentrated and more stable arc with lower energy consumption.

220A WELDING CURRENT enables welding of materials up to 10 mm.

SINGLE PULSE - enables welding that minimizes material distortion by introducing a lower temperature into the welded material. Sheets do not deform and it is easier to weld more demanding materials. Single pulse also reduces the amount of spatter and provides much better bead aesthetics. Welding with pulse saves time because we do not have to process the weld or clean the material from stuck spatter.

COOL PULSE - the function activates automatically in the 30-40A welding current range. The characteristic of the pulse welding current changes completely, enabling the welding of thin materials. The function facilitates welding of very thin materials of carbon steel, stainless steel and aluminum.

DOUBLE PULSE - enables welding that minimizes material distortion to a minimum by introducing a lower temperature into the welded material than in single pulse. Adjustment is extremely simple and intuitive, which is a great advantage. The ratio of the upper current value to the lower one is set as a percentage. We adjust the duration of the upper current relative to the lower one and vice versa. This is the simplest way of setting parameters that every welder, both amateur and professional, can handle. Thanks to this function, we are able to easily achieve a scale effect like in the TIG method. The function allows for a perfect bead on carbon steel, stainless steel and aluminum.

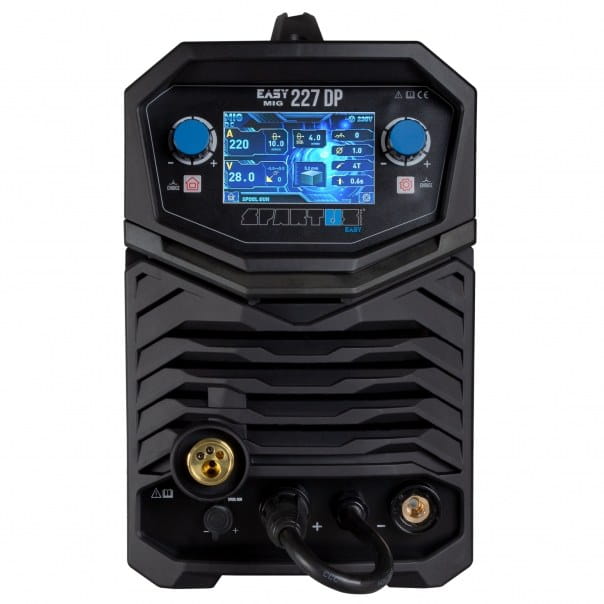

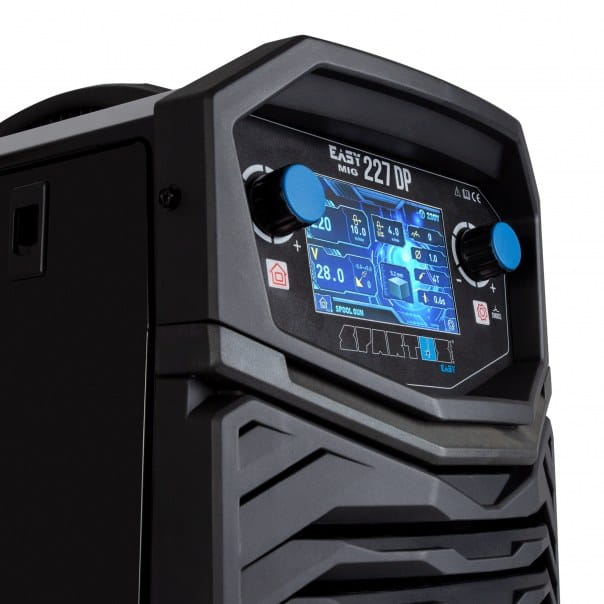

LCD DISPLAY which graphically indicates adjustable parameters. An ideal solution for beginners.

2T-4T are welding modes that facilitate work on short and long welding sections. 2T mode is used for welding short sections because after releasing the microswitch the arc extinguishes immediately; in 4T mode we do not have to hold the microswitch constantly during welding, but only click a second time for the arc to extinguish itself.

PRE-GAS enables faster arc ignition at the start on both low and high welding current values. Essential function for spot tacking thin and thick elements. Pre-gas flow time is adjustable from 0-2 s.

SLOW START slow feeder start is responsible for low wire approach speed to the welded material, so there is no wire "bounce" effect before welding starts. Essential function for spot tacking sheets, e.g., BRAZING.

SYNERGIC PROGRAMS the semi-automatic welder has built-in welding programs, making the welding of demanding materials much easier. We select the appropriate program and can start work. Adjustment of welding voltage and wire feed is done with one knob. We also have the possibility to make corrections to the welding parameters. Voltage correction shows graphically what the weld bead will look like. The weld will be convex or flat depending on the settings.

MANUAL MODE (SP) this function is responsible for manual settings. We can adjust the welding voltage and wire feed separately.

INDUCTANCE adjustable, which is responsible for the amount of heat introduced into the material. Additionally, the adjustment affects the width of the weld bead and the depth of penetration. The function is mainly used for BRAZING with copper alloy wires. Copper alloy wires have a lower melting point, so we can use the semi-automatic welder for spot welding car body sheets.

POLARITY CHANGE gives the possibility of welding with FLUX self-shielding wire without gas.

EURO SOCKET enables the use of various replaceable MIG torches. Torches up to 4 m long can be used with the device.

HOT START consists of a temporary increase in welding current at the moment of arc ignition. This prevents the electrode from sticking in the initial phase of welding. The function enables faster arc ignition with rutile and basic electrodes.

ARC FORCE dynamics shorten the arc length while increasing the welding current, which prevents the arc from extinguishing when the electrode touches the welded material. The function facilitates learning MMA welding.

VRD function turns off the power within milliseconds after welding is finished and reduces the voltage on the coated electrode to a safe level. Particularly useful function when welding in rooms or excavations with high humidity.

TIG LIFT enables welding of steel and stainless steel in an argon shield.

THE DEVICE CAN WELD:

• Carbon steel up to 10 mm
• Stainless steel up to 10 mm
• Aluminum up to 10 mm
• Braze with CUSI3-CUSN wire
• Weld with self-shielding wire (WITHOUT GAS)
• Weld with MMA electrode - with 4 mm diameter
• Weld TIG LIFT carbon steel up to 6 mm

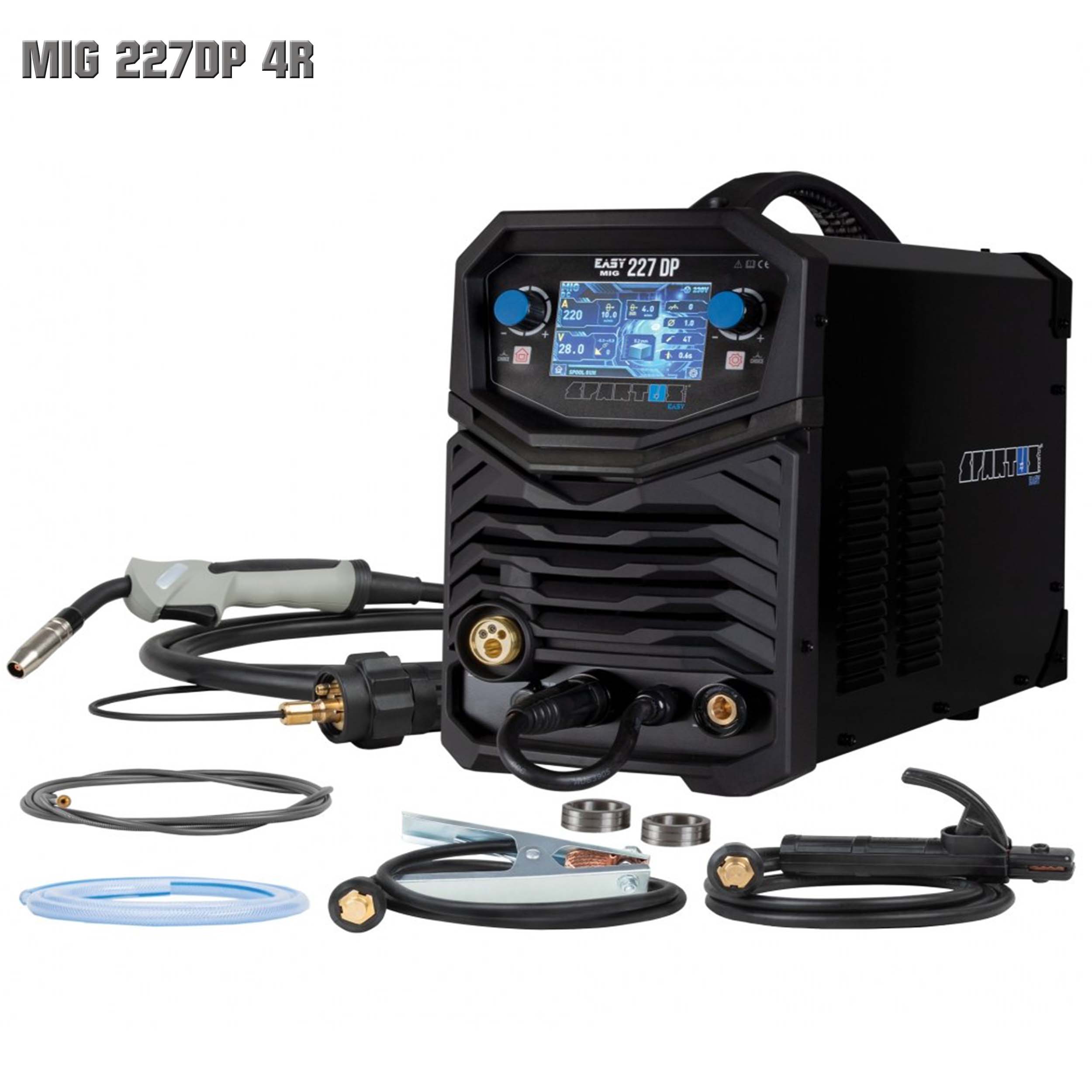

THE SET INCLUDES:

DEVICE EQUIPMENT:

• SPARTUS MIG 227 LCD Dual Pulse
• Welding torch 15/3 m equipped with consumables
• Electrode lead
• Ground lead
• Steel rollers 0.8-1.0 in the feeder - 1 pc
• Steel rollers for aluminum 1.0A-1.2A - 1 pc
• Graphite liner 3m - for welding 0.8-1.0-1.2 wires in pulse
• Steel liner in the torch - 1 pc
• Gas hose - 1 pc
